Mazda CX-9 Grand Touring. Manual - part 445



Does the temperature adjust individually for driver seat and
front passenger seat?

No

symptoms, then repeat

from Step 1 if malfunction

recurs.



2008 Mazda CX-9 Grand Touring

2008 HVAC Symptom Troubleshooting (HVAC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:14:51 AM

Page 36

© 2005 Mitchell Repair Information Company, LLC.

2008 HVAC

Basic System - Mazda CX-9

HVAC BASIC SYSTEM LOCATION INDEX



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:12:03 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

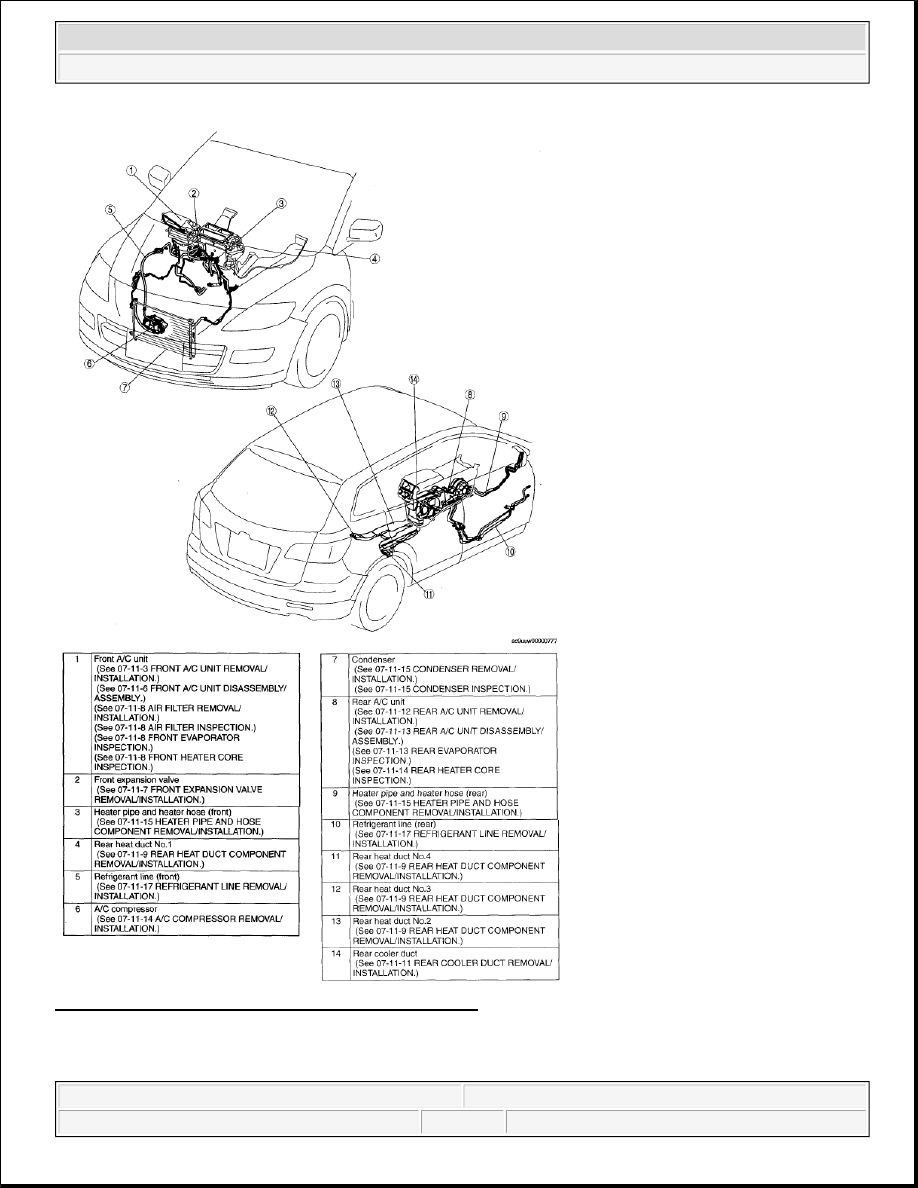

Fig. 1: Identifying HVAC Basic System Location Index

FRONT A/C UNIT REMOVAL/INSTALLATION



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. Discharge the refrigerant. (See REFRIGERANT CHARGING .)

3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7] .)

4. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION .)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

5. Dashboard undercover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

6. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

7. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)

8. Console cover (See CONSOLE COVER REMOVAL/INSTALLATION .)

9. Console (See CONSOLE REMOVAL/INSTALLATION .)

10. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

11. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

12. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

13. Hood release lever (See HOOD LATCH AND RELEASE LEVER

REMOVAL/INSTALLATION .)

14. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

15. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

16. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

17. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

18. Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION .)

19. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)

20. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)

21. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

22. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)

23. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

24. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

25. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)

5. Disconnect the front door wiring harness connector (Driver side). (See FRONT DOOR MODULE

REMOVAL/INSTALLATION .)

6. Remove the brake switch from the brake pedal with the brake switch connector connected. (See BRAKE

PEDAL REMOVAL/INSTALLATION .)

7. Remove the selector lever component. (See SELECTOR LEVER COMPONENT

REMOVAL/INSTALLATION .)

8. Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.
