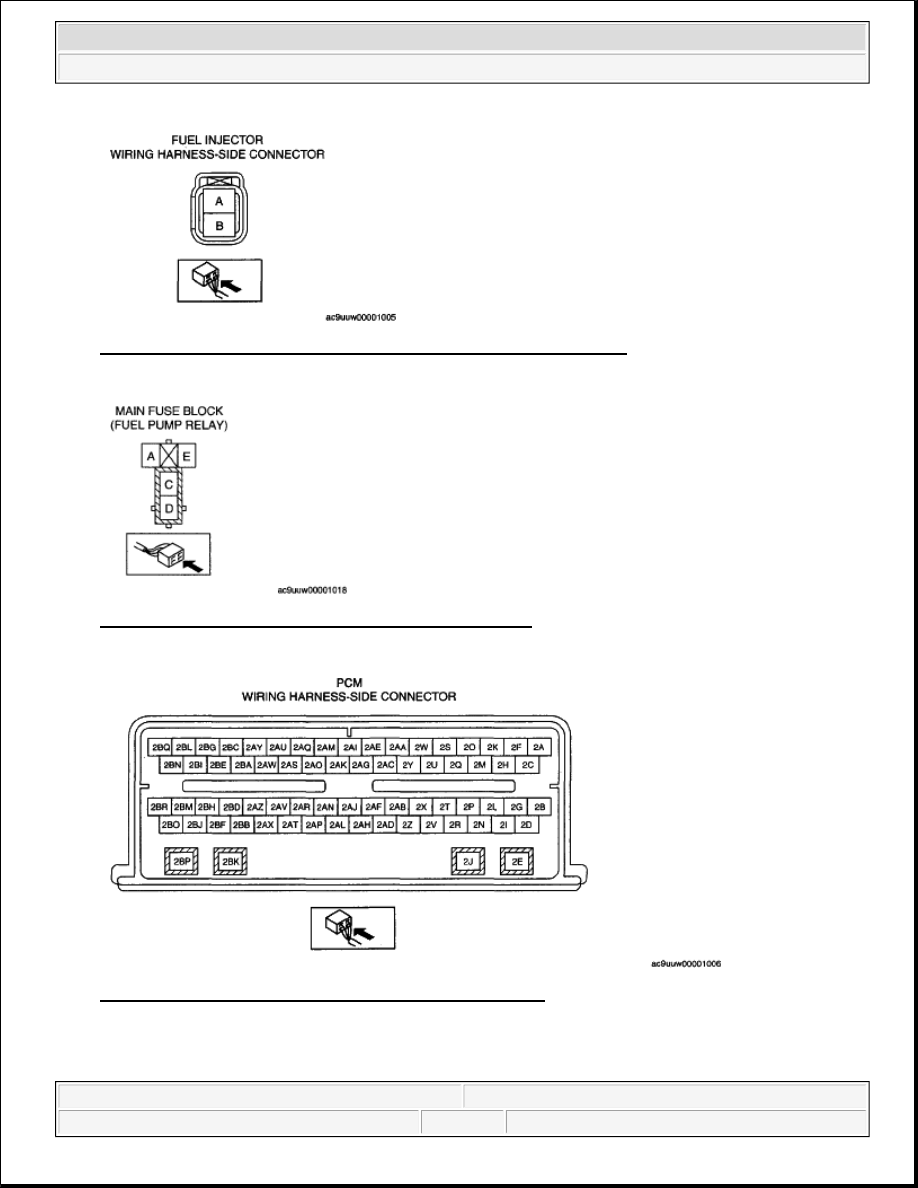

Fig. 48: Identifying Fuel Pump Unit Wiring Harness-Side Connector
Courtesy of MAZDA MOTORS CORP.

Fig. 49: Identifying Main Fuse Block (Fuel Pump Relay)
Courtesy of MAZDA MOTORS CORP.

Fig. 50: Identifying PCM Wiring Harness-Side Connector
Courtesy of MAZDA MOTORS CORP.

Open circuit



2008 Mazda CX-9 Grand Touring

2008 ENGINE Fuel System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:00:01 AM

Page 36

© 2005 Mitchell Repair Information Company, LLC.



If there is no continuity, the circuit is open. Repair or replace the harness.



No.1 cylinder fuel injector terminal A and PCM terminal 2BJ



No.2 cylinder fuel injector terminal A and PCM terminal 2BM



No.3 cylinder fuel injector terminal A and PCM terminal 2BF



No.4 cylinder fuel injector terminal A and PCM terminal 2BH



No.5 cylinder fuel injector terminal A and PCM terminal 2BB



No.6 cylinder fuel injector terminal A and PCM terminal 2BD



No.1 cylinder fuel injector terminal B and fuel pump relay terminal D



No.2 cylinder fuel injector terminal B and fuel pump relay terminal D



No.3 cylinder fuel injector terminal B and fuel pump relay terminal D



No.4 cylinder fuel injector terminal B and fuel pump relay terminal D



No.5 cylinder fuel injector terminal B and fuel pump relay terminal D



No.6 cylinder fuel injector terminal B and fuel pump relay terminal D

Short circuit



If there is continuity, the circuit is short. Repair or replace the harness.



No.1 cylinder fuel injector terminal A and body ground



No.2 cylinder fuel injector terminal A and body ground



No.3 cylinder fuel injector terminal A and body ground



No.4 cylinder fuel injector terminal A and body ground



No.5 cylinder fuel injector terminal A and body ground



No.6 cylinder fuel injector terminal A and body ground



No.1 cylinder fuel injector terminal B and power supply



No.2 cylinder fuel injector terminal B and power supply



No.3 cylinder fuel injector terminal B and power supply



No.4 cylinder fuel injector terminal B and power supply



No.5 cylinder fuel injector terminal B and power supply



No.6 cylinder fuel injector terminal B and power supply

ATOMIZATION

1. Inspect atomization pattern.



If the atomization is faulty, replace the fuel injector. (See FUEL INJECTOR
REMOVAL/INSTALLATION [MZI-3.7].)



2008 Mazda CX-9 Grand Touring

2008 ENGINE Fuel System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:00:01 AM

Page 37

© 2005 Mitchell Repair Information Company, LLC.

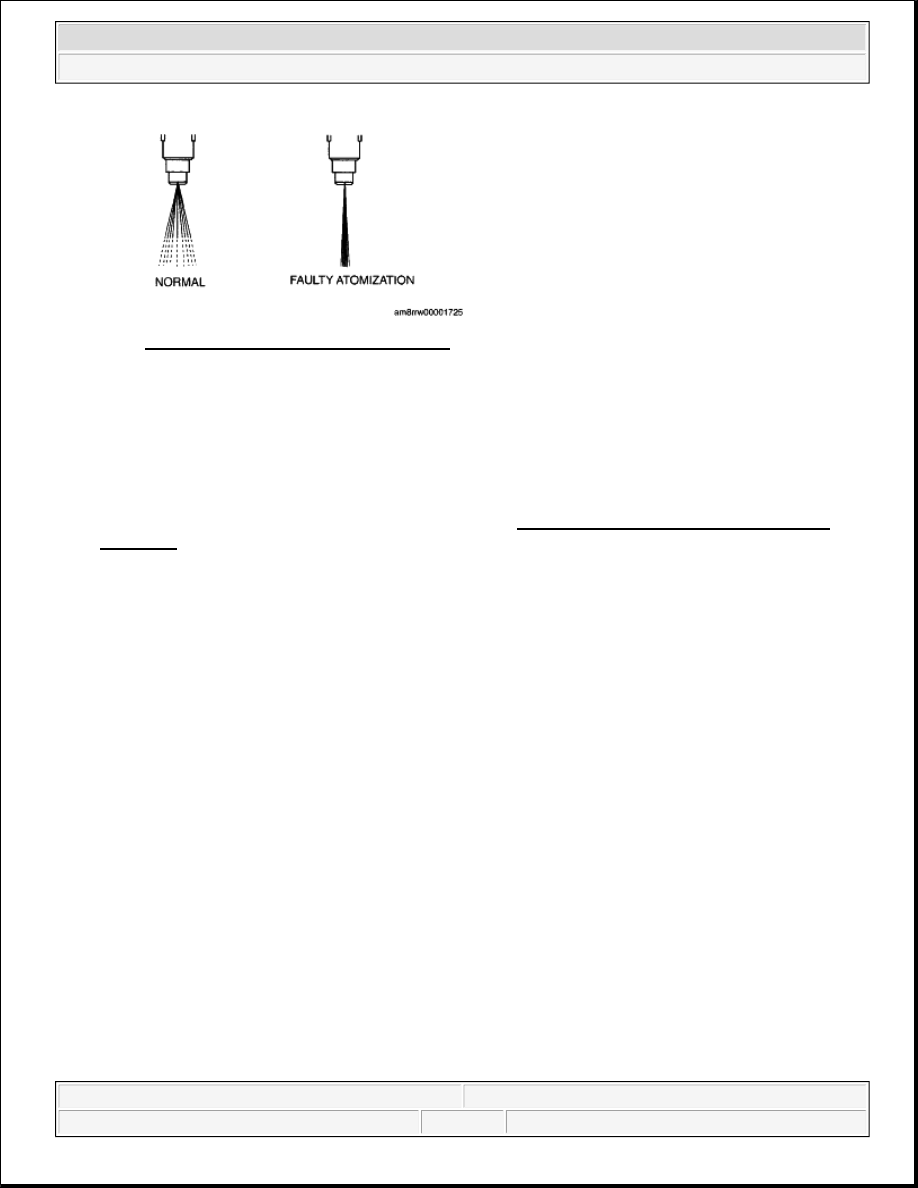

Fig. 51: Inspecting Atomization Pattern
Courtesy of MAZDA MOTORS CORP.

PRESSURE REGULATOR INSPECTION [MZI-3.7]

1. Perform "FUEL LINE PRESSURE INSPECTION". (See FUEL LINE PRESSURE INSPECTION

[MZI-3.7].)

NOTE:



Due to the adoption of the mechanical returnless fuel system, the pressure
regulator cannot be inspected separately.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Fuel System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:00:01 AM

Page 38

© 2005 Mitchell Repair Information Company, LLC.

2008 HVAC

Control System (HVAC) - Mazda CX-9

HVAC CONTROL SYSTEM LOCATION INDEX

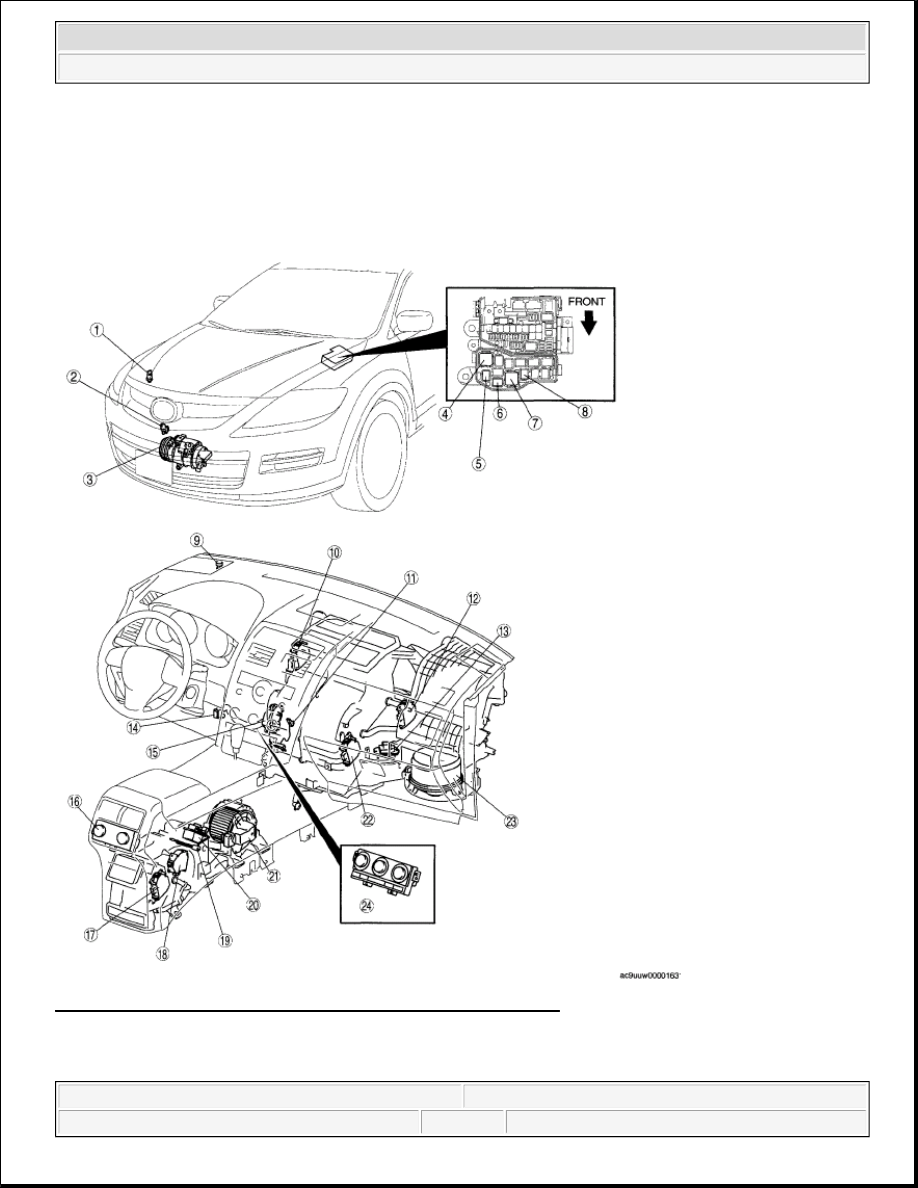

Fig. 1: Identifying HVAC Control System Location Index (1 Of 2)
