1. Using a jack, install steering gear and linkage, front stabilizer, and front crossmember component.

Tightening torque

119.6-154.8 N.m {12.20-15.78 kgf.m, 88.3-114.1 ft.lbf}

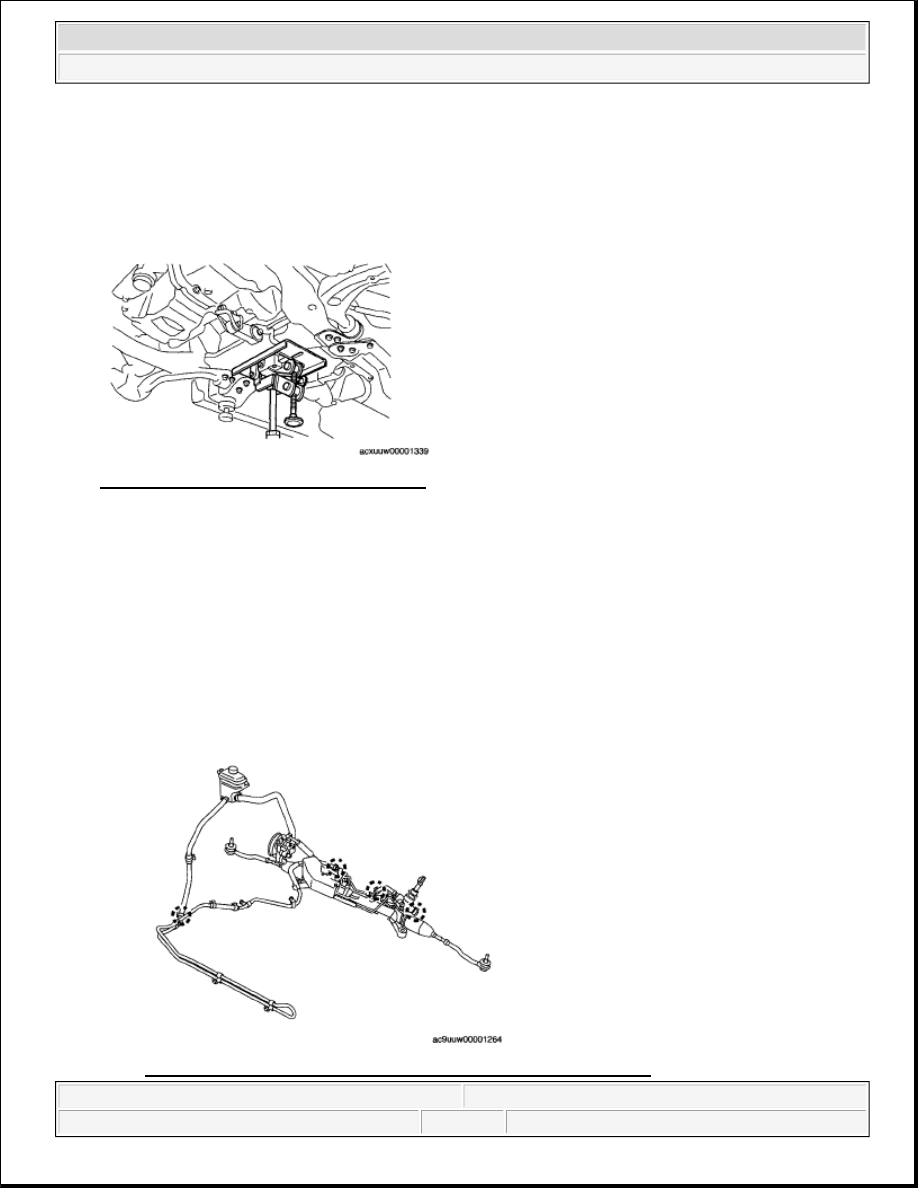

Fig. 27: View Of Steering Gear & Linkage
Courtesy of MAZDA MOTORS CORP.

2. Connect the following parts.



Pressure hose eye connector



Return hose clamp (steering gear side)



Pressure hose bracket



Return hose clamp (tank side)

Tightening torque



Pressure hose eye connector: 29.4-44.1 N.m {3.00-4.49 kgf.m, 21.7-32.5 ft.lbf}

Fig. 28: Identifying Return Hose Clamp & Pressure Hose Bracket



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:23:19 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

3. Tighten the bolts on the No.1 engine mounting bracket in the order of A, B.

Tightening torque

93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

4. Teighten the No.1 engine mount bolt A at the specified torque.

Tightening torque

93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

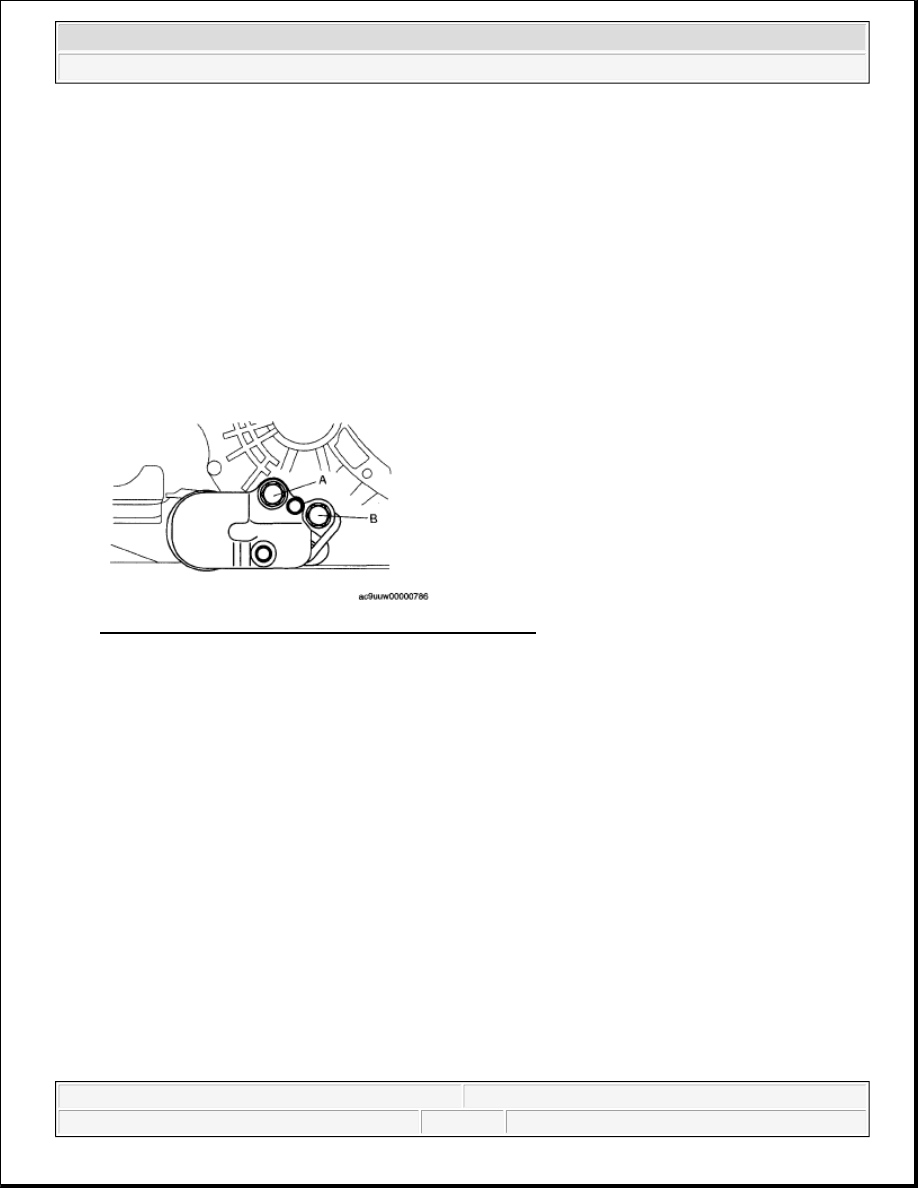

Fig. 29: Identifying No.1 Engine Mounting Bracket Bolts
Courtesy of MAZDA MOTORS CORP.

5. Install the steering gear and linkage, front stabilizer, front lower arm and front crossmember component.

6. Tighten the No.1 engine mount bolt (crossmember side).

Tightening torque 93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

TRANSVERSE MEMBER REMOVAL/INSTALLATION

1. Remove the transverse member.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:23:19 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

Fig. 30: Identifying Transverse Member & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

2. Install the transverse member with the identification mark facing the rear right of the vehicle.

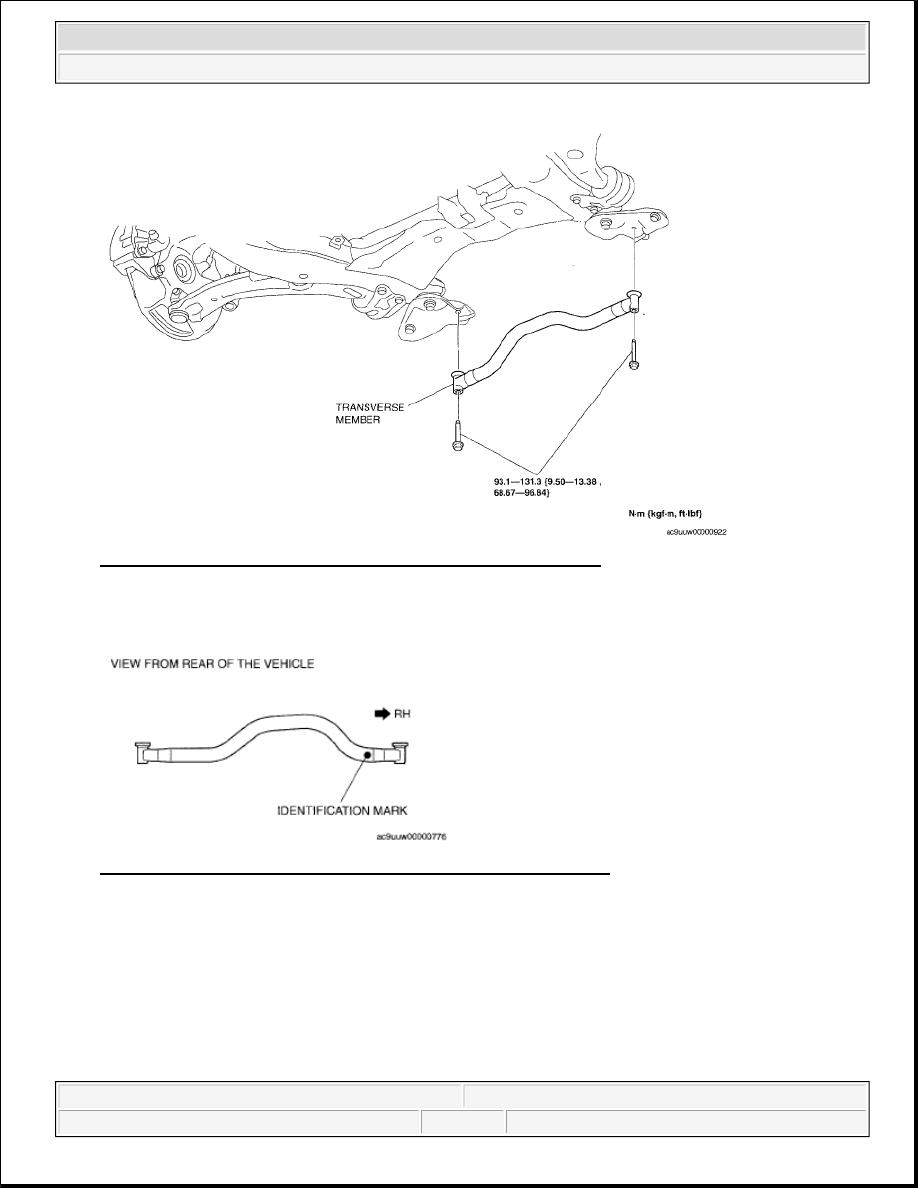

Fig. 31: Identifying Transverse Member With Identification Mark
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:23:19 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

2008 ENGINE

Fuel System (MZI-3.7) - Mazda CX-9

FUEL SYSTEM LOCATION INDEX [MZI-3.7]

ENGINE COMPARTMENT SIDE

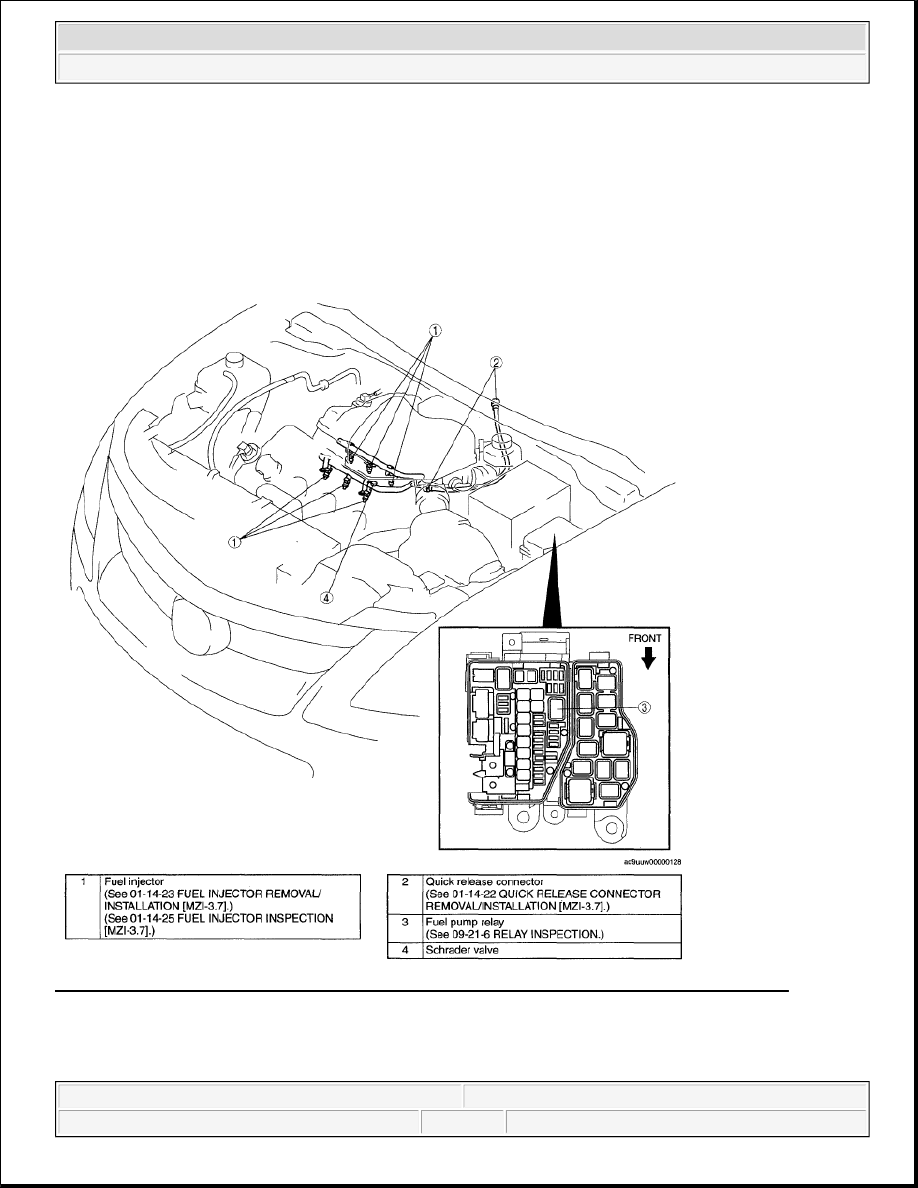

Fig. 1: Identifying Fuel Injector, Quick Release Connector, Fuel Pump Relay & Schrader Valve
Courtesy of MAZDA MOTORS CORP.

FUEL TANK SIDE



2008 Mazda CX-9 Grand Touring

2008 ENGINE Fuel System (MZI-3.7) - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 ENGINE Fuel System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:45 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.
