2008 SUSPENSION

Front Suspension - Mazda CX-9

FRONT SUSPENSION LOCATION INDEX

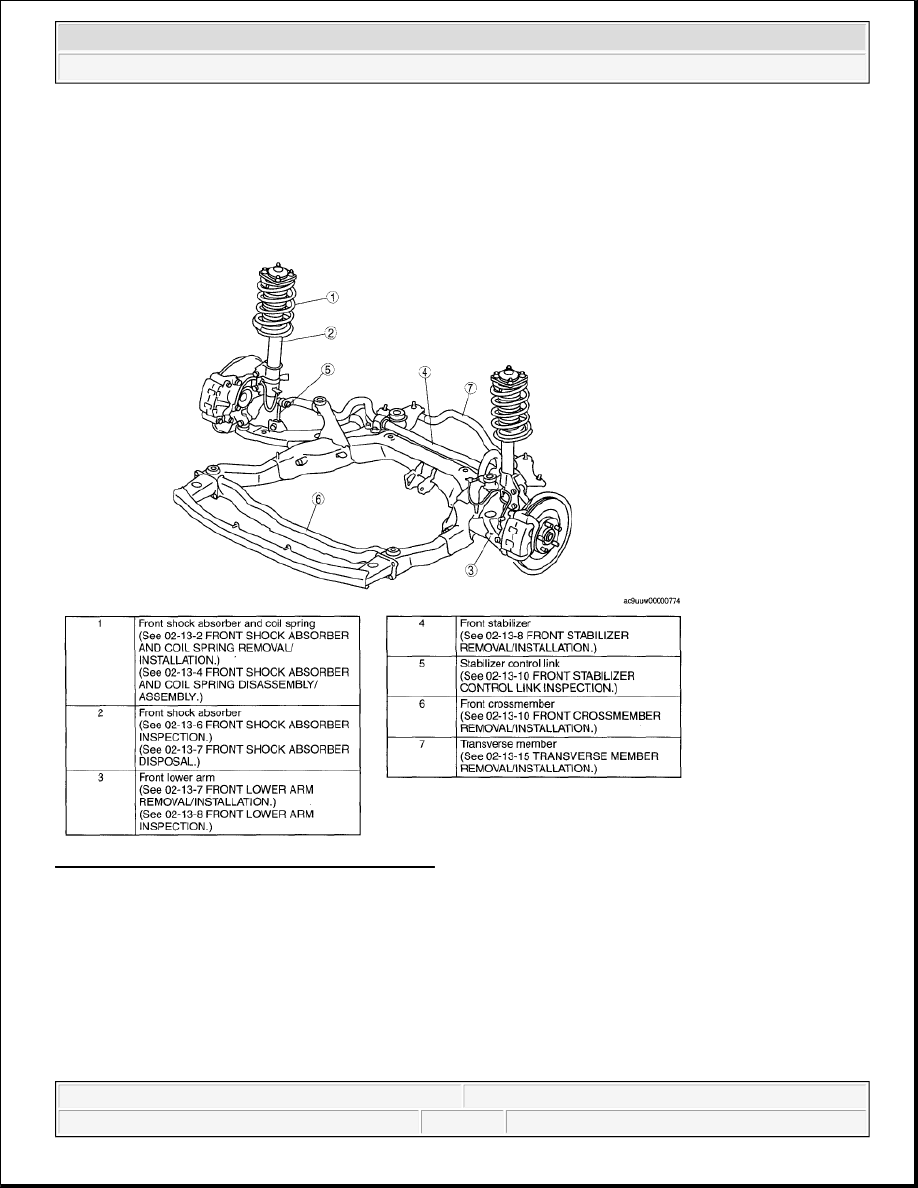

Fig. 1: Identifying Front Suspension Components
Courtesy of MAZDA MOTORS CORP.

FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the
harness if it is pulled by mistake. Before performing the following
procedures, remove the ABS wheel-speed sensor (axle side) and fix it
to an appropriate place where the sensor will not be pulled by



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:23:19 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:23:23 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

1. When working on the left side of the vehicle, remove the wiper arm (LH). (See WINDSHIELD WIPER

MOTOR REMOVAL/INSTALLATION .)

2. When working on the left side of the vehicle, partially peel back the cowl grille (LH).

3. When working on the right side of the vehicle, partially peel back the cowl grille (RH).

4. Remove the front fender molding. (See COWL GRILLE REMOVAL/INSTALLATION .)

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

7. Inspect for front wheel alignment, and adjust it as necessary. (See FRONT WHEEL ALIGNMENT .)

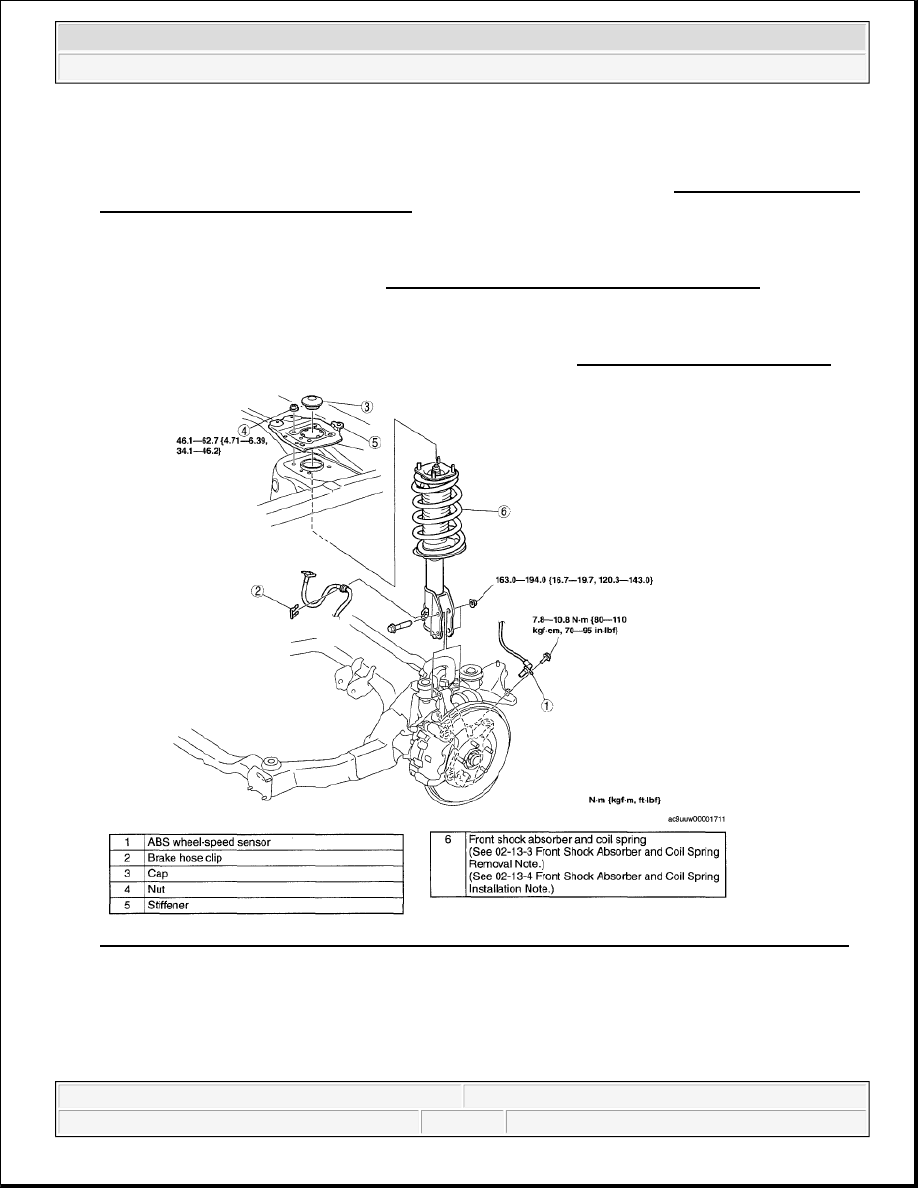

Fig. 2: Identifying ABS-Wheel-Speed Sensor, Brake Hose Clip, Cap, Nut & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL NOTE

1. Make a mark on the body aligning the identification mark on the mounting rubber before removing the

front shock absorber and coil spring.

mistake while servicing the vehicle.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:23:19 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

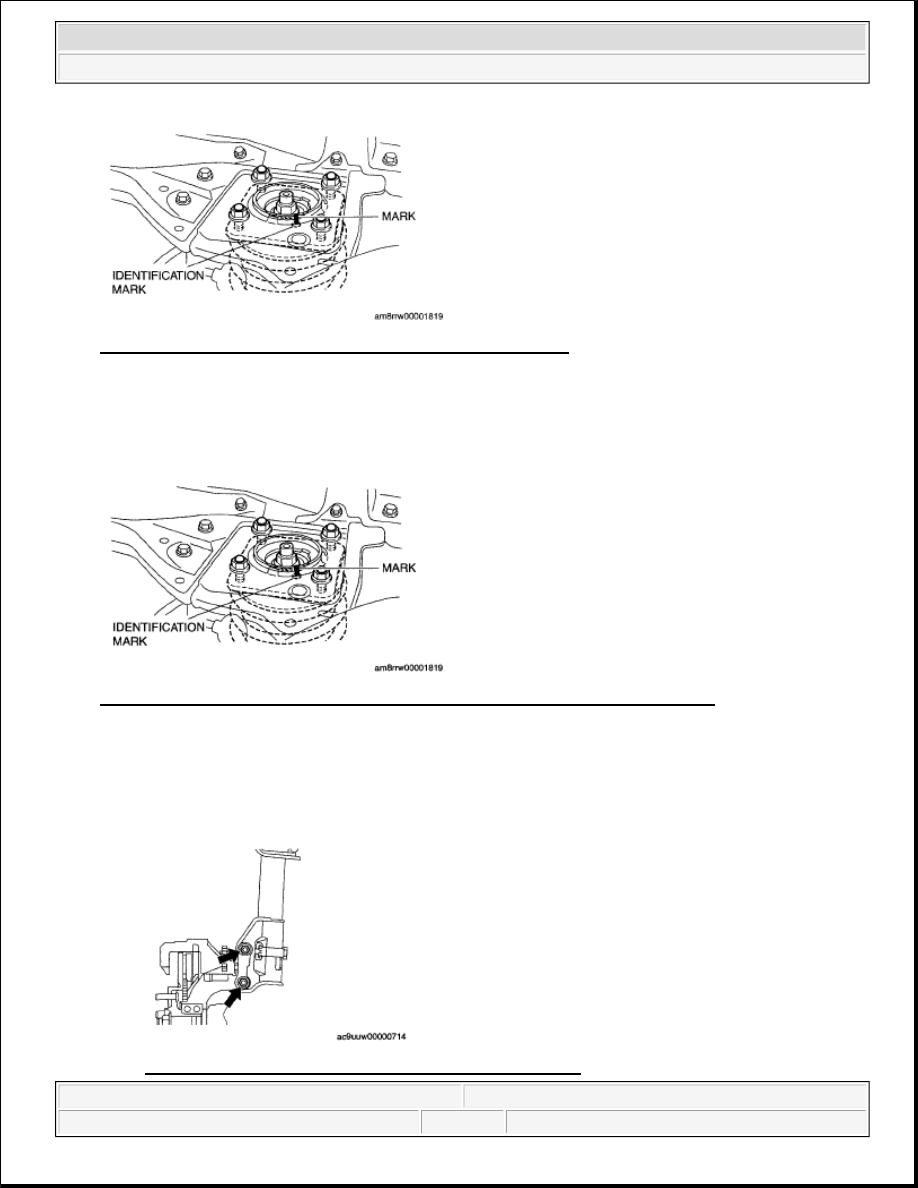

Fig. 3: Identifying Identification Mark On Mounting Rubber
Courtesy of MAZDA MOTORS CORP.

FRONT SHOCK ABSORBER AND COIL SPRING INSTALLATION NOTE

1. Align the identification mark on the mounting rubber with the mark on the body.

Fig. 4: Aligning Identification Mark On Mounting Rubber With Mark On Body
Courtesy of MAZDA MOTORS CORP.

2. Install the front shock absorber installation bolts from the following directions.



LH: Insert the bolts from the vehicle rear



RH: Insert the bolts from the vehicle front

Fig. 5: Locating Front Shock Absorber Installation Bolts



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Front Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:23:19 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY

1. Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL

SPRING REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassemble.

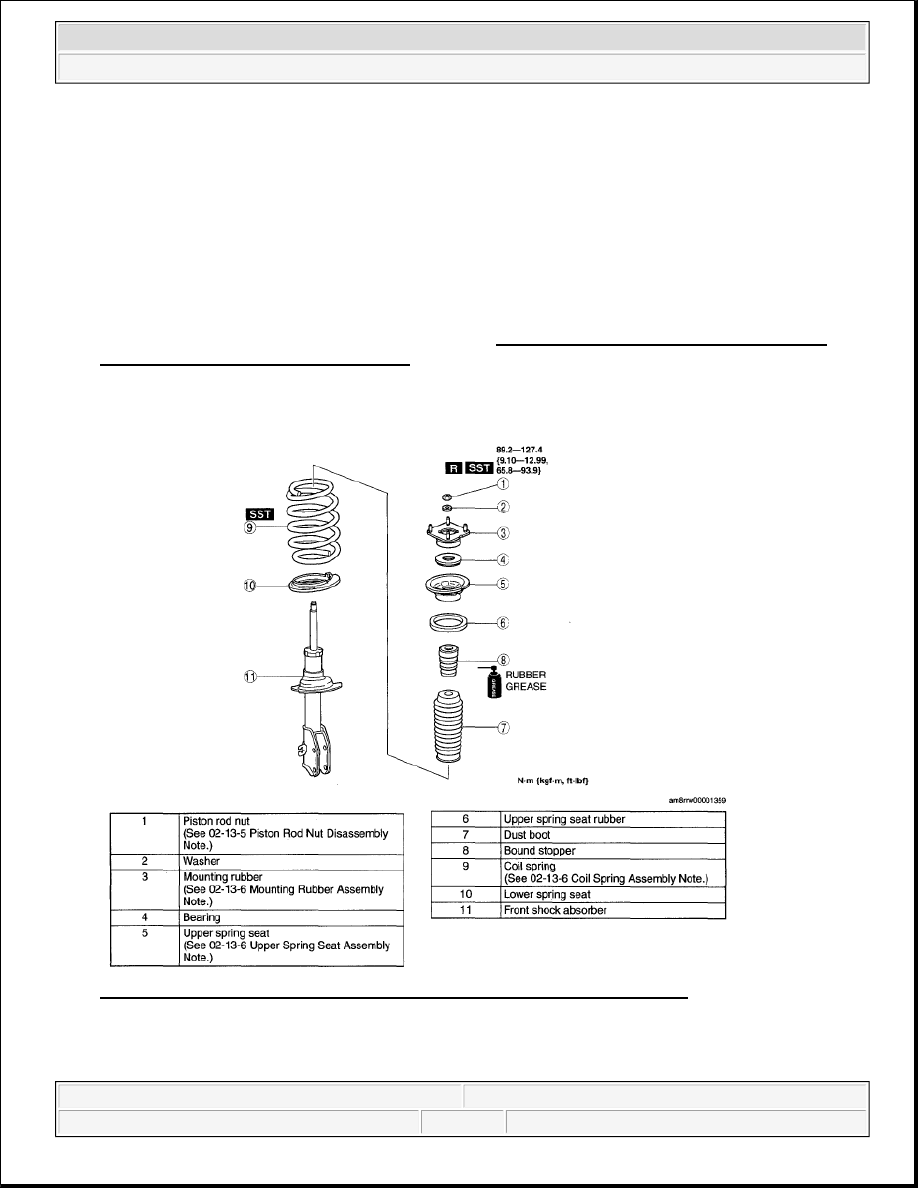

Fig. 6: View Of Front Shock Absorber Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

PISTON ROD NUT DISASSEMBLY NOTE

WARNING:



Removing/installing the piston rod nut is dangerous. The shock
absorber and spring could fly off under tremendous pressure and
cause serious injury or death. Secure the shock absorber in the
SSTs before removing the piston rod nut.
