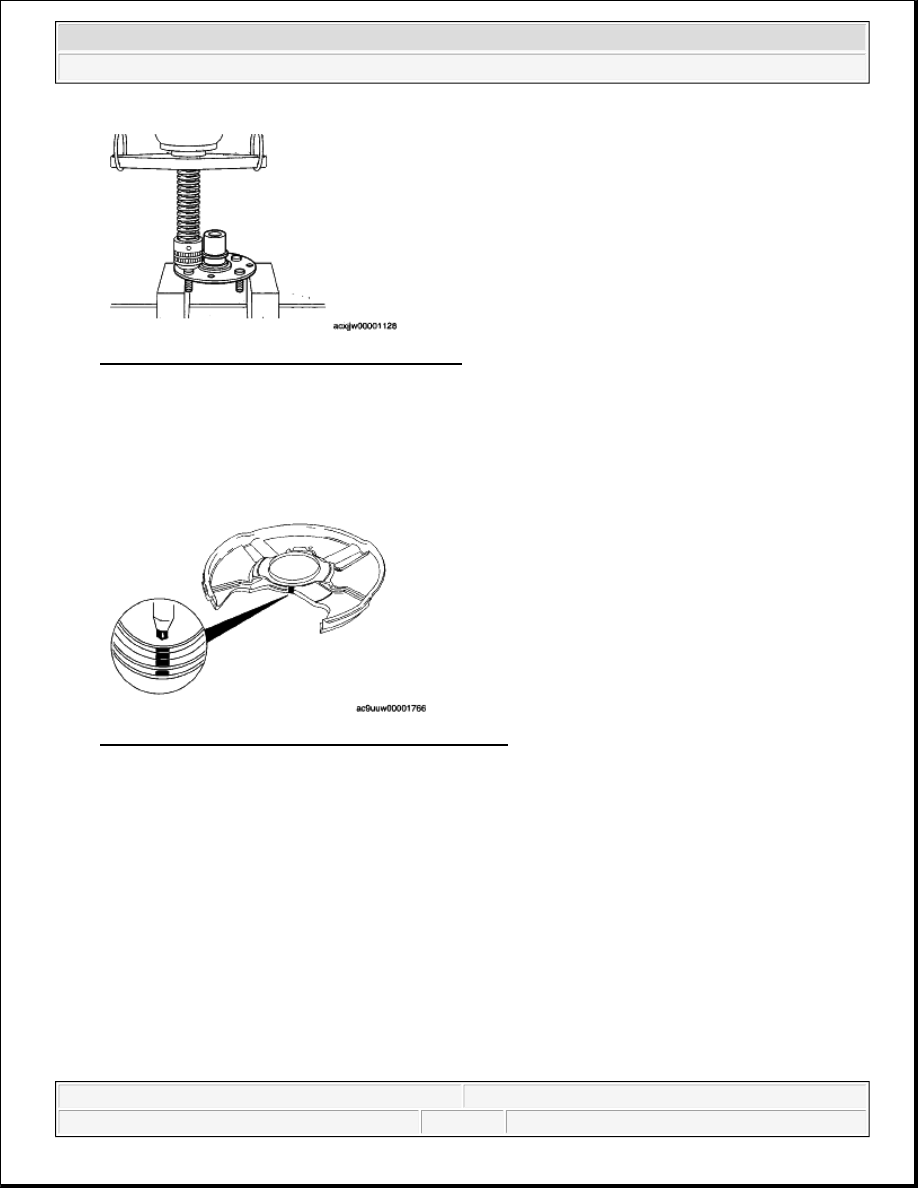

Fig. 13: Pressing Hub Bolt Installation Position
Courtesy of MAZDA MOTORS CORP.

DUST COVER INSTALLATION NOTE

1. Mark the new dust cover in the same way as the removed one.

2. Align the marks of the new dust cover and the knuckle.

Fig. 14: Aligning Marks Of Dust Cover And Knuckle
Courtesy of MAZDA MOTORS CORP.

3. Install the new dust cover using the SSTs.

Substitution SST

49 G033 107 A

Inner diameter: 98-108 mm {3.9-4.2 in}

Tube with board thickness 3 mm {0.2 in} or more

49 F027 009

Outer diameter: 77-82 mm {3.1-3.2 in}



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

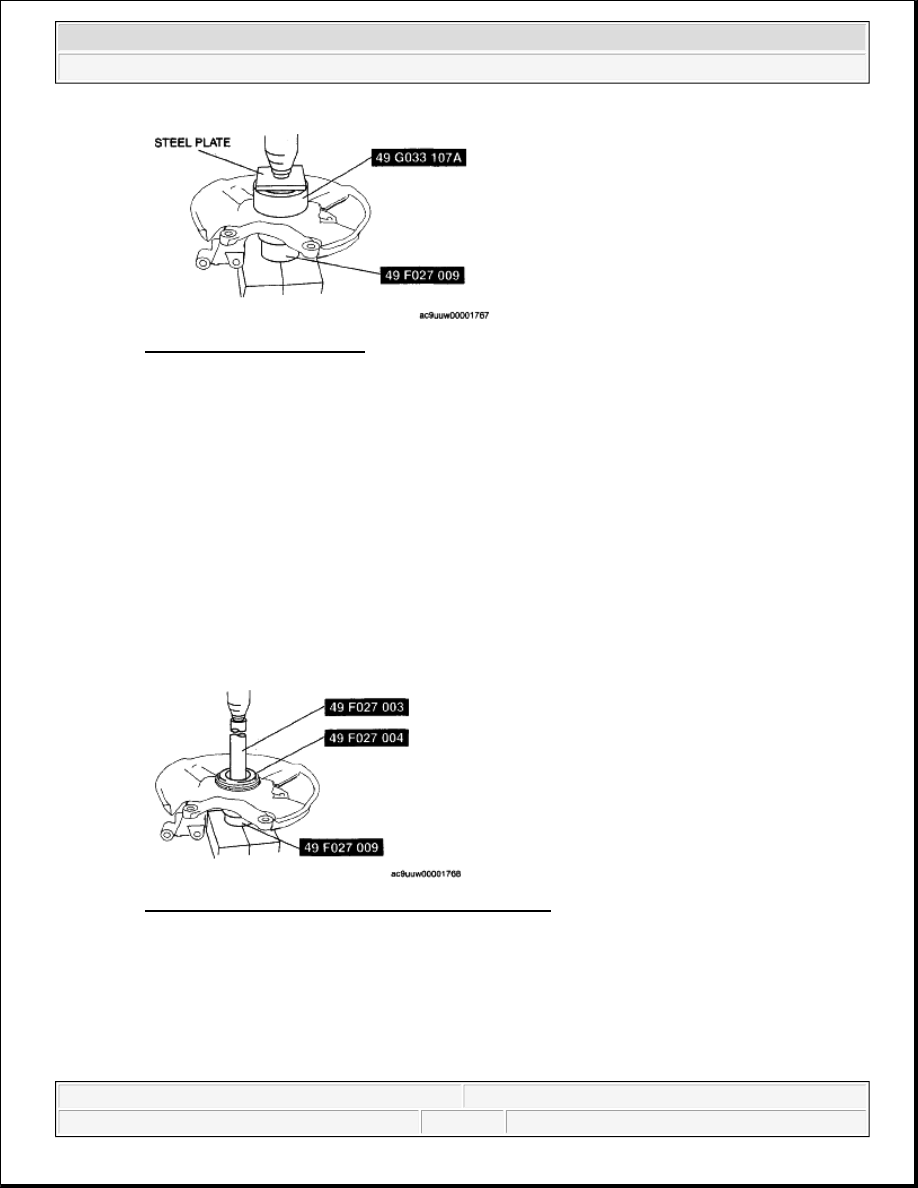

Fig. 15: Pressing Dust Cover
Courtesy of MAZDA MOTORS CORP.

WHEEL BEARING INSTALLATION NOTE

1. Install the new wheel bearing using the SSTs.

Substitution SST

49 F027 004

Outer diameter: 78-83 mm {3.1-3.2 in}

49 F027 009

Outer diameter: 77-82 mm {3.1-3.2 in}

Fig. 16: Pressing Wheel Bearing Installation Position
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB INSTALLATION NOTE

1. Install the wheel hub using the SSTs.

Substitution SST



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

49 G033 105

Outer diameter: 39-48 mm {1.6-1.8 in}

49 B025 004

Outer diameter: 54-63 mm {2.2-2.4 in}

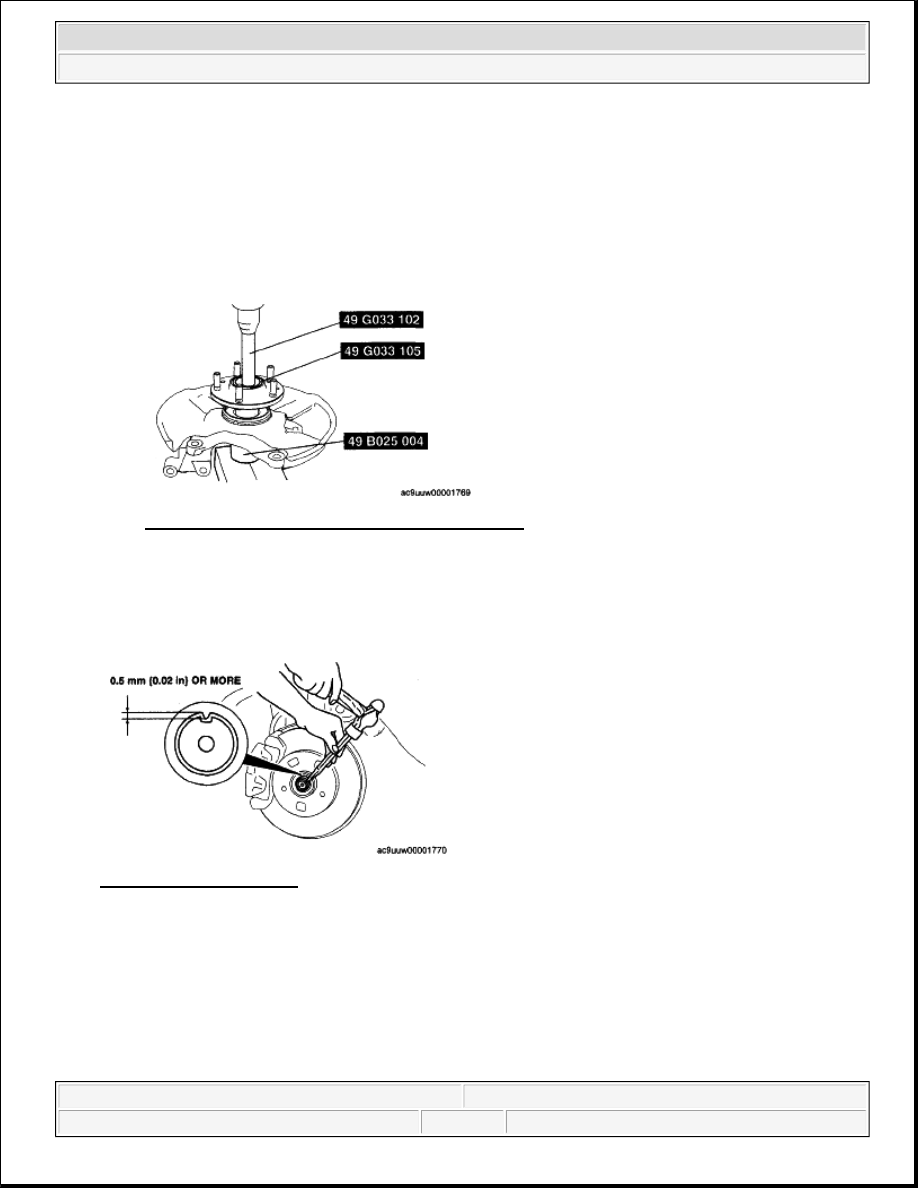

Fig. 17: Pressing Wheel Hub Installation Position
Courtesy of MAZDA MOTORS CORP.

LOCKNUT INSTALLATION NOTE

1. Install a new locknut and stake it as shown.

Fig. 18: Tapping Locknut
Courtesy of MAZDA MOTORS CORP.

FRONT WHEEL HUB BOLT REPLACEMENT

1. Remove the brake calliper component from the steering knuckle and suspend it out of the way using a

cable.

2. Remove the disc plate.

3. Tap the dust cover (the part shown in the figure) with a chisel lightly and bend the processing point back

to the steering knuckle side.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

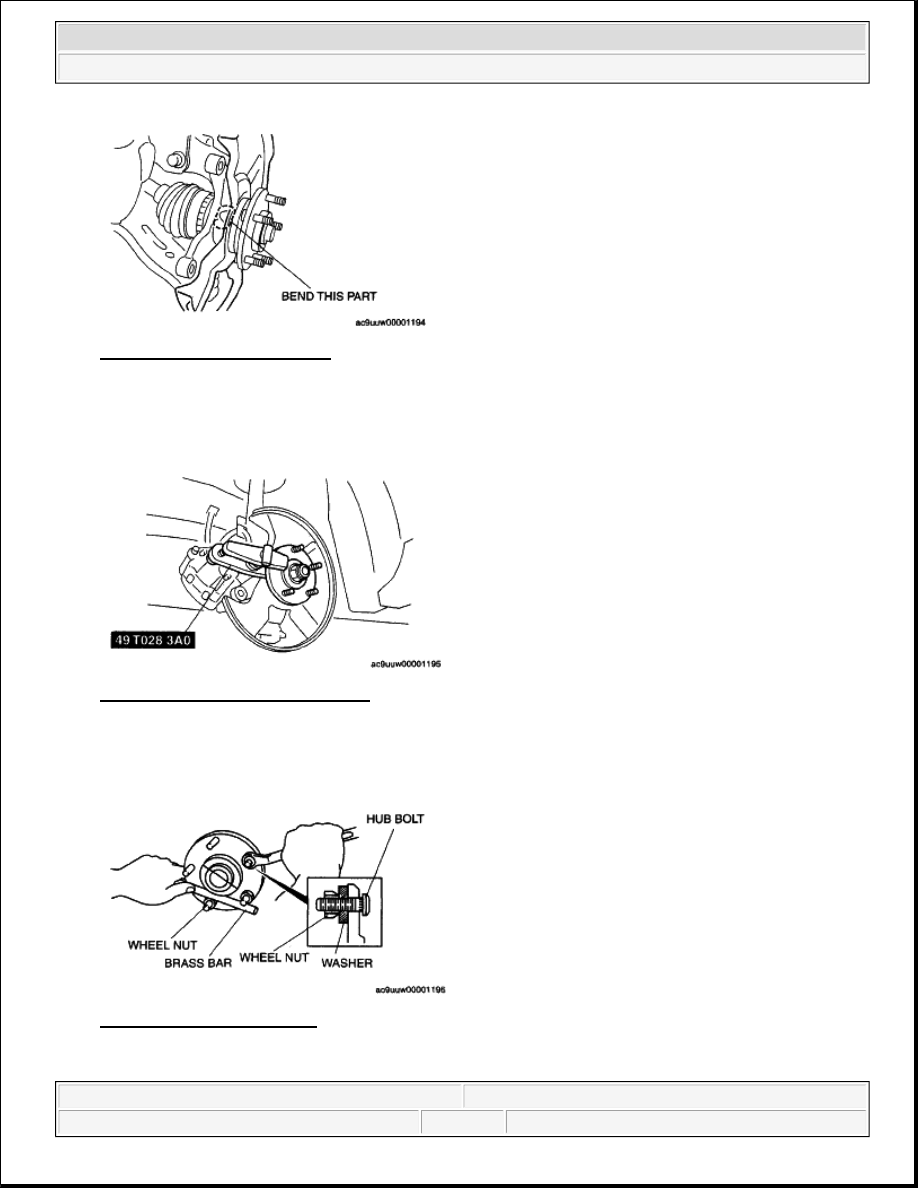

Fig. 19: Identifying Bend Part
Courtesy of MAZDA MOTORS CORP.

4. Remove the wheel hub bolt using the SST as shown in the figure.

5. Place a new wheel hub bolt in the wheel hub.

Fig. 20: Removing Wheel Hub Bolt
Courtesy of MAZDA MOTORS CORP.

6. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the

figure.

Fig. 21: Holding Wheel Hub
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.
