Mazda CX-9 Grand Touring. Manual - part 395





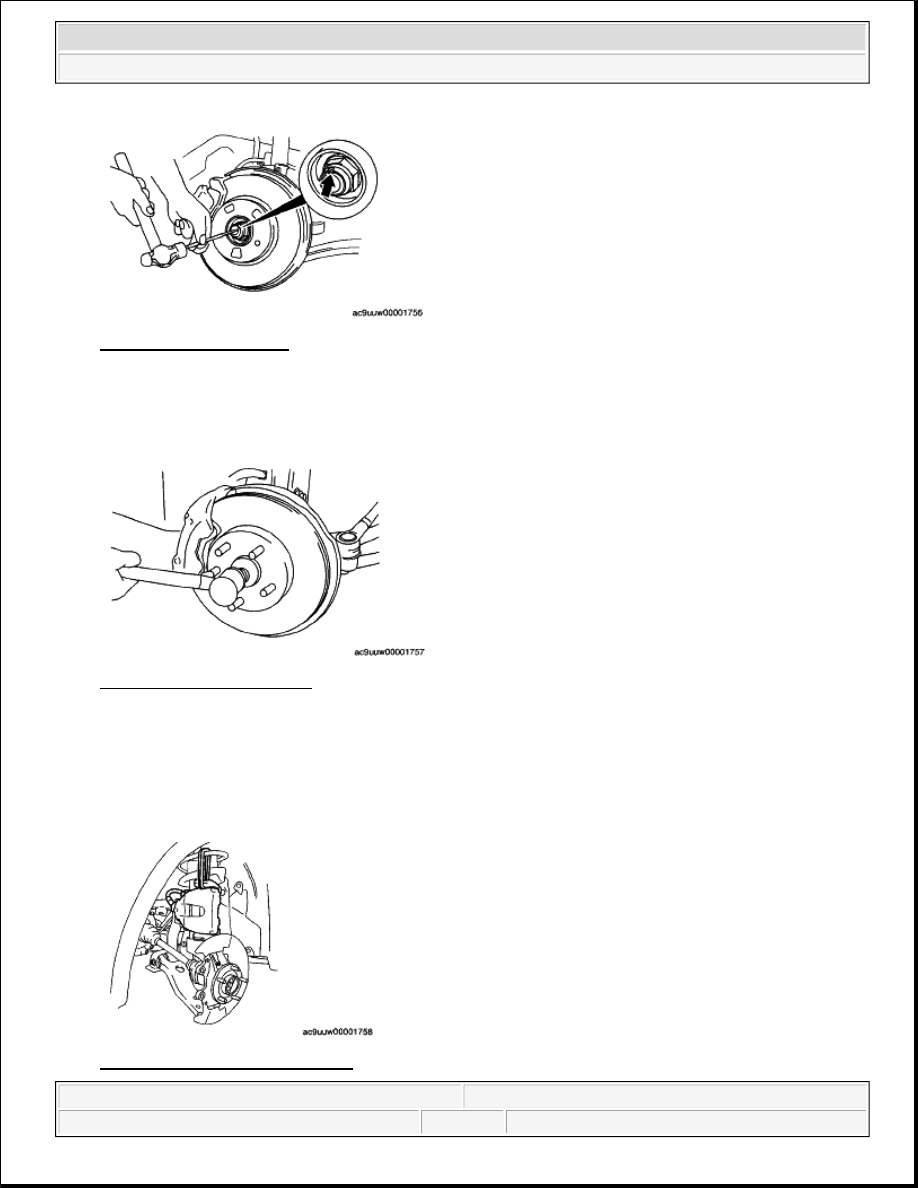

Fig. 4: Tapping Locknut
Courtesy of MAZDA MOTORS CORP.

5. Tap the nut with a copper hammer to loosen the drive shaft from the front wheel hub.

6. Separate the drive shaft from the wheel hub.

Fig. 5: Tapping Drive Shaft
Courtesy of MAZDA MOTORS CORP.

BRAKE CALIPER REMOVAL NOTE

1. Remove the brake caliper component from the steering knuckle and suspend it out of the way using a

cable.

Fig. 6: Identifying Brake Caliper



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

WHEEL HUB REMOVAL NOTE

1. Remove the wheel hub using the SSTs.

Substitution SST

49G033105

Outer diameter: 37-43 mm {1.5-1.6 in}

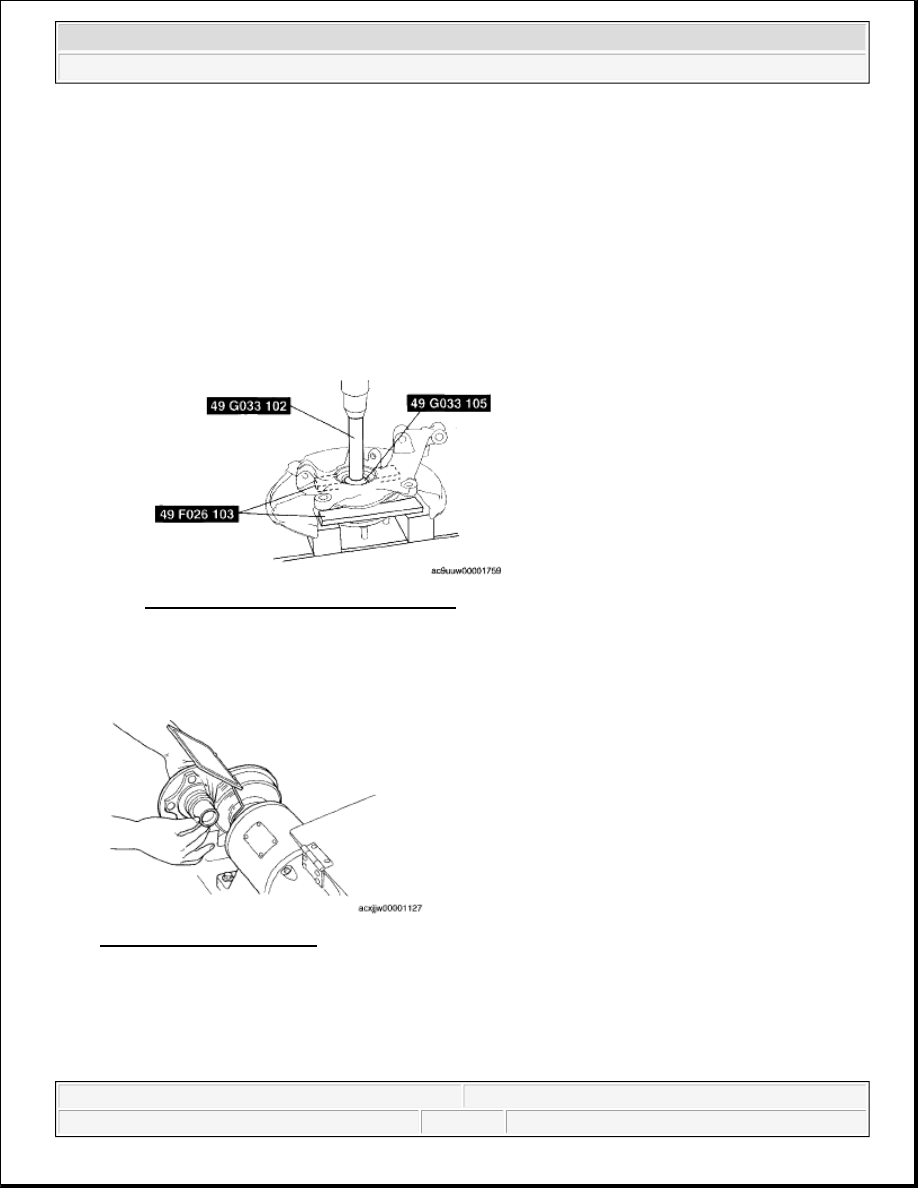

Fig. 7: Removing Wheel Hub With SSTs
Courtesy of MAZDA MOTORS CORP.

2. If the bearing inner race remains on the front wheel hub component, grind a section of the bearing inner

race until approx. 0.5 mm {0.02 in} remains. Then remove it using a chisel.

Fig. 8: Grinding Wheel Hub
Courtesy of MAZDA MOTORS CORP.

WHEEL BEARING REMOVAL NOTE

1. Remove the wheel bearing using the SSTs.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

Substitution SST

49G033 106

Outer diameter: 54-63 mm {2.2-2.4 in}

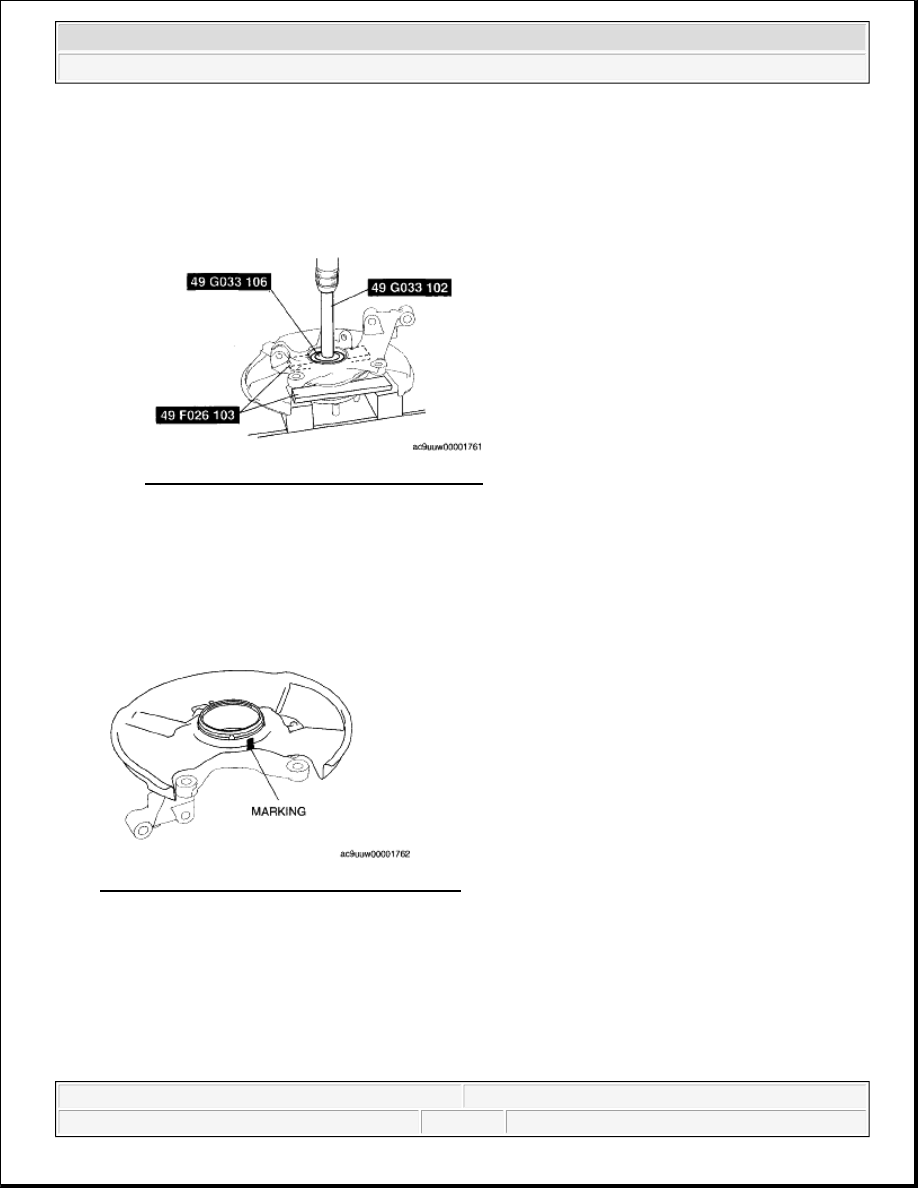

Fig. 9: Removing Wheel Bearing With SSTs
Courtesy of MAZDA MOTORS CORP.

DUST COVER REMOVAL NOTE

1. Mark the dust cover and steering knuckle for proper installation.

Fig. 10: Identifying Dust Cover Mark Location
Courtesy of MAZDA MOTORS CORP.

2. Remove the dust cover using a chisel.

NOTE:

The dust cover does not need to be removed unless it is being replaced.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

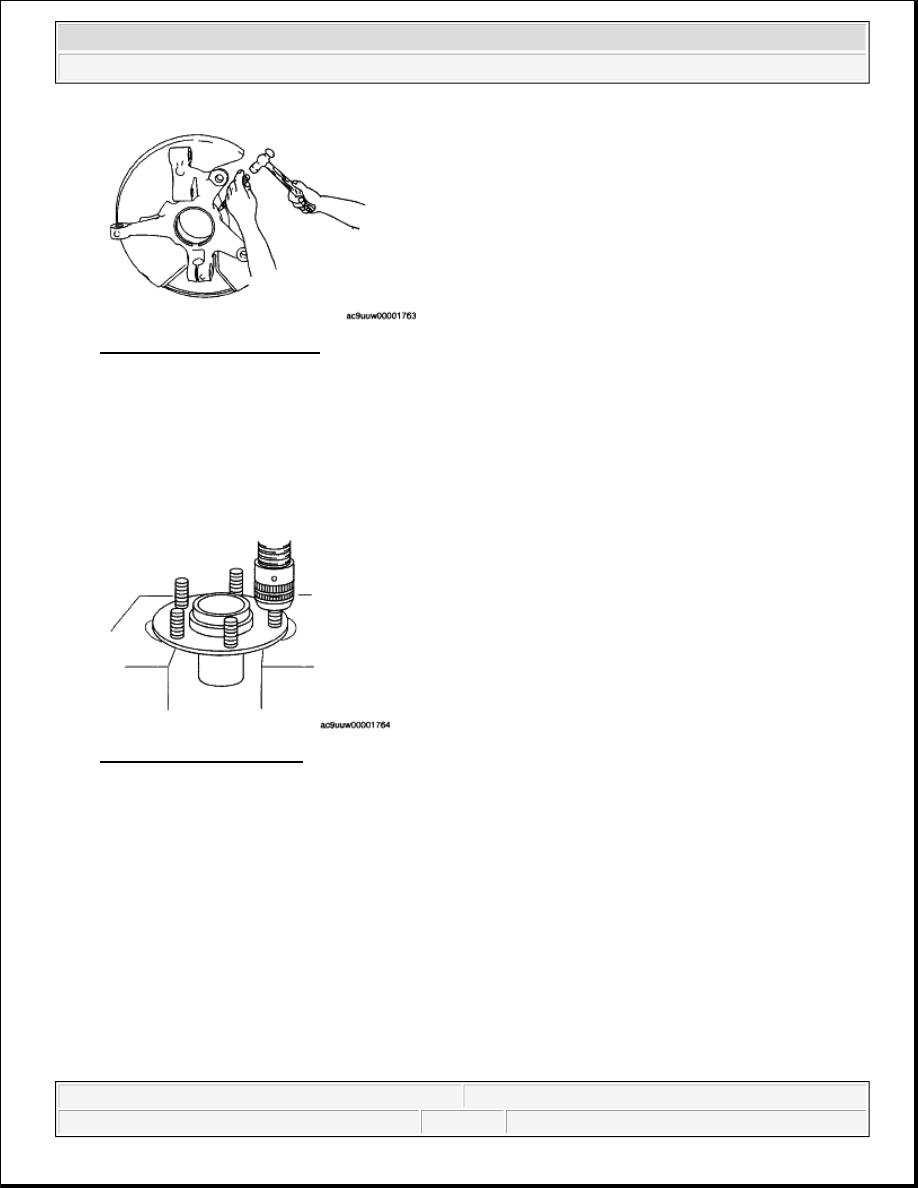

Fig. 11: Tapping Dust Cover
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB BOLT REMOVAL NOTE

1. Remove the hub bolt using a press.

Fig. 12: Pressing Hub Bolt
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB BOLT INSTALLATION NOTE

1. Install the new hub bolt using a press.

NOTE:

The hub bolts do not need to be removed unless they are being replaced.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.
