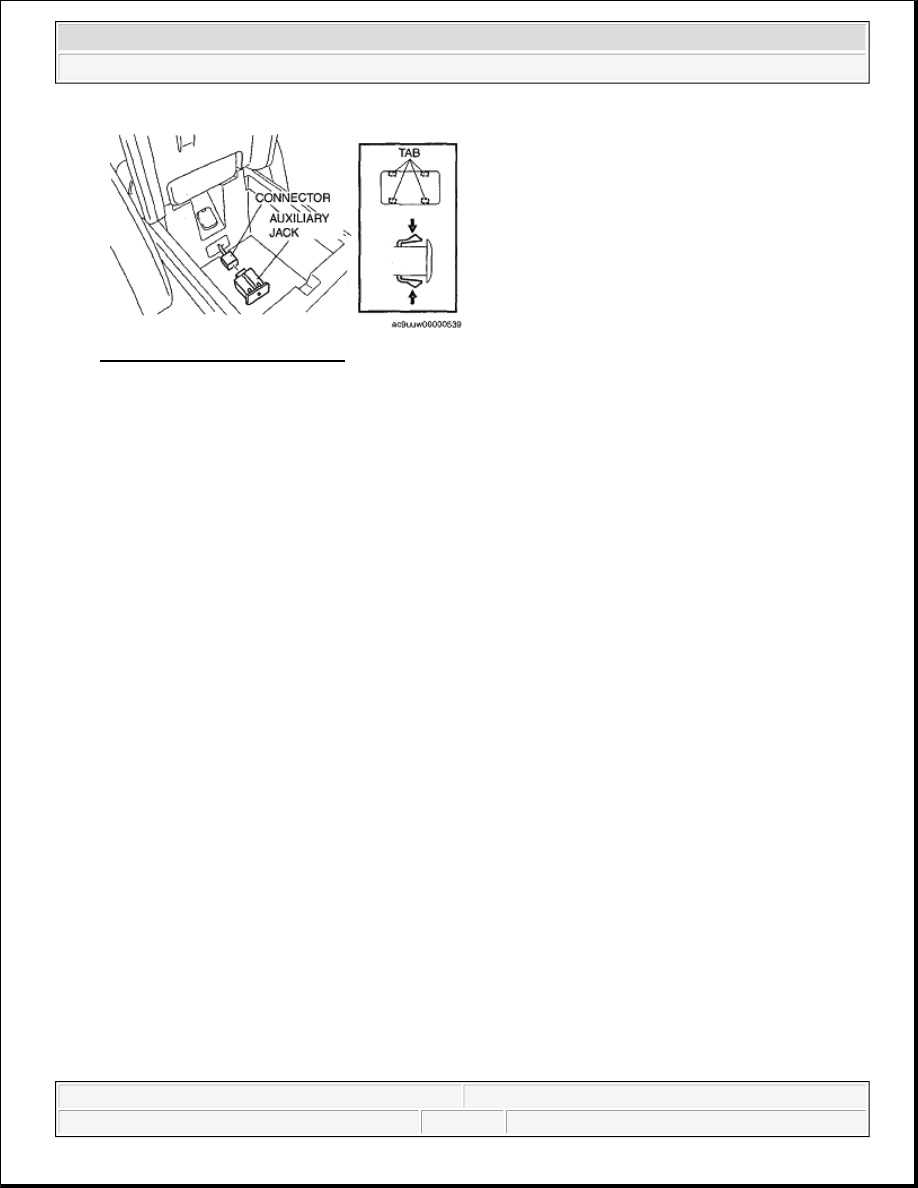

Fig. 71: View Of Auxiliary Jack
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

2008 ENGINE

Exhaust System (MZI-3.7) - Mazda CX-9

EXHAUST SYSTEM INSPECTION [MZI-3.7]

1. Start the engine and inspect each exhaust system component for exhaust gas leakage.



If leakage is found, repair or replace as necessary.

EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)

2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7] .)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

WARNING:



When the engine and exhaust system are hot, they can badly burn.
Turn off the engine and wait until they are cool before removing the
exhaust system.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Exhaust System (MZI-3.7) - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 ENGINE Exhaust System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:59:10 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 9:59:14 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

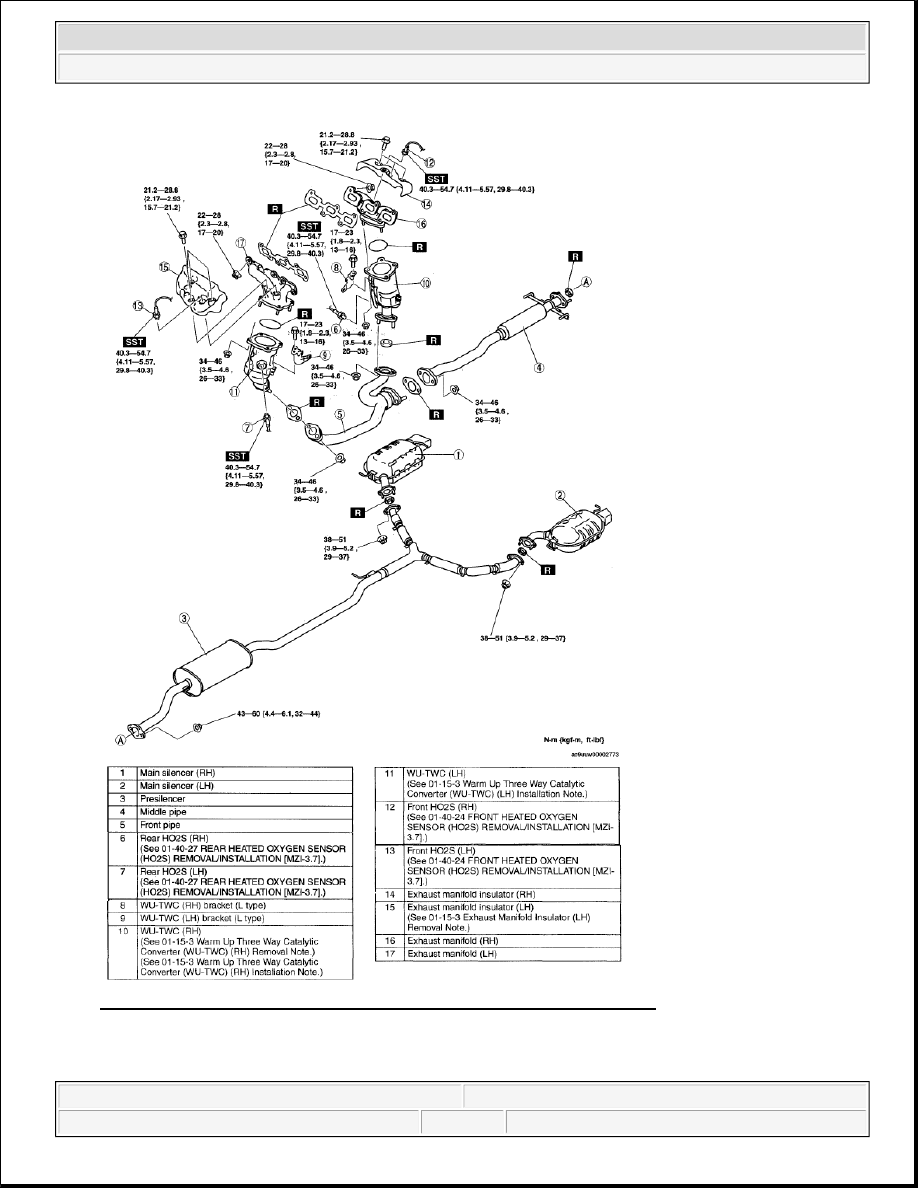

Fig. 1: Exploded View Of Exhaust Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

WARM UP THREE WAY CATALYTIC CONVERTER (WU-TWC) (RH) REMOVAL NOTE



2008 Mazda CX-9 Grand Touring

2008 ENGINE Exhaust System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:59:10 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

2WD

1. Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [2WD] .)

2. Remove the WU-TWC (RH).

AWD

1. Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [AWD] .)

2. Remove the insulator. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

3. Remove the No.1 engine mount (transaxle side). (See ENGINE REMOVAL/INSTALLATION [MZI-

3.7] .)

4. Push up the engine.

5. Remove the WU-TWC (RH).

EXHAUST MANIFOLD INSULATOR (LH) REMOVAL NOTE

1. Set the fan control module out of the way. (See COOLING FAN COMPONENT

REMOVAL/INSTALLATION [MZI-3.7] .)

2. Remove the exhaust manifold Insulator (LH).

WARM UP THREE WAY CATALYTIC CONVERTER (WU-TWC) (LH) INSTALLATION NOTE

1. Install the WU-TWC (LH) insulator.

2. Temporarily tighten WU-TWC (LH) bracket.

3. Temporarily tighten WU-TWC (LH) bracket (L type) (engine side).

4. Install the WU-TWC (LH).

5. Install the WU-TWC (LH) bracket.

6. Install the WU-TWC (LH) bracket (L type).

WARM UP THREE WAY CATALYTIC CONVERTER (WU-TWC) (RH) INSTALLATION NOTE

2WD

1. Install the WU-TWC (RH) insulator.

2. Temporarily tighten WU-TWC (RH) bracket.

3. Temporarily tighten WU-TWC (RH) bracket (L type) (engine side).

4. Install the WU-TWC (RH).

5. Install the WU-TWC (RH) bracket.

6. Install the WU-TWC (RH) bracket (L type).

AWD

1. Install the WU-TWC (RH) insulator.
