6. Install in the reverse order of removal.

HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Passenger side). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION .)

3. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

4. Remove in the order indicated in the table.

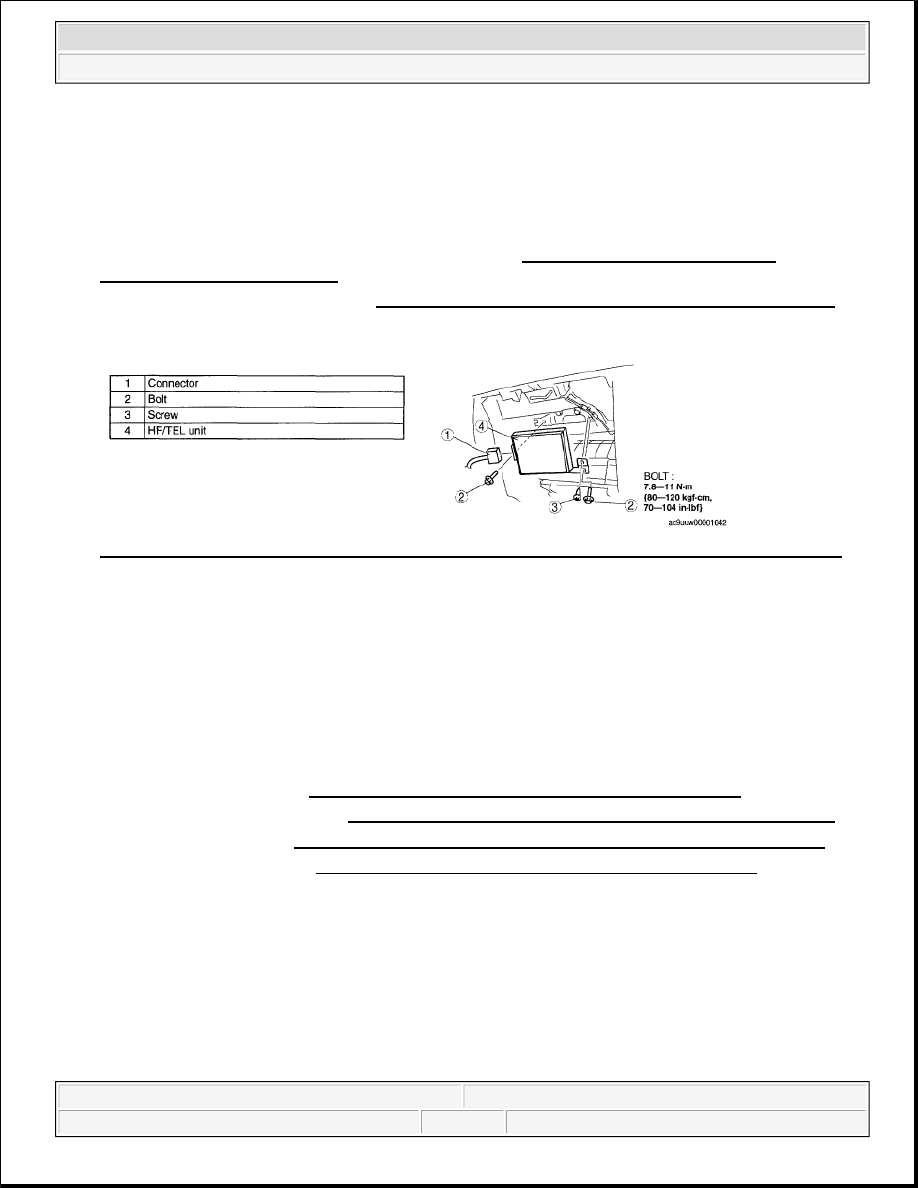

Fig. 64: Identifying Hands-Free Telephone (HF/TEL) Unit Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

ACCESSORY SOCKET REMOVAL/INSTALLATION

FRONT

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)

3. Indicator panel (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 37

© 2005 Mitchell Repair Information Company, LLC.

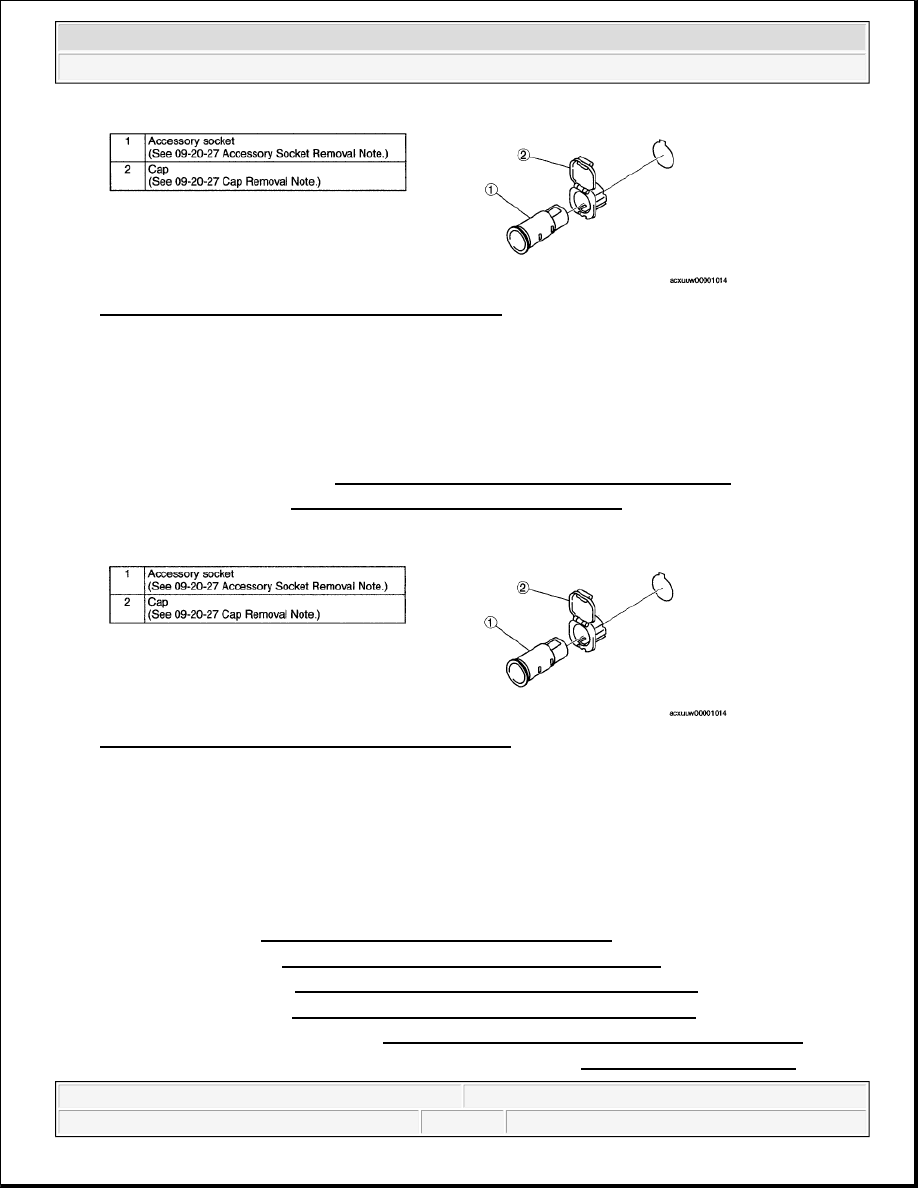

Fig. 65: Identifying Accessory Socket & Cap (Front)
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

CENTER

1. Disconnect the negative battery cable.

2. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)

4. Remove in the order indicated in the table.

Fig. 66: Identifying Accessory Socket & Cap (Center)
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

REAR

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

2. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Rear scuff plate inner (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

6. Third-row seat belt lower anchor installation bolt (RH) (See THIRD-ROW SEAT BELT



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 38

© 2005 Mitchell Repair Information Company, LLC.

REMOVAL/INSTALLATION .)

7. Trunk side trim (Passenger side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

3. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

4. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)

5. Remove in the order indicated in the table.

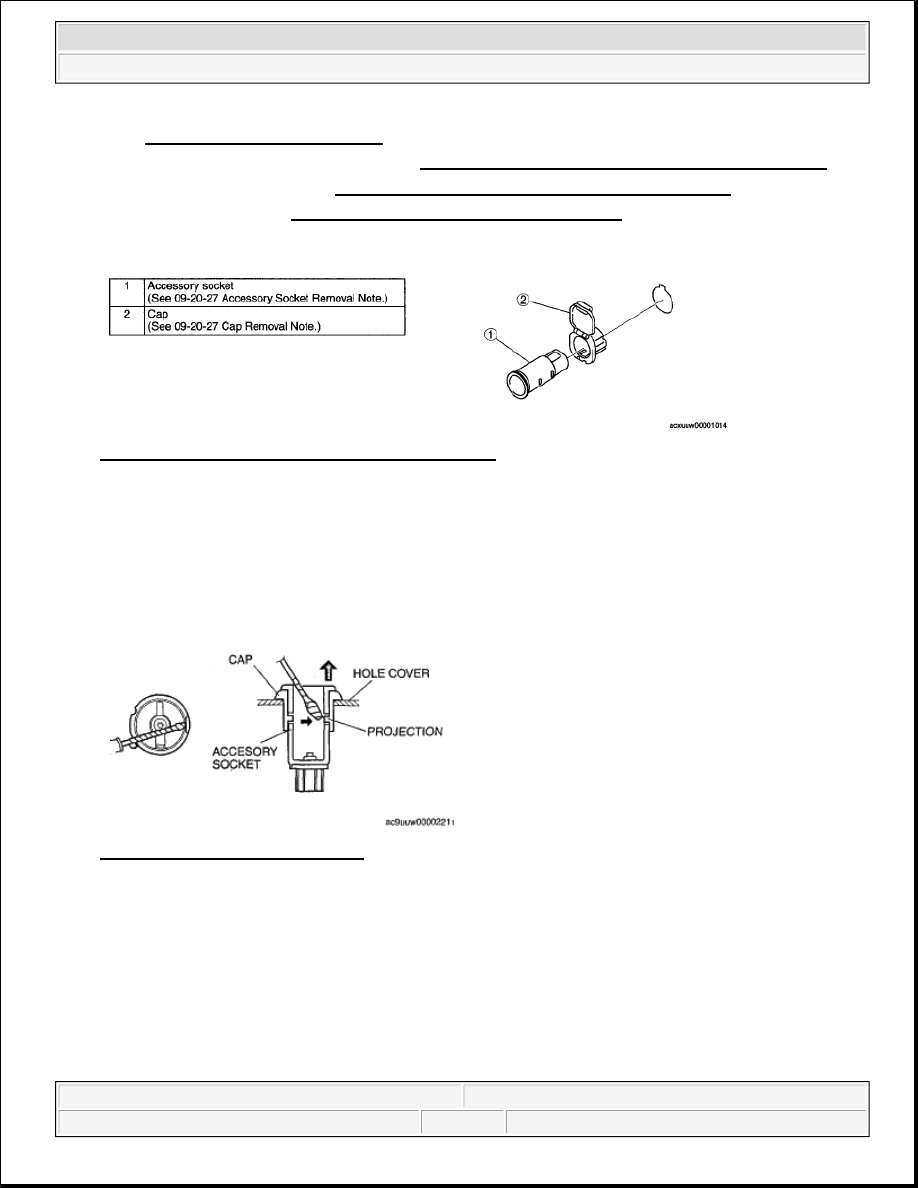

Fig. 67: Identifying Accessory Socket & Cap (Rear)
Courtesy of MAZDA MOTORS CORP.

6. Install in the reverse order of removal.

ACCESSORY SOCKET REMOVAL NOTE

1. While pressing a tape-wrapped flathead screwdriver against the cap projection, pull the accessory socket

outward.

Fig. 68: View Of Accessory Socket
Courtesy of MAZDA MOTORS CORP.

CAP REMOVAL NOTE

1. While pressing the tabs, pull the cap outwards.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

Fig. 69: View Of Cap
Courtesy of MAZDA MOTORS CORP.

ACCESSORY SOCKET INSPECTION

1. Connect a tester as shown in the figure and verify that there is continuity.

If the continuity cannot be verified, replace the accessory socket.

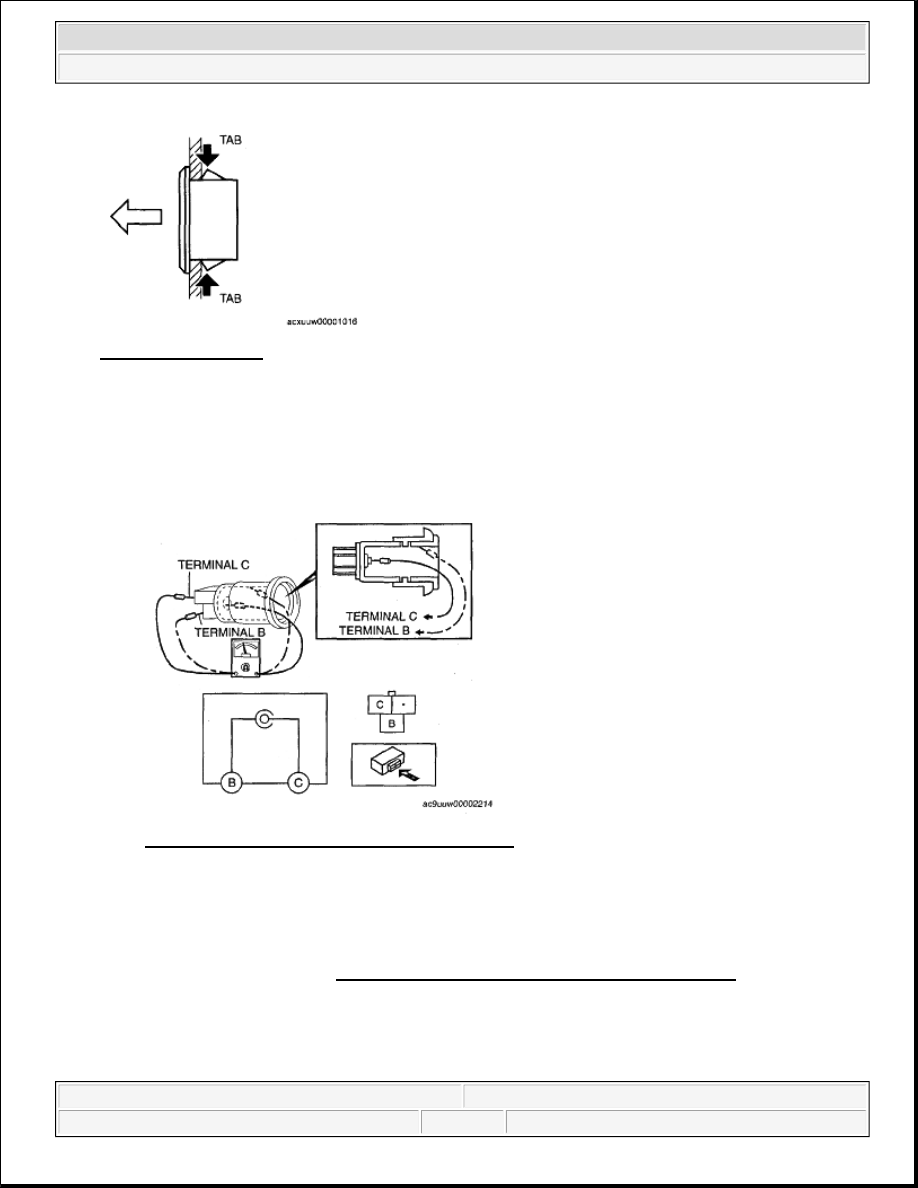

Fig. 70: Identifying Accessory Socket Terminals
Courtesy of MAZDA MOTORS CORP.

AUXILIARY JACK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the console cover. (See CONSOLE COVER REMOVAL/INSTALLATION .)

3. Disconnect the auxiliary jack connector.

4. Squeeze the tabs of auxiliary jack and pull it outward to remove it.

5. Install in the reverse order of removal.
