3. Slightly bend back the headliner.

4. Remove in the order indicated in the table.

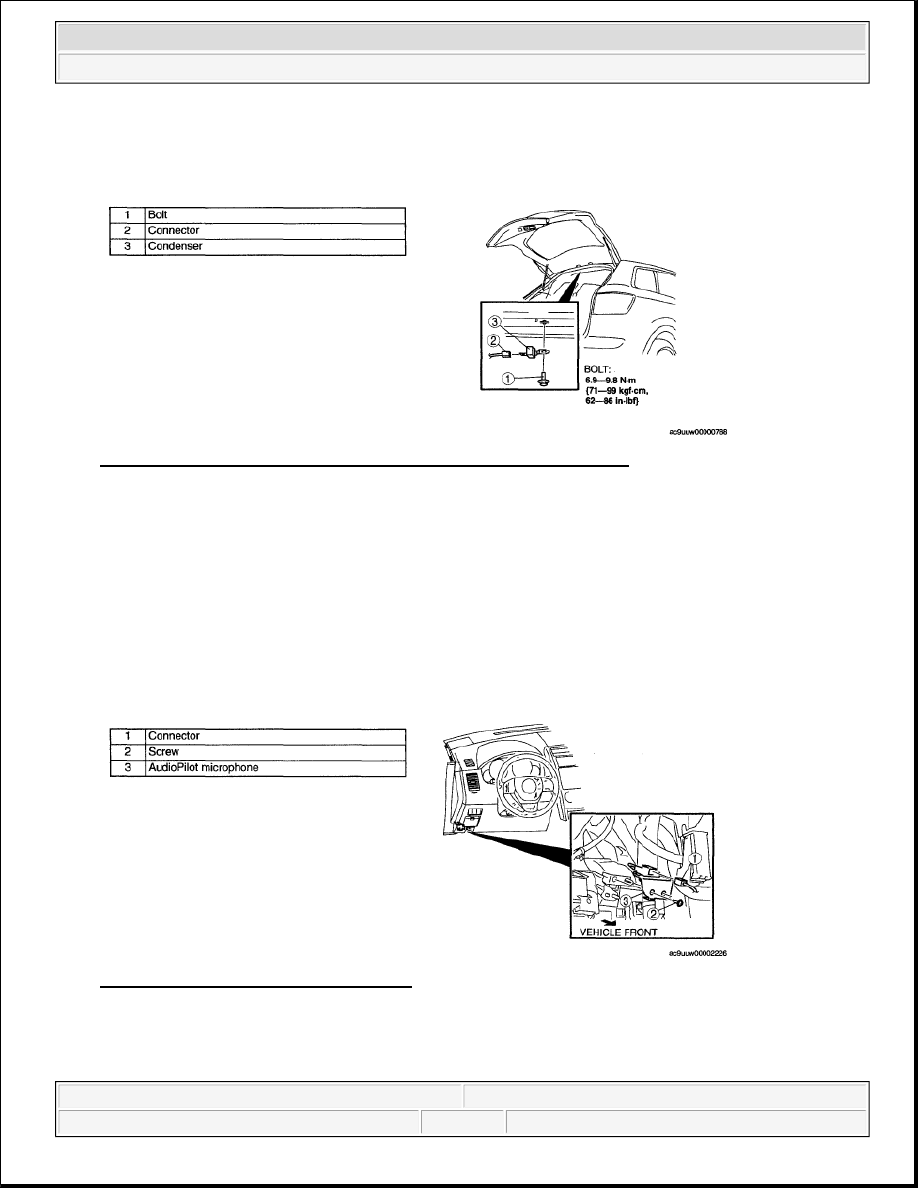

Fig. 32: Identifying Condenser Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

Fig. 33: View Of Audiopilot Microphone
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

NOTE:

"AudioPilot" is a registered trademark of Bose® Corporation.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

NOISE FILTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

3. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)

4. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

5. Remove in the order indicated in the table.

Fig. 34: Identifying Noise Filter Remove/Install Components
Courtesy of MAZDA MOTORS CORP.

6. Install in the reverse order of removal.

NOISE FILTER INSPECTION

1. Verify the resistance and continuity between the noise filter terminals.

If the resistance is not as indicated in the table, replace the noise filter.

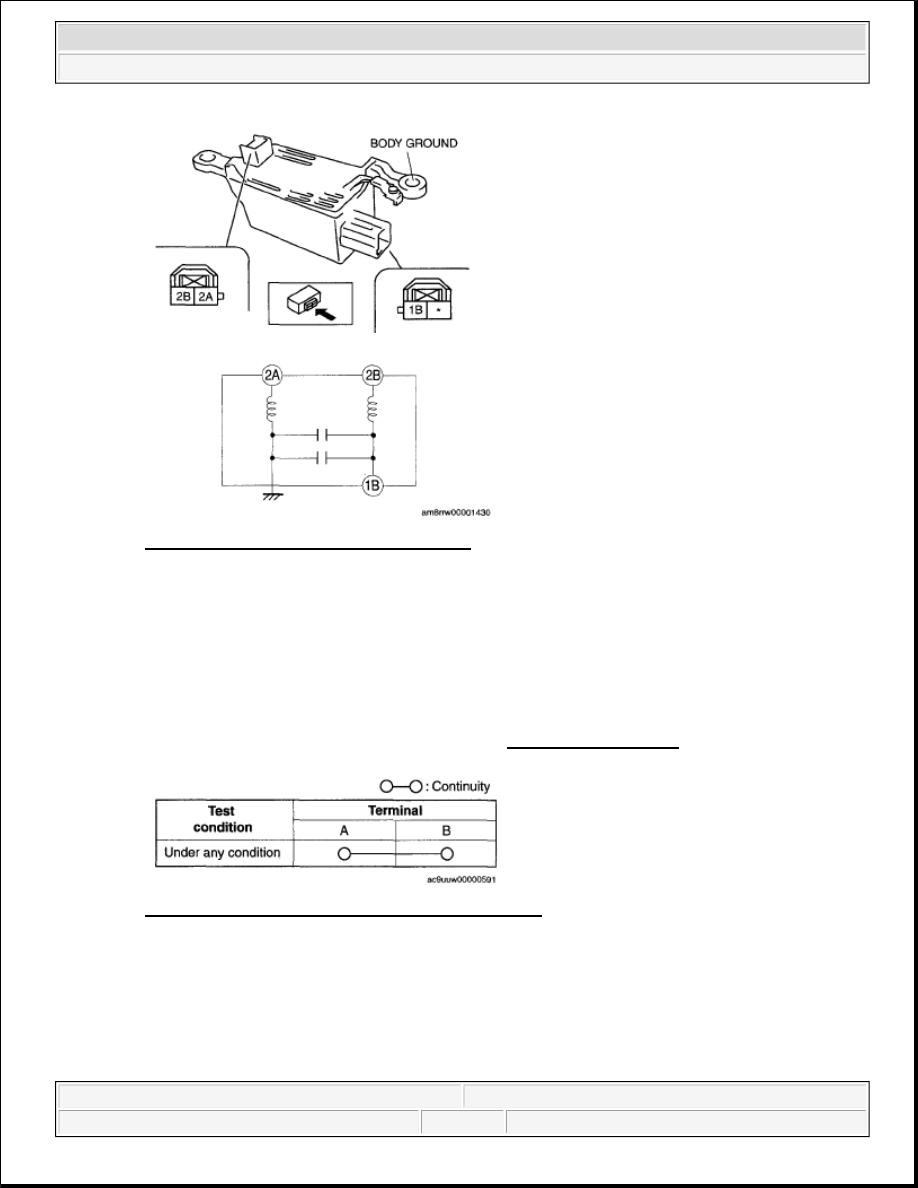

Fig. 35: Identifying Noise Filter Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

Fig. 36: Identifying Noise Filter Terminals
Courtesy of MAZDA MOTORS CORP.

GLASS ANTENNA INSPECTION

AM/FM

1. Inspect the glass antenna for damage visually.

2. Inspect for continuity between the glass antenna terminals using an ohmmeter.

If not as specified, replace the glass antenna. (See FILAMENT REPAIR .)

Fig. 37: Glass Antenna Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

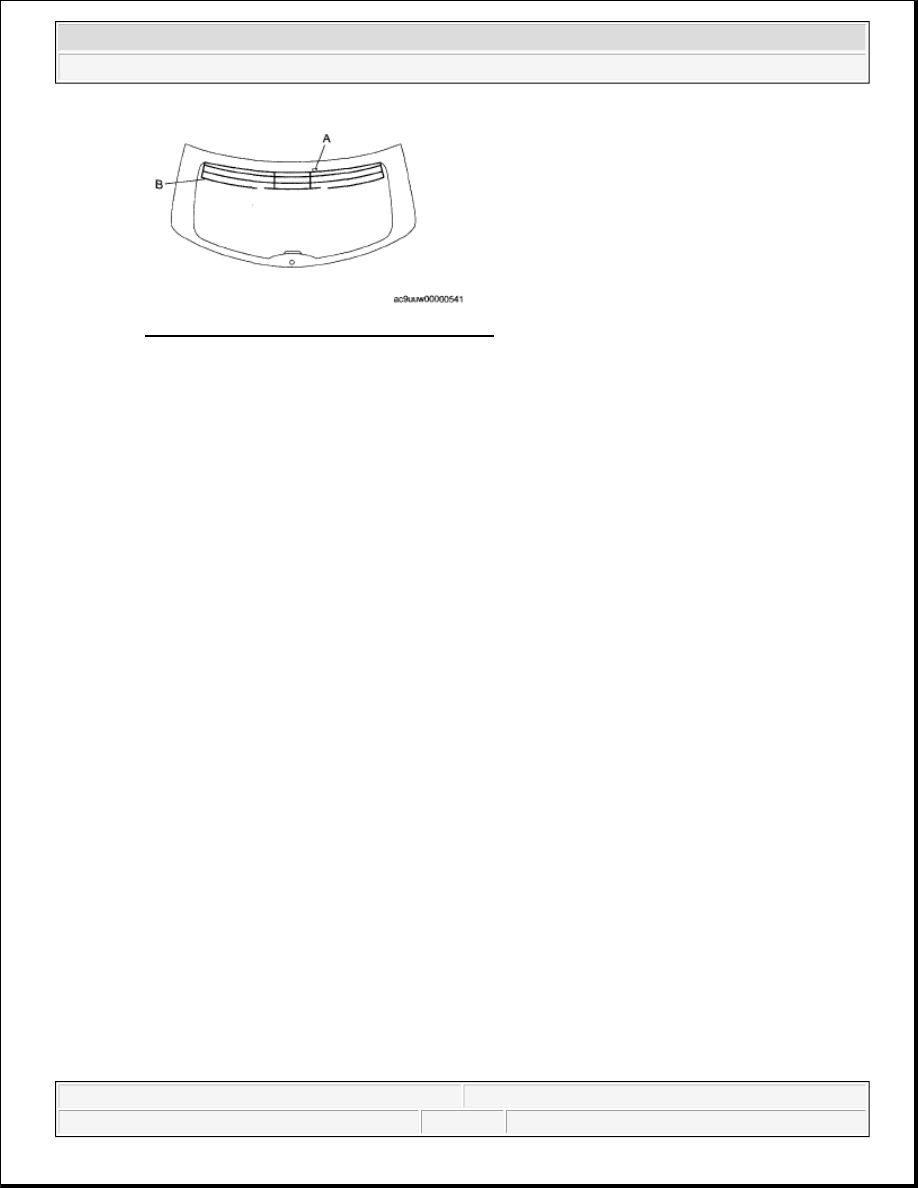

Fig. 38: Identifying Glass Antenna Terminals
Courtesy of MAZDA MOTORS CORP.

ANTENNA FEEDER LOCATION

NOTE:

GPS antenna feeder No.1 is integrated in the instrument panel wiring
harness.

GPS antenna feeder No.2 is integrated in the rear wiring harness.
