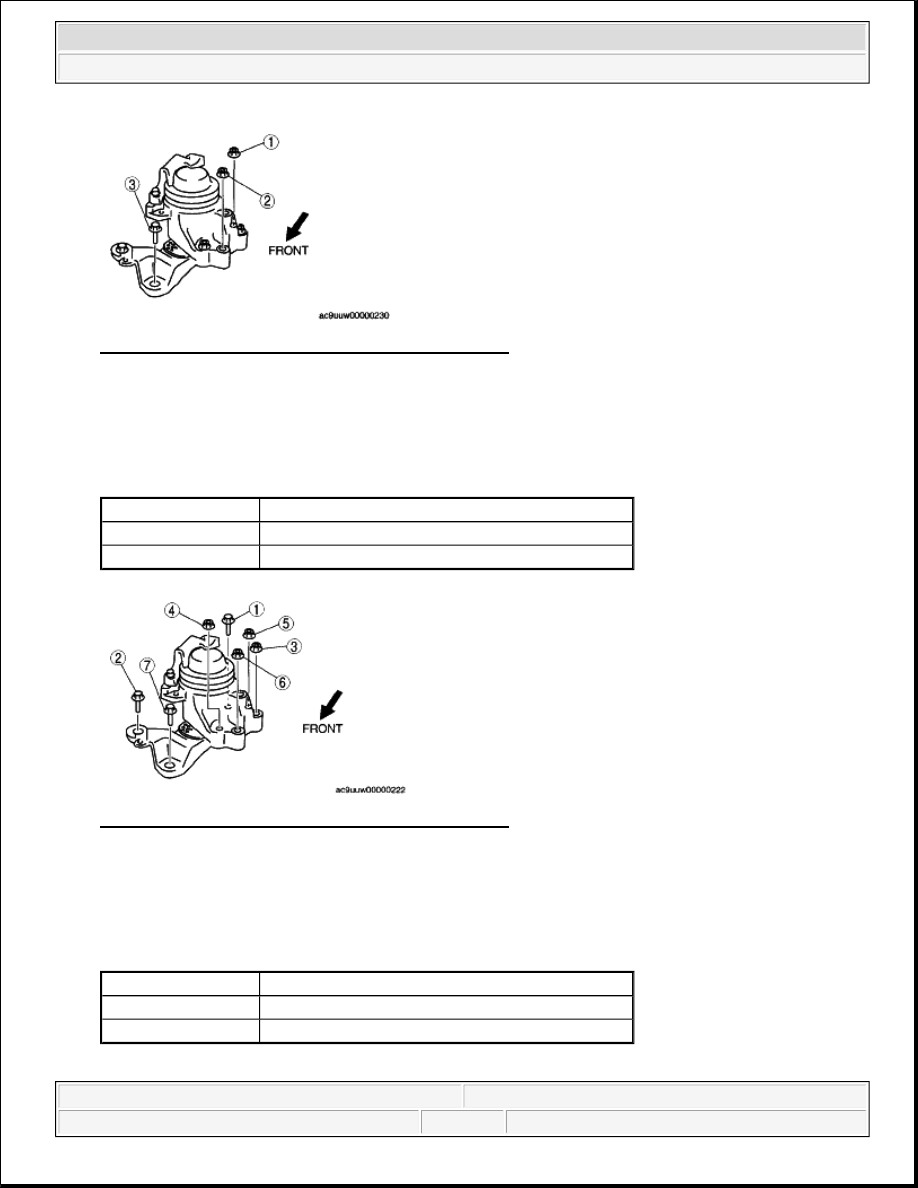

Fig. 142: Identifying No.3 Engine Mount Bolt & Nuts
Courtesy of MAZDA MOTORS CORP.

12. Tighten the No.3 engine mount in the order shown in the figure.

Tightening Torque

TIGHTENING TORQUE SPECIFICATION

Fig. 143: Identifying No.3 Engine Mount Bolt & Nuts
Courtesy of MAZDA MOTORS CORP.

13. Tighten the No.4 engine mount in the order shown in the figure.

Tightening Torque

TIGHTENING TORQUE SPECIFICATION

Installation Position

Tightening Torque

1, 2, 7

74.5-104.9 N.m {7.60-10.6 kgf.m, 55.0-77.3 ft.lbf}

3, 4, 5, 6

43.1-74 N.m {4.40-7.54 kgf.m, 31.8-54.5 ft.lbf}

Installation Position

Tightening Torque

1, 2, 3

66.6-93.1 N.m {6.80-9.49 kgf.m, 49.2-68.6 ft.lbf}

4

74.5-104.9 N.m {7.60-10.6 kgf.m, 55.0-77.3 ft.lbf}



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:58 AM

Page 87

© 2005 Mitchell Repair Information Company, LLC.

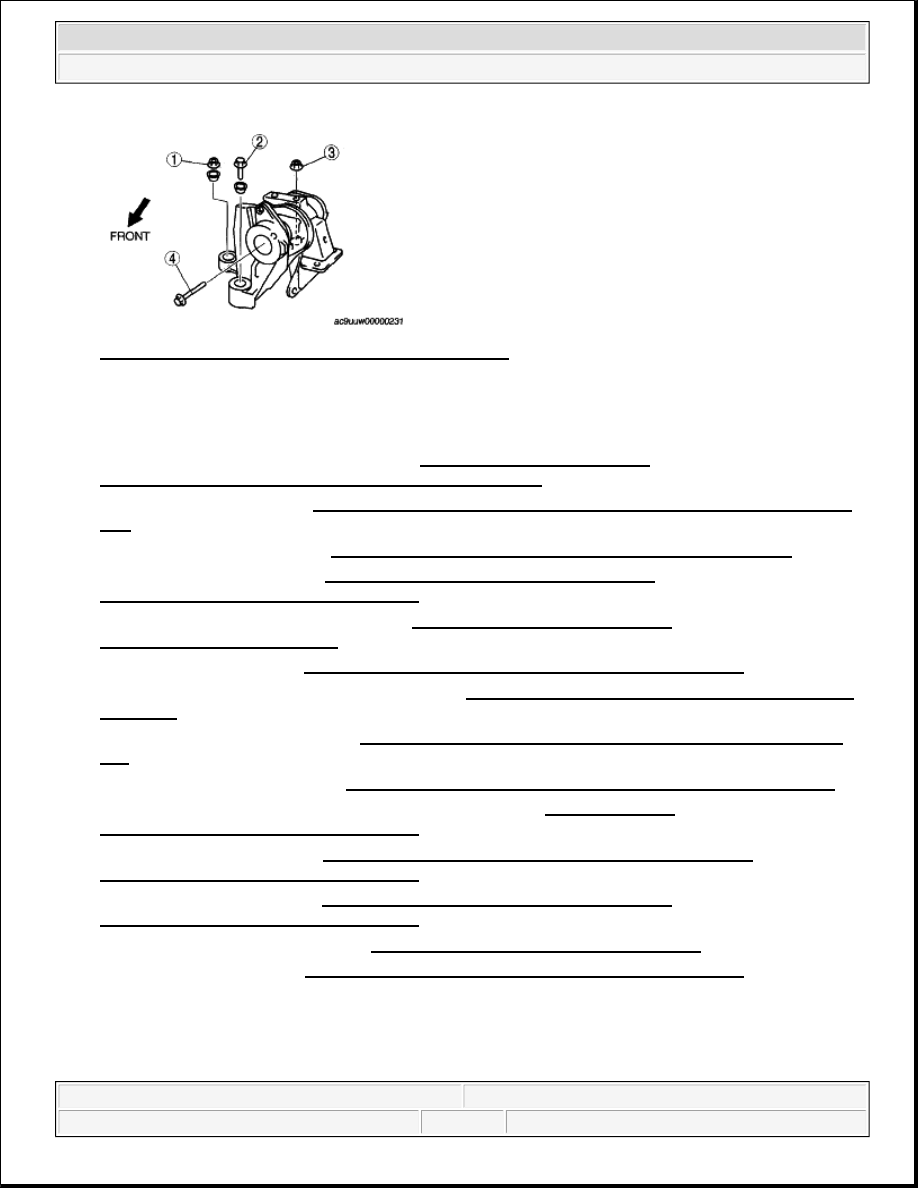

Fig. 144: Identifying No.4 Engine Mount Bolt & Nuts
Courtesy of MAZDA MOTORS CORP.

ENGINE DISASSEMBLY/ASSEMBLY [MZI-3.7]

1. Remove the transaxle from the engine. (See AUTOMATIC TRANSAXLE

REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL] .)

2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [AW6A-EL, AW6AX-

EL] .)

3. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZI-3.7] .)

4. Remove the CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR

REMOVAL/INSTALLATION [MZI-3.7] .)

5. Remove the power steering oil pump. (See POWER STEERING OIL PUMP

REMOVAL/INSTALLATION .)

6. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [MZI-3.7] .)

7. Remove the fuel injector and fuel distributor. (See FUEL INJECTOR REMOVAL/INSTALLATION

[MZI-3.7] .)

8. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

9. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)

10. Remove the thermostat case and water hose component. (See THERMOSTAT

REMOVAL/INSTALLATION [MZI-3.7] .)

11. Remove the CHT sensor. (See CYLINDER HEAD TEMPERATURE (CHT) SENSOR

REMOVAL/INSTALLATION [MZI-3.7] .)

12. Remove the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR

REMOVAL/INSTALLATION [MZI-3.7] .)

13. Remove the oil pressure switch. (See OIL PRESSURE INSPECTION [MZI-3.7] .)

14. Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [MZI-3.7] .)

15. Disassemble in the order indicated in the table.

16. Assemble in the reverse order of disassembly.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:58 AM

Page 88

© 2005 Mitchell Repair Information Company, LLC.

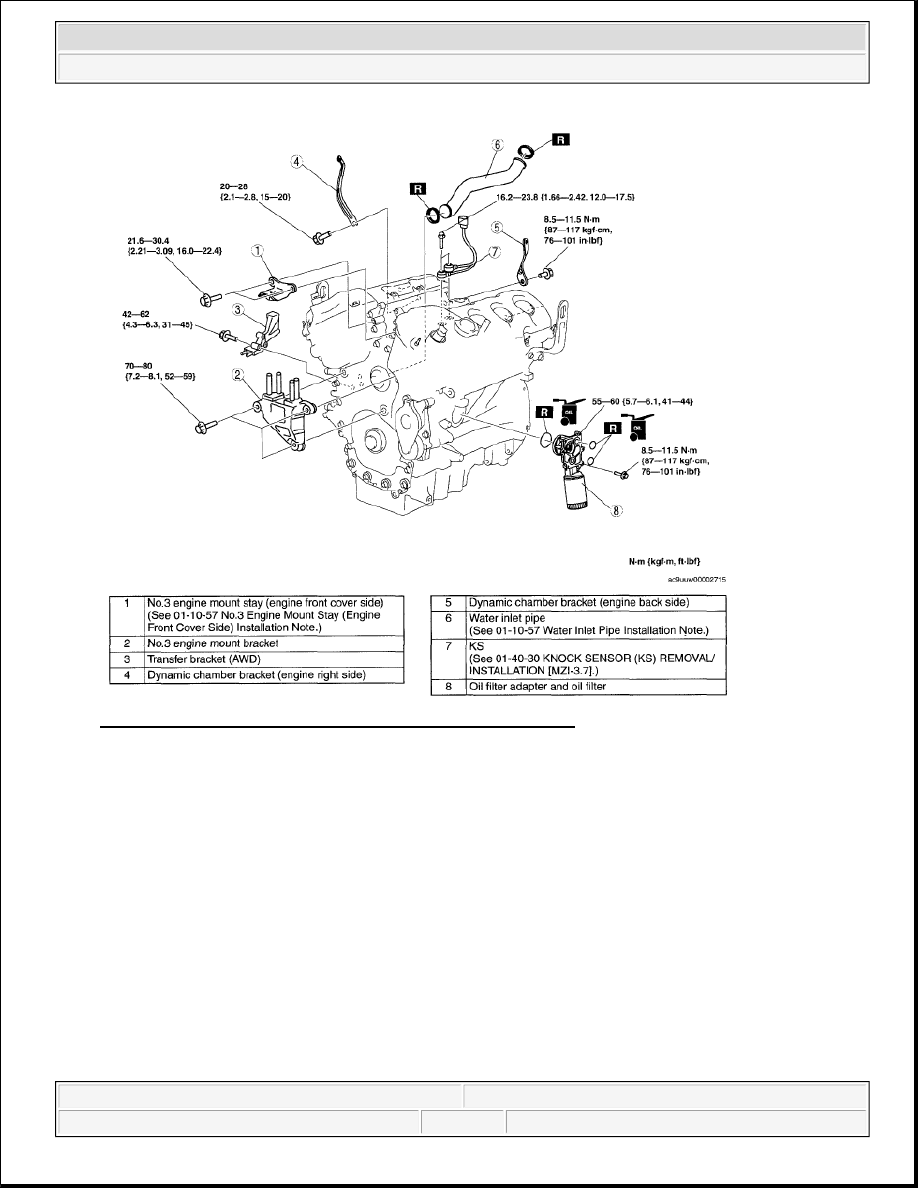

Fig. 145: Identifying Engine Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

NO.3 ENGINE MOUNT STAY (ENGINE FRONT COVER SIDE) INSTALLATION NOTE

1. Tighten the No.3 engine mount stay (engine front cover side) in the order shown in the figure.

Tightening torque: 21.6-30.4 N.m {2.21-3.09 kgf.m, 16.0-22.4 ft.lbf}



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:58 AM

Page 89

© 2005 Mitchell Repair Information Company, LLC.

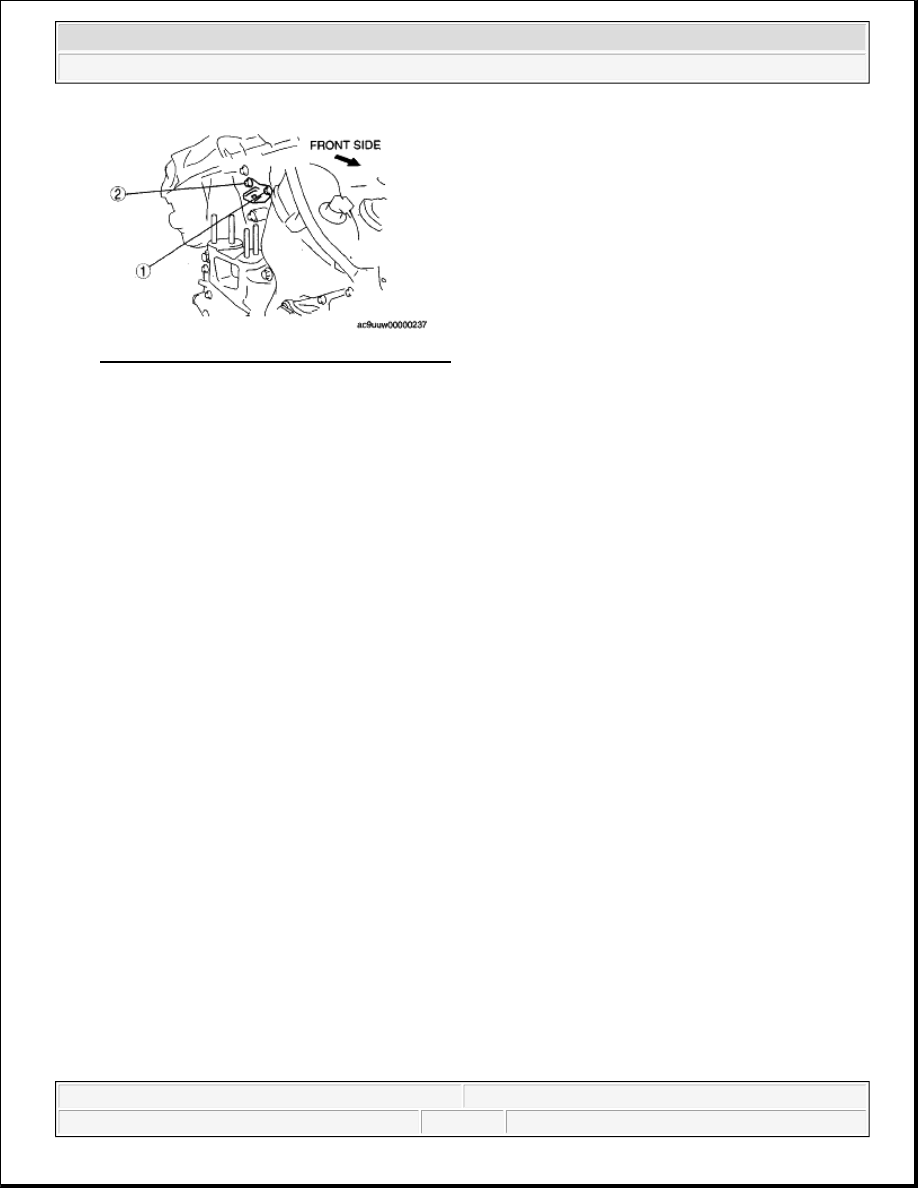

Fig. 146: Identifying No.3 Engine Mount Stay
Courtesy of MAZDA MOTORS CORP.

WATER INLET PIPE INSTALLATION NOTE

1. Apply clean engine coolant to the O-ring.
