Mazda CX-9 Grand Touring. Manual - part 372

Fig. 120: Identifying No.1 Engine Mount Bolt
Courtesy of MAZDA MOTORS CORP.

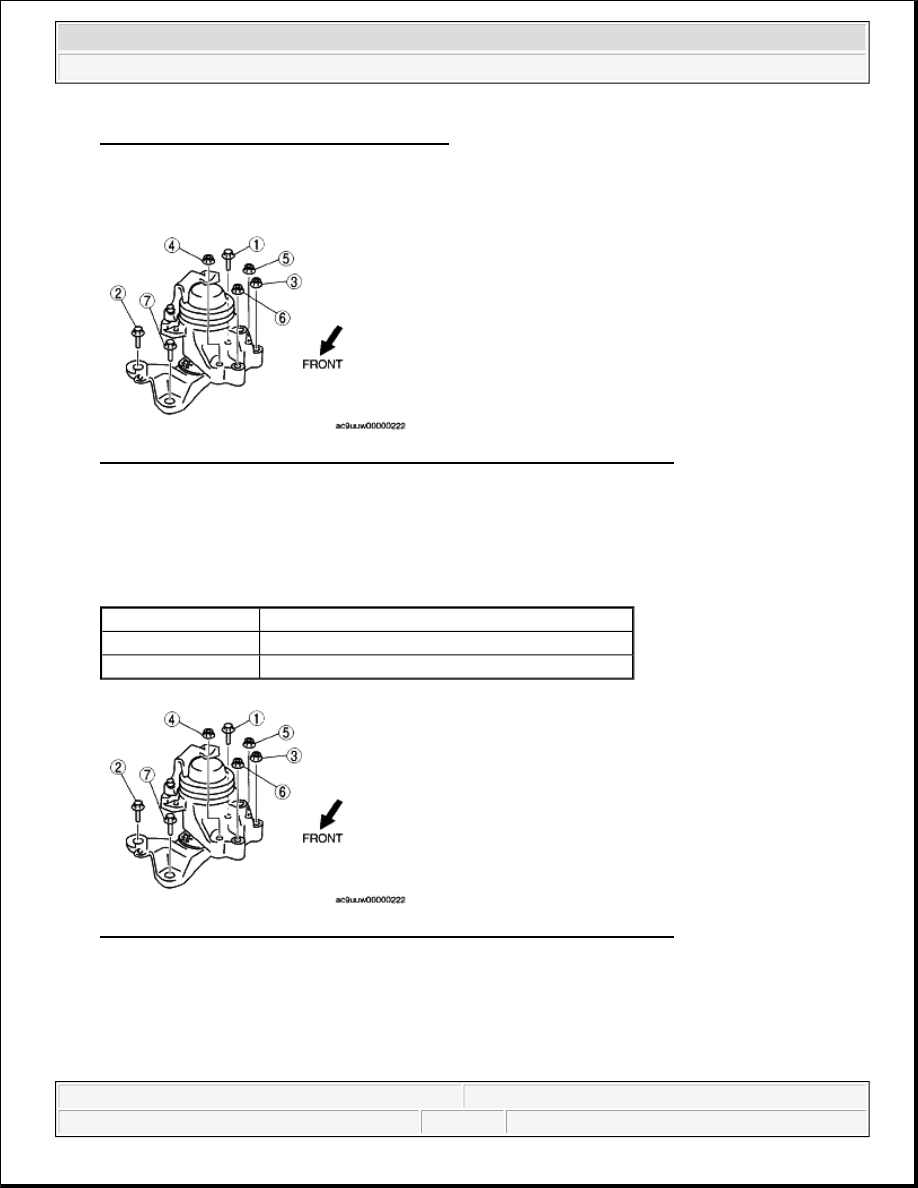

4. Temporarily tighten the No.3 engine mount bolt and nuts in the order shown in the figure.

Fig. 121: Identifying No.3 Engine Mount Bolt & Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

5. Tighten the No.3 engine mount in the order shown in the figure.

Tightening Torque

TIGHTENING TORQUE SPECIFICATION

Fig. 122: Identifying No.3 Engine Mount Bolt & Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

6. Remove the SST (49 C017 5A0).

7. Install the following parts.

1. Install the front cooler pipe installation bolt.

Installation Position

Tightening Torque

1, 2, 7

74.5-104.9 N.m {7.60-10.6 kgf.m, 55.0-77.3 ft.lbf}

3, 4, 5, 6

43.1-74 N.m {4.40-7.54 kgf.m, 31.8-54.5 ft.lbf}



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 75

© 2005 Mitchell Repair Information Company, LLC.

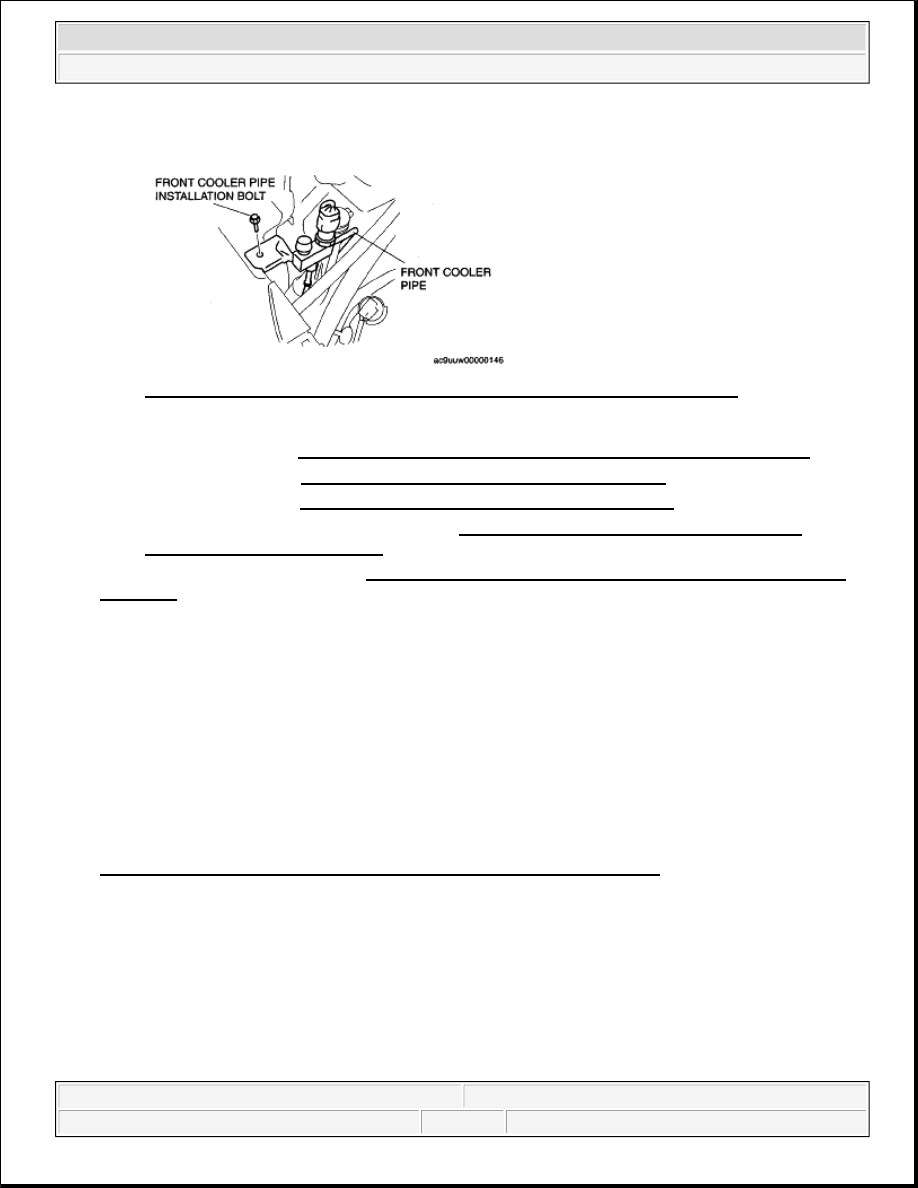

Tightening torque: 8-12 N.m {82-122 kgf.cm, 71-106 in.lbf}

Fig. 123: Identifying Front Cooler Pipe Installation Bolt & Front Cooler Pipe
Courtesy of MAZDA MOTORS CORP.

2. The air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)

3. The cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)

4. The cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

5. Tthe windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

8. Install the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION

[MZI-3.7] .)

CRANKSHAFT PULLEY LOCK BOLT INSTALLATION NOTE

1. Rotate the crankshaft clockwise, and set a wrench to the drive plate bolt at the position shown in the

figure to lock the crankshaft rotation.

2. Tighten the new crankshaft pulley lock bolt in 4 steps.

1. Tighten to 140 N.m {14 kgf.m, 103 ft.lbf}.

2. Loosen 360 ° (one full turn) in reverse order.

3. Tighten to 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}.

4. Tighten 85 °--95 °.

3. Verify the tightening torque for the drive plate installation bolt to which the wrench has been set. (See

COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZI-3.7] .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 76

© 2005 Mitchell Repair Information Company, LLC.

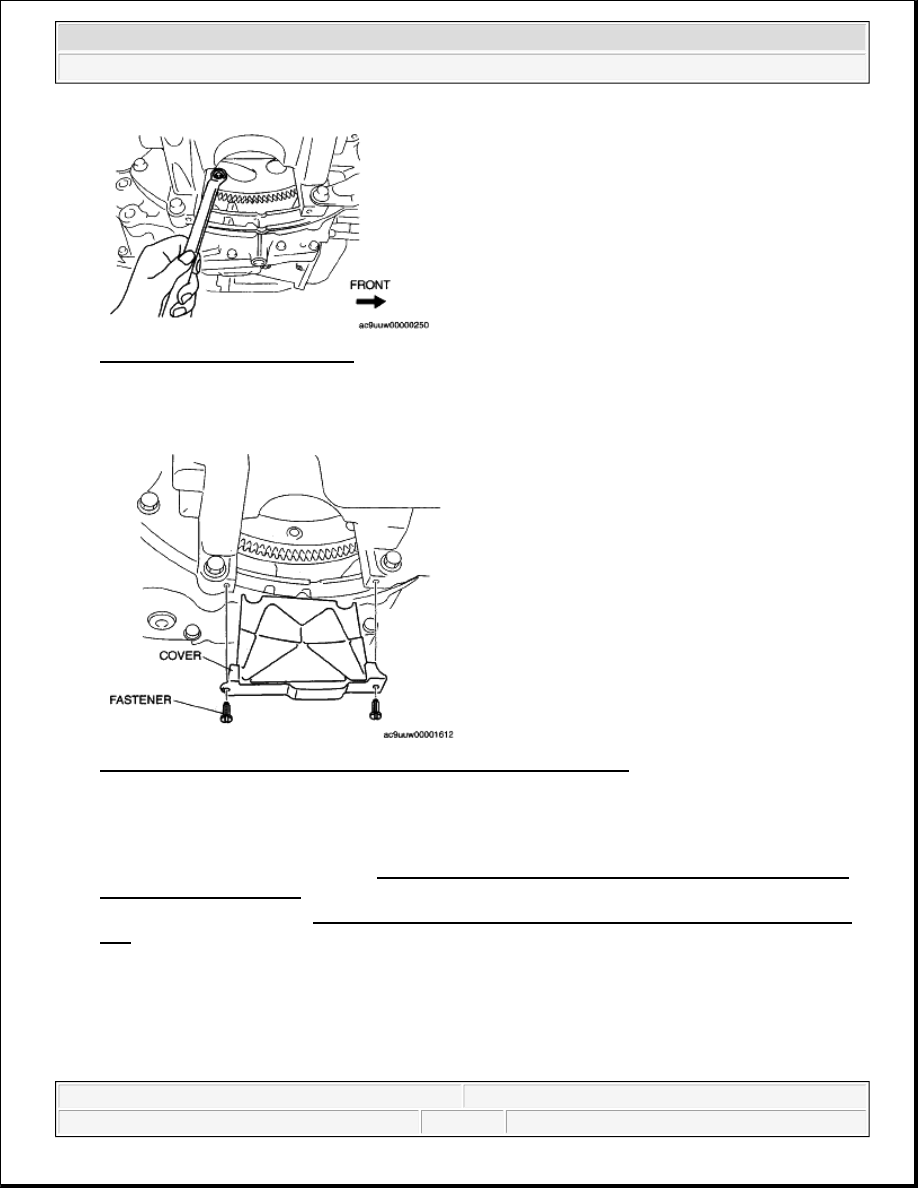

Fig. 124: Setting Drive Plate Bolt
Courtesy of MAZDA MOTORS CORP.

4. Install the cover as shown in the figure.

Fig. 125: Identifying Crankshaft Pulley Lock Bolt, Cover & Fastener
Courtesy of MAZDA MOTORS CORP.

REAR OIL SEAL REPLACEMENT [MZI-3.7]

1. Remove the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION

[AW6A-EL, AW6AX-EL] .)

2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [AW6A-EL, AW6AX-

EL] .)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 77

© 2005 Mitchell Repair Information Company, LLC.

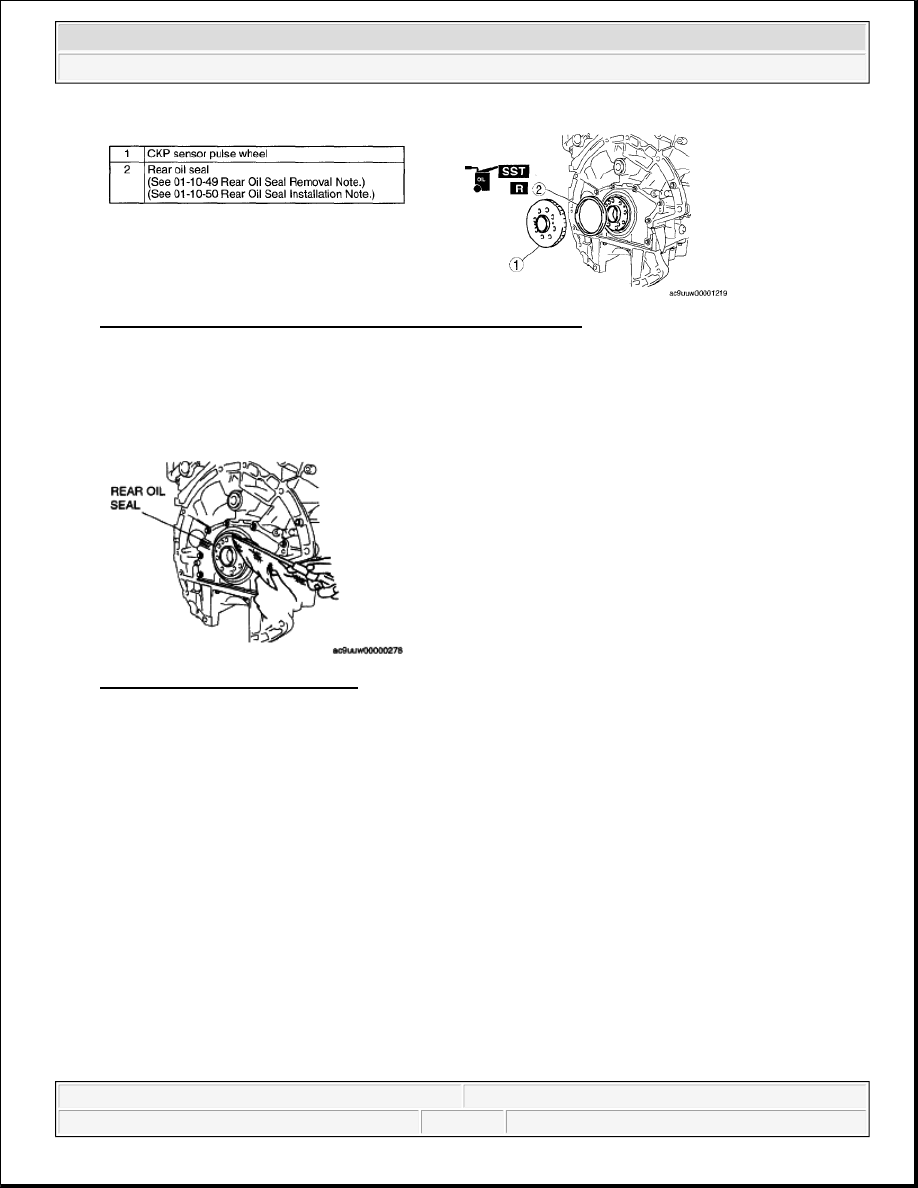

Fig. 126: Identifying CKP Sensor Pulse Wheel & Rear Oil Seal
Courtesy of MAZDA MOTORS CORP.

REAR OIL SEAL REMOVAL NOTE

1. Using a flathead screwdriver, remove the rear oil seal.

Fig. 127: Removing Rear Oil Seal
Courtesy of MAZDA MOTORS CORP.

REAR OIL SEAL INSTALLATION NOTE

1. Push the rear oil seal slightly in by hand.

2. Tap the rear oil seal in evenly using the SST and a hammer.

Substitution SST



49W011 101

Outer diameter: 105 mm {4.13 in} or more Inner diameter: 93-105 mm {3.7-4.1 in} Tube with
board thickness 2 mm {0.079 in} or more

NOTE:



Lubricate the rear oil seal lips and bore with clean engine oil.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 78

© 2005 Mitchell Repair Information Company, LLC.
