Fig. 61: Identifying Link Plate Hole & Tensioner Body Hole
Courtesy of MAZDA MOTORS CORP.

Tightening torque: 8.5-11.5 N.m {87-117 kgf.cm, 76-101 in.lbf}

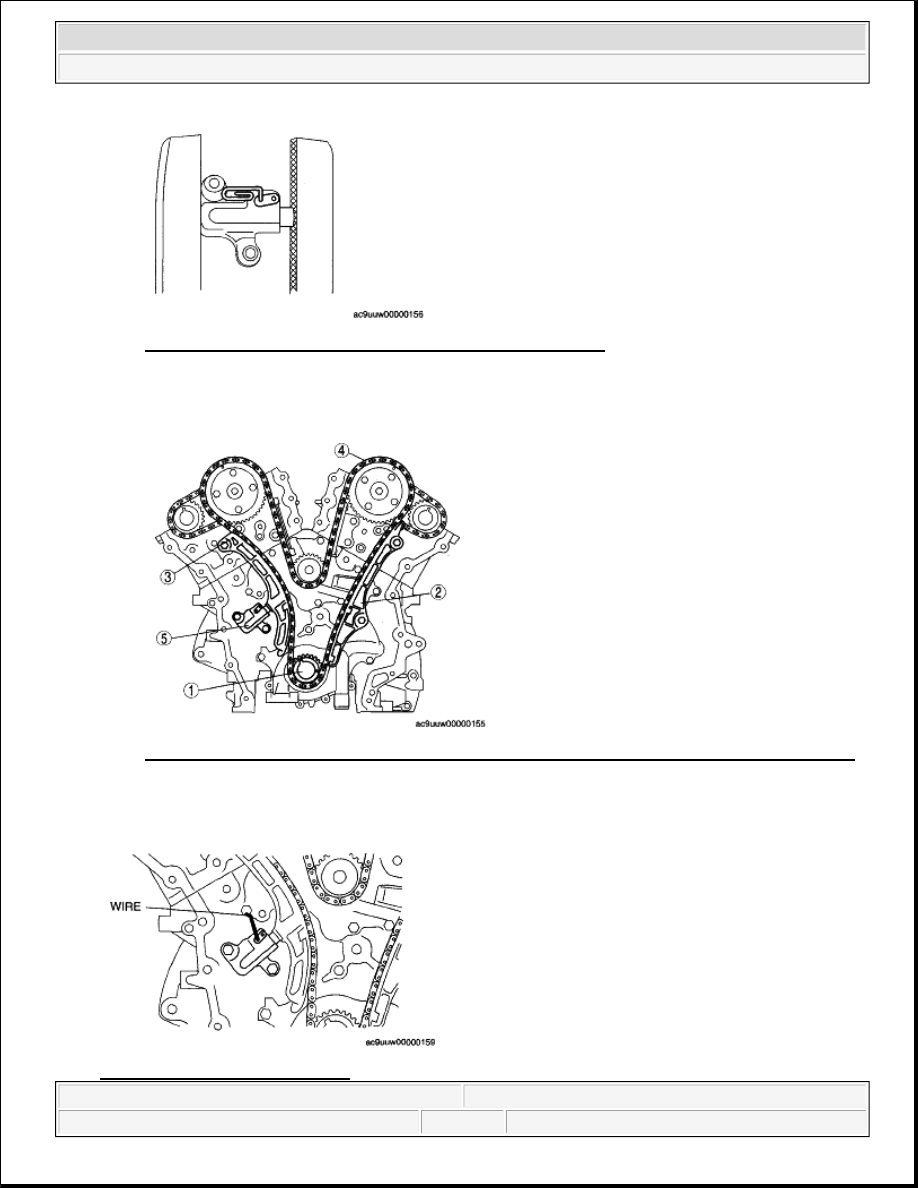

Fig. 62: Identifying Crankshaft Sprocket, Tensioner Arm, Timing Chain & Chain Tensioner
Courtesy of MAZDA MOTORS CORP.


8. Remove the retaining wire.

Fig. 63: View Of Retaining Wire



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

ENGINE FRONT COVER & NO.3 ENGINE MOUNT BRACKET INSTALLATION NOTE

1. Apply the silicon sealant (Loctite 5900) to the engine front cover shown in the figure.

Silicon sealant thickness

A: 5.0-6.0 mm {0.197-0.236 in}

B: 2.5-3.5 mm {0.099-0.137 in}

2. Install the engine front cover and No.3 engine mount bracket.

1. Tighten the engine front cover and No.3 engine mount bracket installation bolts in 4 steps in the

order shown in the figure.

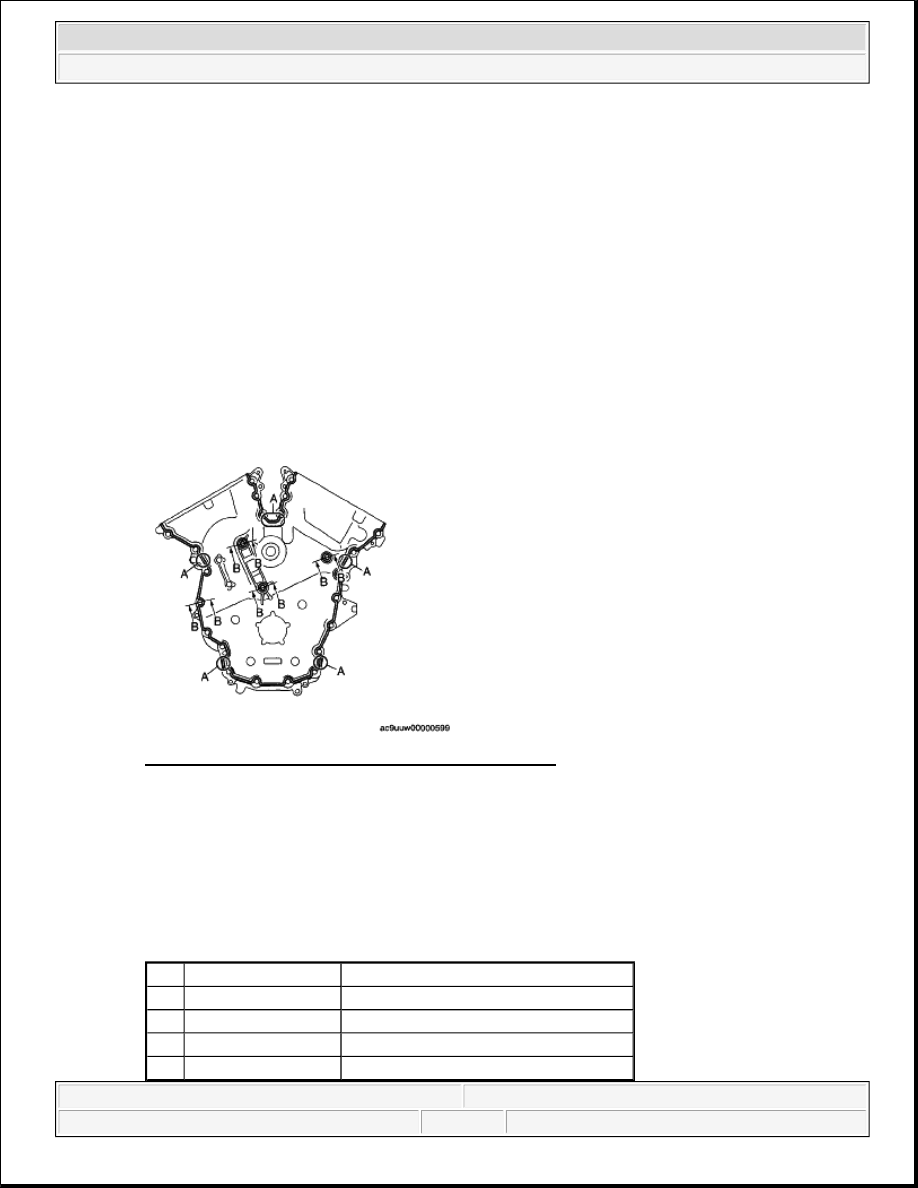

Fig. 64: Identifying Engine Front Cover Sealant Area
Courtesy of MAZDA MOTORS CORP.

Tightening Torque

TIGHTENING TORQUE SPECIFICATION

CAUTION:

Install the engine front cover and No.3 engine mount
bracket installation bolts within 10 min of applying the
silicone sealant.

Step Installation position

Tightening torque

1

1-6

10 N.m {102 kgf.cm, 89 in.lbf}

2

7-9

15 N.m {1.5 kgf.m, 11 ft.lbf}

3

1-6

20-28 N.m {2.1-2.8 kgf.m, 15-20 ft.lbf}

4

7-9

70-80 N.m {7.2-8.1 kgf.m, 52-59 ft.lbf}



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 44

© 2005 Mitchell Repair Information Company, LLC.

2. Tighten the engine front cover installation bolts in the order in 2 steps in the order shown in the

figure.

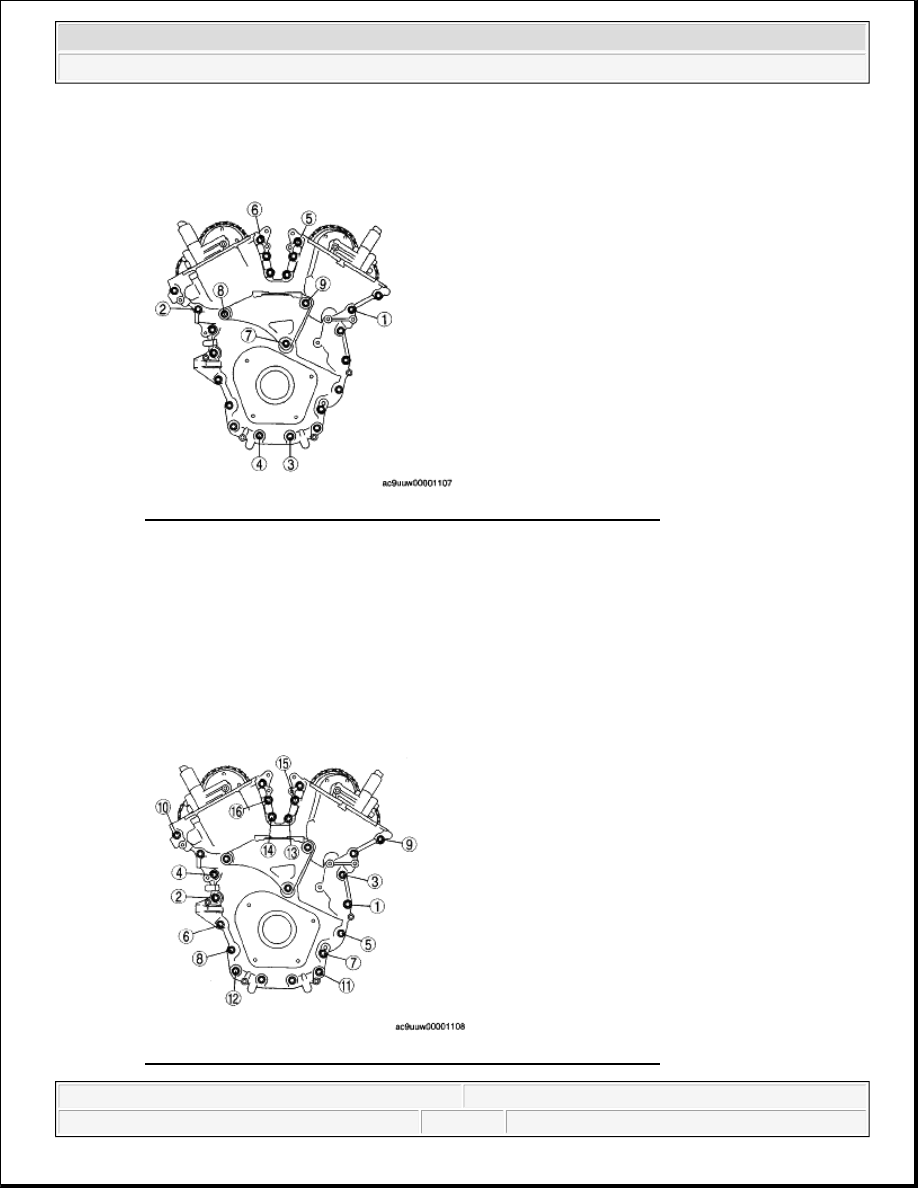

Fig. 65: Identifying Engine Front Cover Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

1. Tighten to 10 N.m {102 kgf.cm, 89 in.lbf}.

2. Tighten to 20-28 N.m {2.1-2.8 kgf.m, 15-20 ft.lbf}.

Fig. 66: Identifying Engine Front Cover Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Install the engine front cover installation bolts within 60
min of applying the silicone sealant.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 45

© 2005 Mitchell Repair Information Company, LLC.

CYLINDER HEAD COVER OIL SEAL NOTE

1. Push the OCV attachment hole seals and spark plug tube attachment hole seals slightly in by hand.

2. Tap the OCV attachment hole seals and spark plug tube attachment hole seals using the SST and hammer.

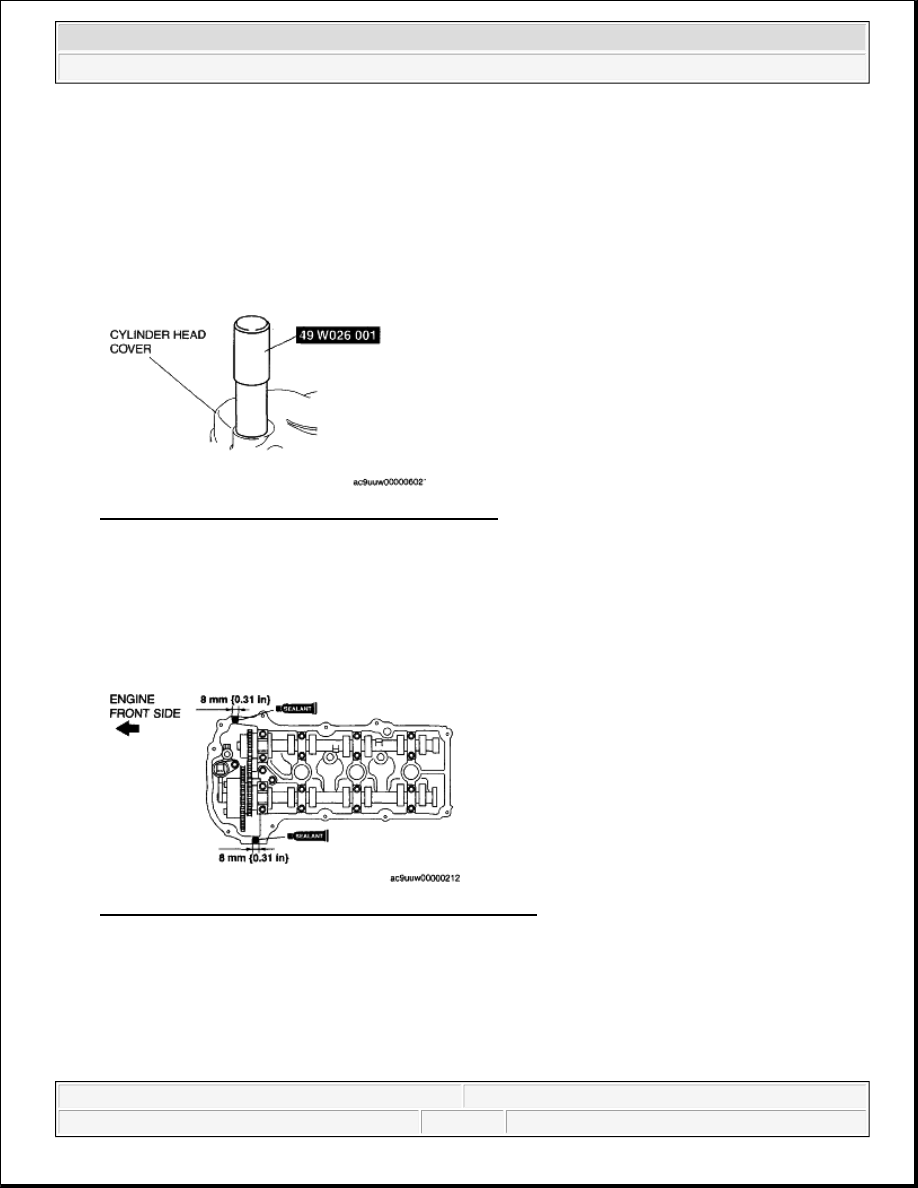

Fig. 67: Identifying Cylinder Head Cover With SST
Courtesy of MAZDA MOTORS CORP.

CYLINDER HEAD COVER INSTALLATION NOTE

1. Apply silicone sealant (Loctite 5900) to the mating faces as shown.

RH

Fig. 68: Applying Silicone Sealant To Mating Faces (RH)
Courtesy of MAZDA MOTORS CORP.

LH

2. Install the cylinder head cover with a new gasket.

3. Tighten the bolts in the order as shown.

NOTE:

Installation of new seals is only required if damaged seals were removed
during disassembly of the engine.
