DIAGNOSTIC PROCEDURE

DTC P2128 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins
and/or on-line repair information
availability.



Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the next
step.

No

Go to the next step.

3

INSPECT APP SENSOR CONNECTOR
FOR POOR CONNECTION



Turn the ignition switch off.



Disconnect the APP sensor
connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
8.

No

Go to the next step.

4

INSPECT APP SENSOR NO.2



Inspect APP sensor No.2. (See
ACCELERATOR PEDAL
POSITION (APP) SENSOR
INSPECTION [MZI-3.7] .)



Is there any malfunction?

Yes

Replace the accelerator pedal, then go to Step 8.
(See ACCELERATOR PEDAL
REMOVAL/INSTALLATION [MZI-3.7] .)

No

Go to the next step.

5

INSPECT PCM CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
8.

No

Go to the next step.

INSPECT APP SENSOR NO.2
CIRCUIT FOR OPEN CIRCUIT



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:43 AM

Page 397

© 2005 Mitchell Repair Information Company, LLC.

6



Turn the ignition switch off.



Inspect for continuity between the
following terminals (wiring harness-
side).



APP sensor terminal F and
PCM terminal 1BA.



APP sensor terminal D and
PCM terminal 1Y.



APP sensor terminal G and
PCM terminal 1AD.



APP sensor terminal C and
PCM terminal 1AH.



APP sensor terminal H and
PCM terminal 1AG.



Are there continuity?

Yes Go to the next step.

No

Repair or replace suspected part, then go to Step

8.

7

INSPECT APP SENSOR NO.2 SIGNAL
CIRCUIT FOR SHORT TO POWER
SUPPLY



Turn the ignition switch to the ON
position (Engine off).



Measure the voltage between the
following terminals (wiring harness-
side).



APP sensor terminal F and
body ground.



APP sensor terminal D and
body ground.



APP sensor terminal G and
body ground.



APP sensor terminal C and
body ground.



APP sensor terminal H and
body ground.



Are there voltage B+?

Yes

Repair or replace suspected part, then go to Step
8.

No

Go to the next step.

8

VERIFY TROUBLESHOOTING OF
DTC P2128 HAS BEEN COMPLETED



Verify that all disconnected
connectors reconnected.



Clear the DTC from the PCM
memory using the M-MDS.

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:43 AM

Page 398

© 2005 Mitchell Repair Information Company, LLC.

DTC P2132 [MZI-3.7]

DTC P2132 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES



Start the engine.



Is the same DTC present?

No

Go to the next step.

9

VERIFY AFTER REPAIR
PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-
3.7].)



Are any DTC present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

DTC troubleshooting completed.

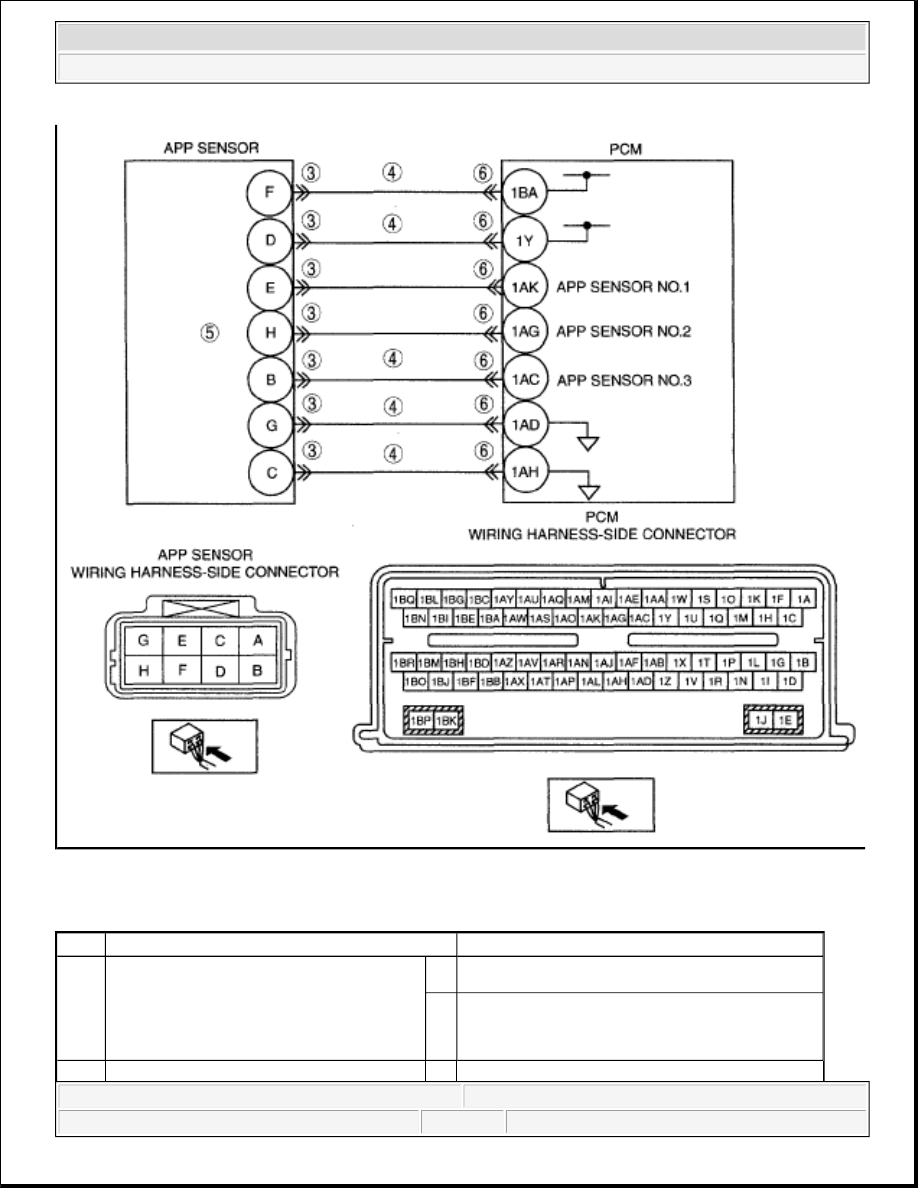

DTC P2132

APP sensor No.3 circuit low input

DETECTION

CONDITION



APP sensor No.3 is out of self-test range low.

POSSIBLE CAUSE



Short to ground circuit between APP sensor terminal F and PCM terminal
1BA



Short to ground circuit between APP sensor terminal D and PCM terminal
1Y



Short to ground circuit between APP sensor terminal G and PCM terminal 1
AD



Short to ground circuit between APP sensor terminal C and PCM terminal 1
