Mazda CX-9 Grand Touring. Manual - part 309

availability.



Is any related Service Bulletins
available?

step.

No

Go to the next step.

3

INSPECT MAF SENSOR
CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect the MAF/IAT sensor
connector.



Inspect for poor connection (such as
damaged/pulled-out pins,
corrosion).



Are there any malfunction?

Yes Repair or replace suspected part, then go to Step 8.

No

Go to the next step.

4

INSPECT THROTTLE ACTUATOR
CONTROL CIRCUIT FOR SHORT
TO POWER SUPPLY



Turn the ignition switch to the ON
position (Engine off).



Measure voltage between the
following circuits:



Throttle actuator terminal A
(wiring harness-side) and
body ground.



Throttle actuator terminal B
(wiring harness-side) and
body ground.



Are there voltage B+?

Yes Repair or replace suspected part, then go to Step 8.

No

Go to the next step.

5

INSPECT THROTTLE ACTUATOR
CONTROL CIRCUITS FOR SHORT
EACH OTHER



Turn the ignition switch off.



Disconnect the throttle body and
PCM connector.



Measure resistance between throttle
actuator terminal A and B.



Is the resistance more than 10
kilohms?

Yes Go to the next step.

No Repair or replace suspected part, then go to Step 8.

6

INSPECT THROTTLE ACTUATOR



Inspect the throttle actuator. (See

Yes

Replace the throttle body, then go to Step 8. (See
INTAKE-AIR SYSTEM
REMOVAL/INSTALLATION [MZI-3.7] .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 369

© 2005 Mitchell Repair Information Company, LLC.

DTC P2111 [MZI-3.7]

DTC P2111 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

THROTTLE BODY
INSPECTION [MZI-3.7] .)



Is there any malfunction?

No

Go to the next step.

7

INSPECT FOR CORRECT PCM
OPERATION



Disconnect all the PCM connectors.



Visually inspect for:



Pushed out pins



Corrosion



Connect all the PCM connectors
and verify that they seat correctly.



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this
DTC present?

Yes Go to the next step.

No

The system is correctly. Go to the next step.

8

VERIFY TROUBLESHOOTING OF
DTC P2107 HAS BEEN COMPLETED




Verify that all disconnected
connectors reconnected.



Start the engine.



Clear DTC from PCM memory
using M-MDS.



Perform the "KOEO/KOER Self-
Test". (See KOEO/KOER SELF
TEST [MZI-3.7].)



Is same DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

No

Go to the next step.

9

VERIFY AFTER REPAIR
PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-
3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

DTC P2111

Throttle actuator control system - stuck open

DETECTION

CONDITION



This PCM fault status indicates the throttle plate is at a more angle than
commanded.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 370

© 2005 Mitchell Repair Information Company, LLC.

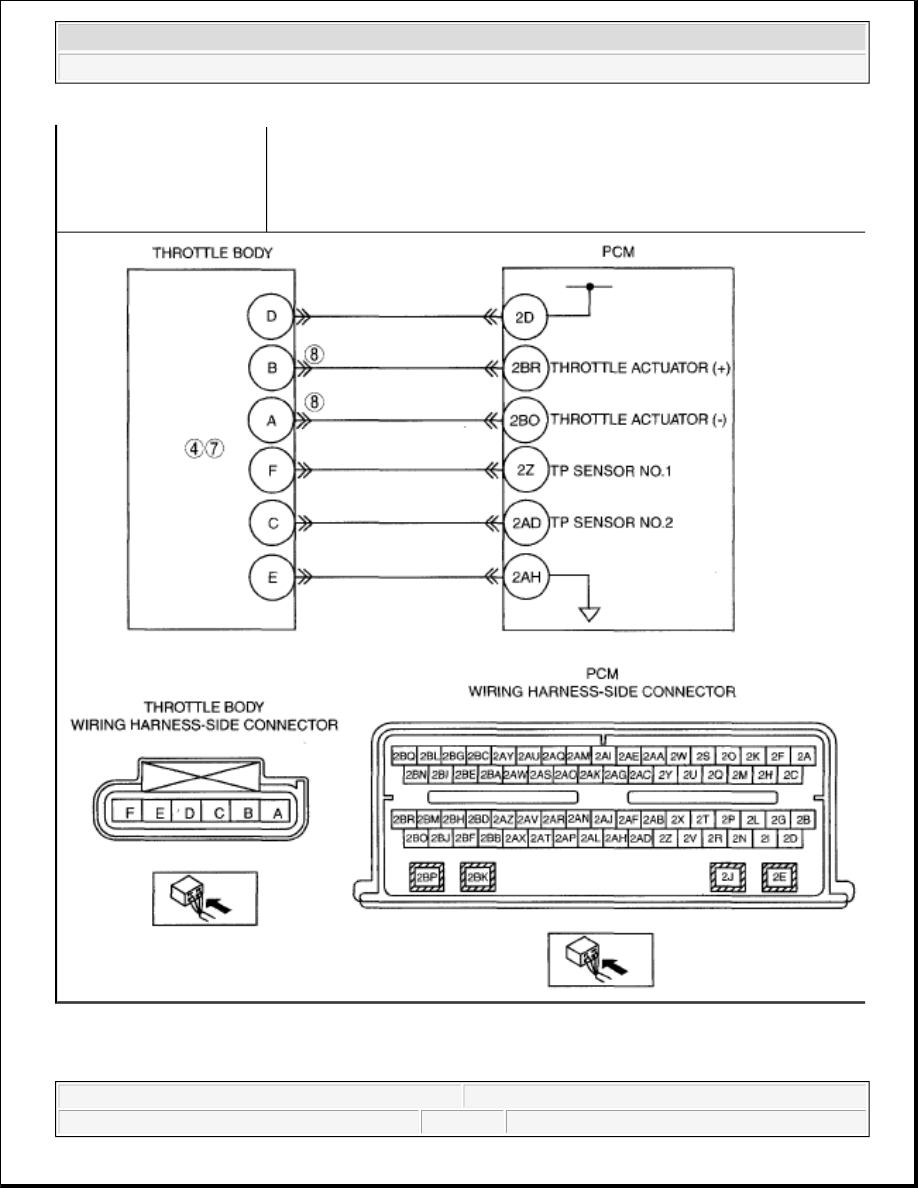

DIAGNOSTIC PROCEDURE

DTC P2111 (MZI-3.7) DIAGNOSTIC PROCEDURE

POSSIBLE CAUSE



Binding throttle body, stuck open



Throttle actuator control circuits are cross-wired



Throttle actuator control circuits are shorted each other



PCM malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 371

© 2005 Mitchell Repair Information Company, LLC.

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED



Has FREEZE FRAME DATA been recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY



Verify related Service Bulletins and/or on-line
repair information availability.



Is any related Service Bulletins available?

Yes

Perform repair or diagnosis according to
the available Service Bulletins.



If the vehicle is not repaired, go to
the next step.

No

Go to the next step.

3

INSPECT THROTTLE POSITION OPEN
CIRCUIT AND CLOSED VOLTAGES



Turn the ignition switch to the ON position
(Engine off).



Access the PCM and monitor the TP1 and
TP2 PIDs.



Verify the following values of the PIDs when
depressing the accelerator pedal to the floor
and releasing.



Pedal fully released: TP1 is 3.7-4.7 V



Pedal fully released: TP2 is 0.3-1.9 V



Pedal fully depressed: TP1 is 0.7-2.9 V



Pedal fully depressed: TP2 is 4.1-4.7 V



Are both PIDs within the specification?

Yes Go to the Step 5.

No

Go to the next step.

4

INSPECT FOR OBSTRUCTION OF
THROTTLE BODY





Turn the ignition switch off.



Remove the air hose from the throttle body.



Visually inspect for throttle plate obstructions
or sludge.



Slowly, push the throttle plate to wide open

WARNING:



Substantial opening and closing torque is
applied by this system. To prevent injury,
be careful to keep fingers away from
throttle mechanism when actuated. Failure
to follow these instructions may result in
personal injury.

Yes Go to the Step 7.

No

Isolate and repair the obstruction. Then

go to Step 9.
