Mazda CX-9 Grand Touring. Manual - part 290





DTC P0643 [MZI-3.7]

DTC P0643 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

6

Inspect the fuel tank pressure
sensor. (See FUEL TANK
PRESSURE SENSOR
INSPECTION [MZI-3.7]
 .)

Is there any malfunction?

Yes

Replace the evaporative hose component, then go
to the next step. (See FUEL TANK
REMOVAL/INSTALLATION [MZI-3.7]
 .)

No

Go to the next step.

7

VERIFY TROUBLESHOOTING OF
DTC P0642 HAS BEEN COMPLETED



Verify that all disconnected
connectors reconnected.

Clear the DTC from the PCM
memory using the M-MDS.

Perform the "KOEO or KOER self-
test" using the M-MDS. (See
KOEO/KOER SELF TEST
[MZI-3.7]
.)

Is the PENDING CODE for the
DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7]
 .)

No

Go to the next step.

8

VERIFY AFTER REPAIR
PROCEDURE


Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-
3.7]
.)

Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7]
.)

No

Troubleshooting completed.

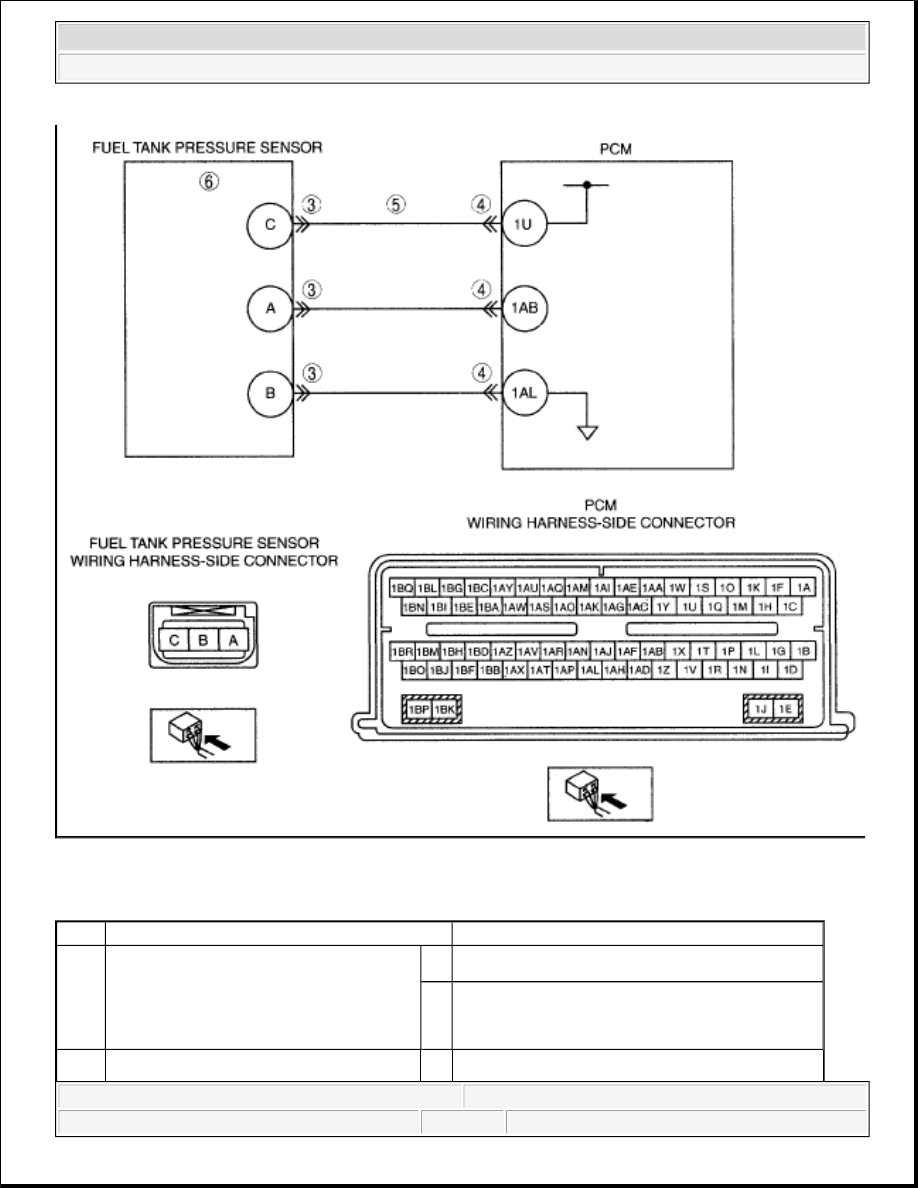

DTC P0643

Sensor reference voltage circuit high

DETECTION

CONDITION

Indicates the reference voltage circuit is higher than reference voltage
maximum.

POSSIBLE CAUSE

Short to power supply between fuel tank pressure sensor terminal C and PCM
terminal 1U

Fuel tank pressure sensor malfunction

Connector or terminal malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 293

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0643 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA
HAS BEEN RECORDED


Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

VERIFY RELATED REPAIR



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 294

© 2005 Mitchell Repair Information Company, LLC.

2

INFORMATION AVAILABILITY

Verify related Service Bulletins
and/or on-line repair information
availability.

Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.

If the vehicle is not repaired, go to the next
step.

No

Go to the next step.

3

INSPECT FUEL TANK PRESSURE
SENSOR CONNECTOR FOR POOR
CONNECTION


Turn the ignition switch off.

Disconnect the fuel tank pressure
sensor connector.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Are there any malfunction?

Yes Repair or replace suspected part, then go to Step 7.

No

Go to the next step.

4

INSPECT PCM CONNECTOR FOR
POOR CONNECTION


Turn the ignition switch off.

Disconnect the PCM connector.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Are there any malfunction?

Yes Repair or replace suspected part, then go to Step 7.

No

Go to the next step.

5

INSPECT FUEL TANK PRESSURE
SENSOR CIRCUIT FOR SHORT TO
POWER SUPPLY


Turn the ignition switch to the ON
position (Engine off).

Measure the voltage continuity
between fuel tank pressure sensor
terminal C (wiring harness-side) and
body ground.

Is the voltage B+?

Yes Repair or replace suspected part, then go to Step 7.

No

Go to the next step.

6

INSPECT FUEL TANK PRESSURE
SENSOR


Inspect the fuel tank pressure sensor.
(See FUEL TANK PRESSURE
SENSOR INSPECTION [MZI-
3.7]
 .)

Is there any malfunction?

Yes

Replace the evaporative hose component, then go
to the next step. (See FUEL TANK
REMOVAL/INSTALLATION [MZI-3.7]
 .)

No

Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 295

© 2005 Mitchell Repair Information Company, LLC.

DTC P0645 [MZI-3.7]

DTC P0645 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

7

VERIFY TROUBLESHOOTING OF
DTC P0643 HAS BEEN COMPLETED


Verify that all disconnected
connectors reconnected.

Clear the DTC from the PCM
memory using the M-MDS.

Perform the "KOEO or KOER self-
test" using the M-MDS. (See
KOEO/KOER SELF TEST [MZI-
3.7]
.)

Is the PENDING CODE for the
DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7]
 .)

No

Go to the next step.

8

VERIFY AFTER REPAIR
PROCEDURE


Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-
3.7]
.)

Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7]
.)

No

Troubleshooting completed.

DTC P0645

A/C relay control circuit

DETECTION

CONDITION

Monitors the A/C relay control circuit output from the PCM. The test fails when the
PCM grounds the A/C relay control circuit, excessive current draw is detected on the
A/C relay control circuit; or, with the A/C relay control circuit not grounded by the
PCM, voltage is not detected on the A/C relay control circuit (the PCM expects to
detect vehicle power voltage coming through the A/C relay coil to the A/C circuit).

POSSIBLE

CAUSE

A/C relay malfunction

Connector or terminal malfunction

Open circuit in wiring between main relay terminal No.1 D and A/C relay terminal A

Open circuit in wiring between A/C relay terminal E and PCM terminal IN

Short to ground in wiring between A/C relay terminal E and PCM terminal 1N

Short to power supply between A/C relay terminal E and PCM terminal 1N



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 296

© 2005 Mitchell Repair Information Company, LLC.
