Mazda CX-9 Grand Touring. Manual - part 282

DTC P0602 [MZI-3.7]

DTC P0602 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

DIAGNOSTIC PROCEDURE

DTC P0602 (MZI-3.7) DIAGNOSTIC PROCEDURE

4

position (Engine off).



Clear the DTC from the PCM
memory using the M-MDS.



Perform the KOEO and KOER self-
test.



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this DTC
present?

3.7] .)

No

Go to the next step.

5

VERIFY AFTER REPAIR
PROCEDURE



Perform "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-
3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

DTC P0602

PCM programming error

DETECTION

CONDITION



This DTC indicates a programming error within the vehicle ID block.

POSSIBLE CAUSE



Vehicle ID data corrupted by the M-MDS during vehicle ID
reprogramming

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins
and/or on-line repair information
availability.



Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the next
step.

No

Reprogram the vehicle ID using the M-MDS,

then go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:39 AM

Page 261

© 2005 Mitchell Repair Information Company, LLC.

DTC P0603 [MZI-3.7]

DTC P0603 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

3

VERIFY TROUBLESHOOTING OF
DTC P0602 HAS BEEN COMPLETED



Verify that all disconnected
connectors are reconnected.



Turn the ignition switch to the ON
position (Engine off).



Clear the DTC from the PCM
memory using the M-MDS.



Perform the "KOEO and KOER self-
test". (See KOEO/KOER SELF
TEST [MZI-3.7].)



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this DTC
present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

No

Go to the next step.

4

VERIFY AFTER REPAIR
PROCEDURE



Perform the "After Repair
Procedure". (See AFTER REPAIR
PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

DTC P0603

PCM keep alive memory (KAM) error

DETECTION

CONDITION



Indicates the PCM has experienced an internal memory concern. However, there
are external items that can cause this DTC.

POSSIBLE CAUSE



Reprogramming



Battery terminal corrosion



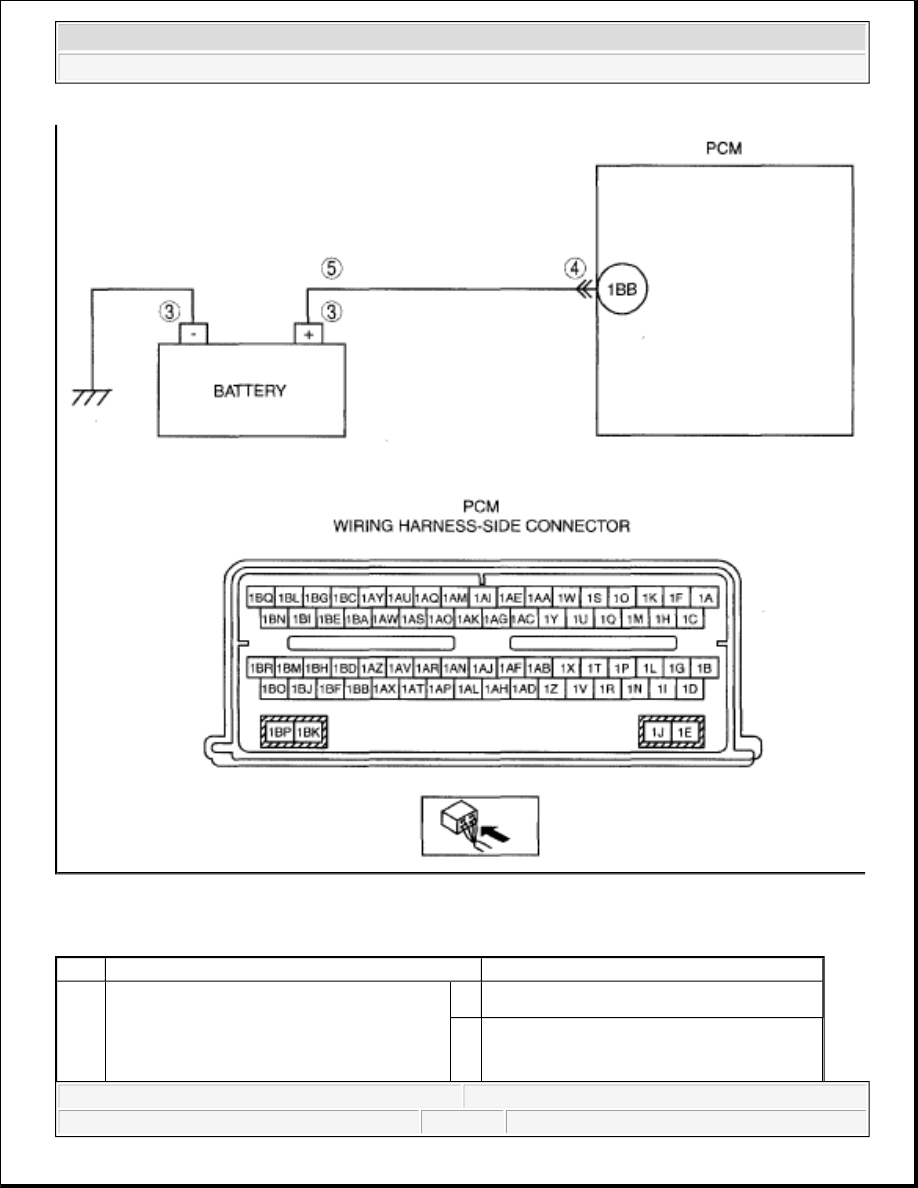

Open circuit between battery positive terminal and PCM terminal 1 BB



Connector or terminal malfunction



Loose battery connection



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:39 AM

Page 262

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0603 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:39 AM

Page 263

© 2005 Mitchell Repair Information Company, LLC.

recorded?

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins and/or
on-line repair information availability.



Is any Service Bulletins available?

Yes

Perform repair or diagnosis according to
available Service Bulletins.



If vehicle is not repaired, go to the next
step.

No

Go to the next step.

3

INSPECT BATTERY TERMINALS FOR
POOR CONNECTION



Turn the ignition switch off.



Inspect for poor connection and
corrosion.



Are there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 7.

No

Go to the next step.

4

INSPECT PCM CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Is there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 7.

No

Go to the next step.

5

INSPECT MONITOR CIRCUIT FOR
OPEN CIRCUIT



Turn the ignition switch off.



Disconnect the battery cables.



Disconnect the PCM connector.



Inspect the continuity between battery
positive terminal (wiring harness-side)
and PCM terminal 1BB (wiring harness-
side).



Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part, then go to

Step 7.

6

INSPECT FOR CORRECT PCM
OPERATION



Disconnect all the PCM connectors.



Visually inspect for:



Pushed out pins



Corrosion



Connect all the PCM connectors and
verify that they seat correctly.

Yes Go to the next step.

No

The system is correctly. Go to the next step.
