CONDITION

voltage or ground.

POSSIBLE CAUSE



Connector or terminal malfunction



Open circuit between cruise control switch terminal B and PCM terminal
1AT



Open circuit between cruise control switch terminal C and PCM terminal 1AP



Short to power supply between cruise control switch terminal B and PCM
terminal 1AT



Short to power supply between cruise control switch terminal C and PCM
terminal 1 AP



Short to ground circuit between cruise control switch terminal B and PCM
terminal 1AT



Short to ground circuit between cruise control switch terminal C and PCM
terminal 1AP



Cruise control switch malfunction



PCM malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:39 AM

Page 253

© 2005 Mitchell Repair Information Company, LLC.

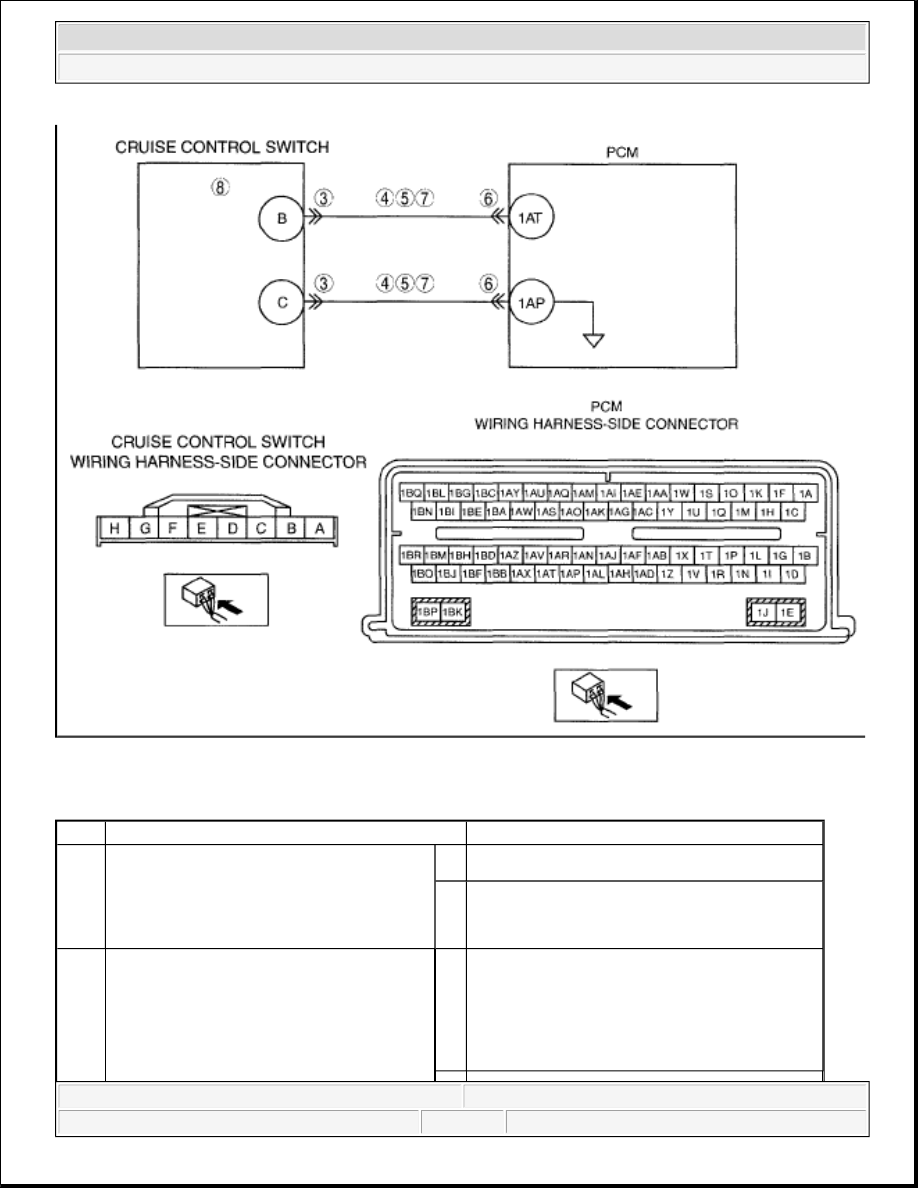

DIAGNOSTIC PROCEDURE

DTC P0579 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins and/or
on-line repair information availability.



Is any related Service Bulletins

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the
next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:39 AM

Page 254

© 2005 Mitchell Repair Information Company, LLC.

available?

No

Go to the next step.

3

INSPECT CRUISE CONTROL SWITCH
CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch to off.



Disconnect the cruise control switch
connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
9.

No

Go to the next step.

4

IINSPECT CRUISE CONTROL SWITCH
CIRCUIT FOR SHORT TO POWER
SUPPLY



Turn the ignition switch to the ON
position (Engine off).



Measure the voltage between the
following terminals:



Cruise control switch terminal B
and body ground



Cruise control switch terminal C
and body ground



Are there voltage B+?

Yes

Repair or replace suspected part, then go to Step
9.

No

Go to the next step.

5

INSPECT CRUISE CONTROL SWITCH
CIRCUIT FOR SHORT TO GROUND



Turn the ignition switch off.



Inspect for continuity between the
following terminals:



Cruise control switch terminal B
and body ground



Cruise control switch terminal C
and body ground



Are there continuity?

Yes

Repair or replace suspected part, then go to Step
9.

No

Go to the next step.

6

INSPECT PCM CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
9.

No

Go to the next Step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:39 AM

Page 255

© 2005 Mitchell Repair Information Company, LLC.

DTC P0581 [MZI-3.7]

DTC P0581 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

7

INSPECT CRUISE CONTROL SWITCH
CIRCUIT FOR OPEN



Disconnect the PCM connector.



Inspect for continuity between the
following terminals:



Cruise control switch terminal B
and PCM terminal 1AT



Cruise control switch terminal C
and PCM terminal 1AP



Are there continuity?

Yes Go to the next step.

No

Repair or replace suspected part, then go to Step

9.

8

INSPECT CRUISE CONTROL SWITCH




Inspect the cruise control switch. (See
CRUISE CONTROL SWITCH
INSPECTION [MZI-3.7] .)



Is there malfunction?

Yes

Replace the cruise control switch, then go to the
next step.

No

Go to the next step.

9

VERIFY TROUBLESHOOTING OF
DTC P0579 HAS BEEN COMPLETED



Verify that all disconnected
connectors are reconnected.



Turn the ignition switch to the ON
position (Engine off).



Clear the DTC from the PCM memory
using the M-MDS.



Perform the "KOEO and KOER self-
test". (See KOEO/KOER SELF
TEST [MZI-3.7].)



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this DTC
present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

No

Go to the next step.

10

VERIFY AFTER REPAIR
PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.
