Turn the ignition switch to the ON
position (Engine running).

With the engine running, determine if
the generator is still noisy.

Does the noise remain constant when
the terminal B is disconnected?

5

INSPECT CMP SENSOR (RH)
CONNECTOR FOR POOR
CONNECTION


Turn the ignition switch off.

Disconnect the CMP sensor (RH)
connector.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

6

INSPECT CMP SENSOR SIGANAL
CIRCUIT FOR SHORT TO POWER
SUPPLY


Turn the ignition switch to the ON
position (Engine off).

Measure voltage between CMP sensor
(RH) terminal A (wiring harness-side)
and body ground.

Is the voltage B+?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

7

INSPECT CMP SENSOR (RH) SIGNAL
CIRCUIT FOR SHORT TO GROUND


Turn the ignition switch off.

Check continuity between CMP sensor
(RH) terminal A and body ground.

Is there continuity?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

8

INSPECT PCM CONNECTOR FOR
POOR CONNECTION


Turn the ignition switch off.

Disconnect PCM connector.

Check for poor connection (such as
damaged, pulled-out pins, and
corrosion).

Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

INSPECT CMP SENSOR (RH) CIRCUIT



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 177

© 2005 Mitchell Repair Information Company, LLC.

DTC P0344 [MZI-3.7]

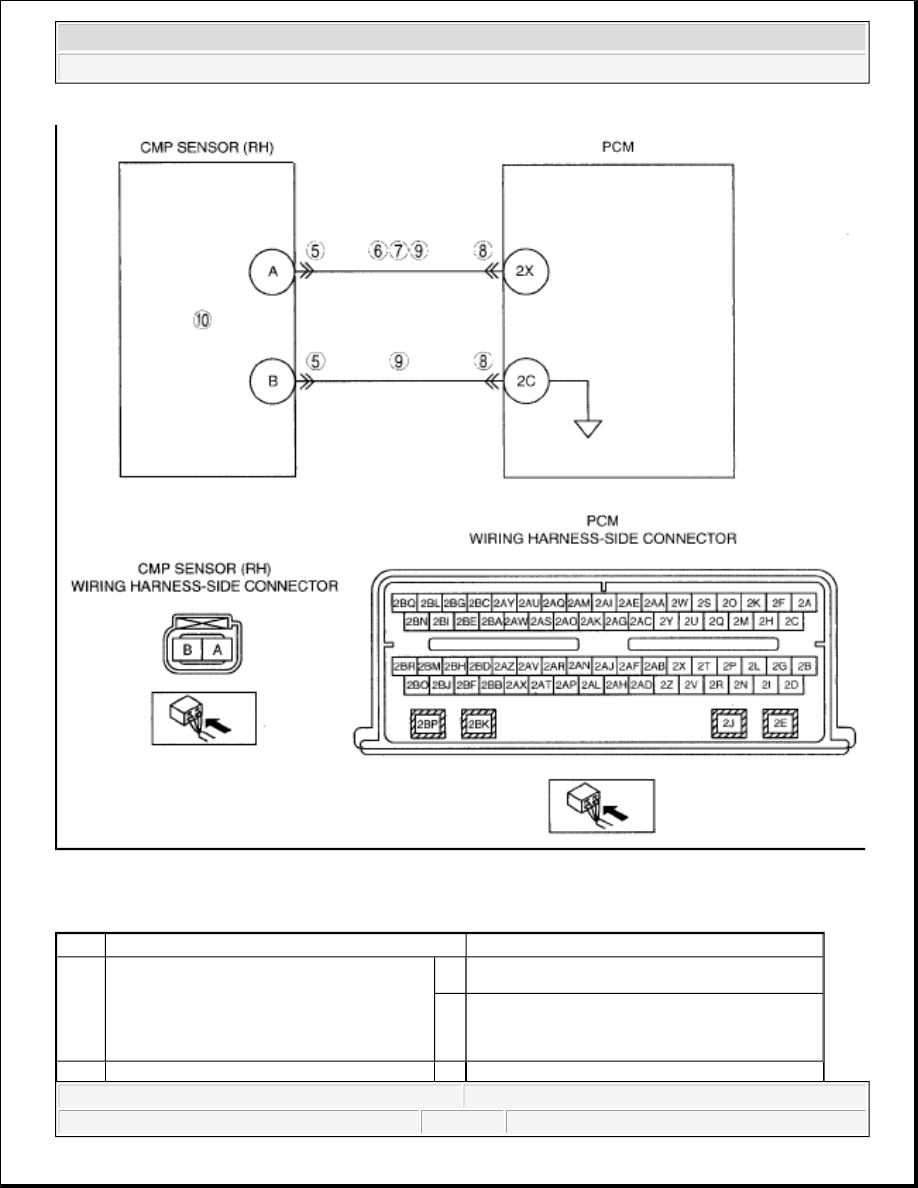

DTC P0344 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

9

FOR OPEN CIRCUIT

Turn the ignition switch off.

Check continuity between the
following circuits:

CMP sensor (RH) terminal A
and PCM terminal 2X

CMP sensor (RH) terminal B
and PCM terminal 2C

Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part, then go to Step

11.

10

INSPECT CMP SENSOR (RH)

Inspect CMP sensor (RH). (See
CRANKSHAFT POSITION (CKP)
SENSOR INSPECTION [MZI-
3.7]
 .)

Is there any malfunction?



Replace CMP sensor (RH), then go to the next
step. (See CRANKSHAFT POSITION (CKP)
SENSOR REMOVAL/INSTALLATION
[MZI-3.7]
 .)

No

Go to the next step.

11

VERIFY TROUBLESHOOTING OF
DTC P0340 COMPLETED


Verify that all disconnected
connectors reconnected.

Turn ignition switch to the ON
position (Engine off).

Clear the DTC from the PCM memory
using the M-MDS.

Start the engine.

Access the MAF PID using the M-
MDS.

Is same DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7]
 .)

No

Go to the next step.

12

VERIFY AFTER REPAIR
PROCEDURE


Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7]
.)

Are any DTC present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7]
.)

No

Troubleshooting completed.

DTC P0344

CMP sensor (RH) circuit intermittent

DETECTION



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 178

© 2005 Mitchell Repair Information Company, LLC.

CONDITION

The test fails when the PCM detects an intermittent signal from the CMP
sensor.

POSSIBLE CAUSE

Connector or terminal malfunction

CMP sensor (RH) malfunction

Sensor shielding malfunction

Short to ground circuit between CMP sensor (RH) terminal A and PCM
terminal 2X

Short to power supply between CMP sensor (RH) terminal A and PCM
terminal 2X

Open circuit between CMP sensor (RH) terminal A and PCM terminal 2X

Open circuit between CMP sensor (RH) terminal B and PCM terminal 2C



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 179

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0344 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED


Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

VERIFY RELATED REPAIR



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 180

© 2005 Mitchell Repair Information Company, LLC.
