Mazda CX-9 Grand Touring. Manual - part 251

DTC P0223 [MZI-3.7]

DTC P0223 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES



Turn the ignition switch off.



Verify the continuity between TP sensor
terminal E and body ground.



Is the continuity?

Repair or replace suspected part, then go to

Step 9.

INSPECT TP SENSOR NO.2



Inspect the TP sensor No.2. (See
THROTTLE POSITION (TP)
SENSOR INSPECTION [MZI-3.7] .)



Is there any malfunction?

Yes

Replace the throttle body, then go to the next
step.

Go to the next step.

VERIFY TROUBLESHOOTING OF DTC
P0222 HAS BEEN COMPLETED



Make sure to reconnect all disconnected
connectors.



Clear the DTC from the PCM memory
using the M-MDS.



Start the engine.



Perform the "KOEO/KOER self-test".
(See KOEO/KOER SELF TEST [MZI-
3.7].)



Is same DTC present?

Yes

Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION
[MZI-3.7] .)

Go to the next step.

VERIFY AFTER REPAIR PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER REPAIR
PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See
DTC TABLE [MZI-3.7].)

Troubleshooting completed.

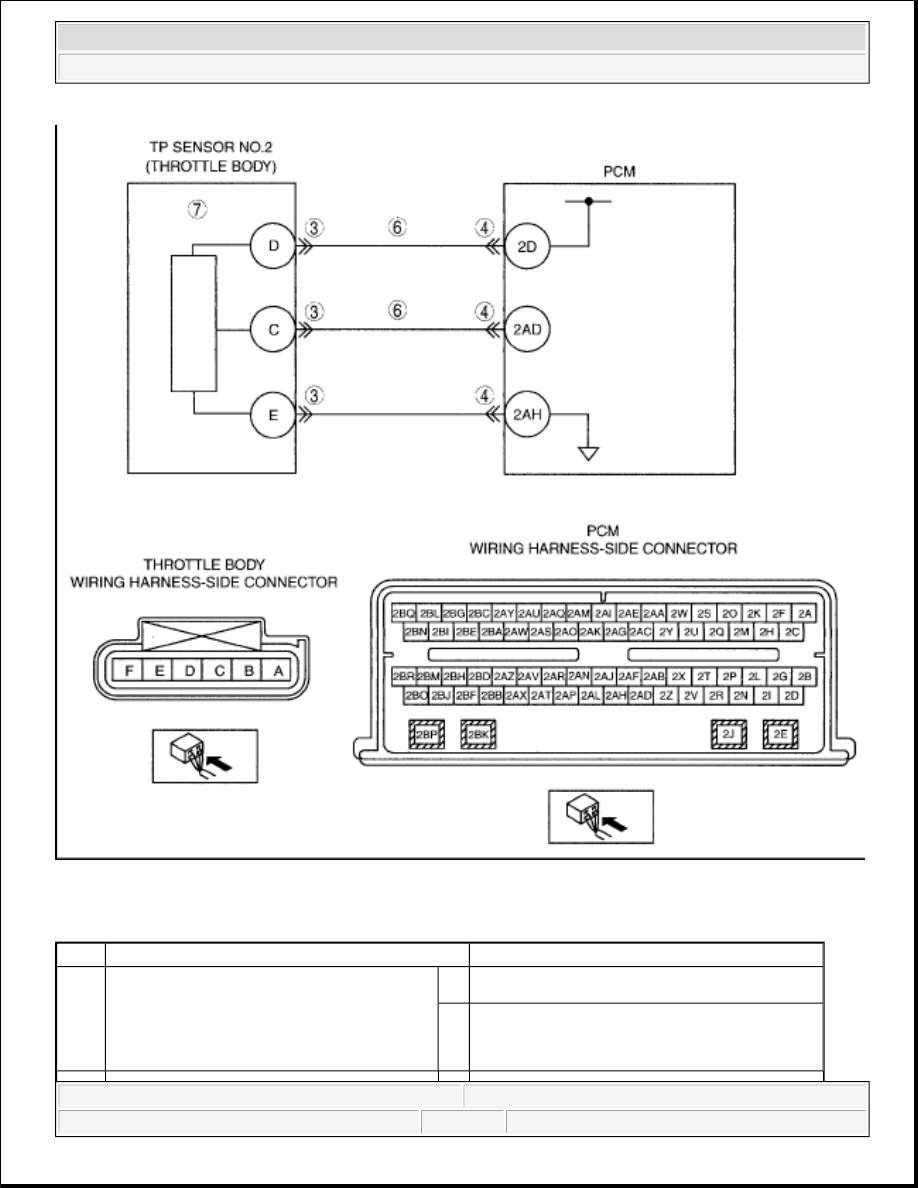

DTC P0223

TP sensor No.2 circuit high input

DETECTION

CONDITION



The TP sensor No.2 circuit was flagged as a concern by the PCM indicating a
high voltage.

POSSIBLE CAUSE



TP sensor No.2 malfunction



Connector or terminal malfunction



Open circuit wiring harness between throttle body terminal C and PCM
terminal 2AD



TP sensor signal circuits are shorted each other

2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:08:36 AM

Page 137

DIAGNOSTIC PROCEDURE

DTC P0223 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:08:36 AM

Page 138

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins and/or
on-line repair information availability.



Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the
next step.

Go to the next step.

INSPECT TP SENSOR CONNECTOR
FOR POOR CONNECTION



Turn the ignition switch off.



Disconnect the throttle body connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
8.

Go to the next step.

INSPECT PCM CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
8.

Go to the next step.

INSPECT TP SIGNAL CIRCUIT FOR
OPEN CIRCUIT



Turn the ignition switch off.



Disconnect the PCM connector.



Disconnect the throttle body connector.



Inspect for continuity between the
following terminals:



Throttle body terminal C and
PCM terminal 2AD



Throttle body terminal D and
PCM terminal 2D



Are there continuity?

Yes Go to the next step.

Repair or replace suspected part, then go to Step

INSPECT TP SENSOR NO.2



Inspect the TP sensor No.2. (See
THROTTLE POSITION (TP)
SENSOR INSPECTION [MZI-3.7] .)



Is there any malfunction?

Yes Replace the throttle body, then go to Step 8.

Go to the next step.

2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:08:36 AM

Page 139

DTC P0230 [MZI-3.7]

DTC P0230 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

INSPECT TP SENSOR SIGNAL
CIRCUITS FOR SHORT EACH OTHER



Disconnect the TP sensor and PCM
connector.



Measure resistance between Throttle
body connector terminal D and C.



Is the resistance more than 10
kilohms?

Yes Go to the next step.

Repair or replace suspected part, then go to Step

VERIFY TROUBLESHOOTING OF
DTC P0223 HAS BEEN COMPLETED



Make sure to reconnect all
disconnected connectors.



Clear the DTC from the PCM memory
using the M-MDS.



Start the engine.



Perform the "KOEO/KOER self-test".
(See KOEO/KOER SELF TEST
[MZI-3.7].)



Is same DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

Go to the next step.

VERIFY AFTER REPAIR PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

Troubleshooting completed.

DTC P0230

FP primary circuit

DETECTION

CONDITION



The PCM monitors the fuel pump circuit output from the PCM. The test fails when the
fuel pump output is commanded ON (grounded) and excessive current draw is detected
on the fuel pump circuit. The test also fails when the fuel pump output is commanded
OFF and voltage is not detected on the fuel pump circuit. The PCM expects to detect
vehicle power voltage coming through the fuel pump relay coil to the fuel pump circuit.

POSSIBLE

CAUSE



Fuel pump relay malfunction



Connector or terminal malfunction



Open circuit wiring harness between fuel pump relay terminal E and PCM terminal 1V



Short to ground circuit between fuel pump relay terminal E and PCM terminal 1V



Open circuit wiring harness between ignition switch and fuel pump relay terminal A

2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:08:36 AM

Page 140
