Mazda CX-9 Grand Touring. Manual - part 246





DIAGNOSTIC PROCEDURE

DTC P0201 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED


Has FREEZE FRAME DATA been recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA

on the repair order, then go to the

next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY


Verify related Service Bulletins availability.

Is any related Service Bulletins available?

Yes

Perform repair or diagnosis
according to available Service
Bulletins.

If vehicle is not repaired, go
to the next step.

No

Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 117

© 2005 Mitchell Repair Information Company, LLC.

3

INSPECT FUEL INJECTOR NO.1 CONNECTOR
FOR POOR CONNECTION


Turn the ignition switch off.

Disconnect the fuel injector No.1 connector.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Are there malfunction?

Yes

Repair or replace suspected part,
then go to Step 8.

No

Go to the next step.

4

INSPECT PCM CONNECTOR FOR POOR
CONNECTION


Turn the ignition switch off.

Disconnect the PCM connector.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Is there malfunction?

Yes

Repair or replace suspected part,
then go to Step 8.

No

Go to the next step.

5

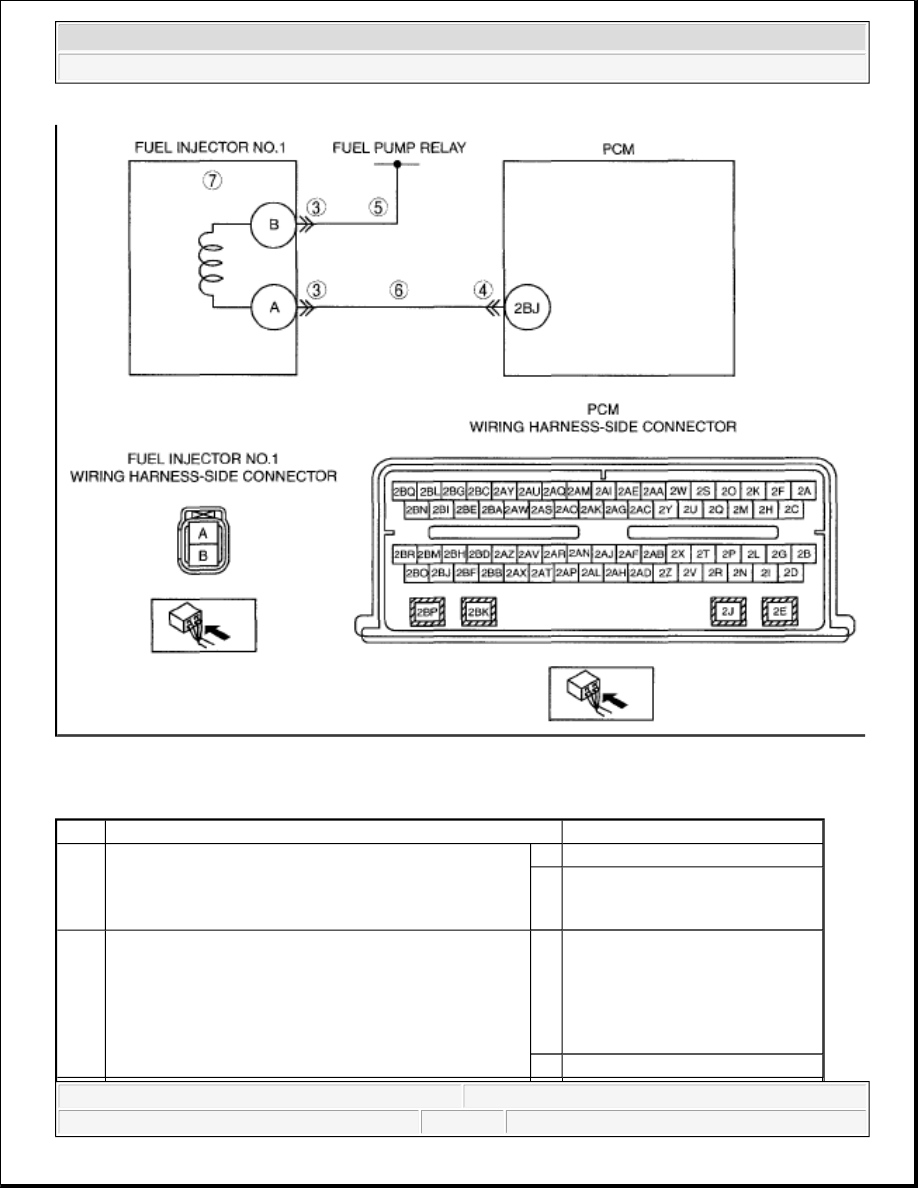

INSPECT FUEL INJECTOR NO.1 POWER SUPPLY
CIRCUIT FOR OPEN CIRCUIT


Turn the ignition switch to the ON position (Engine
off).

Measure the voltage between fuel injector No.1
connector terminal B and body ground.

Is the voltage B+?

Yes Go to the next step.

No

Repair or replace suspected part,

then go to Step 8.

6

INSPECT FUEL INJECTOR NO.1 SIGNAL
CIRCUIT FOR OPEN CIRCUIT


Inspect continuity between fuel injector No.1
terminal A (wiring harness-side) and PCM terminal
2BJ (wiring harness-side).

Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part,

then go to Step 8.

7

INSPECT FUEL INJECTOR NO.1

Inspect the fuel injector No.1. (See FUEL
INJECTOR INSPECTION [MZI-3.7]
 .)

Is there any malfunction?

Yes

Replace the fuel injector No.1, then
go to the next step.

No

Go to the next step.

8

VERIFY TROUBLESHOOTING OF DTC P0201
HAS BEEN COMPLETED


Verify that all disconnected connectors
reconnected.

Clear DTC from memory using M-MDS.

Start the engine.

Yes

Replace the PCM, then go to the
next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 118

© 2005 Mitchell Repair Information Company, LLC.

DTC P0202 [MZI-3.7]

DTC P0202 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

Perform the "KOEO/KOER self-test" (See
KOEO/KOER SELF TEST [MZI-3.7].)

Is same DTC present?

No

Go to the next step.

9

VERIFY AFTER REPAIR PROCEDURE

Perform the "AFTER REPAIR PROCEDURE".
(See AFTER REPAIR PROCEDURE [MZI-
3.7]
.)

Are any DTCs present?

Yes

Go to the applicable DTC
inspection. (See DTC TABLE
[MZI-3.7]
.)

No

Troubleshooting completed.

DTC P0202

Injector circuit/open-cylinder No.2

DETECTION

CONDITION

The CCM monitors the operation of the fuel injector drivers in the PCM. The test
fails if the fuel injector circuitry is inoperative.

POSSIBLE CAUSE

Fuel injector No.2 malfunction

Connector or terminal malfunction

Open circuit between fuel pump relay and fuel injector No.2 terminal B

Open circuit between fuel injector No.2 terminal A and PCM terminal 2BM



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 119

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0202 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED


Has FREEZE FRAME DATA been recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA

on the repair order, then go to the

next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY


Verify related Service Bulletins availability.

Is any related Service Bulletins available?

Yes

Perform repair or diagnosis
according to available Service
Bulletins.

If vehicle is not repaired, go
to the next step.

No

Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 120

© 2005 Mitchell Repair Information Company, LLC.
