ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZI-3.7]



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:33 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:08:59 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

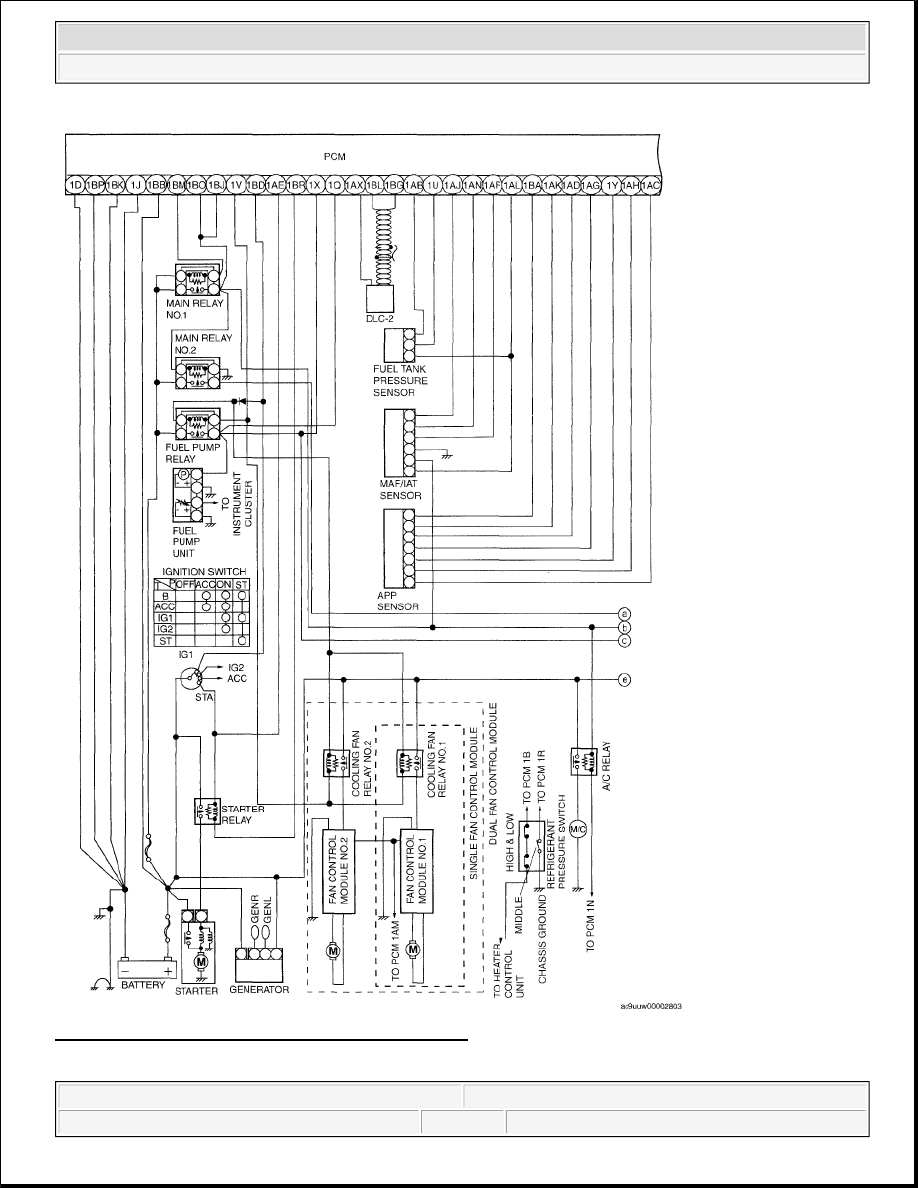

Fig. 1: On-Board Diagnostic Wiring Diagram (1 Of 3)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:33 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

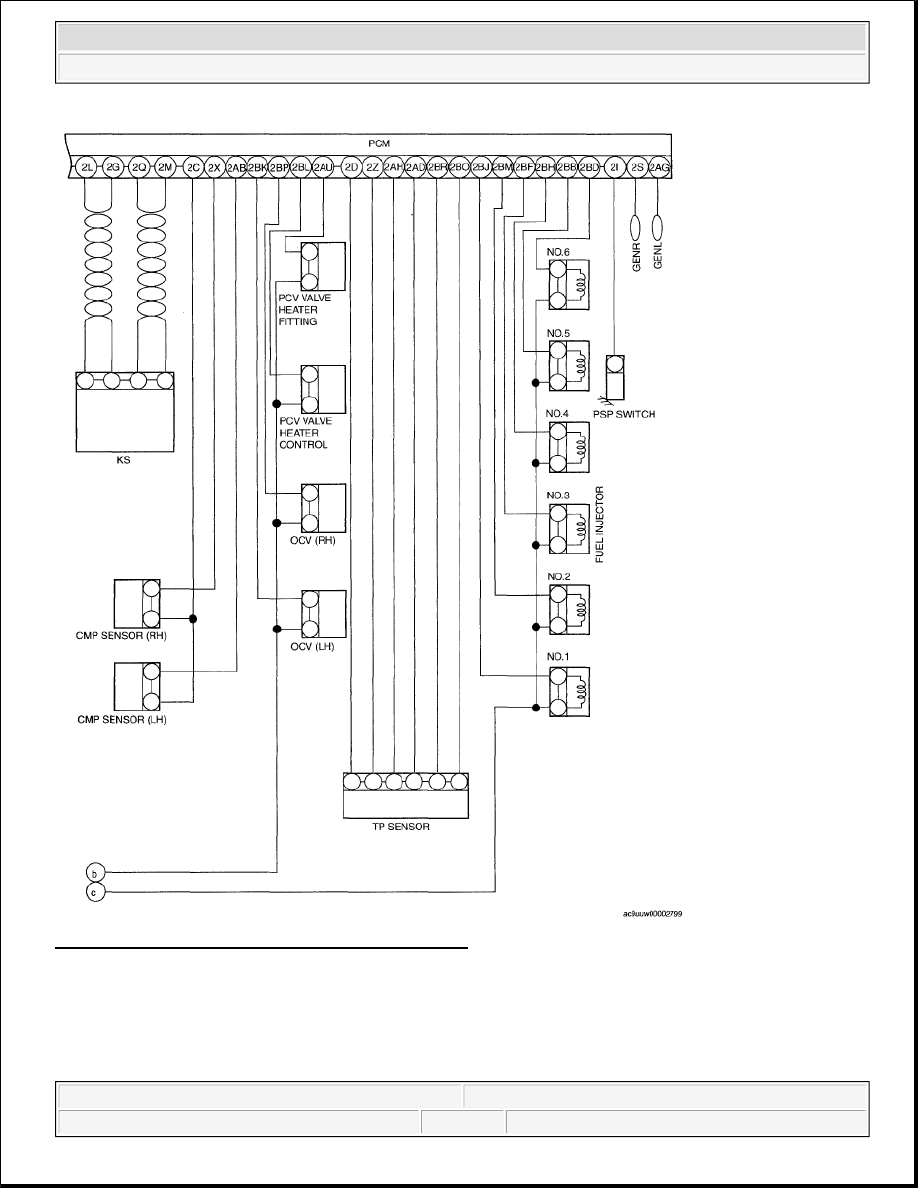

Fig. 2: On-Board Diagnostic Wiring Diagram (2 Of 3)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:33 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

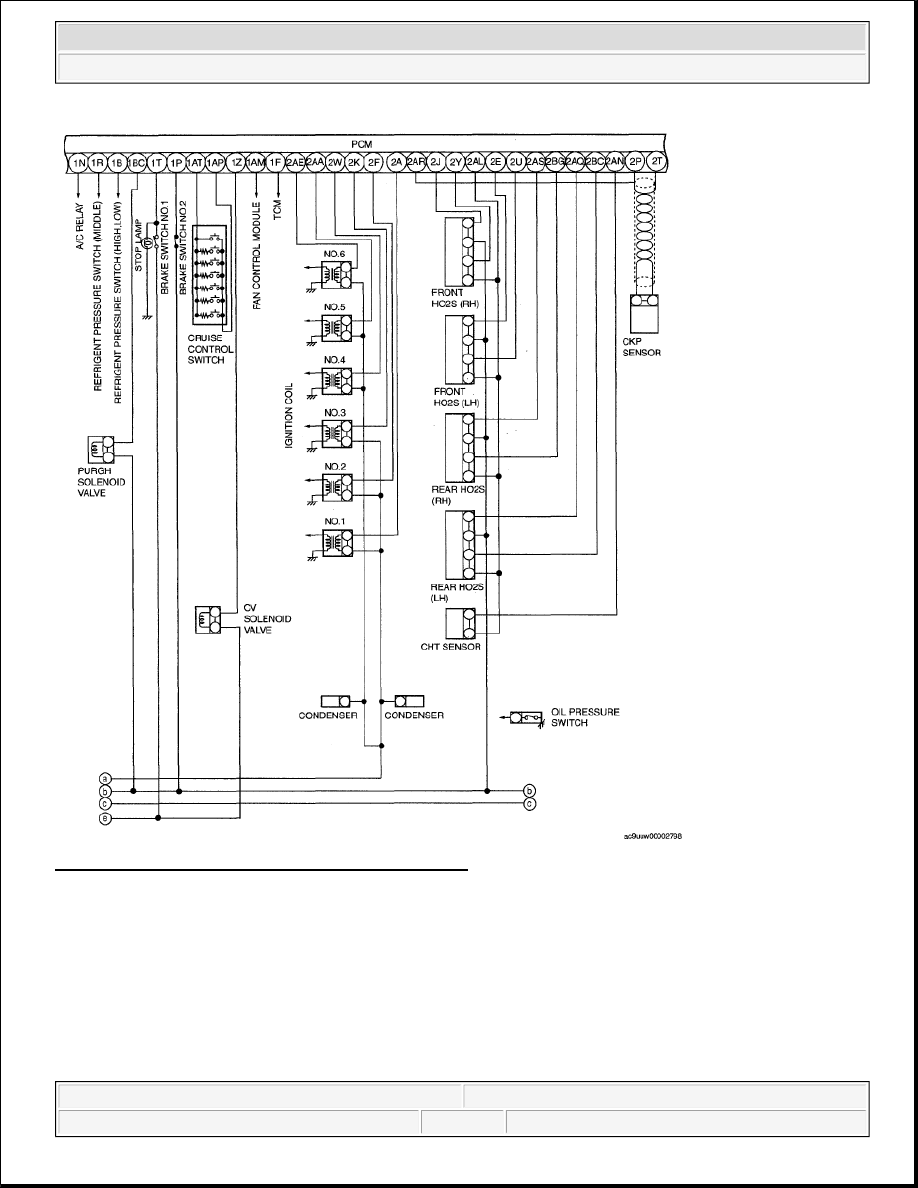

Fig. 3: On-Board Diagnostic Wiring Diagram (3 Of 3)
Courtesy of MAZDA MOTORS CORP.

FOREWORD [MZI-3.7]



When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication
and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
