Mazda CX-9 Grand Touring. Manual - part 215





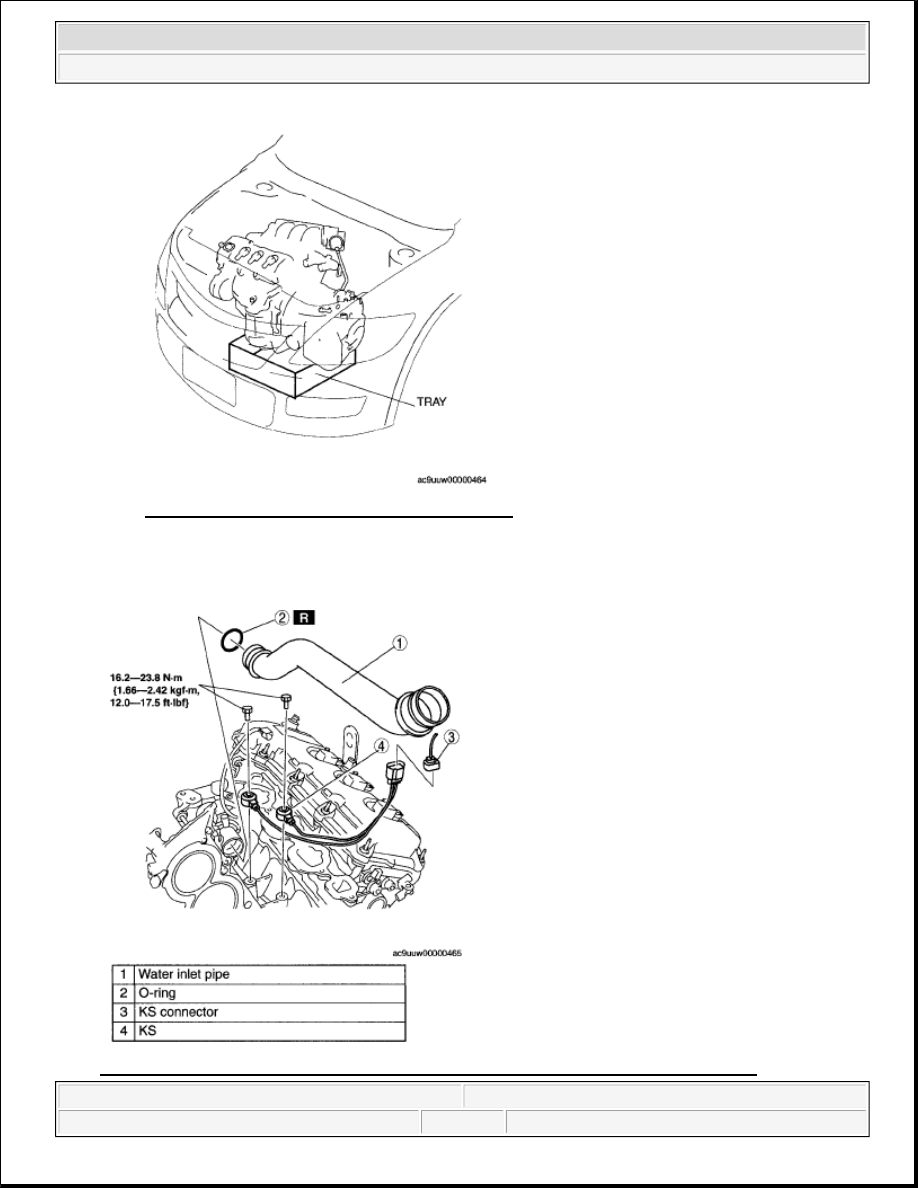

Fig. 35: Putting Tray Under Converter Housing
Courtesy of MAZDA MOTORS CORP.

3. Remove in the order indicated in the table.

Fig. 36: Identifying Water Inlet Pipe, O-Ring, KS Connector & Torque Specifications



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

KNOCK SENSOR (KS) INSPECTION [MZI-3.7]

RESISTANCE INSPECTION

1. Turn the ignition switch to LOCK.

2. Disconnect the KS connector.

3. Measure the resistance between the KS terminals.

KS(RH): KS terminals A and B

KS(LH): KS terminals C and D

If not as specified, replace the KS.

If the KS is normal, but PID value is out of specification, perform the "Circuit Open/Short
Inspection".

KS resistance

4.39-5.35 Mohms

CIRCUIT OPEN/SHORT INSPECTION

NOTE:

Lubricate the new O-ring with clean engine coolant for installation.

NOTE:

Before performing the following inspection, make sure to follow the
procedure as indicated in the troubleshooting flowchart. (See HOW TO
USE THIS MANUAL .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

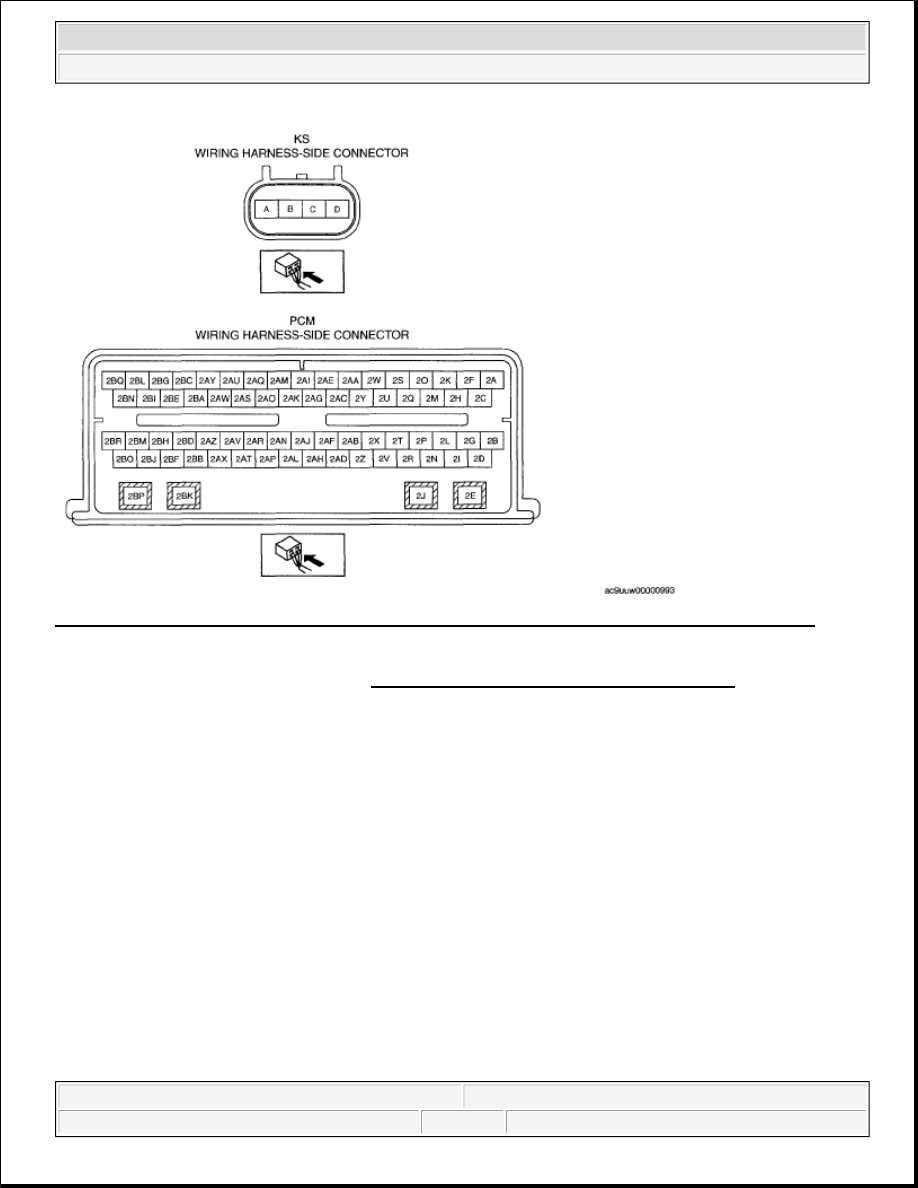

Fig. 37: Identifying KS Wiring Harness Side Connector And PCM Wiring Harness Side Connector
Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [MZI-3.7].)

2. Inspect the following wiring harnesses for open or short. (Continuity inspection)

Open circuit

If there is no continuity, the circuit is open. Repair or replace the wiring harness.

KS terminal A and PCM terminal 2Q

KS terminal B and PCM terminal 2M

KS terminal C and PCM terminal 2L

KS terminal D and PCM terminal 2G

Short circuit

If there is continuity, the circuit is shorted. Repair or replace the wiring harness.

KS terminal A and power supply

KS terminal A and body ground

KS terminal B and power supply

KS terminal B and body ground



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

KS terminal C and power supply

KS terminal C and body ground

KS terminal D and power supply

KS terminal D and body ground

CYLINDER HEAD TEMPERATURE (CHT) SENSOR
REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable.

2. Remove the following part for easier access.

Perform the following procedure to remove the intake manifold.

1. Remove the ventilation hose. (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM)

REMOVAL/INSTALLATION [MZI-3.7] .)

2. Remove the vacuum hose (to purge solenoid valve). (See QUICK RELEASE CONNECTOR

(EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7] .)

3. Remove the fuel hose. (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION

[MZI-3.7] .)

4. Remove the fuel distributor. (See FUEL INJECTOR REMOVAL/INSTALLATION [MZI-

3.7] .)

3. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

4. Disconnect the CHT sensor connector.

5. Remove the CHT sensor using the following tools.

Socket 3/8", 20 mm, 6 point

Ratchet handle and torque wrench 3/8" Drive

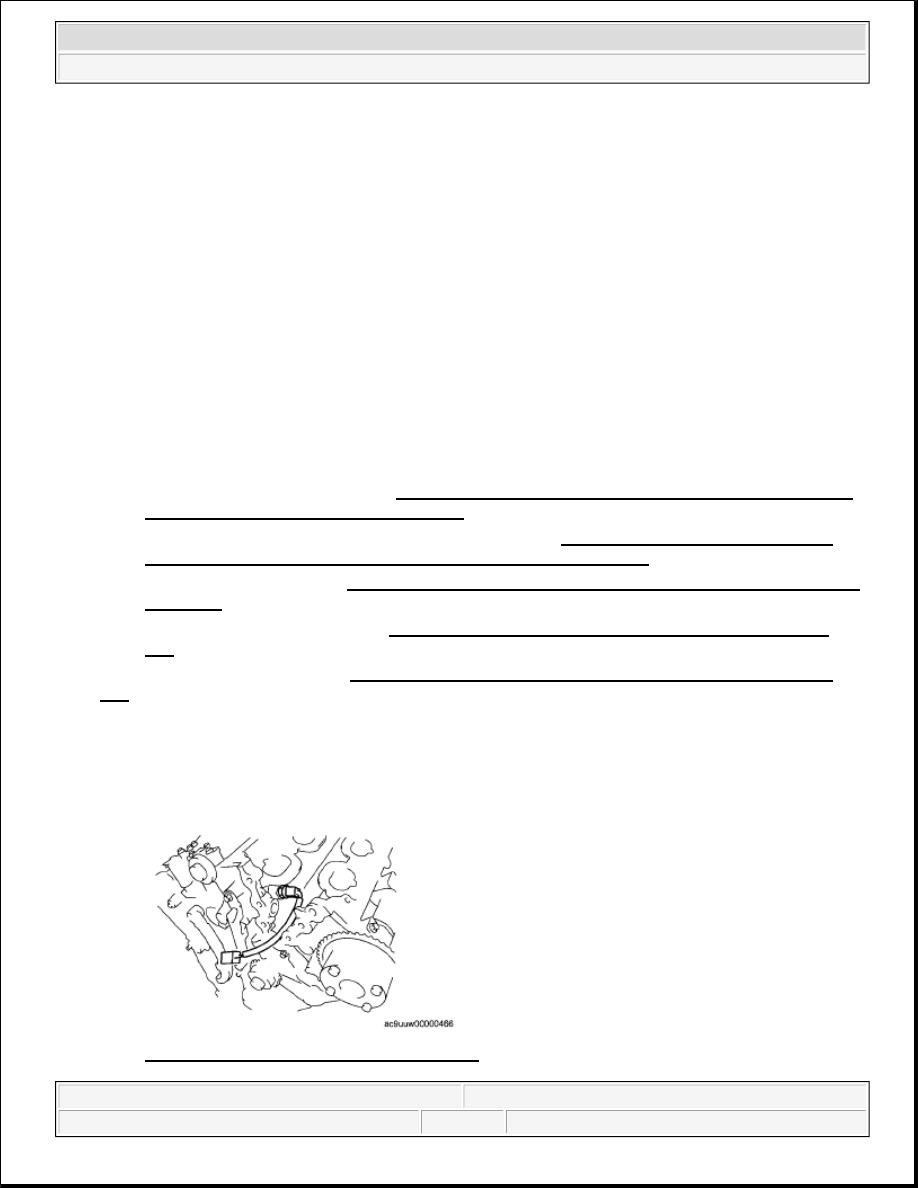

Fig. 38: Identifying CHT Sensor Connector
Courtesy of MAZDA MOTORS CORP.

NOTE:

Do not reuse the CHT sensor, install a new sensor.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 42

© 2005 Mitchell Repair Information Company, LLC.
