Mazda CX-9 Grand Touring. Manual - part 206

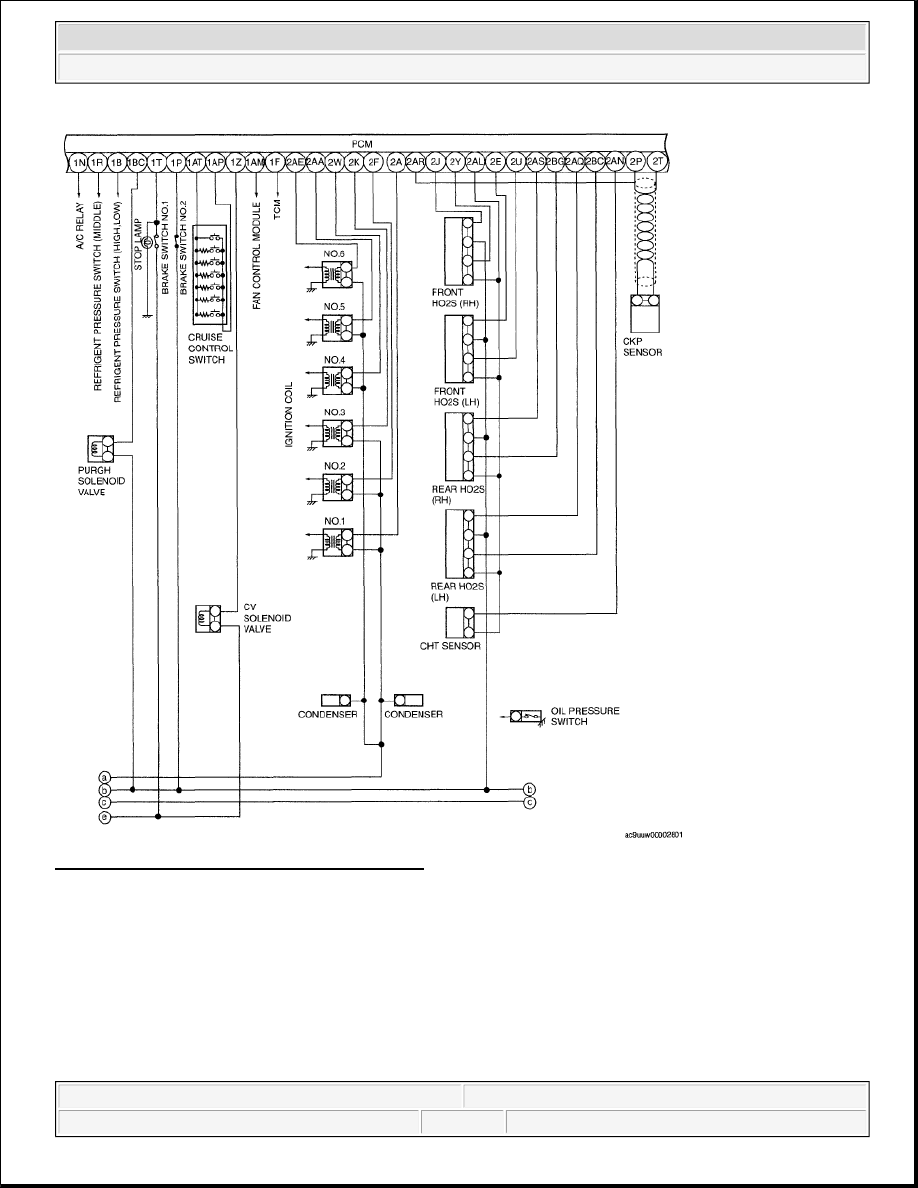

Fig. 2: Control System Wiring Diagram (2 Of 3)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:18 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

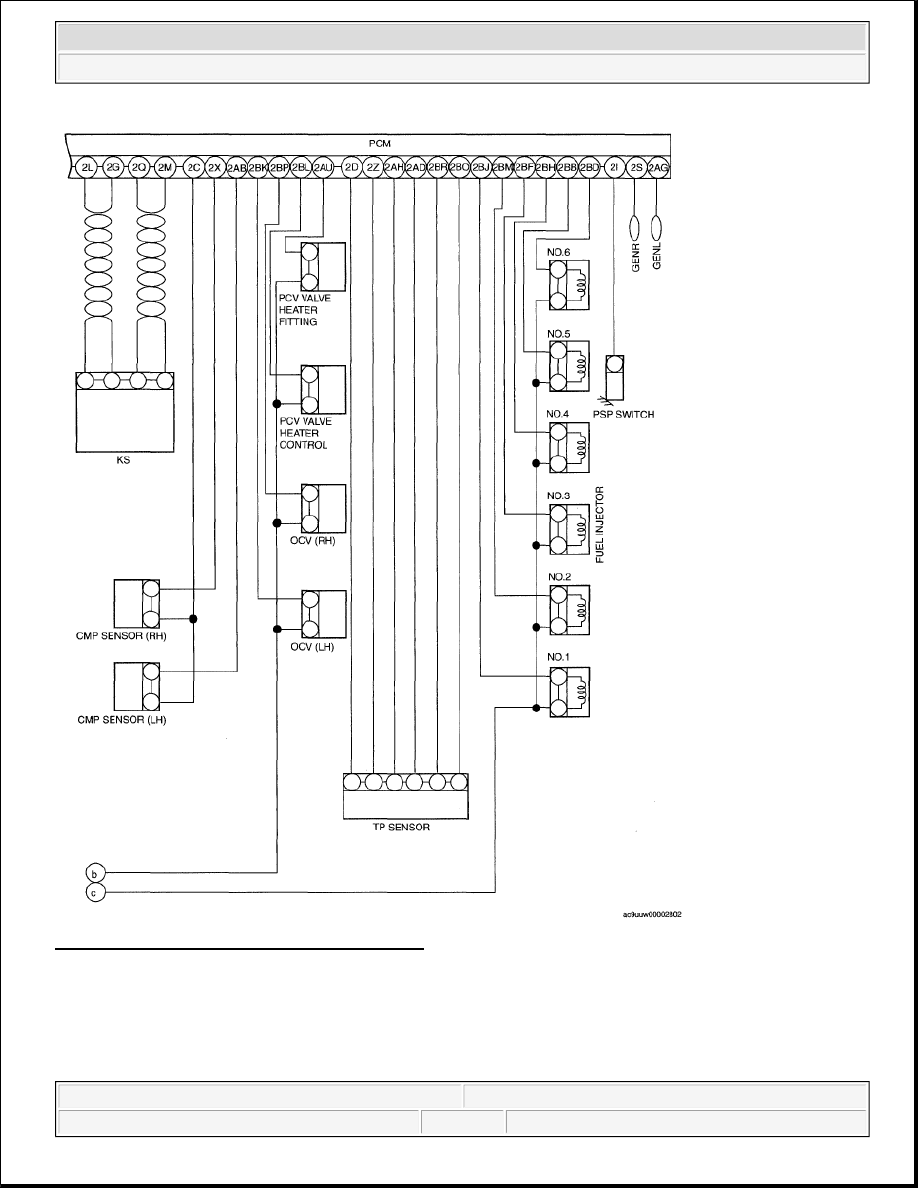

Fig. 3: Control System Wiring Diagram (3 Of 3)
Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM LOCATION INDEX [MZI-3.7]



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:18 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

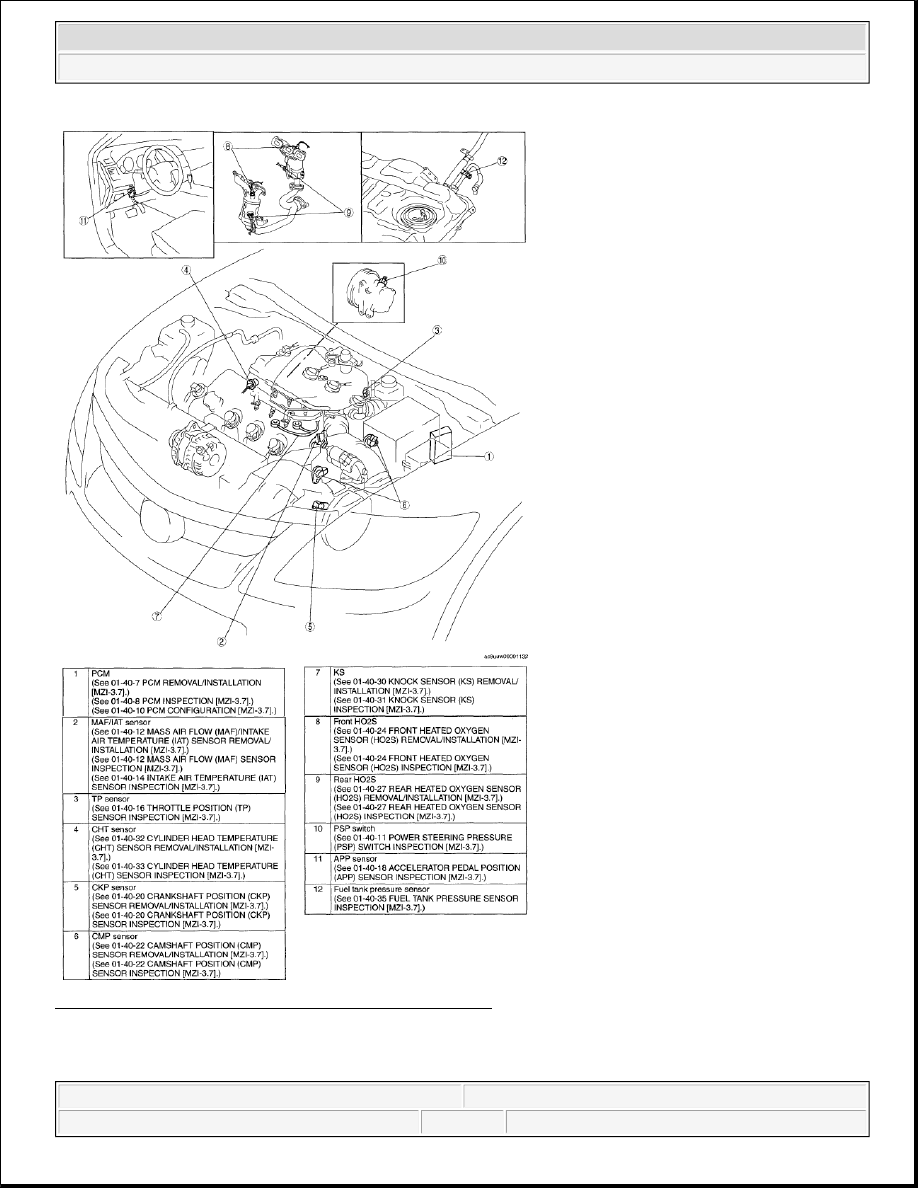

Fig. 4: Identifying Control System Components Location
Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM DIAGRAM [MZI-3.7]



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:18 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

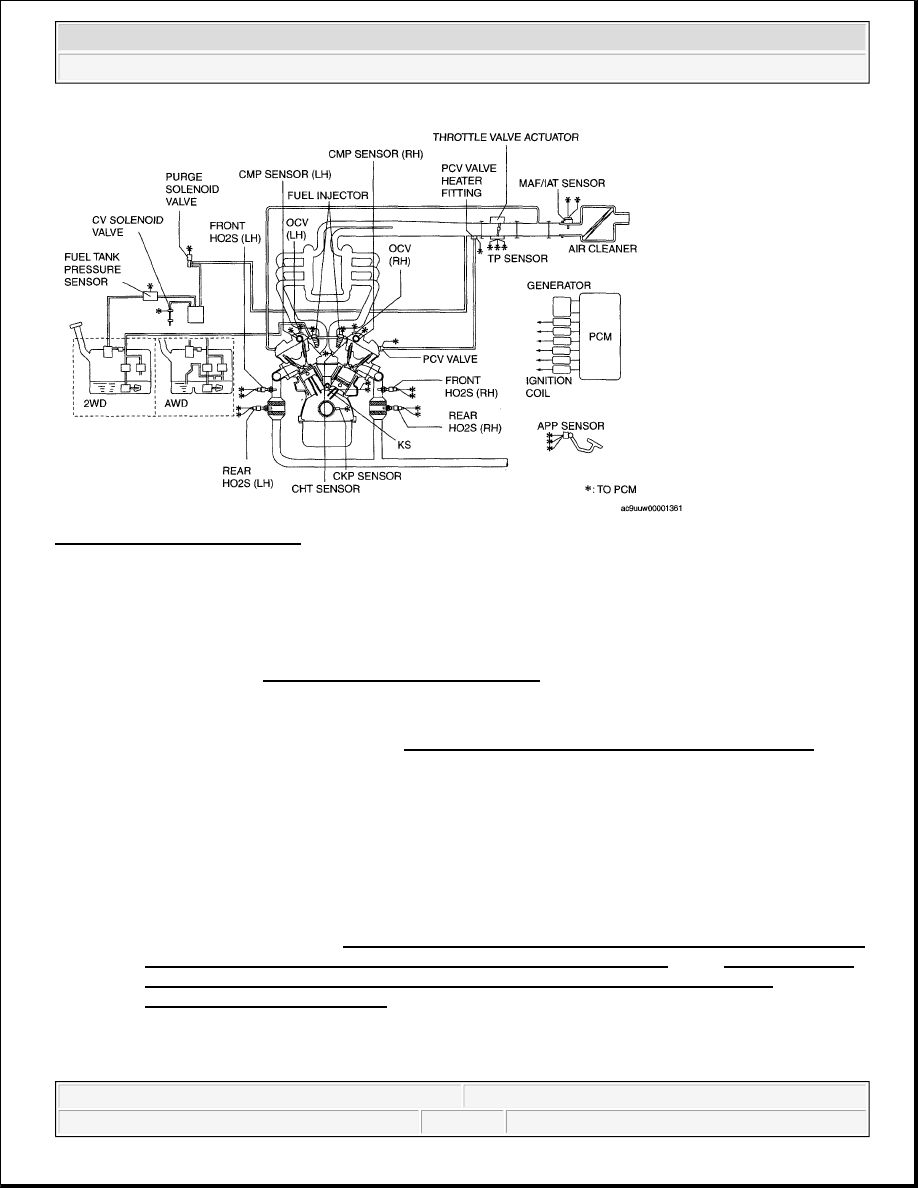

Fig. 5: Control System Diagram
Courtesy of MAZDA MOTORS CORP.

PCM REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable.

2. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)

3. Disconnect connectors.

4. Remove PCM and bracket as and assembly.

5. Remove PCM from bracket.

6. When replacing the PCM on the vehicles, perform the following.



PCM parameter reset. (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY
ADDITION AND CLEARING [ADVANCED KEYLESS SYSTEM] .) (See IMMOBILIZER
SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING
[KEYLESS ENTRY SYSTEM] .)

7. Install in the reverse order of removal.

NOTE:



To replace the PCM, Setup the M-MDS and perform the PCM configuration.
(See PCM CONFIGURATION [MZI-3.7].)

NOTE:



Only 2 PCM connectors.
