Mazda CX-9 Grand Touring. Manual - part 202

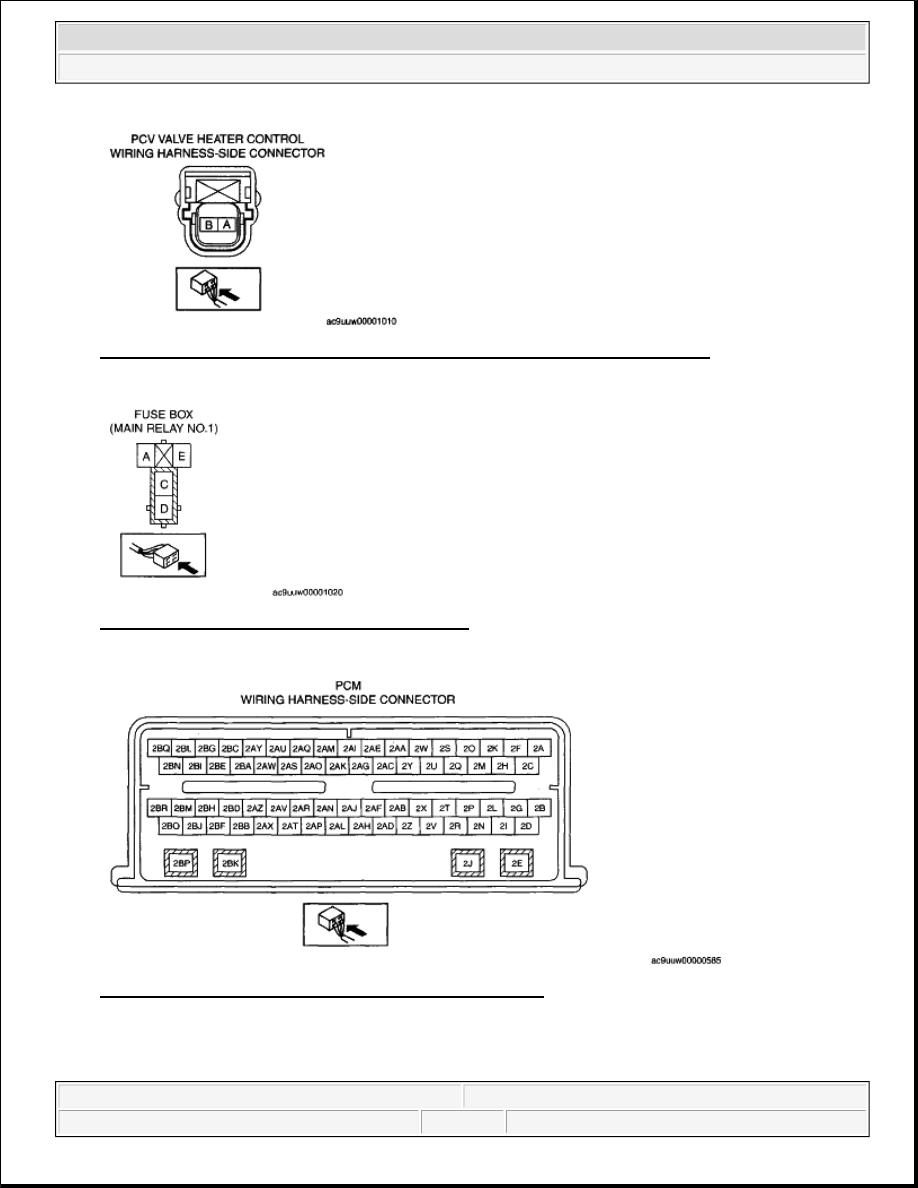

Fig. 19: Identifying PCV Valve Heater Control Wiring Harness Side Connector
Courtesy of MAZDA MOTORS CORP.

Fig. 20: Identifying Fuse Box (Main Relay No.1)
Courtesy of MAZDA MOTORS CORP.

Fig. 21: Identifying PCM Wiring Harness Side Connector
Courtesy of MAZDA MOTORS CORP.

Open circuit



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

PCV valve heater control terminal A and main relay No.1 terminal D

PCV valve heater control terminal B and PCM terminal 2BL

Short circuit

If there is continuity, there is a short circuit. Repair or replace the wiring harness.

PCV valve heater control terminal A and power supply

PCV valve heater control terminal A and body ground

PCV valve heater control terminal B and power supply

PCV valve heater control terminal B and body ground

POSITIVE CRANKCASE VENTILATION (PCV) VALVE
REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)

2. Remove in the order indicated in the table.

CAUTION:

A new PCV valve must be installed if removed from the cylinder head
cover.

Upon removal, damage will occur to the locking mechanism on the
PCV valve.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

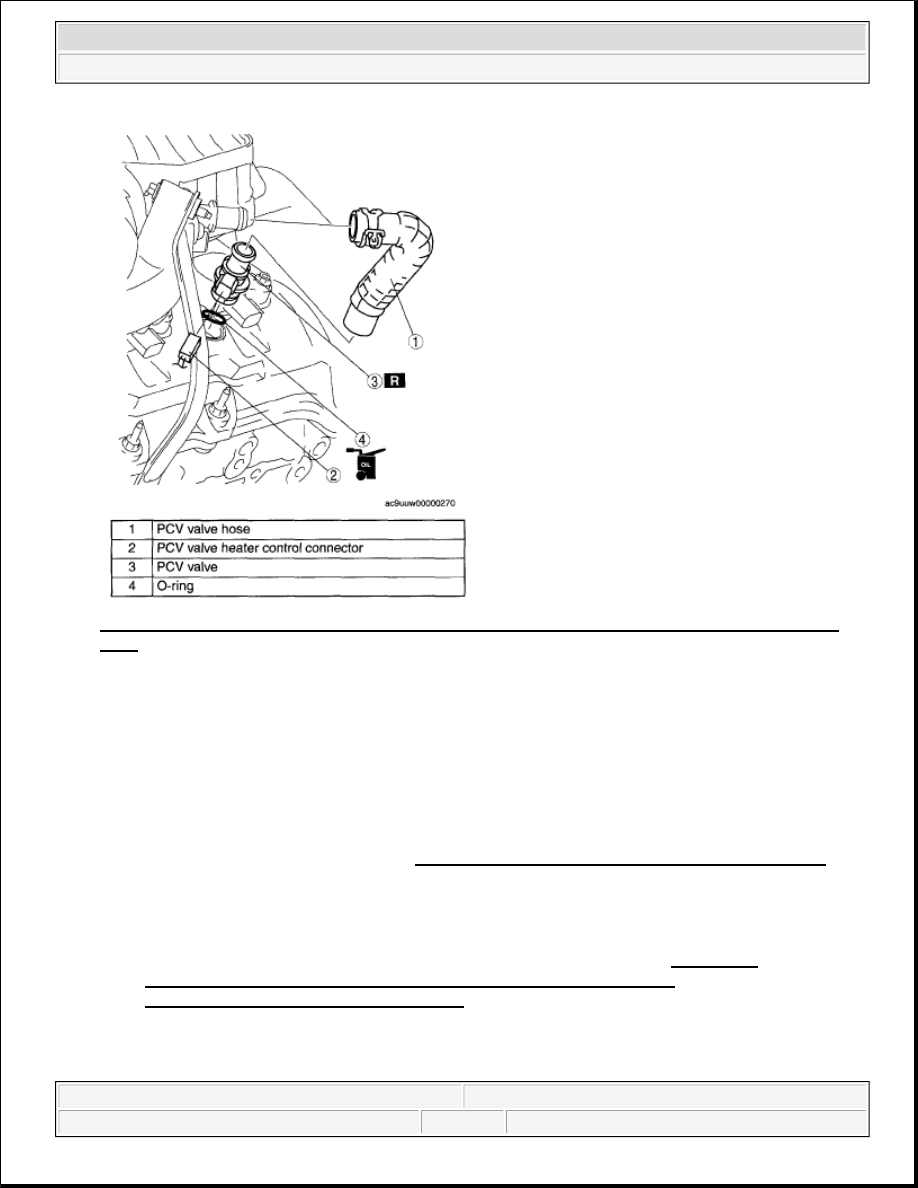

Fig. 22: Identifying PCV Valve Hose, PCV Valve Heater Control Connector, PCV Valve And O-
Ring

Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

POSITIVE CRANKCASE VENTILATION (PCV) VALVE HEATER FITTING
INSPECTION [MZI-3.7]

RESISTANCE INSPECTION

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)

2. Disconnect the PCV valve heater fitting connector.

3. Measure the resistance between the PCV valve terminals.

If within the specification, perform out the "Circuit Open/Short Inspection".

If not within the specification, replace the PCV valve heater fitting. (See POSITIVE
CRANKCASE VENTILATION (PCV) VALVE HEATER FITTING
REMOVAL/INSTALLATION [MZI-3.7]
.)

PCV valve heater fitting resistance 10-35 ohms



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

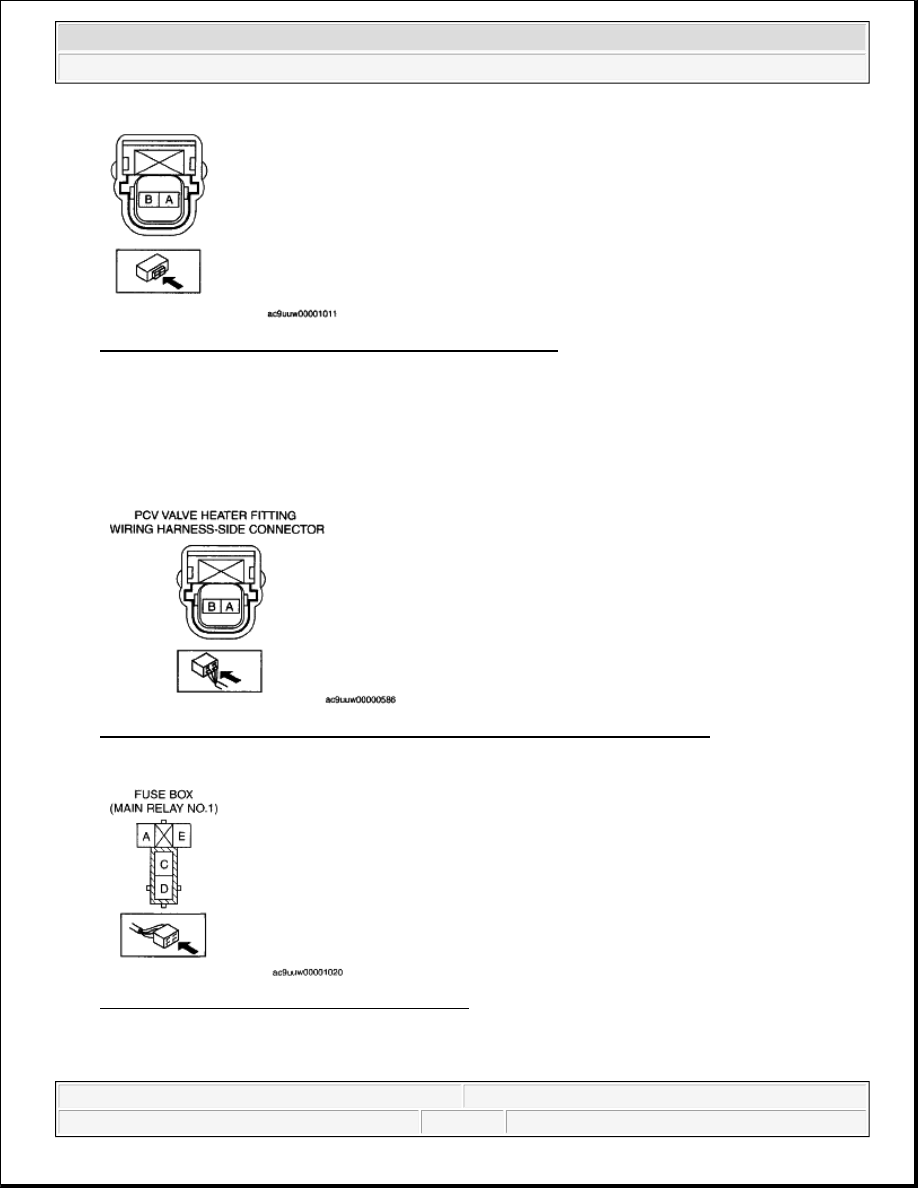

Fig. 23: Identifying PCV Valve Heater Connector Terminal
Courtesy of MAZDA MOTORS CORP.

CIRCUIT OPEN/SHORT INSPECTION

1. Disconnect the PCM connector.

2. Inspect the following wiring harnesses for open or short circuit (continuity check).

Fig. 24: Identifying PCV Valve Heater Control Wiring Harness Side Connector
Courtesy of MAZDA MOTORS CORP.

Fig. 25: Identifying Fuse Box (Main Relay No.1)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.
