Mazda CX-9 Grand Touring. Manual - part 170

Plate thickness: 1 mm {0.04 in} or more

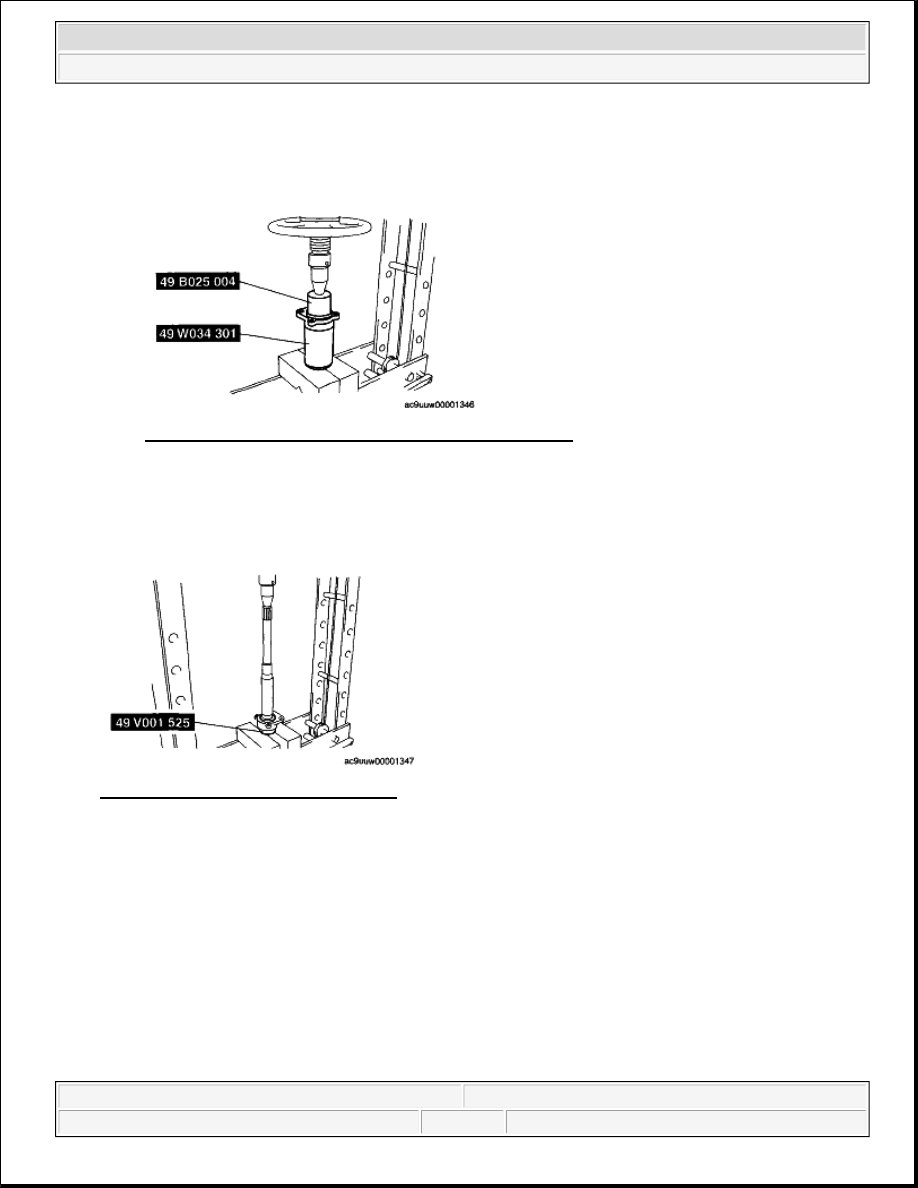

Fig. 39: Pressing Dust Seal (Differential Side) With SST
Courtesy of MAZDA MOTORS CORP.

JOINT SHAFT ASSEMBLY NOTE

1. Install the joint shaft using a press and the SST.

Fig. 40: Pressing Joint Shaft With SST
Courtesy of MAZDA MOTORS CORP.

DUST SEAL (AXLE SIDE) ASSEMBLY NOTE

1. Apply grease to the new dust seal lip.

2. Install the dust seal (axle side) using a press and the SST.

Substitution SST



49B025 004

Outer diameter: 58-59.8 mm {2.2-2.3 in} or more

Inner diameter: 53 mm {2.1 in} or more



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

Inner depth: 7.5 mm {0.30 in} or more

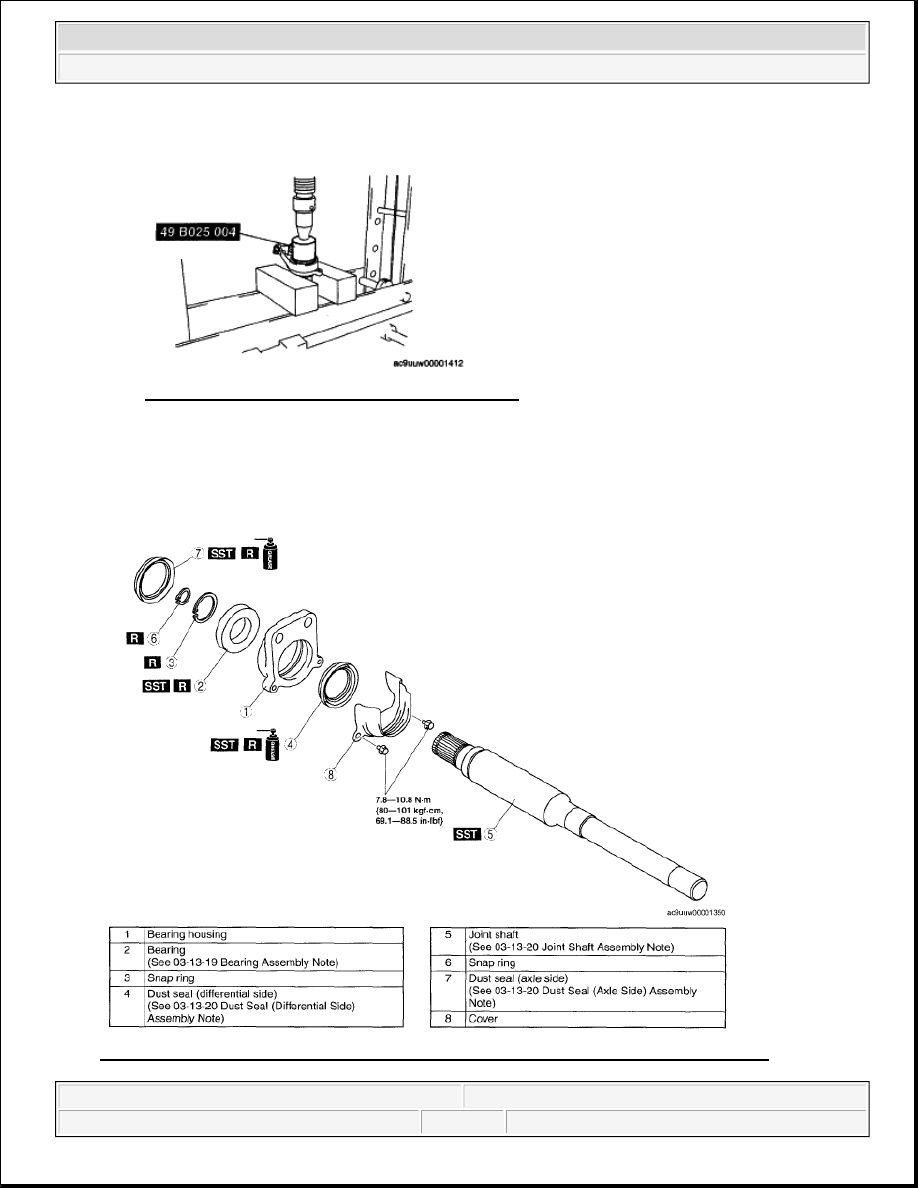

Fig. 41: Pressing Dust Seal (Axle Side) With SST
Courtesy of MAZDA MOTORS CORP.

JOINT SHAFT ASSEMBLY [AWD]

1. Assemble in the order indicated in the table.

Fig. 42: Identifying Joint Shaft Assembly Components (AWD) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

BEARING ASSEMBLY NOTE

1. Install the new bearing using a press and the SST.

Substitution SST



49B025 004

Outer diameter: 61 mm {2.4 in} or more

Inner diameter: 46 mm {1.8 in} or more

Plate thickness: 1 mm {0.04 in} or more

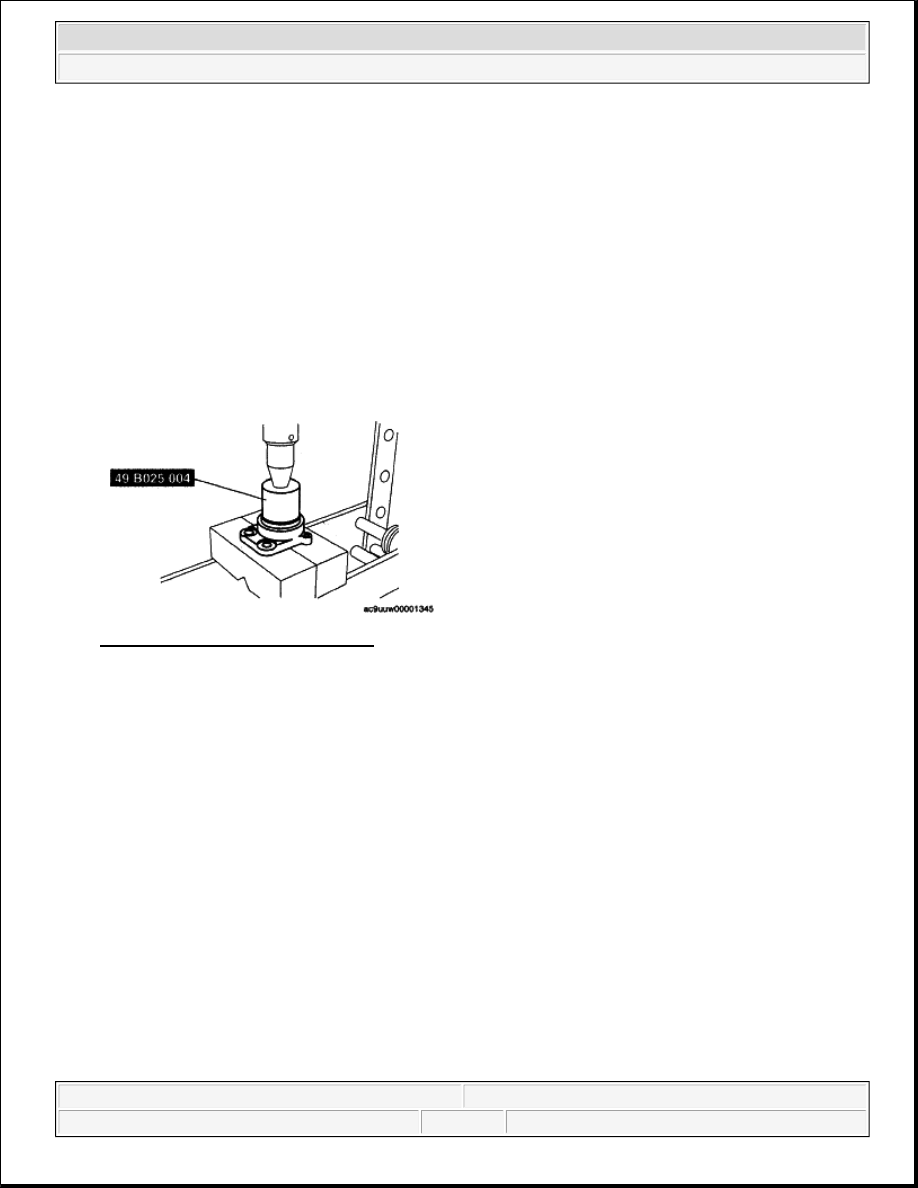

Fig. 43: Pressing Bearing With SST
Courtesy of MAZDA MOTORS CORP.

DUST SEAL (DIFFERENTIAL SIDE) ASSEMBLY NOTE

1. Apply grease to the new dust seal lip.

2. Install the dust seal (differential side) using a press and the SSTs.

Substitution SST



49B025 004

Outer diameter: 58-59.8 mm {2.2-2.3 in} or less

Inner diameter: 53 mm {2.1 in} or more

Inner depth: 7.5 mm {0.30 in} or more



49W034 301

Inner diameter: 67.5-72.0 mm {2.66-2.83 in}



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

Inner depth: 8.5 mm {0.33 in} or more

Plate thickness: 1 mm {0.04 in} or more

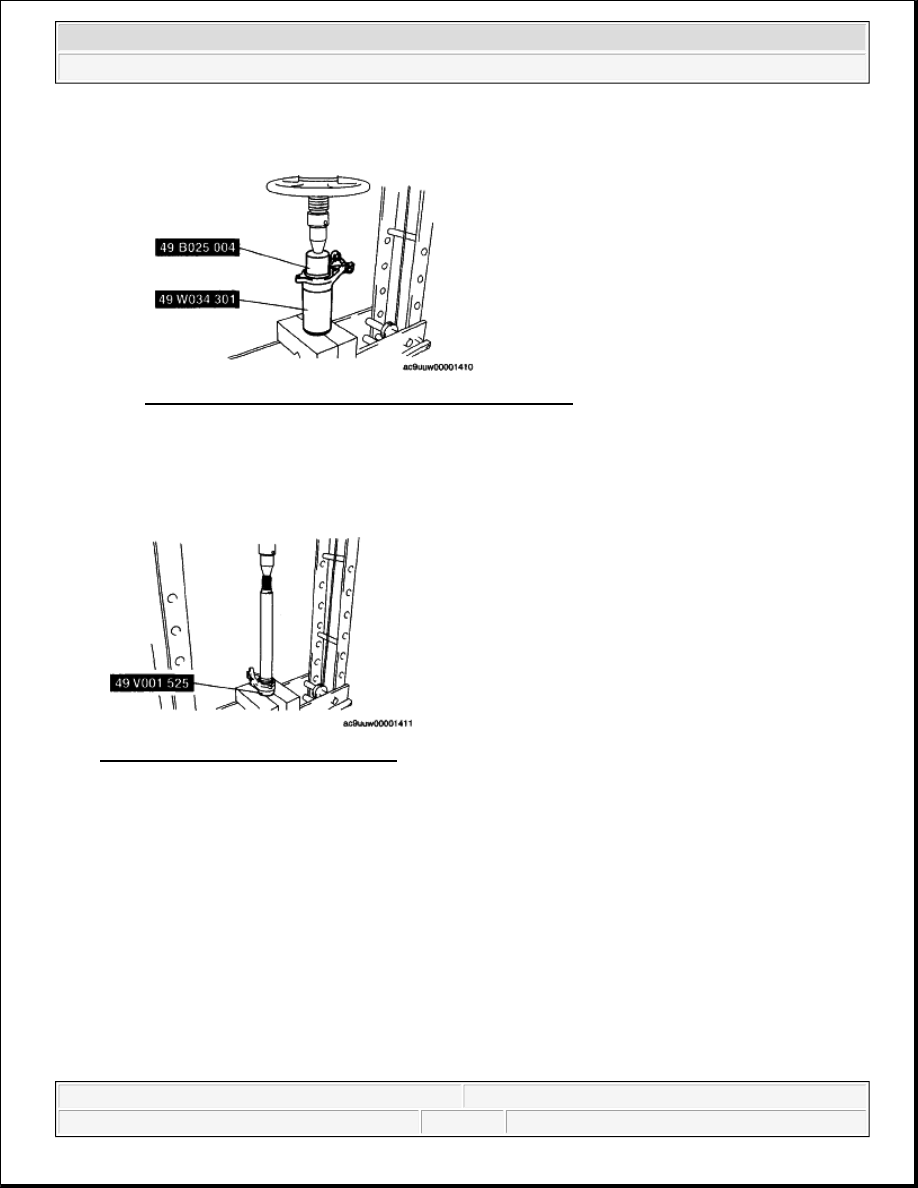

Fig. 44: Pressing Dust Seal (Differential Side) With SST
Courtesy of MAZDA MOTORS CORP.

JOINT SHAFT ASSEMBLY NOTE

1. Install the joint shaft using a press and the SST.

Fig. 45: Pressing Joint Shaft With SST
Courtesy of MAZDA MOTORS CORP.

DUST SEAL (AXLE SIDE) ASSEMBLY NOTE

1. Apply grease to the new dust seal lip.

2. Install the dust seal (axle side) using a press and the SST.

Substitution SST



49B025 004

Outer diameter: 58-59.8 mm {2.2-2.3 in} or more



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.
