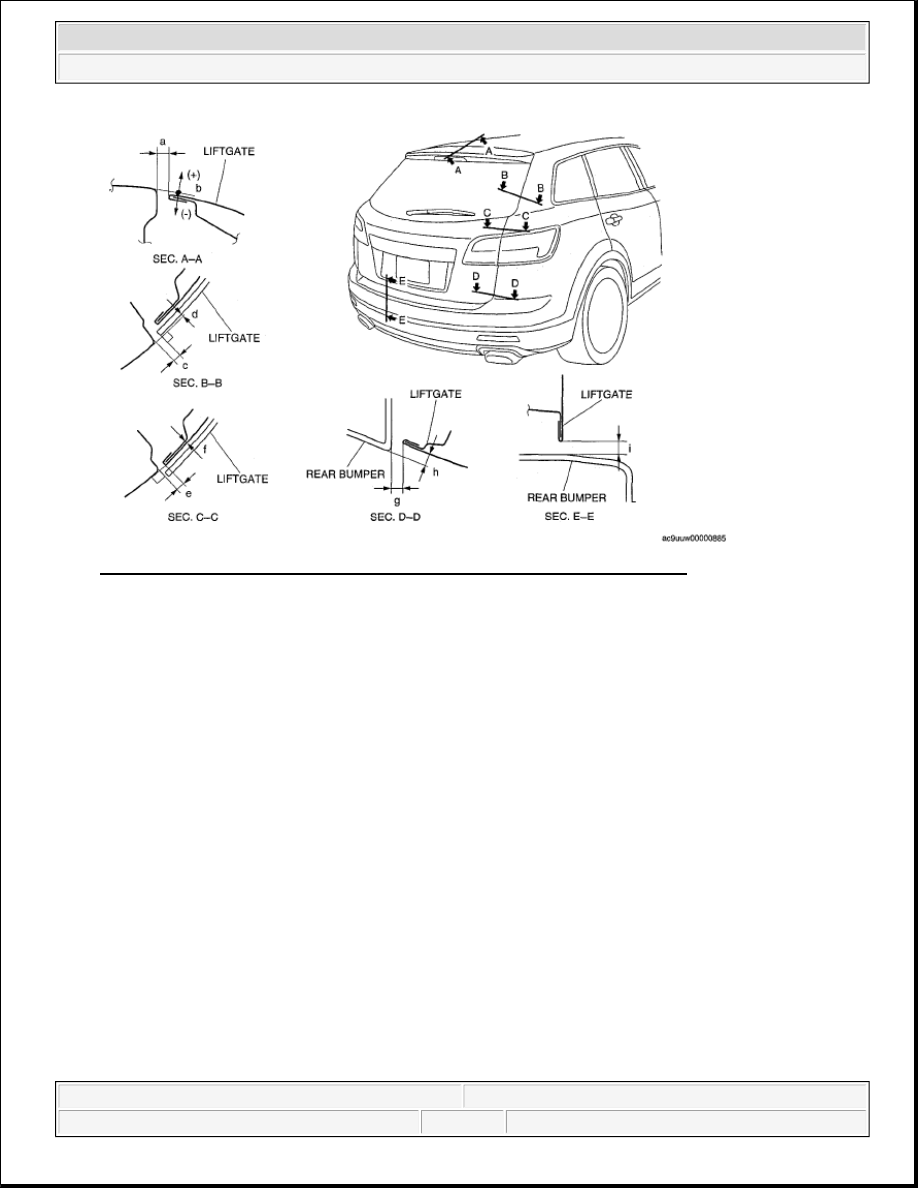

Fig. 12: Identifying Liftgate, Body Gap Adjustment & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

Clearance

a. 5.0-7.0 mm {0.19-0.27 in}

b. -2.0-0.0 mm {-0.08-0.00 in}

c. 1.8-6.8 mm {0.07-0.27 in}

d. -0.1-5.1 mm {-0.01-0.20 in}

e. 2.8-5.2 mm {0.11-0.20 in}

f. -0.2-2.2 mm {-0.01-0.08 in}

g. 1.5-6.5 mm {0.06-0.25 in}

h. -2.0-2.0 mm {0.08-0.08 in}

i. 4.0-8.0 mm {0.16-0.31 in}

3. Tighten the bolts or screws.

POWER LIFTGATE (PLG) ARM REMOVAL/INSTALLATION

NOTE:



If the negative battery cable is disconnected with the liftgate half opened,
the clutch cannot be disengaged resulting in difficulty in opening/closing
operation of the liftgate. Disconnect the negative battery cable with the
liftgate in the fully open/close position.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:23 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

2. Seat side box (LH) (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

6. Rear scuff plate inner (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

7. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

8. Roof side trim (LH) (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)

9. Second-row seat belt upper anchor installation bolt (LH) (See SECOND-ROW SEAT BELT

REMOVAL/INSTALLATION .)

10. C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

11. Third-row seat belt upper anchor installation bolt (LH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

12. D-pillar trim (LH) (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

3. Disconnect the PLG arm band with using the flat blade screwdriver.

4. Remove the PLG arm.

5. Install in the reverse order of removal.

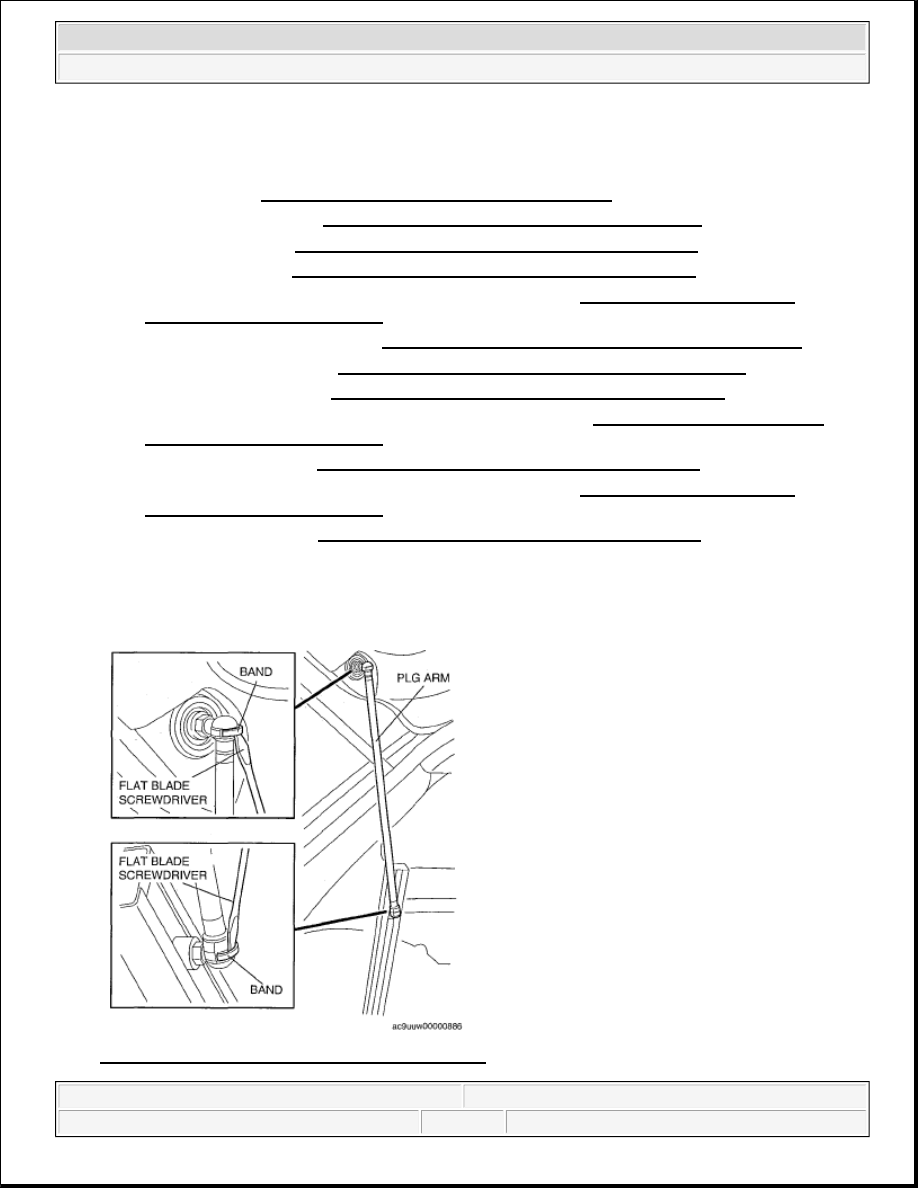

Fig. 13: Prying PLG Arm Band With Screwdriver
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:23 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

POWER LIFTGATE (PLG) SLIDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

2. Seat side box (LH) (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

6. Rear scuff plate inner (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

7. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

8. Roof side trim (LH) (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)

9. Third-row seat belt upper anchor installation bolt (LH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

10. D-pillar trim (LH) (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

3. Disconnect the connection of the band that is on the PLG slider side of PLG arm with using the flat blade

screwdriver.

4. Put the PLG arm.

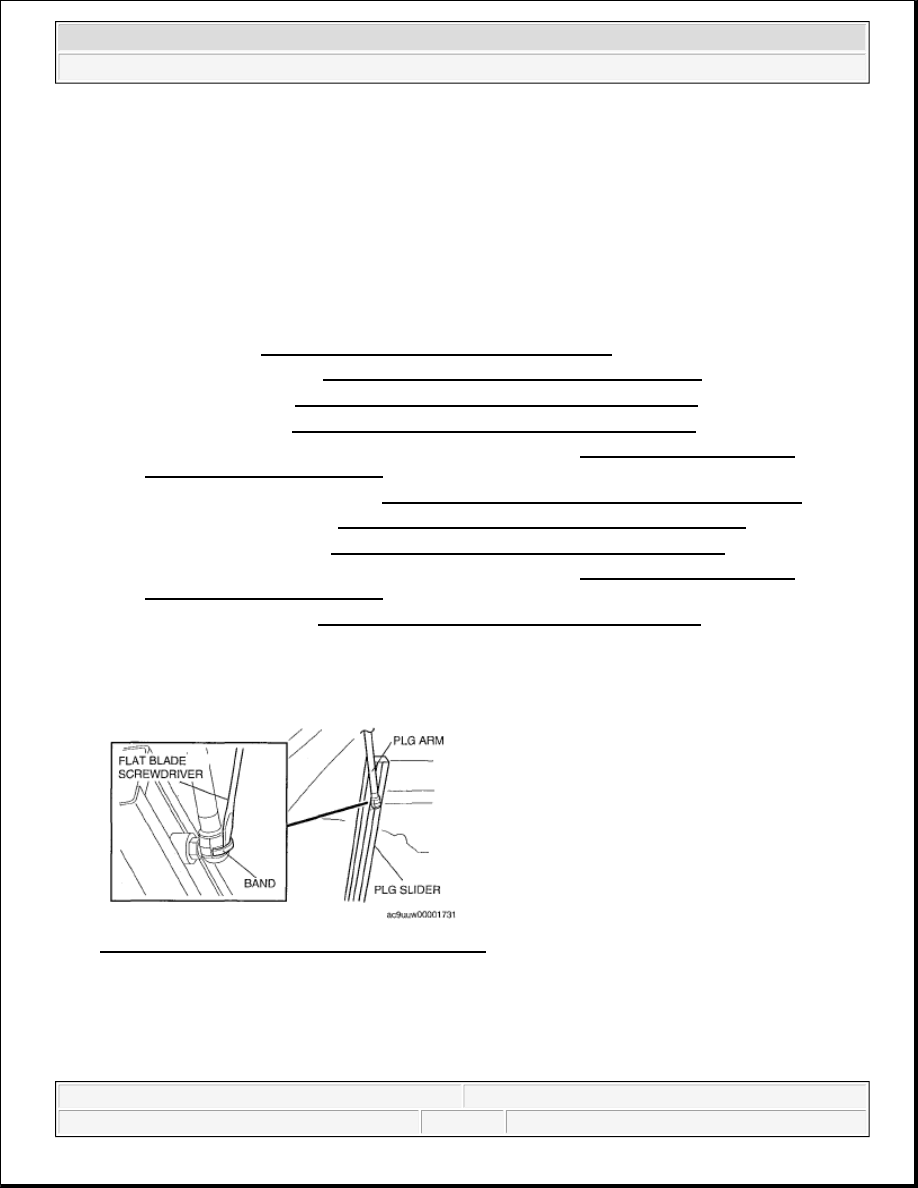

Fig. 14: Prying PLG Arm Band With Screwdriver
Courtesy of MAZDA MOTORS CORP.

5. Revolve the outer joint in the direction of the arrow to disconnect from the PLG slider and the PLG drive

unit.

6. Remove the bolts.

7. Remove the PLG slider.

NOTE:



If the negative battery cable is disconnected with the liftgate half opened,
the clutch cannot be disengaged resulting in difficulty in opening/closing
operation of the liftgate. Disconnect the negative battery cable with the
liftgate in the fully open/close position.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:23 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

8. Install in the reverse order of removal.

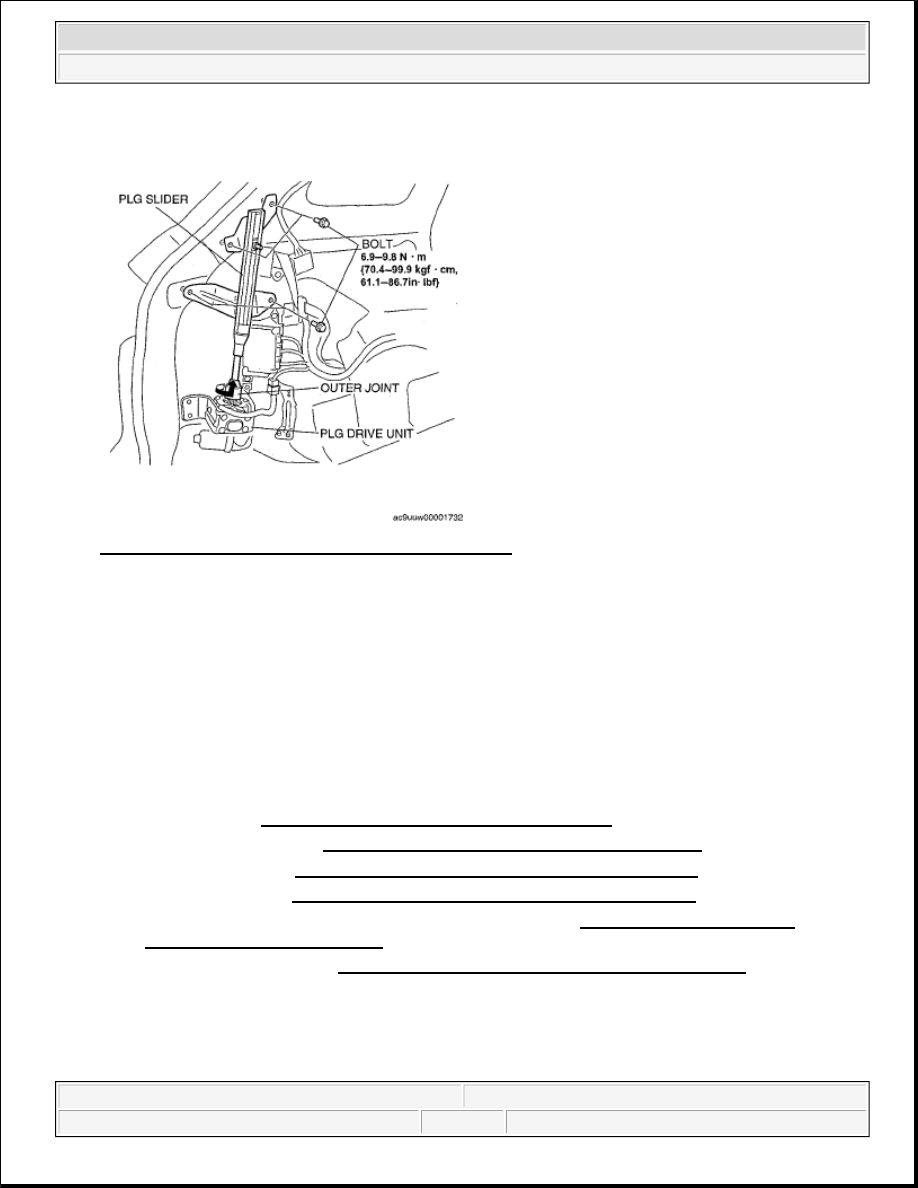

Fig. 15: View Of Outer Joint & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

POWER LIFTGATE (PLG) DRIVE UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

2. Seat side box (LH) (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

6. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

3. Revolve the outer joint in the direction of the arrow to disconnect from the PLG drive unit and the PLG

slider.

4. Disconnect the PLG drive unit connector.

5. Remove the bolts.

NOTE:



If the negative battery cable is disconnected with the liftgate half opened,
the clutch cannot be disengaged resulting in difficulty in opening/closing
operation of the liftgate. Disconnect the negative battery cable with the
liftgate in the fully open/close position.
