Mazda CX-9 Grand Touring. Manual - part 158





Fig. 1: Identifying Door & Liftgate Components Location
Courtesy of MAZDA MOTORS CORP.


FRONT DOOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. To remove the checker, remove the following parts:

1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)

2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

3. To remove the front door hinges, remove the following parts:

1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

2. Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)

3. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)

4. Front combination lights (See FRONT COMBINATION LIGHT

REMOVAL/INSTALLATION .)

5. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)

6. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)

4. Remove in the order indicated in the table.

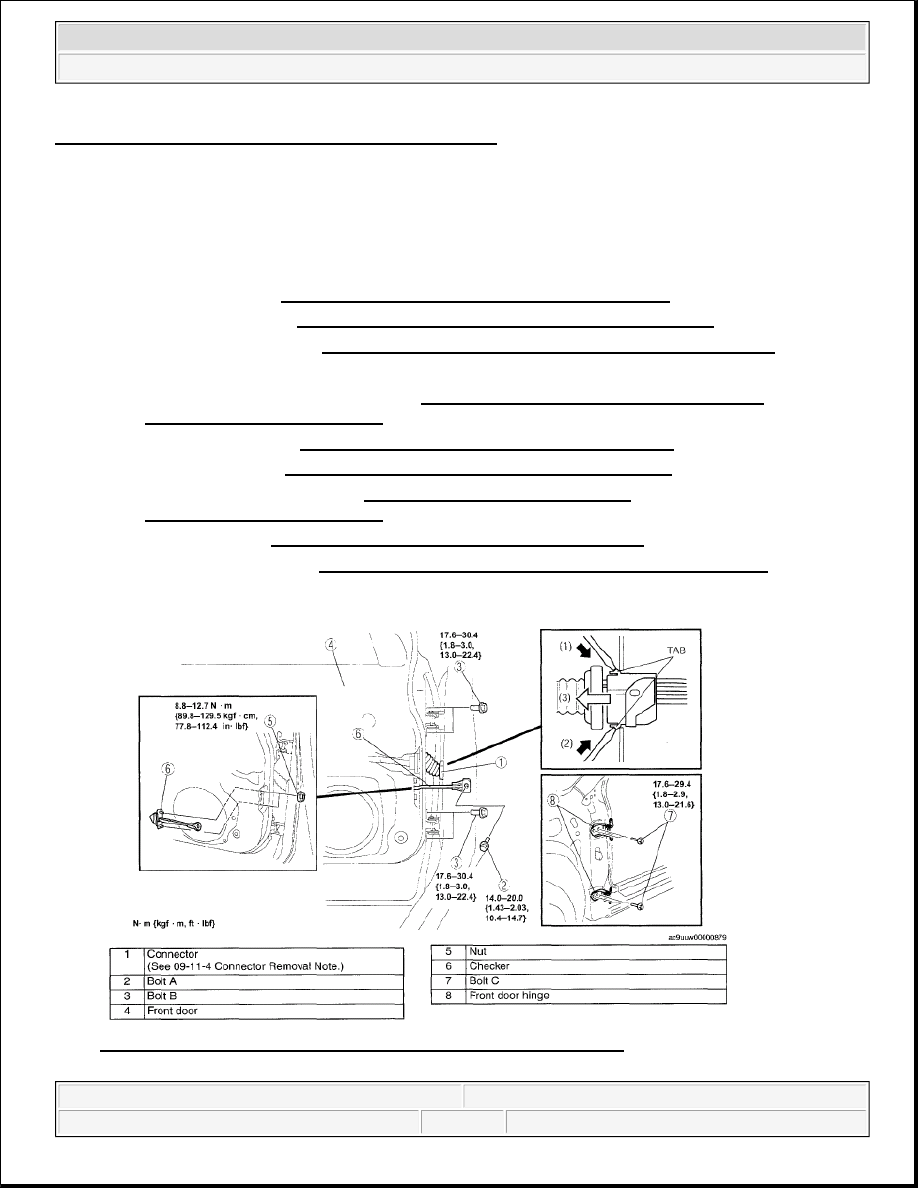

Fig. 2: Identifying Front Door Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:22 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

5. Install in the reverse order of removal.

6. Adjust the front door. (See DOOR ADJUSTMENT.)

CONNECTOR REMOVAL NOTE

1. Pull down the lever in the direction of the arrow (1) and disconnect the connector in the direction of the

arrow (2).

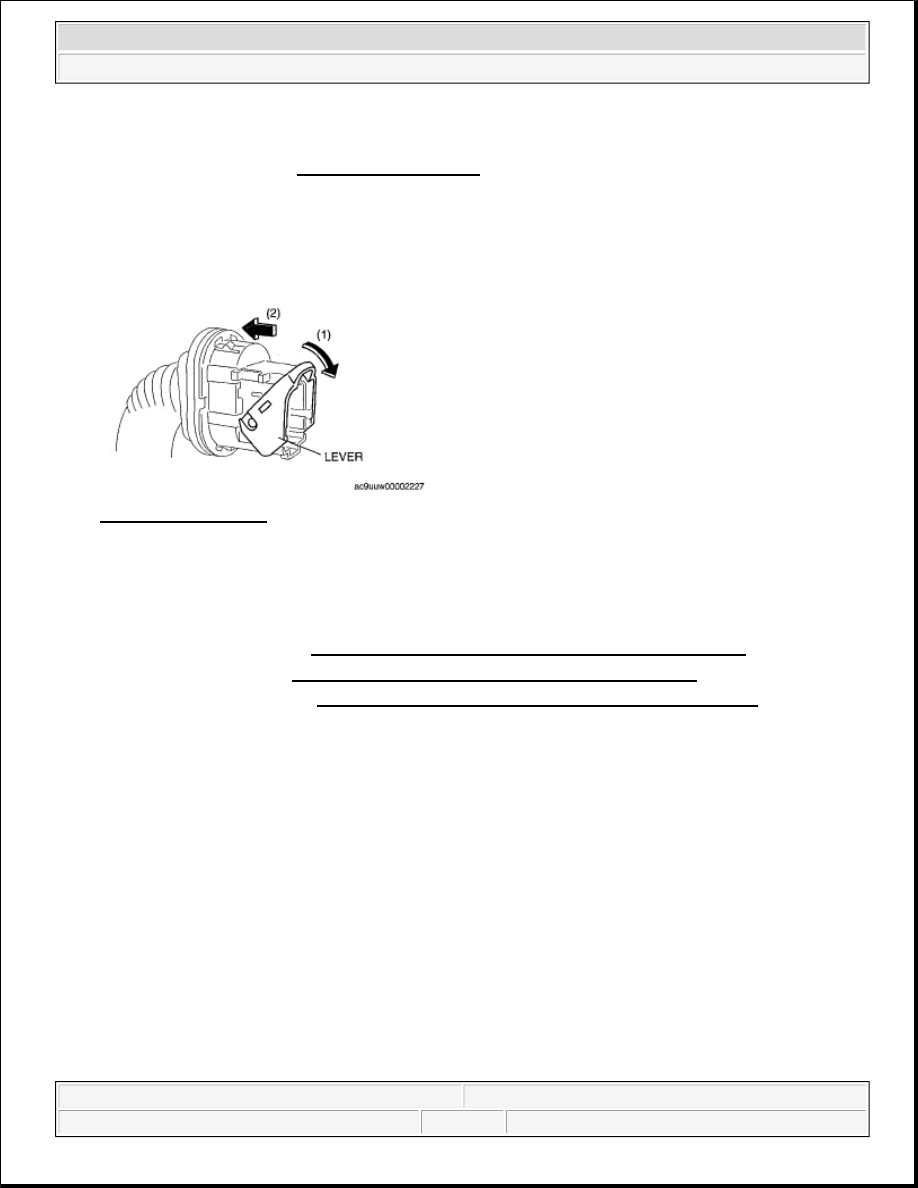

Fig. 3: View Of Lever
Courtesy of MAZDA MOTORS CORP.

REAR DOOR REMOVAL/INSTALLATION

1. To remove the checker, remove the following parts:

1. Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)

2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

3. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

2. Remove in the order indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:22 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

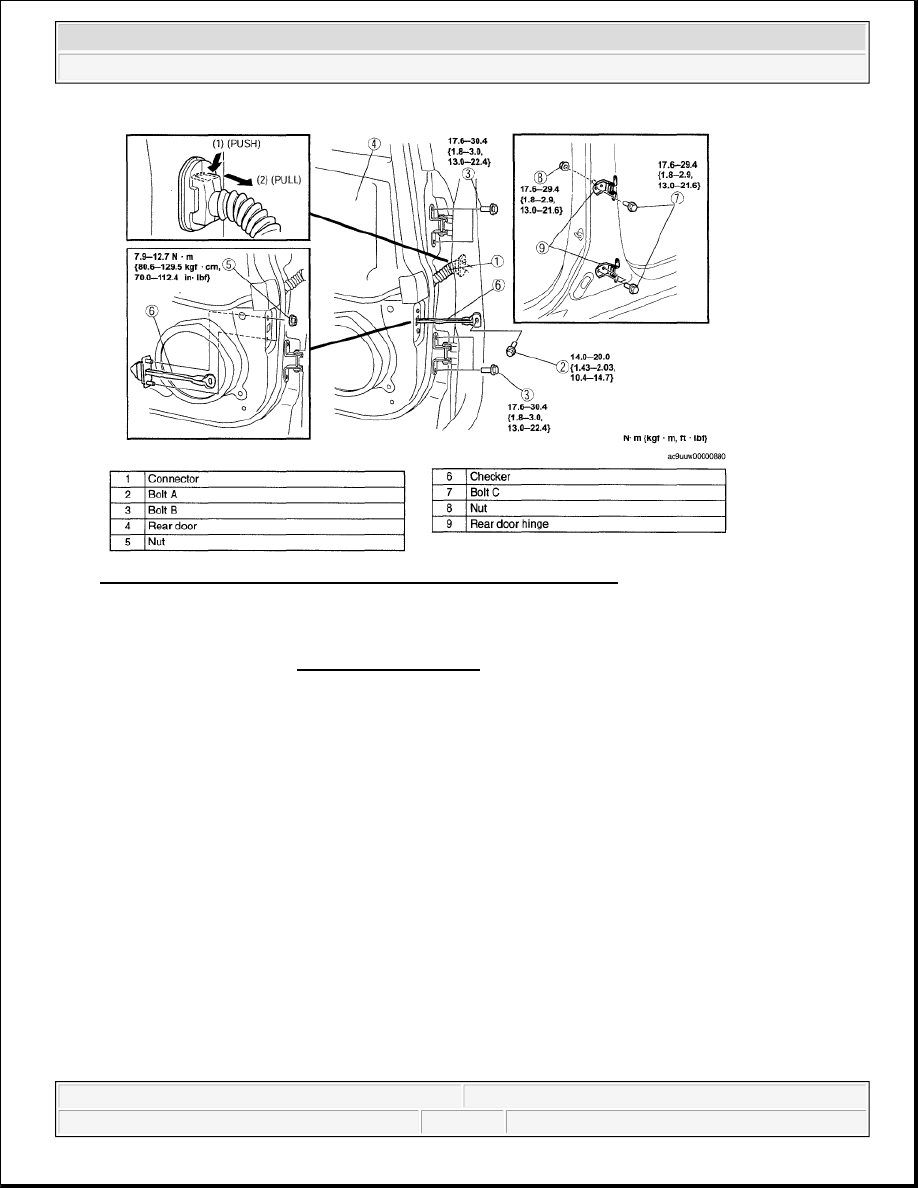

Fig. 4: Identifying Rear Door Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

4. Adjust the front door. (See DOOR ADJUSTMENT.)

DOOR ADJUSTMENT

1. Loosen the door hinge installation bolts.

2. Adjust the gap and height difference to the standard range by moving the door back and forth, left and

right.

Clearance

a. 2.5-4.5 mm {0.10-0.17 in}

b. -1.0-1.0 mm {-0.03-0.03 in}

c. 3.0-6.0 mm {0.12-0.23 in}

d. -1.5-1.5 mm {-0.05-0.05 in}

3. Tighten the bolts or screws.

4. If the front door and rear door dose not open/close smoothly, loosen the door



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:22 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

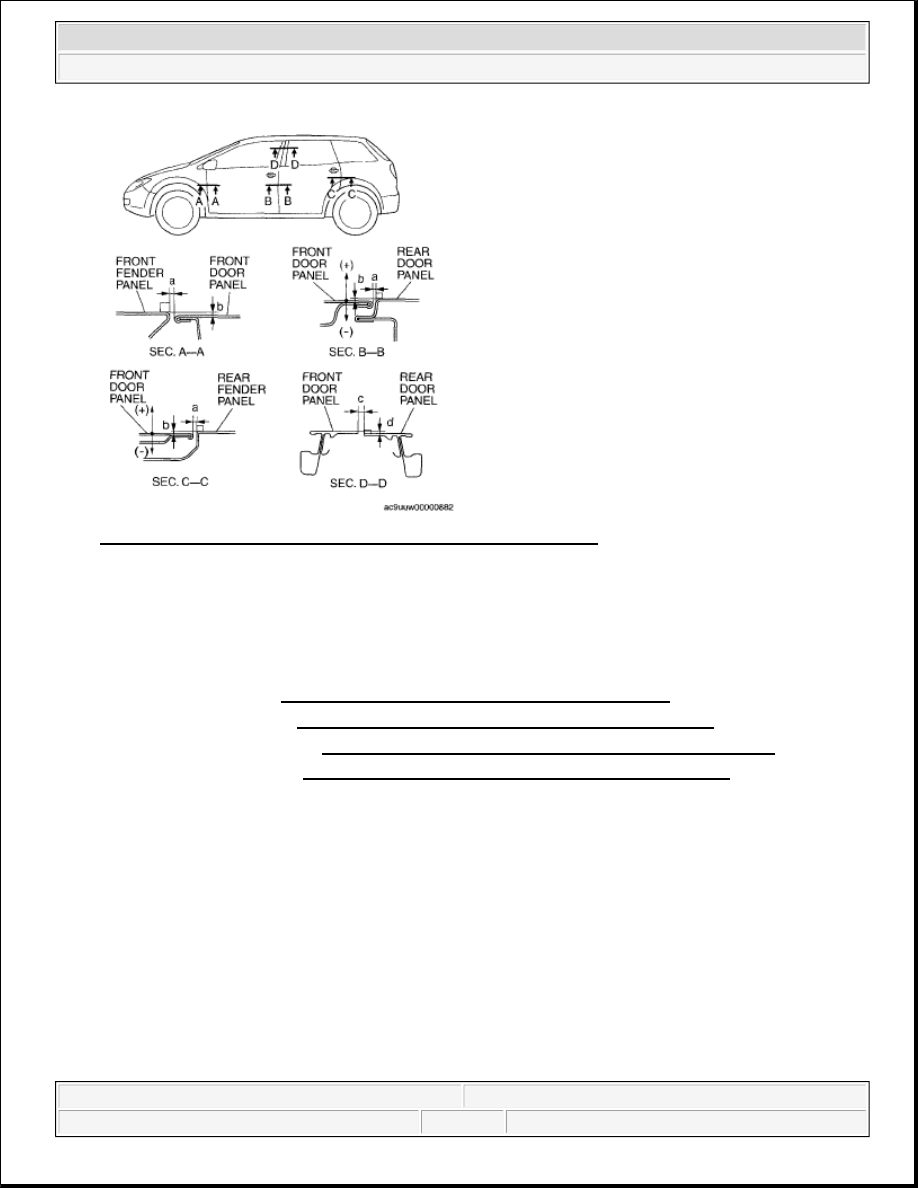

Fig. 5: Identifying Forth Door Gap Adjustment (Left And Right)
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION )

2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION )

3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION )

4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION )

3. Disconnect the power outer mirror connector.

4. Remove the clips securing the wiring harness shown in the figure and set the wiring harness out of the

way.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Doors and Liftgate - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:45:23 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.
