Mazda CX-9 Grand Touring. Manual - part 147





UPPER TIMING CHAIN GUIDE (RH) REMOVAL NOTE

1. Loosen the upper timing chain guide (RH) bolt A.

2. Remove the upper timing chain guide (RH) bolt B.

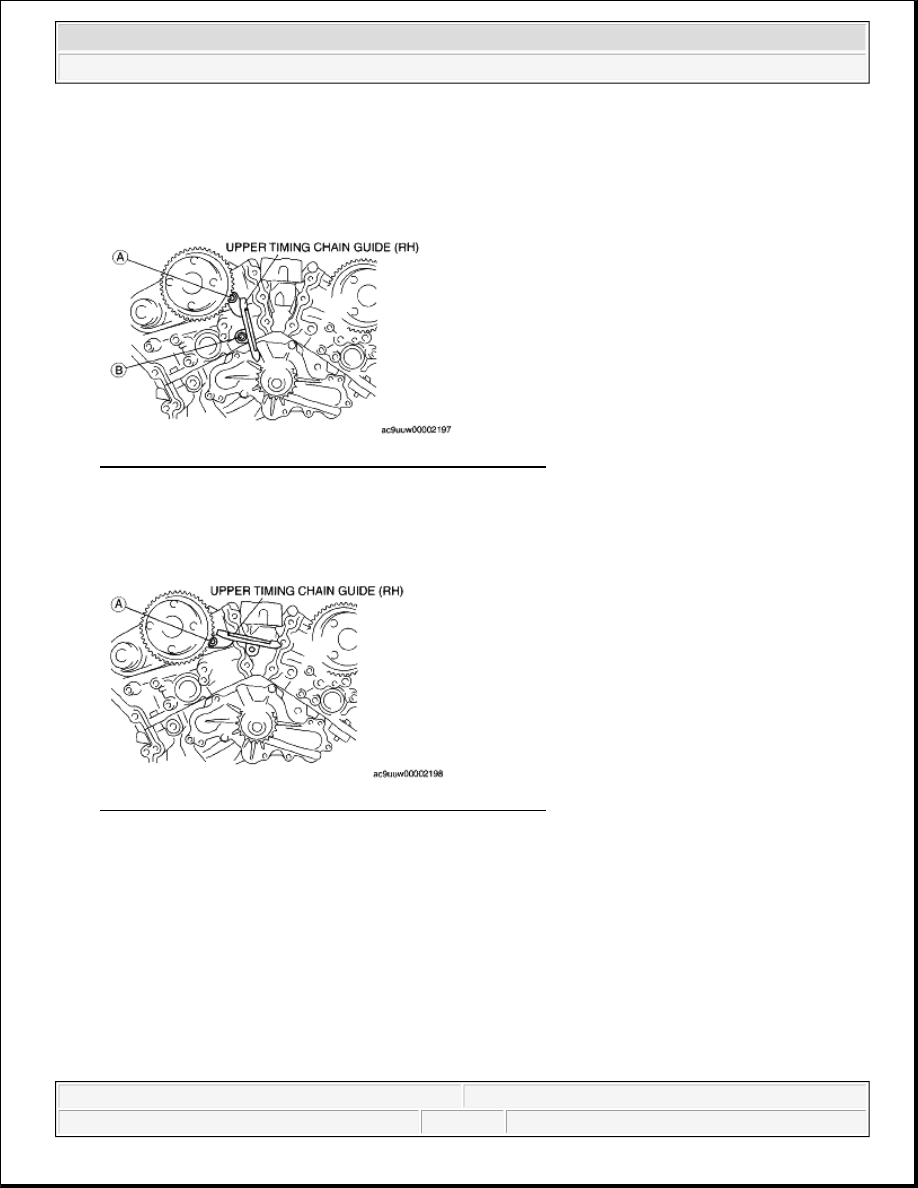

Fig. 19: Identifying Upper Timing Chain Guide And Bolts
Courtesy of MAZDA MOTORS CORP.

3. Move the upper timing chain guide (RH) as shown.

4. Retighten the bolt A.

Fig. 20: Identifying Upper Timing Chain Guide And Bolts
Courtesy of MAZDA MOTORS CORP.

WATER PUMP REMOVAL NOTE

1. Remove the oil pan drain plug.

2. To prevent engine coolant from penetrating the oil pan, line the cylinder block with plastic sheeting as

shown in the figure before removing the water pump.

NOTE:

When the water pump is removed, the engine coolant may flow through
the cylinder block and penetrate the oil pan. To prevent the engine coolant
from accumulating in the oil pan, remove the oil pan drain plug before
removing the water pump.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

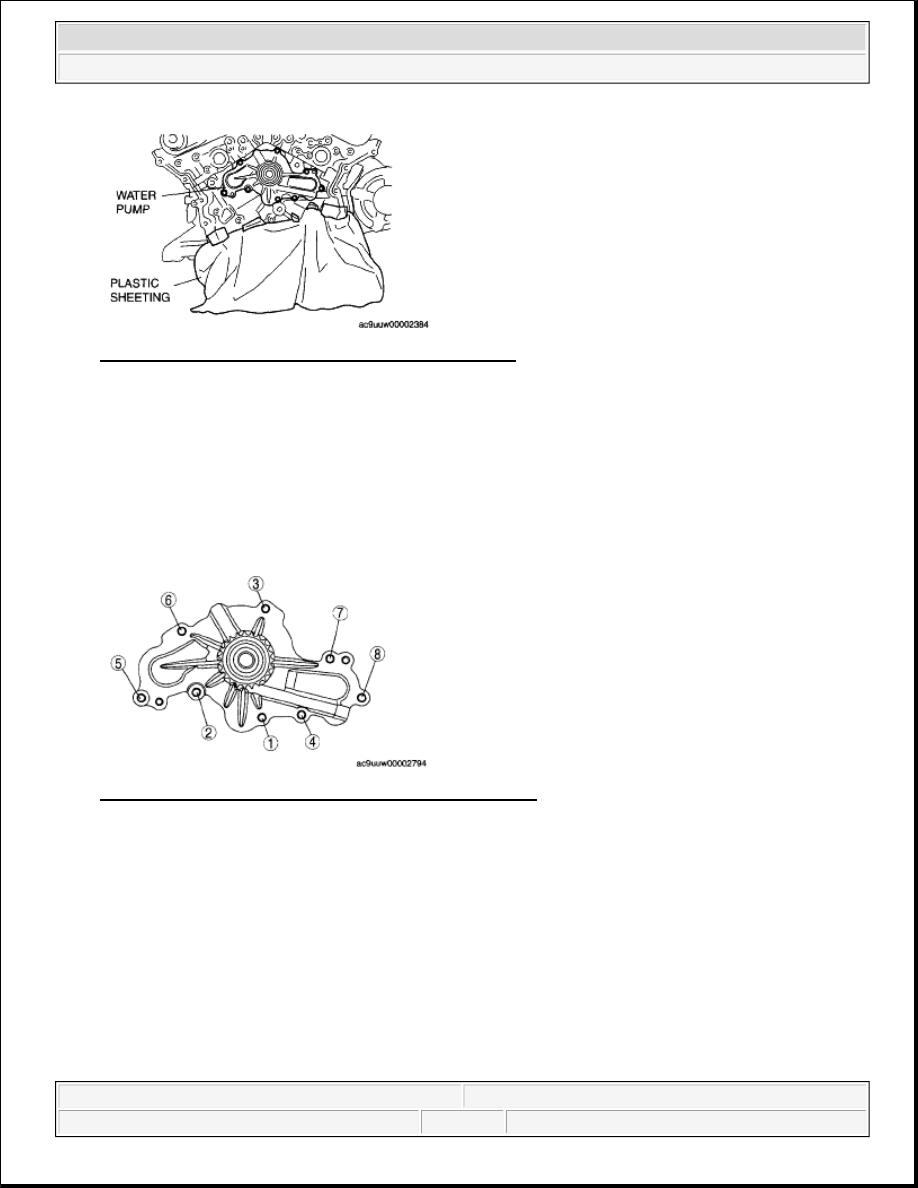

Fig. 21: Identifying Water Pump And Plastic Sheeting
Courtesy of MAZDA MOTORS CORP.

WATER PUMP INSTALLATION NOTE

1. Tighten the water pump bolts in the order shown in the figure.

Tightening torque

8.5-11.5 N.m {87-117 kgf.cm, 76-101 in.lbf}

Fig. 22: Identifying Water Pump Bolts Tighten Sequence
Courtesy of MAZDA MOTORS CORP.

COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZI-3.7]

WARNING:

Never remove the cooling system cap or loosen the radiator drain
plug while the engine is running, or when the engine and radiator are
hot. Scalding engine coolant and steam may shoot out and cause
serious injury. It may also damage the engine and cooling system.

Turn off the engine and wait until it is cool. Even then, be very
careful when removing the cap. Wrap a thick cloth around it and
slowly turn it counterclockwise to the first stop. Step back while the
pressure escapes.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7].)

3. Remove the air cleaner and fresh air duct component. (See INTAKE-AIR SYSTEM

REMOVAL/INSTALLATION [MZI-3.7] .)

4. Remove the engine cover.

5. Remove the dipstick.

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7].)

9. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZI-3.7].)

When you are sure all the pressure is gone, press down on the cap
using the cloth, turn it, and remove it.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

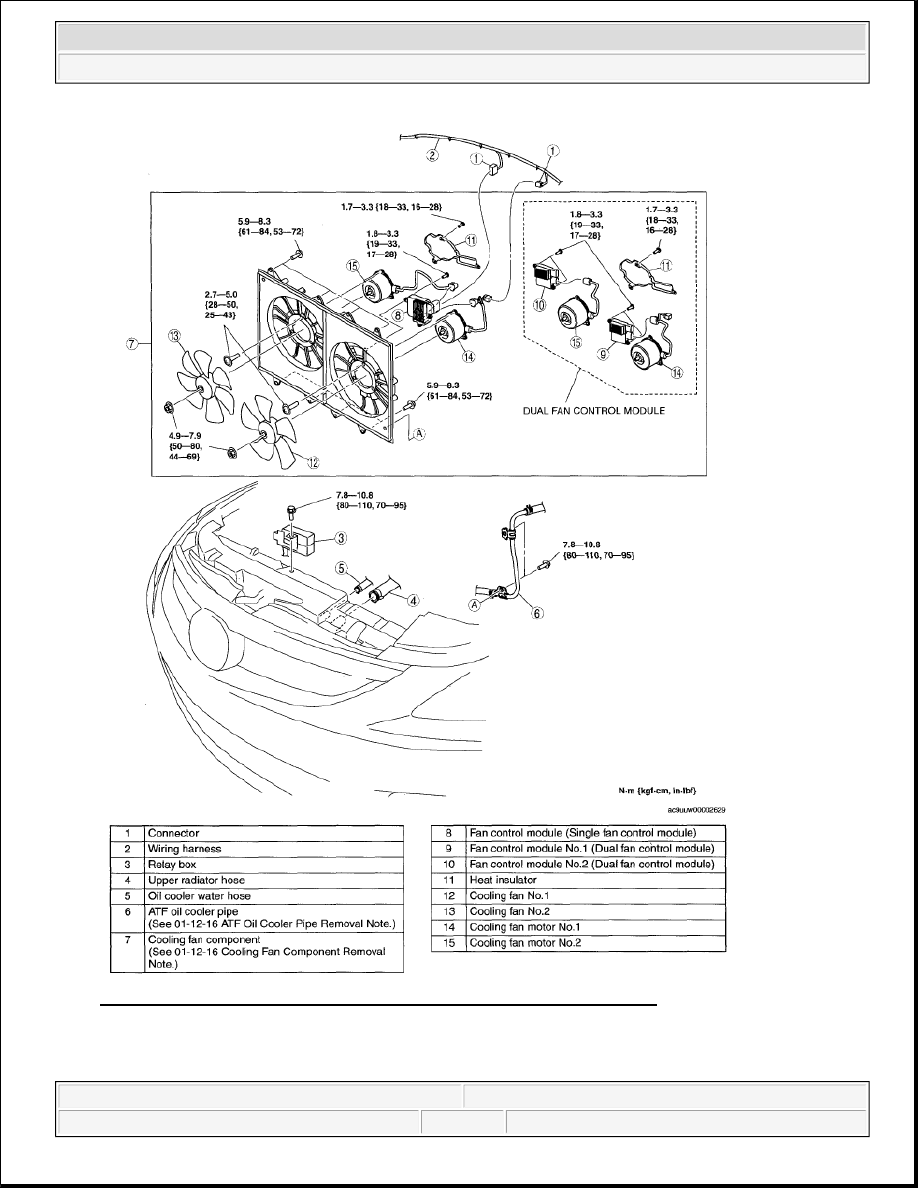

Fig. 23: Identifying Cooling Fan Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.

ATF OIL COOLER PIPE REMOVAL NOTE



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.
