Mazda CX-9 Grand Touring. Manual - part 138

CABIN AIR FILTERS

Air Filter - CX-9

REMOVAL & INSTALLATION

1. Remove the glove compartment service hole cover. See Fig. 1

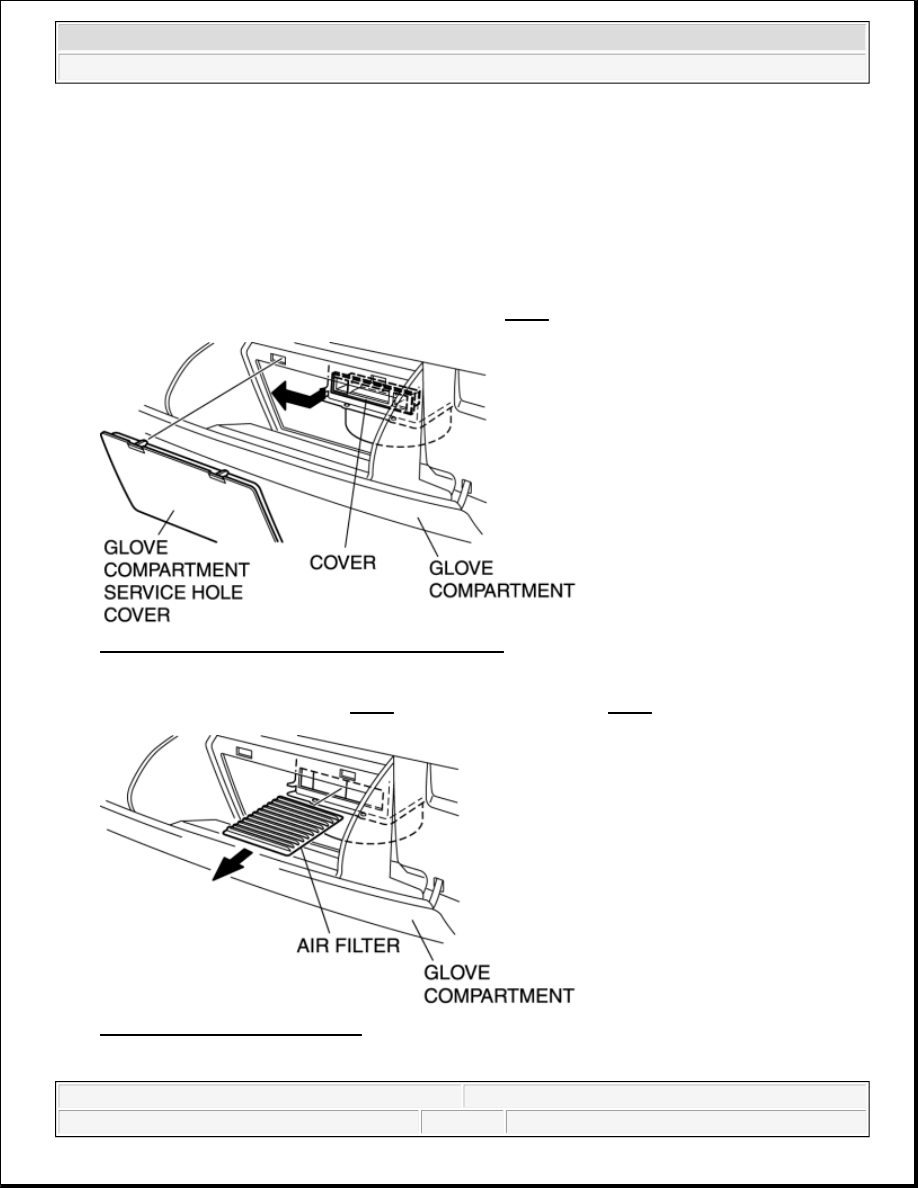

Fig. 1: Identifying Glove Compartment Components
Courtesy of MAZDA MOTORS CORP.

2. Remove cabin air filter cover. See Fig. 1. Remove cabin air filter. See Fig. 2.

Fig. 2: Removing Cabin Air Filter
Courtesy of MAZDA MOTORS CORP.

NOTE:

Manufacturer's terminology for this filter is Air Filter.



2008 Mazda CX-9 Grand Touring

CABIN AIR FILTERS Air Filter - CX-9





2008 Mazda CX-9 Grand Touring

CABIN AIR FILTERS Air Filter - CX-9



Microsoft



Sunday, November 15, 2009 10:11:20 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:11:24 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

3. Install the cabin air filter in reverse order of removal.



2008 Mazda CX-9 Grand Touring

CABIN AIR FILTERS Air Filter - CX-9



Microsoft



Sunday, November 15, 2009 10:11:20 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

2008 ENGINE

Charging System (MZI-3.7) - Mazda CX-9

CHARGING SYSTEM LOCATION INDEX [MZI-3.7]

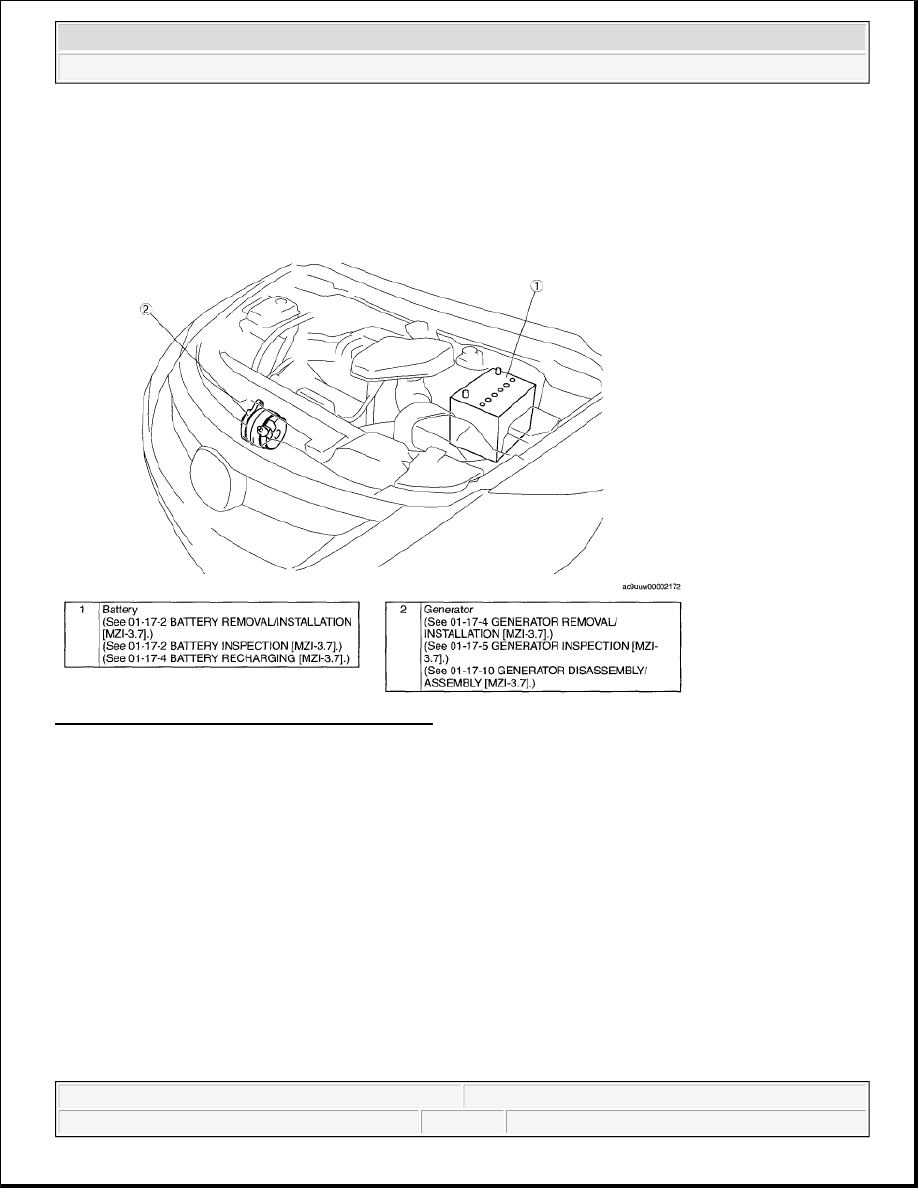

Fig. 1: Identifying Battery & Generator Location
Courtesy of MAZDA MOTORS CORP.

BATTERY REMOVAL/INSTALLATION [MZI-3.7]

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Charging System (MZI-3.7) - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 ENGINE Charging System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:54:57 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 9:55:01 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

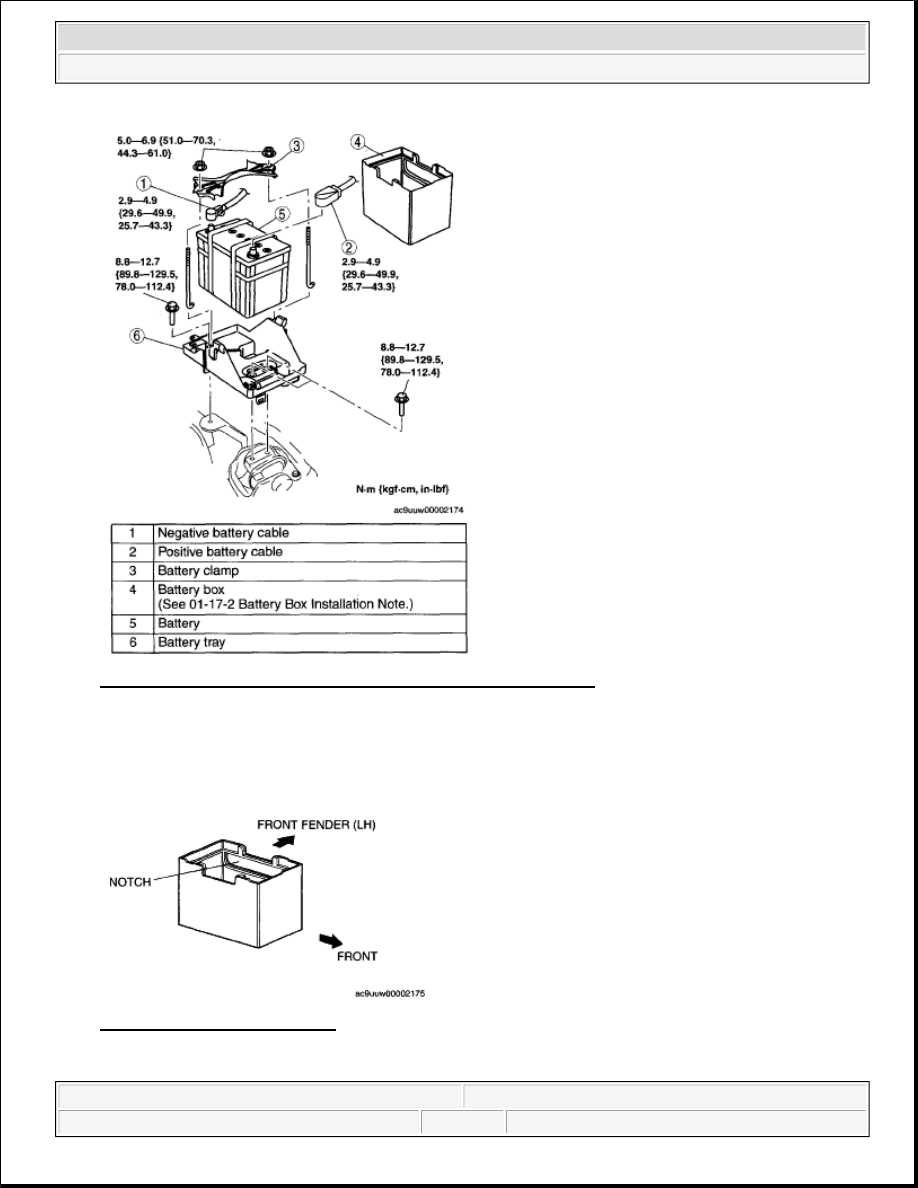

Fig. 2: Identifying Battery Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

BATTERY BOX INSTALLATION NOTE

1. Install the battery box so that the side with the notch points toward the front fender (LH).

Fig. 3: Identifying Battery Box
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Charging System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:54:57 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.
