Mazda CX-9 Grand Touring. Manual - part 119





DIAGNOSTIC PROCEDURE

DTC B211B, C1279, C1280, C1281, C1282, C1516, C1517, C2769, C2770 [DSC/RSC] DIAGNOSTIC
PROCEDURE


DETECTION CONDITION

combined sensor (yaw rate part).

C1280

Specified signal from combined (yaw rate part)
sensor has not output.

C1281

There is an abnormality in the signal from the
combined sensor (lateral-G part).

C1282

Specified signal from combined (lateral-G part)
sensor has not output.

C1516

Specified signal from combined (roll rate part)
sensor has not output.

C1517

There is an abnormality in the signal from the
combined sensor (roll rate part).

C2769

There is an abnormality in the signal from the
combined sensor (longitudinal-G part).

C2770

Specified signal from combined (longitudinal-
G part) sensor has not output.

POSSIBLE CAUSE

Combined sensor malfunction

Poor connection at connectors (female terminal)

STEP

INSPECTION

ACTION

1

INSPECT COMBINED SENSOR

Inspect the combined sensor.

(See COMBINED SENSOR
INSPECTION
 .)

Is the combined sensor normal?

Yes Go to the next step.

No

Replace the combined sensor, then go to the next

step.

(See COMBINED SENSOR

REMOVAL/INSTALLATION .)

VERIFY DTC TROUBLESHOOTING
COMPLETED.


Clear the DTC from the memory.

Yes

Replace the DSC/RSC HU/CM, then go to the
next step.



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:13 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

DTC C1095, C1096 [DSC/RSC]

DTC C1095, C1096 [DSC/RSC] DETECTION CONDITION AND POSSIBLE CAUSE

2

(See ON-BOARD DIAGNOSTIC
[DSC/RSC]
.)

Are the same DTCs present?

(See DSC/RSC HU/CM
REMOVAL/INSTALLATION
 .)

No

Go to the next step.

3

VERIFY AFTER REPAIR
PROCEDURE.


Are any other DTCs present?

Yes

Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSTIC [DSC/RSC].)

No

DTC troubleshooting completed.

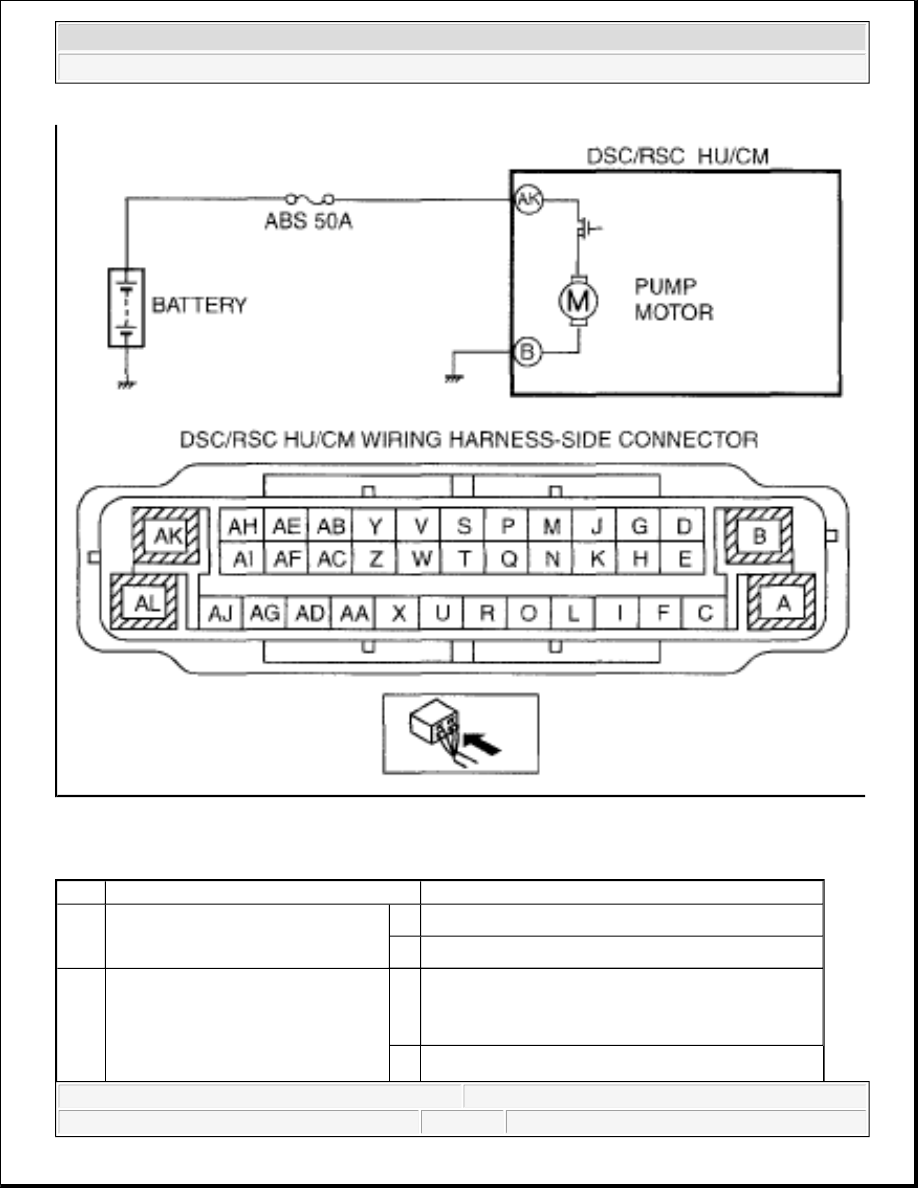

DTC C1095, C1096 Pump motor, motor relay system

DETECTION

CONDITION

C1095

ABS motor monitor OFF signal is input within specified time limit when the
motor signal is switched from ON to OFF by DSC/RSC HU/CM.

C1096

When pump motor monitor voltage continues for 0.05s more than 0.75V
among the pump motor ON.

POSSIBLE CAUSE

ABS 50A fuse malfunction

Open or short to ground circuit in the wiring harness between the battery and the
DSC/RSC HU/CM terminal AK

Open circuit in the wiring harness between the DSC/RSC HU/CM terminal B and
the body ground

Open or short circuit in the DSC/RSC HU/CM internal motor relay, or stuck motor
relay

Open or short circuit in the DSC/RSC HU/CM internal motor, or frozen motor

Motor relay malfunction

Poor connection at connectors (female terminal)



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:13 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC C1095, C1096 [DSC/RSC] DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT ABS FUSE CONDITION


Is the ABS 50A fuse normal?

Yes Go to the next step.

No

Replace the fuse, then go to Step 5.

INSPECT MOTOR RELAY
POWER SUPPLY FOR OPEN
CIRCUIT


Turn the ignition switch off.

Yes Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:13 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

2

Disconnect DSC/RSC HU/CM
connector.

Turn the ignition switch to the
ON position (engine off).

Measure voltage between
DSC/RSC HU/CM terminal AK
(harness-side) and ground.

Is the voltage B+?

No

Repair or replace the wiring harness for open circuit

between battery positive terminal and DSC/RSC

HU/CM terminal AK, then go to Step 5.

3

INSPECT PUMP MOTOR
GROUND FOR OPEN CIRCUIT


Turn the ignition switch off.

Inspect for continuity between
DSC/RSC HU/CM terminal B
(harness-side) and ground.

Is there continuity?

Yes Go to the next step.

No

Repair or replace the wiring harness for open circuit

between DSC/RSC HU/CM terminal B and ground,

then go to Step 5.

4

VERIFY PUMP MOTOR
OPERATION


Turn the ignition switch off.

Connect the M-MDS to the
DLC-2.

Turn the ignition switch to the
ON position (engine off).

Access PMP_MOTOR active
command modes using the M-
MDS.

Does the pump motor operate?

Yes Go to the next step.

No

Replace the DSC/RSC HU/CM, then go to the next

step.

(See DSC/RSC HU/CM

REMOVAL/INSTALLATION .)

5

VERIFY TROUBLESHOOTING
COMPLETED


Make sure to reconnect all
disconnected connectors.

Clear the DTC from the
memory.

(See ON-BOARD
DIAGNOSTIC [DSC/RSC]
.)

Gradually slow down and stop
the vehicle.

Is the same DTC present?

Yes

Replace the DSC/RSC HU/CM, then go to the next
step.
(See DSC/RSC HU/CM
REMOVAL/INSTALLATION
 .)

No

Go to the next step.

VERIFY AFTER REPAIR

Go to the applicable DTC inspection.



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:13 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.
