ACTIVE COMMAND MODES PROCEDURE

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)

1. Select "DataLogger".

2. Select "Modules".

3. Select "ABS".



When using the PDS (Pocket PC)

1. Select "Module Tests".

2. Select "ABS".

3. Select "DataLogger".

3. Select the active command modes from the PID table.

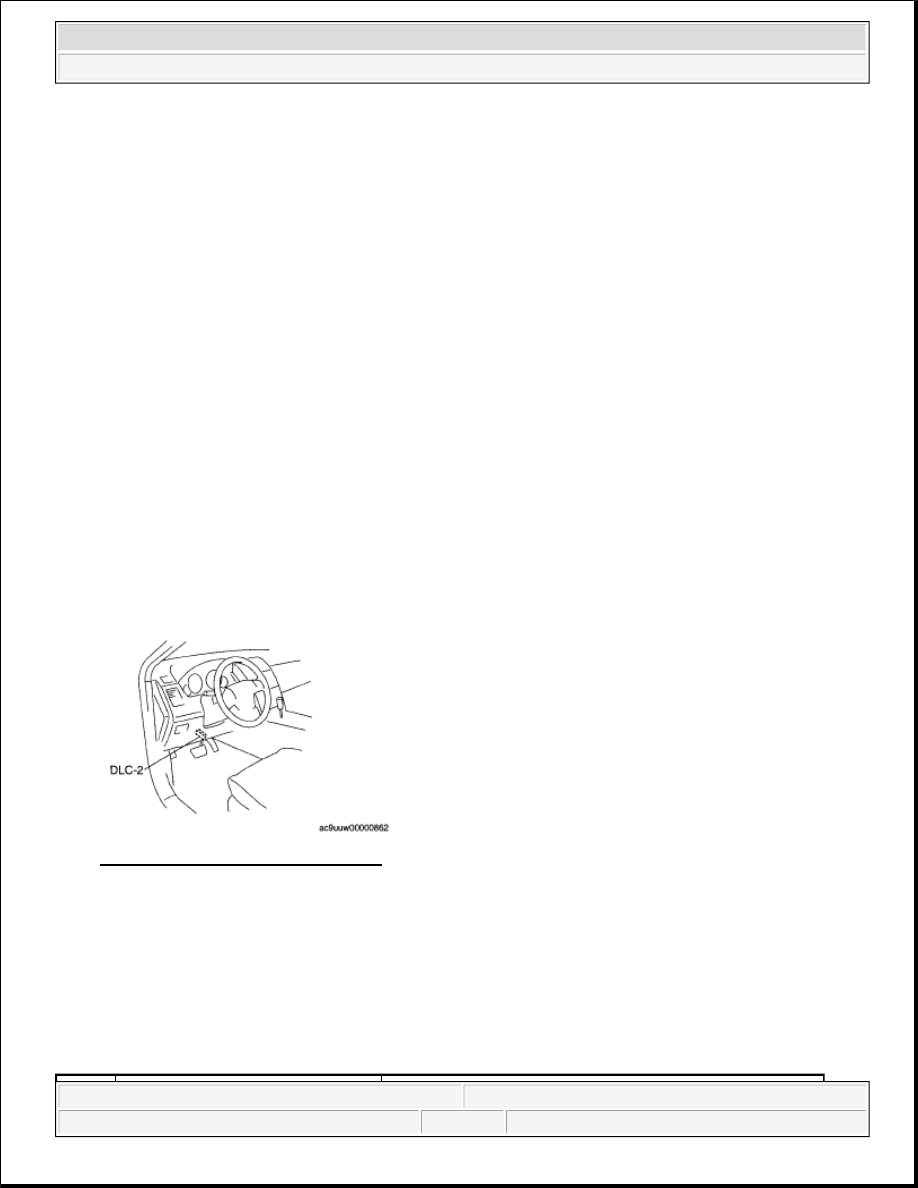

Fig. 5: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

4. Perform the active command modes, inspect the operations for each parts.



If the operation of output parts cannot be verified after the active command mode inspection is
performed, this could indicate the possibility of an open or short circuit, sticking, or operation
malfunction in the output parts.

DTC TABLE

DTC CHART

value of input/output signals in the module. Therefore, if the
monitored value of the output parts is not within the specification, it
is necessary to inspect the monitored value of input parts
corresponding to the applicable output part control. In addition,
because the system does not display an output part malfunction as
an abnormality in the monitored value, it is necessary to inspect the
output parts individually.



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:12 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

DTC

System malfunction location

Page

M-

MDS

B1317 Power supply system

(See DTC B1317, B1318 [DSC/RSC].)

B1318 Power supply system

(See DTC B1317, B1318 [DSC/RSC].)

B1342 DSC/RSC HU/CM system

(See DTC B1342, C1730 [DSC/RSC].)

B211B Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1095 Pump motor, motor relay system

(See DTC C1095, C1096 [DSC/RSC].)

C1096 Pump motor, motor relay system

(See DTC C1095, C1096 [DSC/RSC].)

C1115 Valve relay system

(See DTC C1115, C1185 [DSC/RSC].)

C1145

RF ABS wheel-speed sensor (open
circuit) system

(See DTC C1145, C1155, C1165, C1175 [DSC/RSC].)

C1155

LF ABS wheel-speed sensor (open
circuit) system

(See DTC C1145, C1155, C1165, C1175 [DSC/RSC].)

C1165

RR ABS wheel-speed sensor (open
circuit) system

(See DTC C1145, C1155, C1165, C1175 [DSC/RSC].)

C1175

LR ABS wheel-speed sensor (open
circuit) system

(See DTC C1145, C1155, C1165, C1175 [DSC/RSC].)

C1185 Valve relay system

(See DTC C1115, C1185 [DSC/RSC].)

C1194 LF outlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1198 LF inlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1210 RF outlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1214 RF inlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1222 ABS wheel-speed sensor system

(See DTC C1222 [DSC/RSC].)

C1233

LF ABS wheel-speed sensor/ABS
sensor rotor system

(See DTC C1233, C1234, C1235, C1236 [DSC/RSC].)

C1234

RF ABS wheel-speed sensor/ABS
sensor rotor system

(See DTC C1233, C1234, C1235, C1236 [DSC/RSC].)

C1235

RR ABS wheel-speed sensor/ABS
sensor rotor system

(See DTC C1233, C1234, C1235, C1236 [DSC/RSC].)

C1236

LR ABS wheel-speed sensor/ABS
sensor rotor system

(See DTC C1233, C1234, C1235, C1236 [DSC/RSC].)

C1242 LR outlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:12 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

C1246 RR outlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1250 LR inlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1254 RR inlet solenoid valve system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1278 Steering angle sensor system

(See DTC C1278, C1295, U2023 [DSC/RSC].)

C1279 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1280 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1281 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1282 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1288 Brake fluid pressure sensor system (See DTC C1288 [DSC/RSC].)
C1295 Steering angle sensor system

(See DTC C1278, C1295, U2023 [DSC/RSC].)

C1327 Brake fluid level sensor system

(See DTC C1327 [DSC/RSC].)

C1329 RF outlet solenoid valve coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1330

LR outlet solenoid valve coil
system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1331

RR outlet solenoid valve coil
system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1332 LF outlet solenoid valve coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1333 LR inlet solenoid valve coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1334 LF inlet solenoid valve coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1335 RF inlet solenoid valve coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1336 RR inlet solenoid valve coil system (See DTC C1329, C1330, C1331, C1332, C1333, C1334,

C1335, C1336, C1527, C1528, C1530, C1531



2008 Mazda CX-9 Grand Touring

2008 BRAKES On-Board Diagnostic (DSC/RSC) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:12 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

[DSC/RSC].)

C1404

RH traction control solenoid valve
system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1410

LH traction control solenoid valve
system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1446 Brake switch system

(See DTC C1446 [DSC/RSC].)

C1516 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1517 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C1527

RH traction control solenoid valve
coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1528

LH traction control solenoid valve
coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1530

RH stability control solenoid valve
coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1531

LH stability control solenoid valve
coil system

(See DTC C1329, C1330, C1331, C1332, C1333, C1334,
C1335, C1336, C1527, C1528, C1530, C1531
[DSC/RSC].)

C1730 DSC/RSC HU/CM system

(See DTC B1342, C1730 [DSC/RSC].)

C1957

RH stability control solenoid valve
system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1958

LH stability control solenoid valve
system

(See DTC C1194, C1198, C1210, C1214, C1242, C1246,
C1250, C1254, C1404, C1410, C1957, C1958
[DSC/RSC].)

C1963

Combined sensor (Yaw rate sensor
part) initial point correction error

(See DTC C1963 [DSC/RSC].)

C1991

DSC/RSC sensor (abnormal
initialization) system

(See DTC C1991 [DSC/RSC].)

C2769 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

C2770 Combined sensor system

(See DTC B211B, C1279, C1280, C1281, C1282, C1516,
C1517, C2769, C2770 [DSC/RSC].)

U0073 CAN system communication error

(See DTC TABLE [MULTIPLEX COMMUNICATION
SYSTEM] .)

U0100 Communication error to PCM

(See DTC TABLE [MULTIPLEX COMMUNICATION
SYSTEM] .)

U0140 Communication error to BCM

(See DTC TABLE [MULTIPLEX COMMUNICATION
