Mazda CX-9 Grand Touring. Manual - part 113

Fig. 13: Identifying Front Bumper Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Assemble in the reverse order of disassembly.

FRONT OVER FENDER LOWER ASSEMBLY NOTE

1. Attach the front over fender lower to the front bumper fascia with nuts.

2. Use a soldering copper and thermally deform the tab in order to fasten the stiffening rib.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:45 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

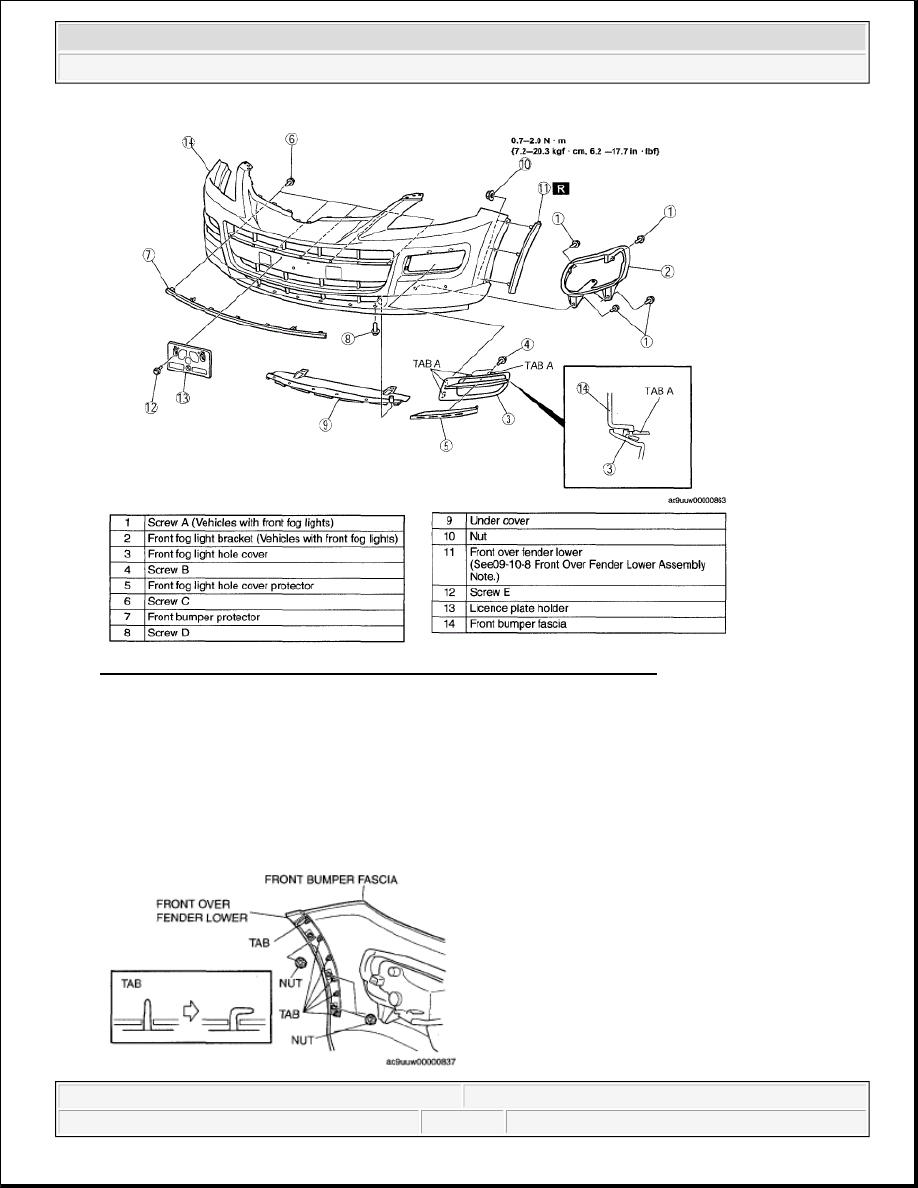

Fig. 14: Identifying Front Over Fender Lower And Front Bumper Fascia With Nuts
Courtesy of MAZDA MOTORS CORP.

FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

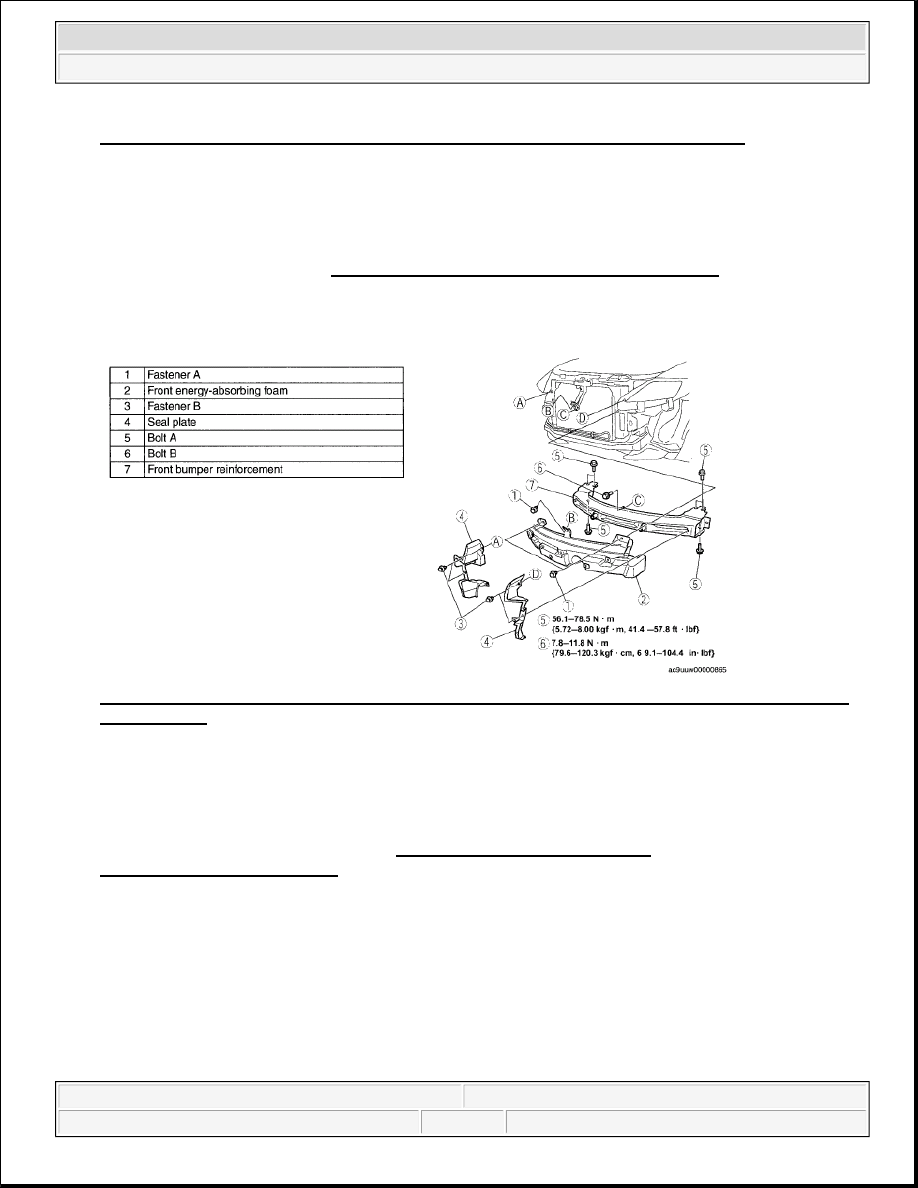

Fig. 15: Identifying Removing Sequence Of Front Bumper Reinforcement Components & Torque
Specifications
Courtesy of MAZDA MOTORS CORP.

REAR BUMPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rear combination light. (See REAR COMBINATION LIGHT

REMOVAL/INSTALLATION .)

3. Remove the screw and fastener.

4. Detach the tab of the splash shield to remove it.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:45 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

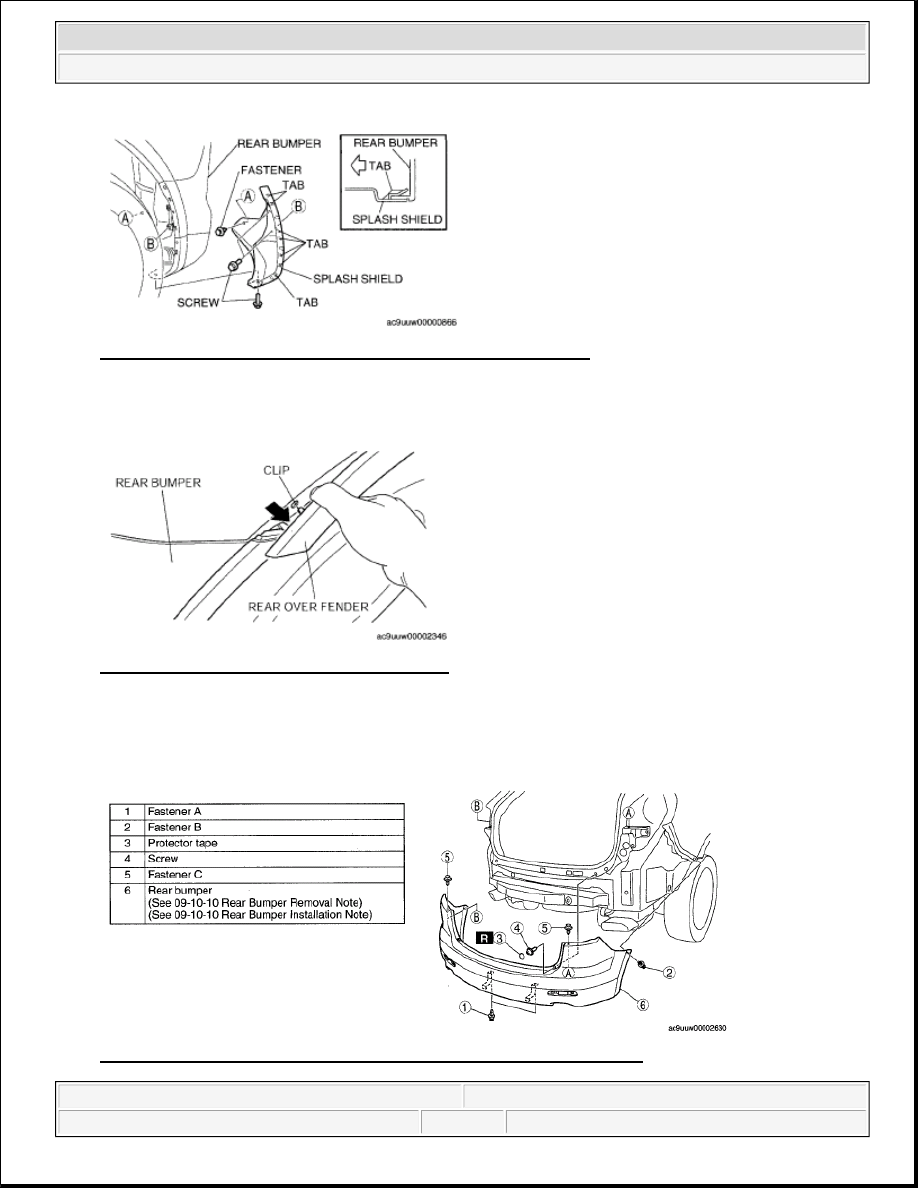

Fig. 16: Identifying Rear Bumper And Splash Shield With Tabs
Courtesy of MAZDA MOTORS CORP.

5. Remove the clip of the rear over fender and put aside the rear bumper.

Fig. 17: Removing Clip Of Rear Over Fender
Courtesy of MAZDA MOTORS CORP.

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

Fig. 18: Identifying Removing Sequence Of Rear Bumper Components
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:45 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

REAR BUMPER REMOVAL NOTE

1. Pull the rear bumper ends (wheel arch) outward (1) to disengage from the bumper slider.

2. Remove the rear bumper (2).

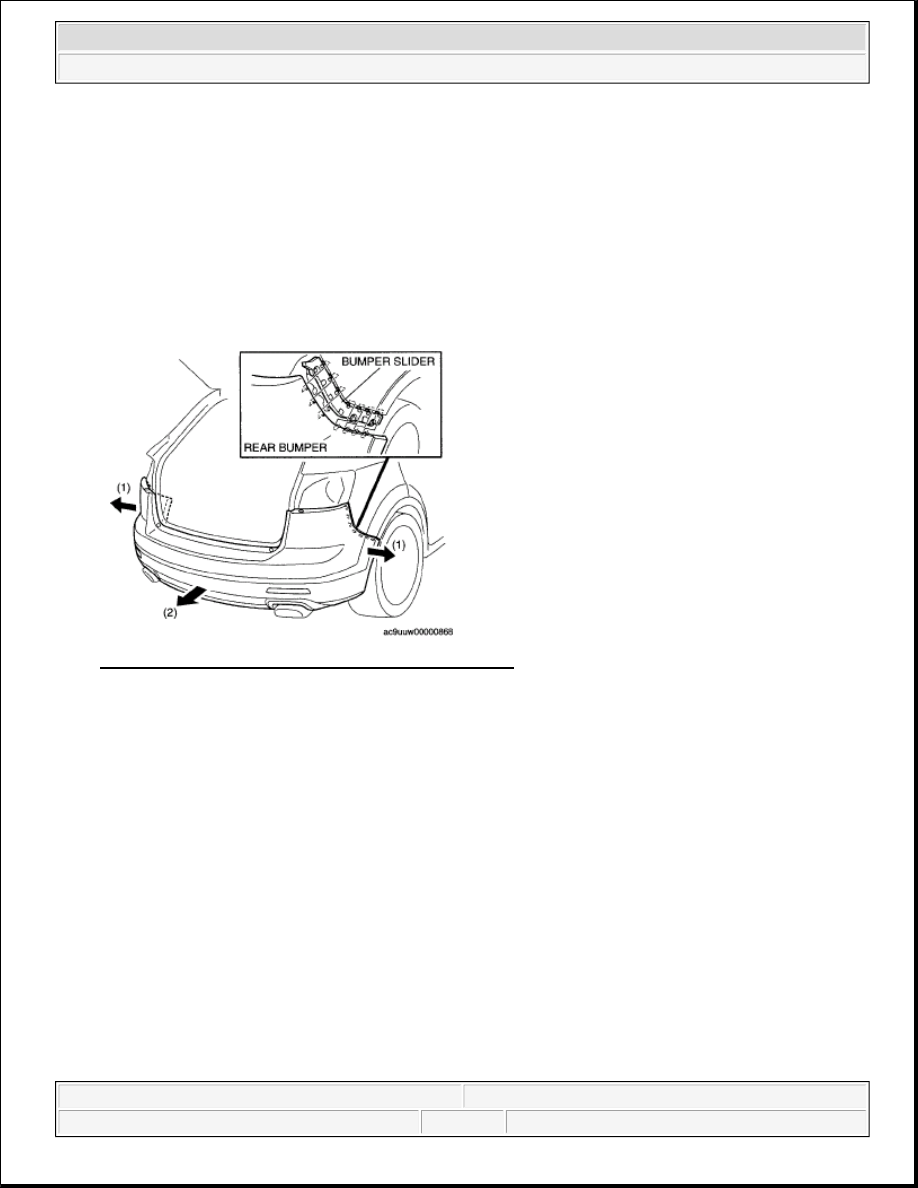

Fig. 19: Identifying Rear Bumper And Bumper Slider
Courtesy of MAZDA MOTORS CORP.

REAR BUMPER INSTALLATION NOTE

1. Spread the rear bumper ends apart.

2. Assemble the rear bumper to the body.

3. Press the rear bumper connecting area into the body to engage with the bumper slider.

REAR BUMPER DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

CAUTION:



When disengaging the rear bumper from the bumper slider, the
rear bumper could fall and be damaged. Secure the rear bumper
so that it does not fall.
