a: 3.0-6.0 mm {0.11-0.23 in}

b: 2.0-5.0 mm {0.07-0.19 in}

c: 2.8-5.2 mm {0.11-0.20 in}

2. Turn the stop rubber to adjust.

Fig. 7: Turning Stop Rubber To Adjust
Courtesy of MAZDA MOTORS CORP.

FUEL-FILLER LID REMOVAL/INSTALLATION

1. Remove the bolts.

2. Remove the fuel-filler lid

3. Install in the reverse order of removal.

4. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)

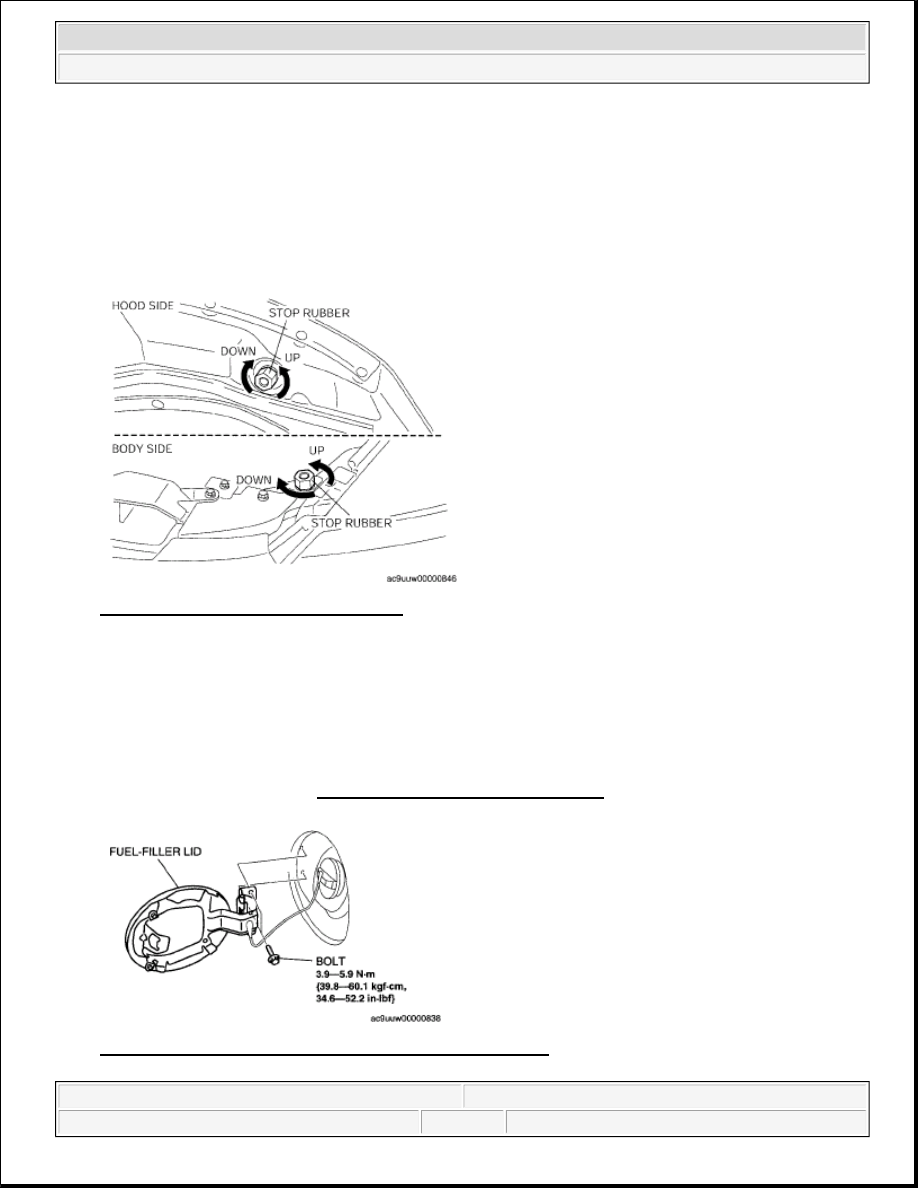

Fig. 8: Identifying Fuel-Filler Lid & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:44:45 AM

Page 6

FUEL-FILLER LID ADJUSTMENT

1. Measure the gap and height difference between the fuel-filler lid and the body.

2. Loosen the fuel-filler lid installation bolts and adjust the fuel-filler lid.

Clearance

a: 1.7-3.7 mm {0.07-0.14 in}

b:-0.5-1.5 mm {-0.01-0.05 in}

3. Tighten the bolts.

Fig. 9: Measuring Gap And Height Difference Between Fuel-Filler Lid And Body
Courtesy of MAZDA MOTORS CORP.

FRONT BUMPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the clip of the front over fender and put aside the front bumper.

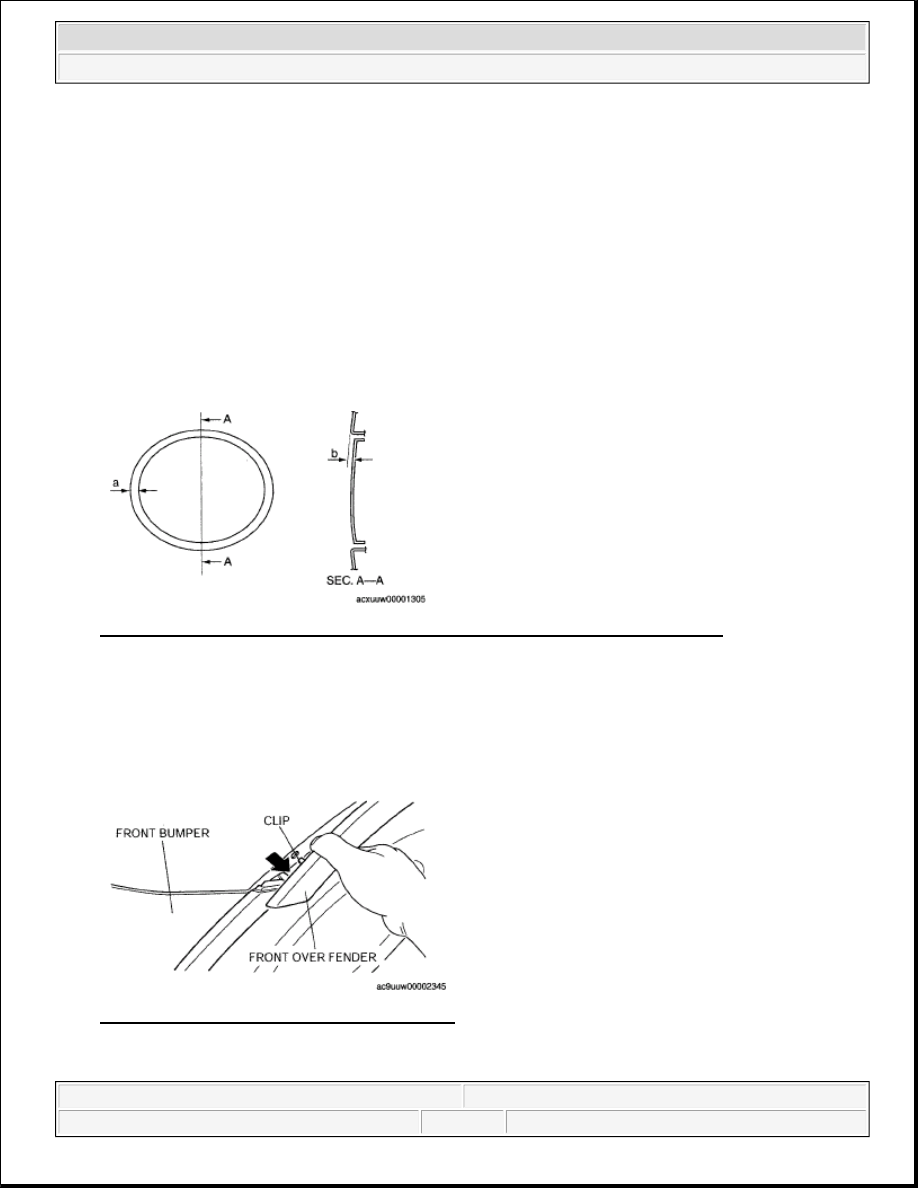

Fig. 10: Removing Clip Of Front Over Fender
Courtesy of MAZDA MOTORS CORP.

3. Remove in the order indicated in the table.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:44:45 AM

Page 7

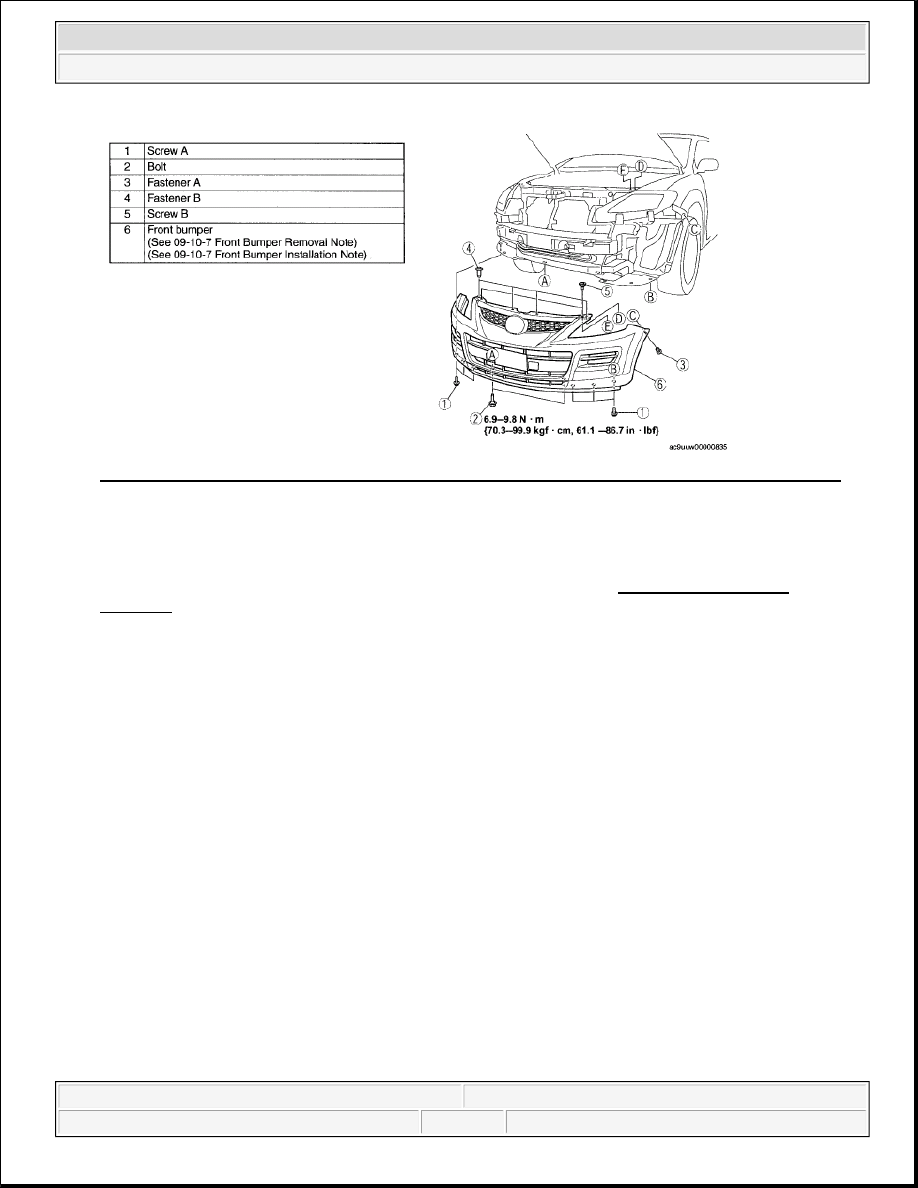

Fig. 11: Identifying Removing Sequence Of Front Bumper Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Disconnect the front fog light connector. (Vehicles with front fog lights)

5. Install in the reverse order of removal.

6. Adjust the front fog light aiming for vehicles with front fog lights. (See FRONT FOG LIGHT

AIMING .)

FRONT BUMPER REMOVAL NOTE

1. Pull the front bumper ends (wheel arch) outward (1) to disengage from the bumper slider.

2. Remove the front bumper from the body.

CAUTION:



When disengaging the front bumper from the bumper slider, the
front bumper could fall and be damaged. Secure the front
bumper so that it does not fall.

2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:44:45 AM

Page 8

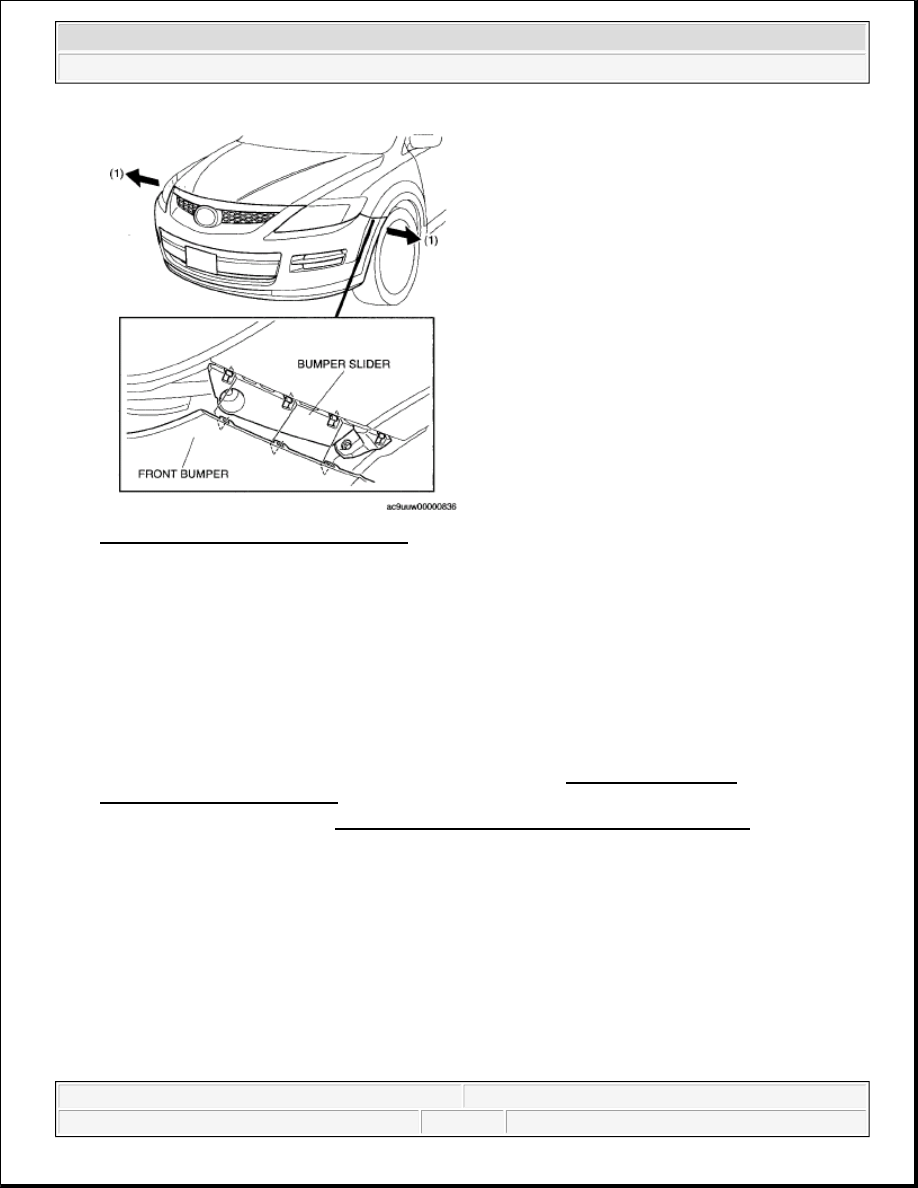

Fig. 12: Identifying Front Bumper Ends
Courtesy of MAZDA MOTORS CORP.

FRONT BUMPER INSTALLATION NOTE

1. Spread the front bumper ends apart.

2. Assemble the front bumper to the body.

3. Press the front bumper connecting area into the body to engage with the bumper slider.

FRONT BUMPER DISASSEMBLY/ASSEMBLY

1. Remove the front fog light. (Vehicles with front fog lights) (See FRONT FOG LIGHT

REMOVAL/INSTALLATION .)

2. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION .)

3. Disassemble in the order indicated in the table.
