Mazda CX-9 Grand Touring. Manual - part 108





SELECTOR LEVER COMPONENT INSPECTION

1. Disconnect the negative battery cable.

2. Remove the center console.

3. Remove the dashboard completely. (See DASHBOARD REMOVAL/INSTALLATION .)

4. Disconnect the selector lever component connector.

5. Inspect for continuity at the selector lever component.

If there is any malfunction, adjust the selector cable. (See SELECTOR CABLE
ADJUSTMENT
.)

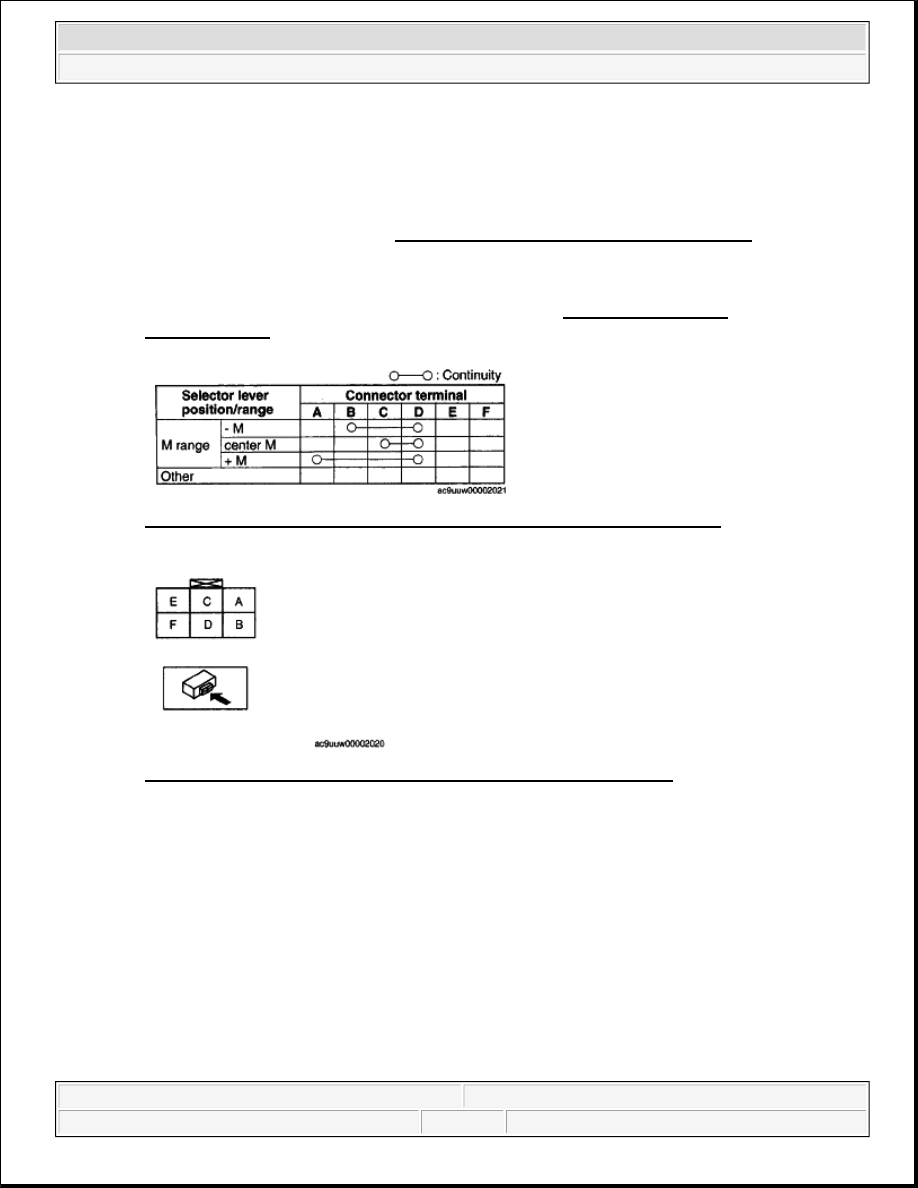

Fig. 18: Selector Lever Component Connector Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 19: Identifying Selector Lever Component Connector Terminals
Courtesy of MAZDA MOTORS CORP.

SELECTOR CABLE ADJUSTMENT

1. Remove the center console.

2. Shift the selector lever to P position.

3. Unlock the lock piece of the selector cable (selector lever side) in the order shown in the figure.

4. Verify that the manual shaft is in P position.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

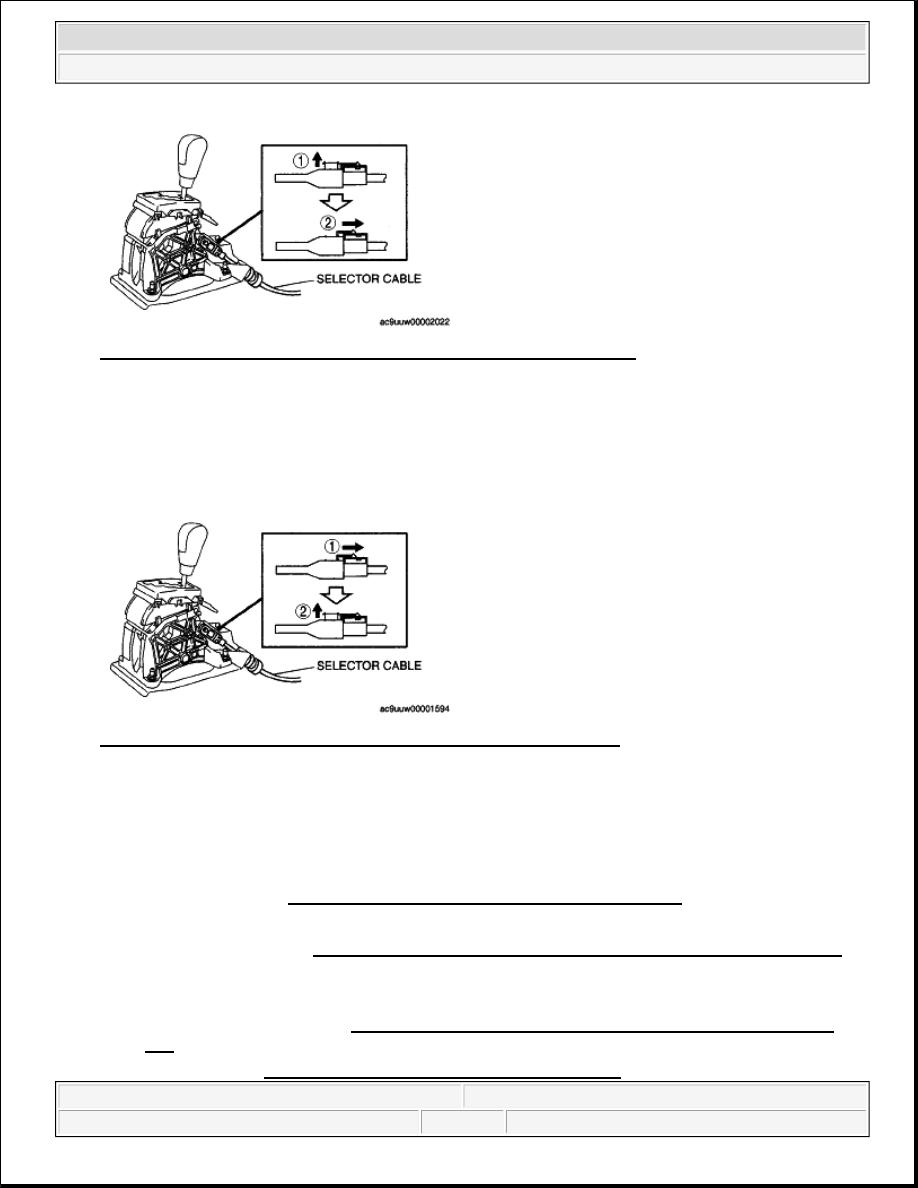

Fig. 20: Unlocking Lock Piece Of Selector Cable (Selector Lever Side)
Courtesy of MAZDA MOTORS CORP.

5. Lock the lock piece of the selector cable (selector lever side) in the order shown in the figure.

6. Install the center console.

7. Shift the selector lever from P position to M range, and make sure that there are no other components in

that area to interfere with the lever.

Fig. 21: Locking Lock Piece Of Selector Cable (Selector Lever Side)
Courtesy of MAZDA MOTORS CORP.

SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. To remove the interlock cable, remove the following parts.

1. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

2. Driver side under panel

3. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZI-3.7] .)

3. To remove the selector cable, remove the following parts.

1. Battery and battery tray

2. Air cleaner component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

3. Dashboard (See DASHBOARD REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

4. Front A/C unit (See FRONT A/C UNIT REMOVAL/INSTALLATION .)

4. To remove the selector lever, remove the following parts.

1. Console (See CONSOLE REMOVAL/INSTALLATION .)

5. Remove in the order shown in the figure.

6. Install in the reverse order of removal.

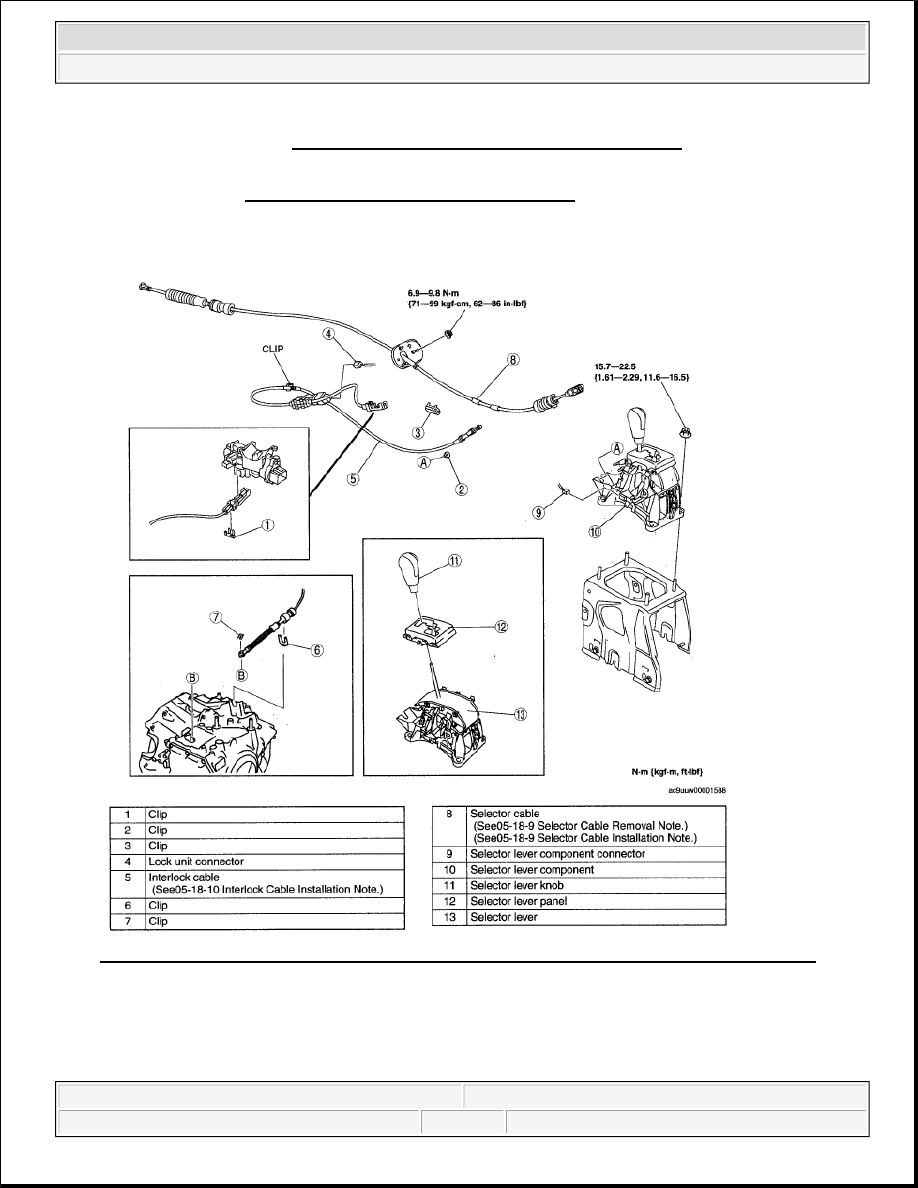

Fig. 22: Identifying Selector Lever Component Removal/Installation & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

SELECTOR CABLE REMOVAL NOTE

1. Remove the clip.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

2. Remove the selector cable.

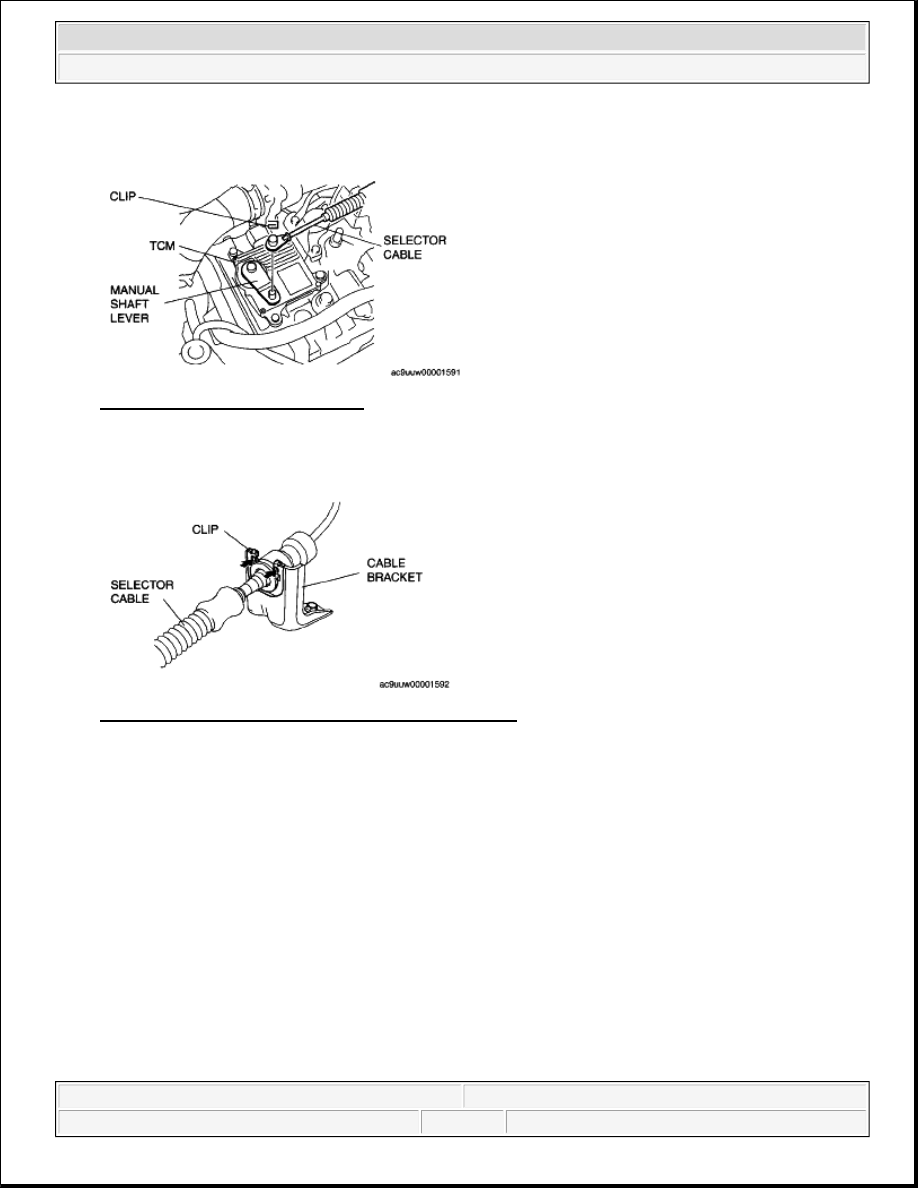

Fig. 23: Identifying Selector Cable
Courtesy of MAZDA MOTORS CORP.

3. Remove the selector cable from the cable bracket.

Fig. 24: Identifying Selector Cable And Cable Bracket
Courtesy of MAZDA MOTORS CORP.

SELECTOR CABLE INSTALLATION NOTE

1. Install the selector cable and clip to the bracket as shown in the figure.

2. Verify that the selector lever is in the P position.

NOTE:

Steps 2 and 3 are for the selector cable replacement only.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.
