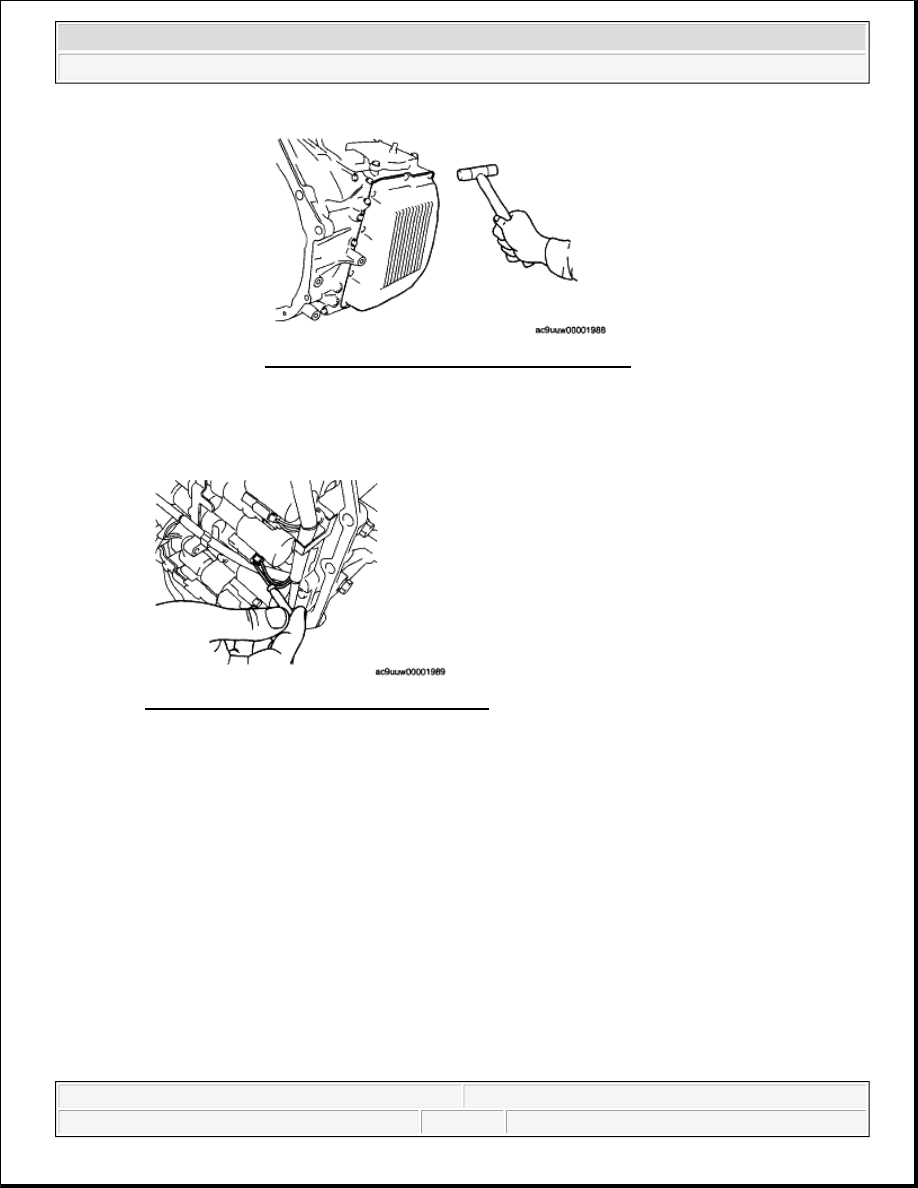

1. Insert a precision screwdriver from the backside into the connector as shown in the figure.

Fig. 89: Identifying Backside Into Connector
Courtesy of MAZDA MOTORS CORP.

2. Pry the screwdriver in the direction of the arrow and disconnect the connector.

Fig. 88: Tapping Control Valve Body Cover
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not damage the solenoid valves and connectors with
the screwdriver.



When disconnecting connectors, grasp the connectors,
not the harnesses. Otherwise, the harnesses may be
pulled out of the connector causing poor contact.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 69

© 2005 Mitchell Repair Information Company, LLC.

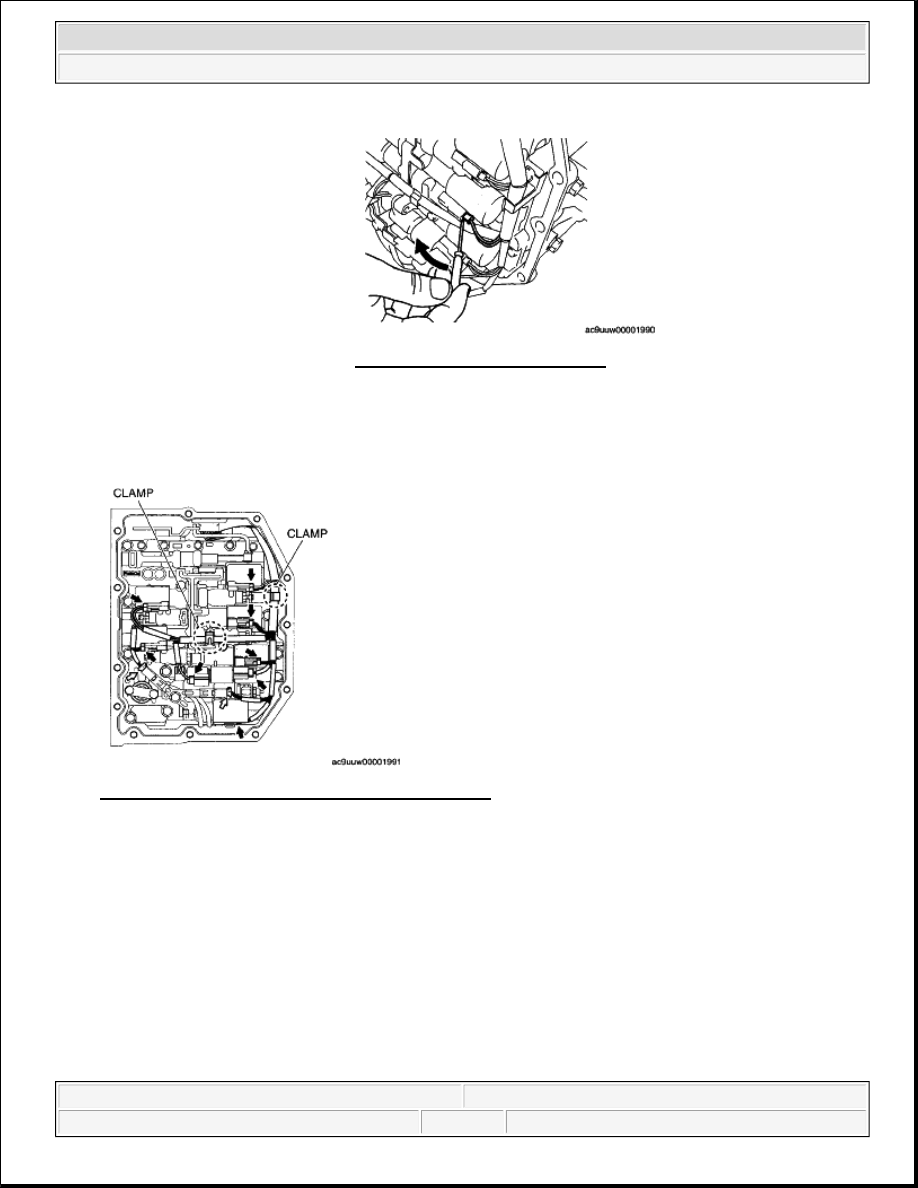

8. Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

9. Disconnect the coupler component from the clamp.

Fig. 91: Identifying Coupler Component Of Clamp
Courtesy of MAZDA MOTORS CORP.

10. Remove the lock plate, and pull out the TFT sensor from the control valve body.

11. Remove the O-ring from the TFT sensor.

Fig. 90: Removing Connector
Courtesy of MAZDA MOTORS CORP.

NOTE:



Be sure to secure the coupler component with tape so that it will not
interfere with the control valve body component.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 70

© 2005 Mitchell Repair Information Company, LLC.

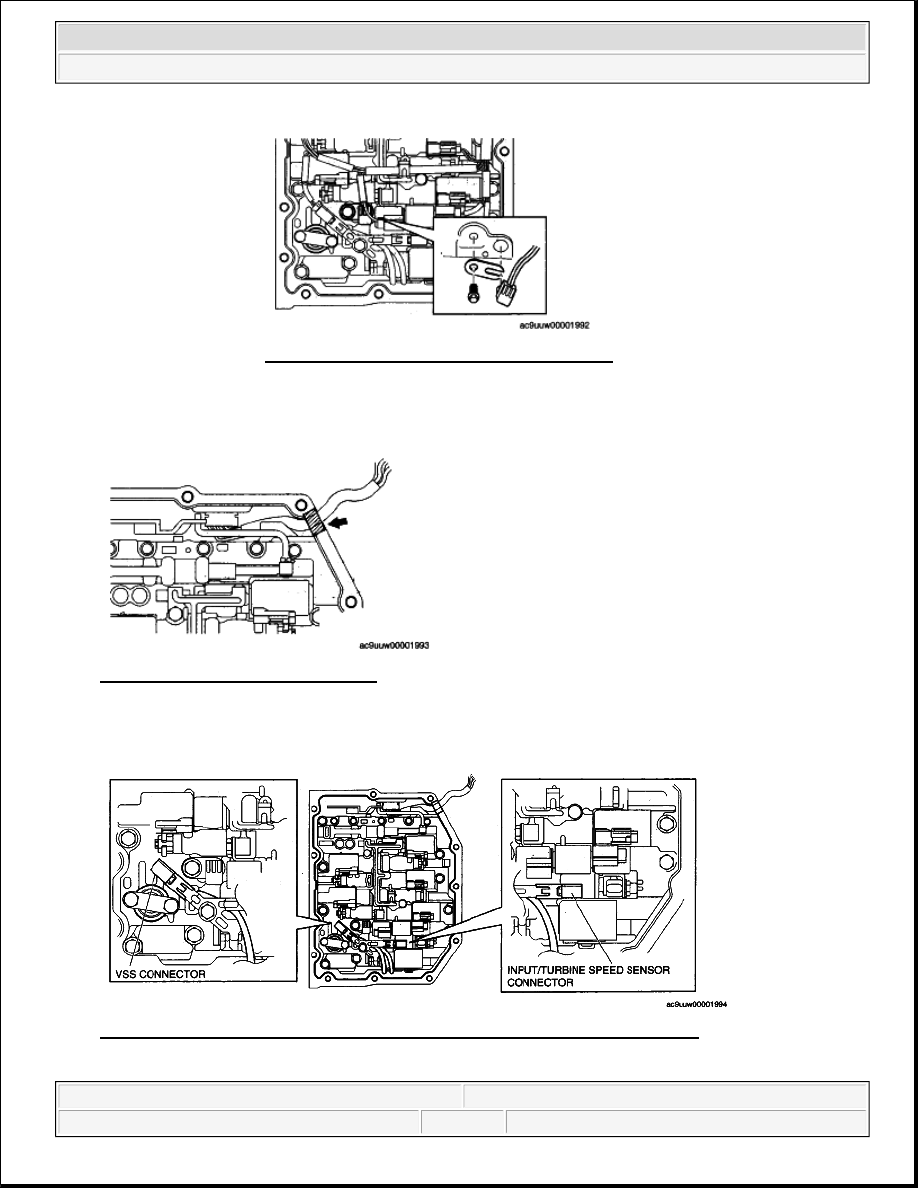

12. Fix the coupler component with tape to the transaxle case as shown in the figure.

Fig. 93: Tapping To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

13. Remove the VSS connector and input/turbine speed sensor connector from the solenoid clamp.

Fig. 94: Identifying VSS Connector & Input/Turbine Speed Sensor Connector
Courtesy of MAZDA MOTORS CORP.

Fig. 92: Identifying O-ring Of TFT Sensor
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 71

© 2005 Mitchell Repair Information Company, LLC.

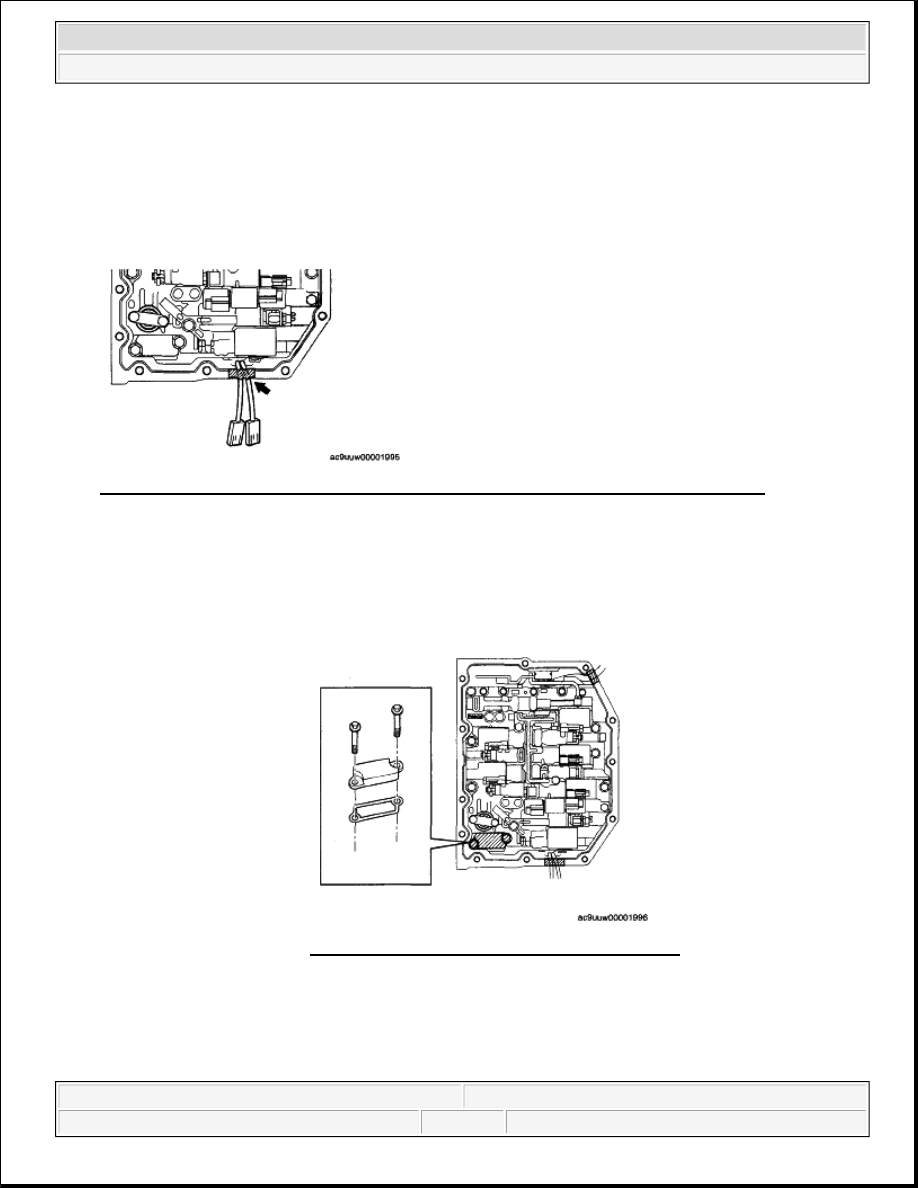

14. Fix the VSS wiring harness and input/turbine speed sensor wiring harness with tape to the transaxle case

as shown in the figure.

Fig. 95: Locating VSS Wiring Harness & Input/Turbine Speed Sensor Wiring Harness
Courtesy of MAZDA MOTORS CORP.

15. Remove the suction cover and the gasket.

16. Remove the control valve body installation bolts.

NOTE:



Be sure to secure the VSS and input/turbine speed sensor with tape
so that they will not interfere with the control valve body component.

CAUTION:



Evenly loosen the bolts a little at a time in the order shown in
the figure.

Fig. 96: Identifying Suction Cover & Gasket
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not drop the control valve body component.
