Mazda CX-9 Grand Touring. Manual - part 96

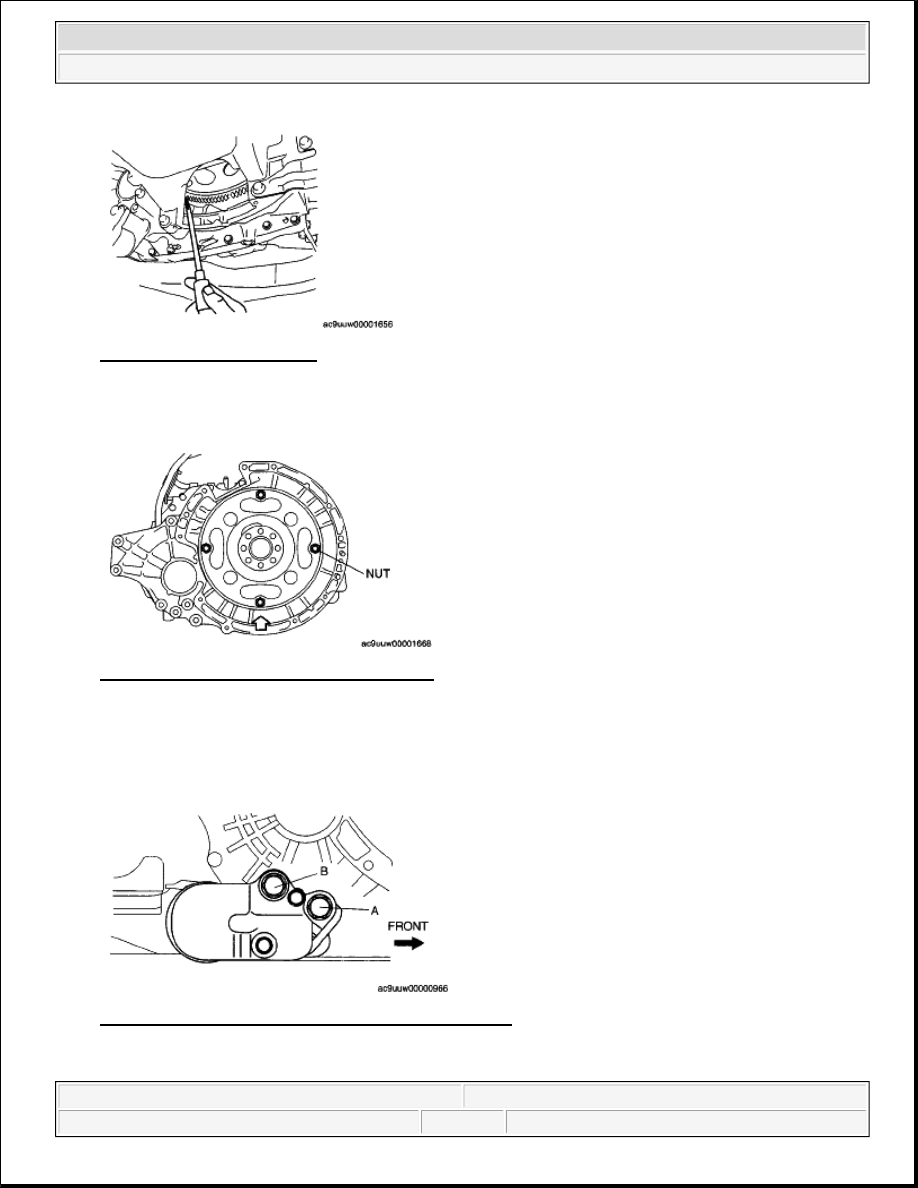

Fig. 59: Locking Drive Plate
Courtesy of MAZDA MOTORS CORP.

4. Remove the torque converter nuts.

Fig. 60: Identifying Torque Converter Nuts
Courtesy of MAZDA MOTORS CORP.

NO.1 ENGINE MOUNT REMOVAL NOTE

1. Remove the No.1 engine mount bracket bolts A and B as shown.

Fig. 61: Identifying No.1 Engine Mount Bracket Bolts
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 53

© 2005 Mitchell Repair Information Company, LLC.

2. Remove the No.1 engine mount, No.1 engine mount bracket and the front crossmember as a single unit.

(See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)

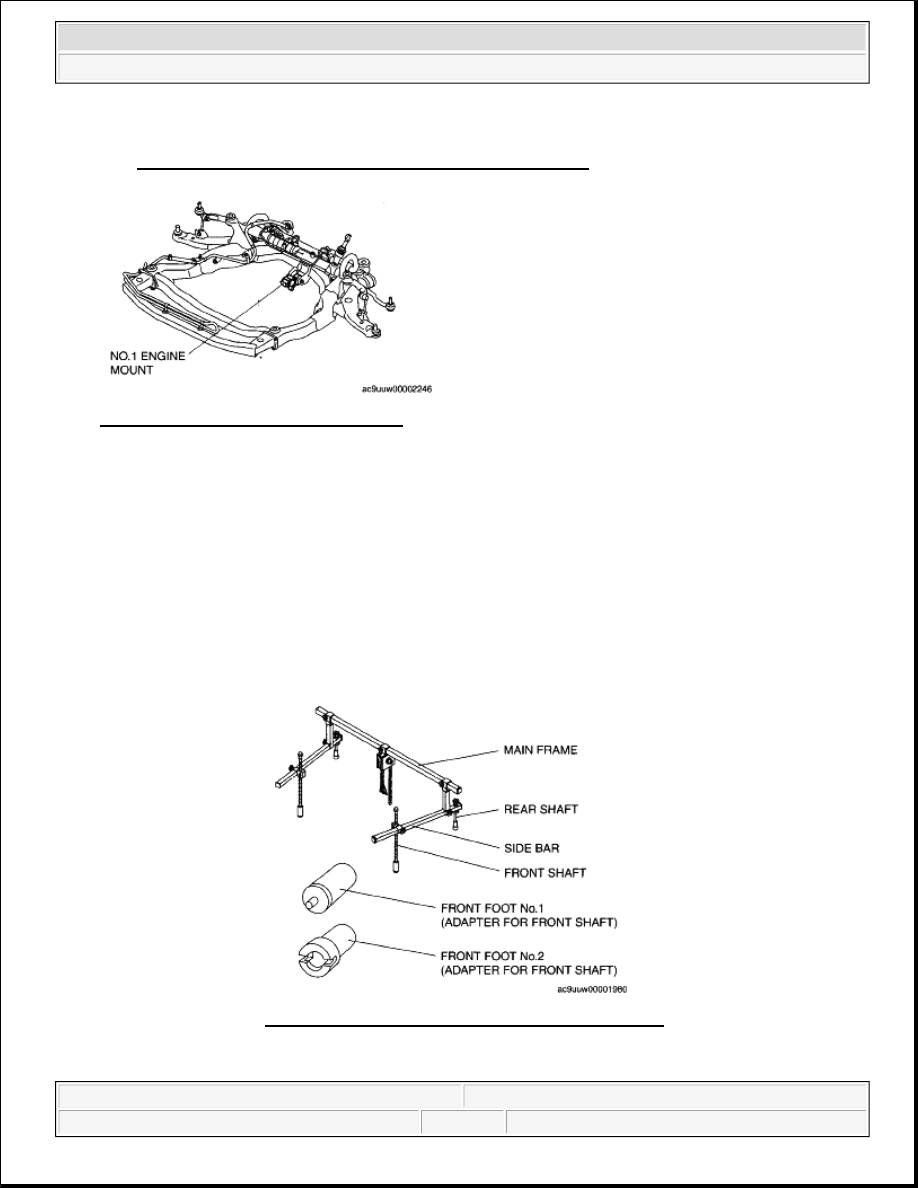

Fig. 62: Identifying No.1 Engine Mount
Courtesy of MAZDA MOTORS CORP.

NO.4 ENGINE MOUNT BRACKET REMOVAL NOTE

1. Install the SST using the following procedure.

CAUTION:



Refer to the SST instruction manual for the basic handing
procedure.

NOTE:



When installing the SST , adjust the position of each shaft so that
they do not interfere with the vehicle body.

Fig. 63: Identifying No.4 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 54

© 2005 Mitchell Repair Information Company, LLC.

1. Install the right rear shaft of the SST to the bolt of the right shock absorber shown in the figure.

2. Install the left rear shaft of the SST to the bolt of the left shock absorber (Identical position to the

right side).

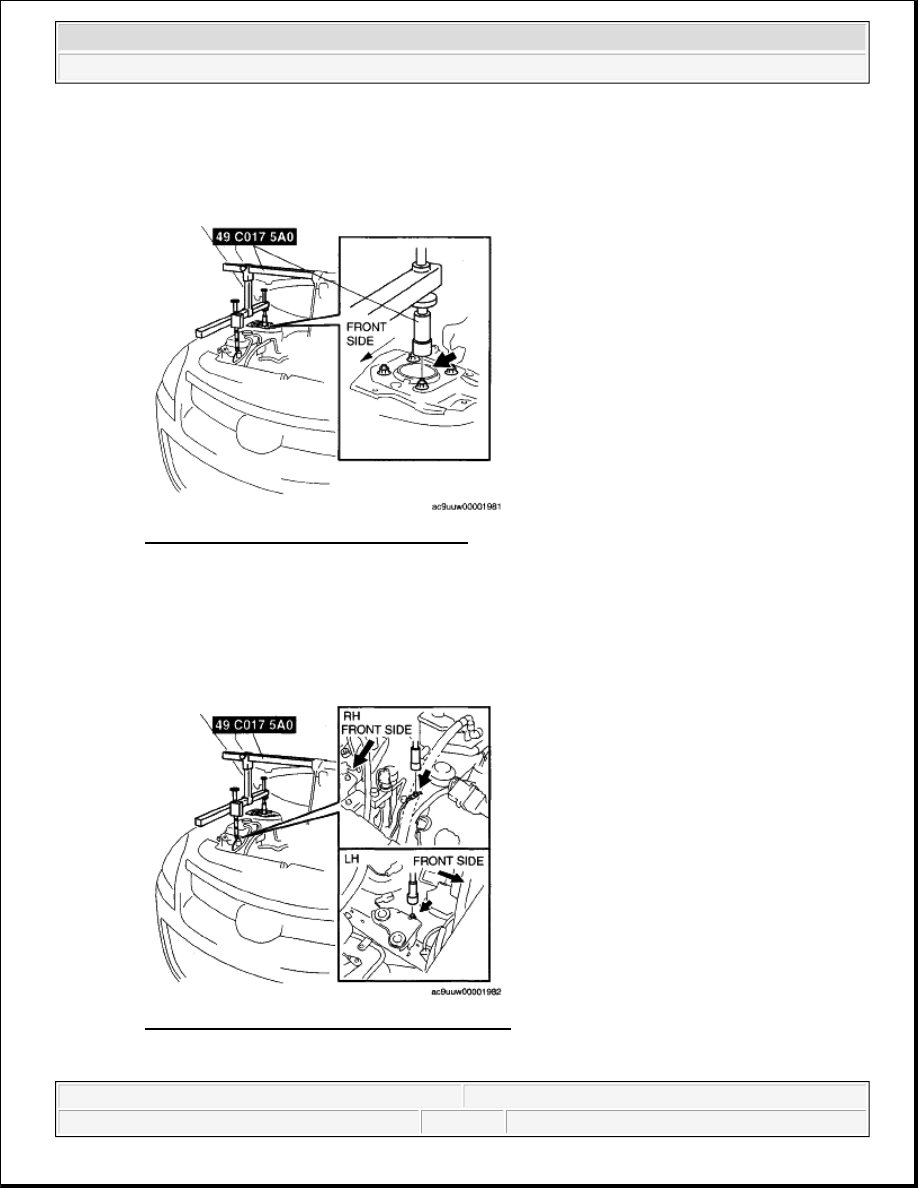

Fig. 64: View Of Right Rear Shaft Of SST
Courtesy of MAZDA MOTORS CORP.

3. Install the left/right front shaft of the SST with front foot No.2 to the bolt shown in the figure.

4. Adjust the positions of the SST side bars so that they are the same height (left and right) and

horizontal.

5. Make sure each joint is securely tightened.

Fig. 65: View Of Left/Right Front Shaft Of SST
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 55

© 2005 Mitchell Repair Information Company, LLC.

2. Support the engine using the SSTs.

3. Remove the No.4 engine mount bracket.

Fig. 66: Removing No.4 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.

TRANSAXLE REMOVAL NOTE

1. Support the transaxle on a jack.

2. Remove the transaxle mounting bolts.

3. Remove the transaxle.

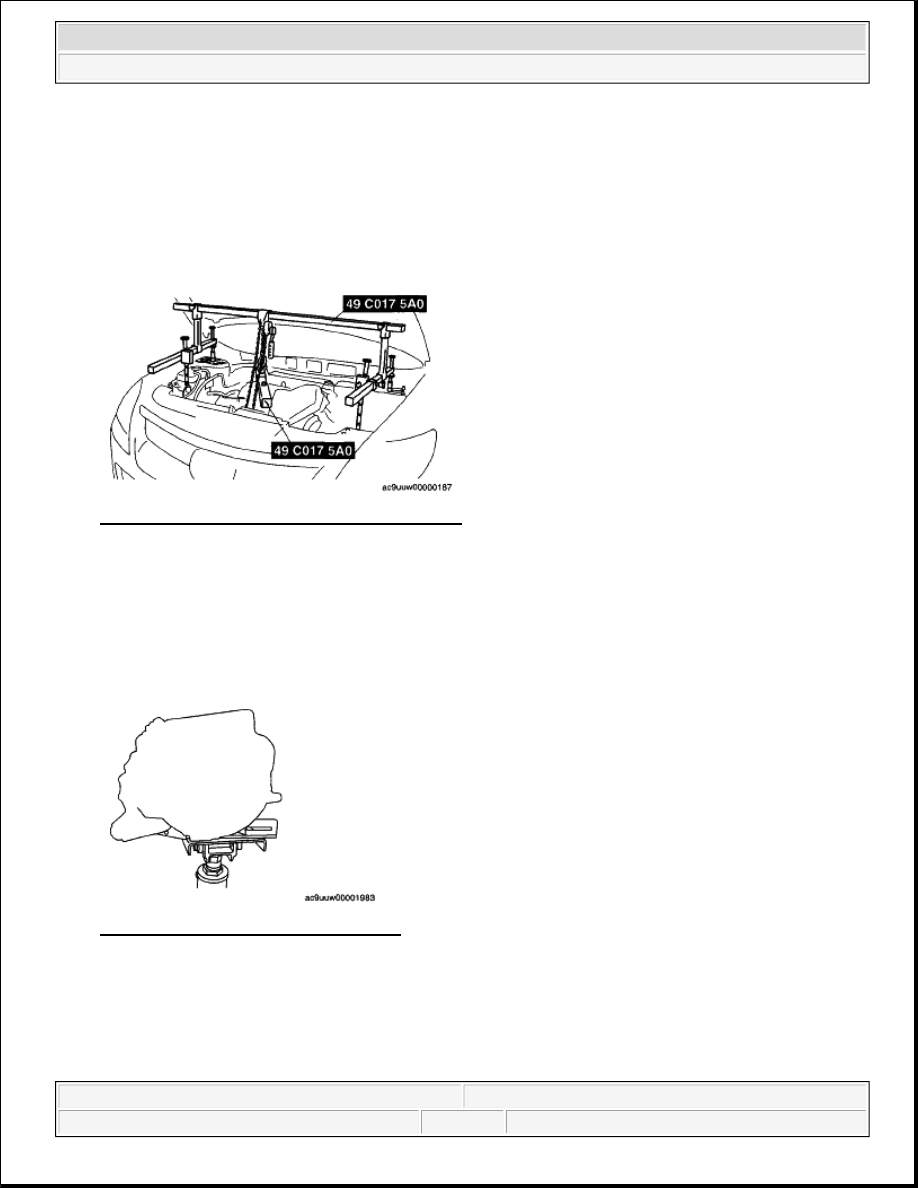

Fig. 67: Supporting Transaxle On Jack
Courtesy of MAZDA MOTORS CORP.

TRANSAXLE INSTALLATION NOTE

1. Set the transaxle on a jack and lift it.

2. Rotate the drive plate so that the logo mark faces upward.

NOTE:



The SST (49 E017 5A0) can be used in place of the SST (49 C017
5A0).
