Fig. 191: Identifying Thrust Bearing Of Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.

13. Install the intermediate shaft on the transaxle case and set a dial indicator as shown in the figure.

14. Apply compressed air as shown in the figure and measure the C2 clutch piston stroke.

Air pressure

400 kPa {4.1 kgfcm

2

 , 58 psi}



C2 clutch piston stroke

0.45 - 0.65 mm {0.0178 - 0.0255 in}



If not within the specification, select an appropriate retaining plate.

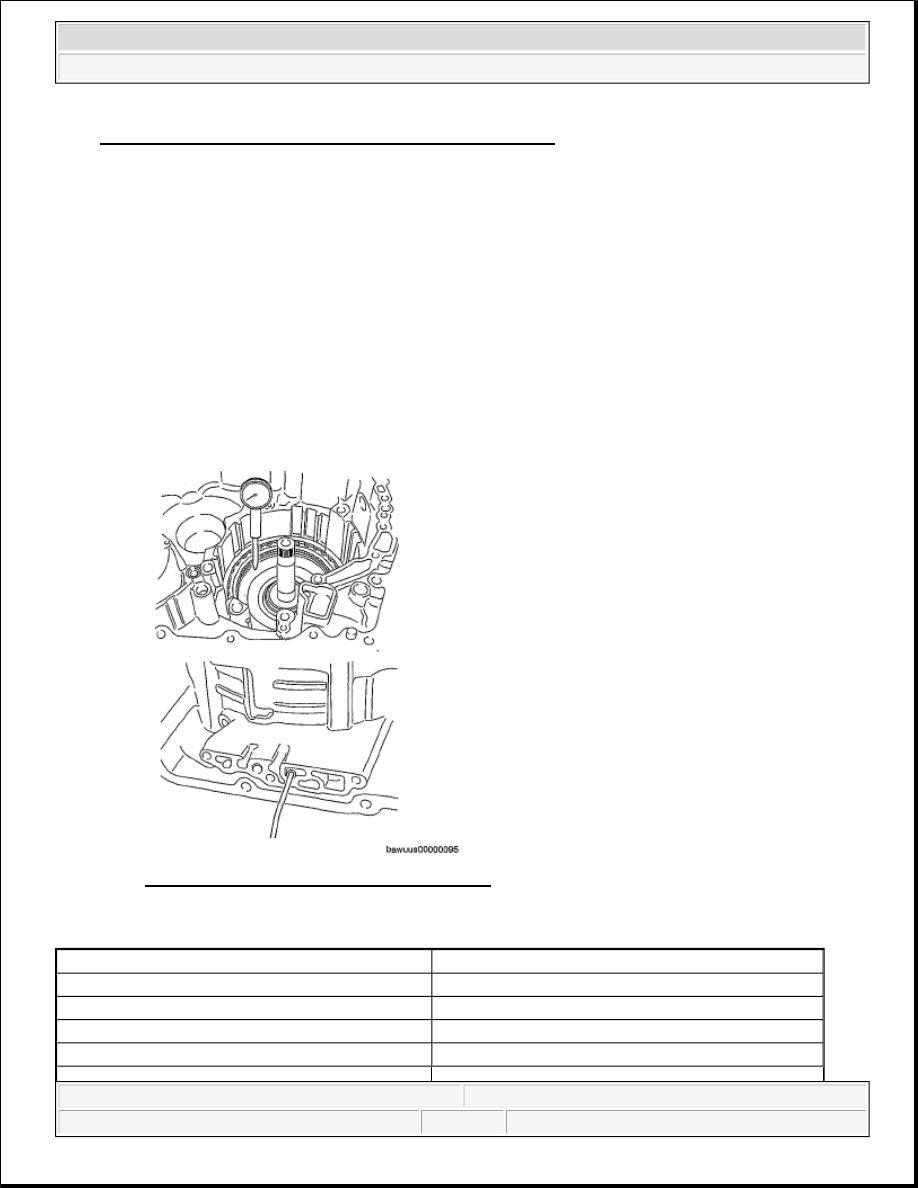

Fig. 192: Measuring C2 Clutch Piston Stroke
Courtesy of MAZDA MOTORS CORP.

RETAINING PLATE SIZE

Identification mark

Thickness (mm {in})

1

2.5 {0.0984}

2

2.6 {0.102}

3

2.7 {0.106}

4

2.8 {0.110}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 102

© 2005 Mitchell Repair Information Company, LLC.

TRANSAXLE CASE AND B2 BRAKE DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in Fig. 193.

2. Assemble in the reverse order of disassembly.

A

2.85 {0.112}

5

2.9 {0.114}

B

2.95 {0.116}

6

3.0 {0.118}

C

3.05 {0.120}

7

3.1 {0.122}

8

3.2 {0.126}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 103

© 2005 Mitchell Repair Information Company, LLC.

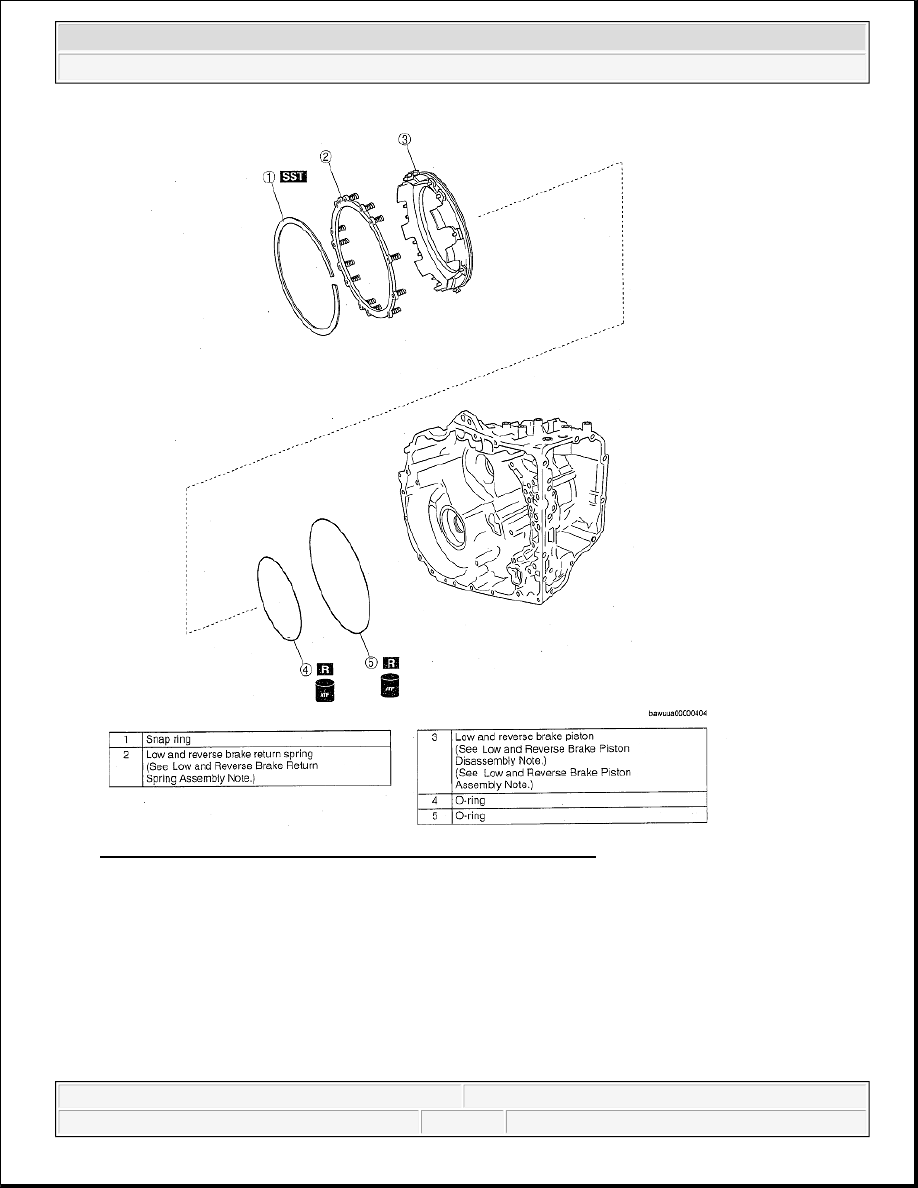

Fig. 193: Identifying Transaxle Case And B2 Brake Components
Courtesy of MAZDA MOTORS CORP.

Low and Reverse Brake Piston Disassembly Note

1. Using a flathead screwdriver, remove the snap ring from the transaxle case.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 104

© 2005 Mitchell Repair Information Company, LLC.

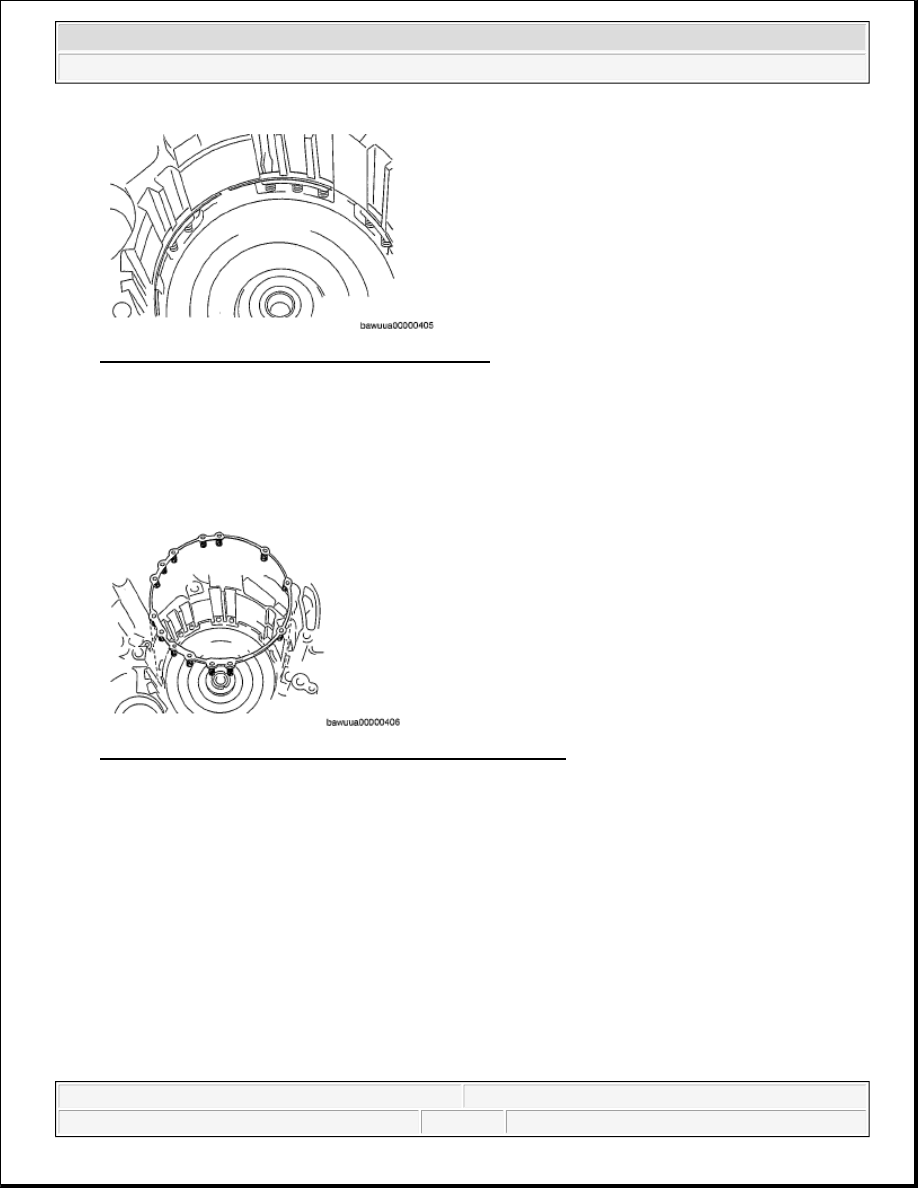

Fig. 194: Identifying Snap Ring Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

2. Remove the low and reverse brake return spring from the transaxle case.

Fig. 195: Identifying Low And Reverse Brake Return Spring
Courtesy of MAZDA MOTORS CORP.

3. While pushing the low and reverse brake piston by hand, apply compressed air into the oil passage of the

transaxle case as shown in the figure and remove the low and reverse brake piston.

Air pressure

392 kPa {4.0 kgf/cm

2

 , 57 psi}



CAUTION:



Do not damage the seal on the piston.
