Mazda CX-9 Grand Touring. Manual - part 59





Driven- Drive- Retaining

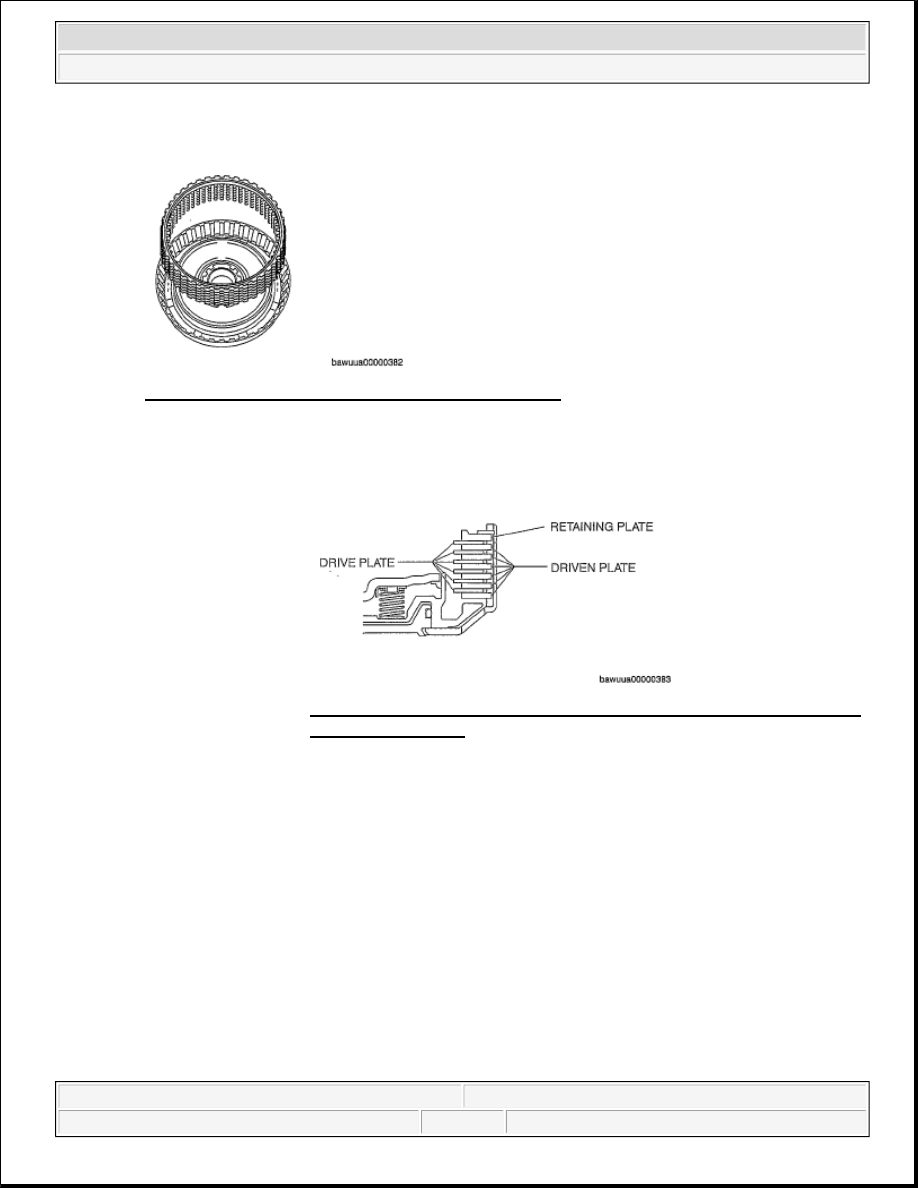

Fig. 135: Identifying Drive Plates And Retaining Plate
Courtesy of MAZDA MOTORS CORP.

10. Using a flathead screwdriver, install the snap ring in the groove.

CAUTION:

Inspect the number and order of the retaining plate, drive and
driven plates.

Fig. 136: Inspecting Number And Order Of Retaining Plate, Drive
And Driven Plates
Courtesy of MAZDA MOTORS CORP.

CAUTION:

When installing the snap ring, set the end gap of the snap ring
as shown in the figure.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 70

© 2005 Mitchell Repair Information Company, LLC.

11. Install the C1 clutch component on the input shaft and set a dial indicator as shown in the figure.

12. Apply compressed air as shown in the figure and measure the C1 clutch piston stroke.

Air pressure 200 kPa {2.0 kgf/cm

2

 , 29 psi}



C1 clutch piston stroke 1.2-1.4 mm {0.047- 0.055 in}

If not within the specification, select an appropriate retaining plate.

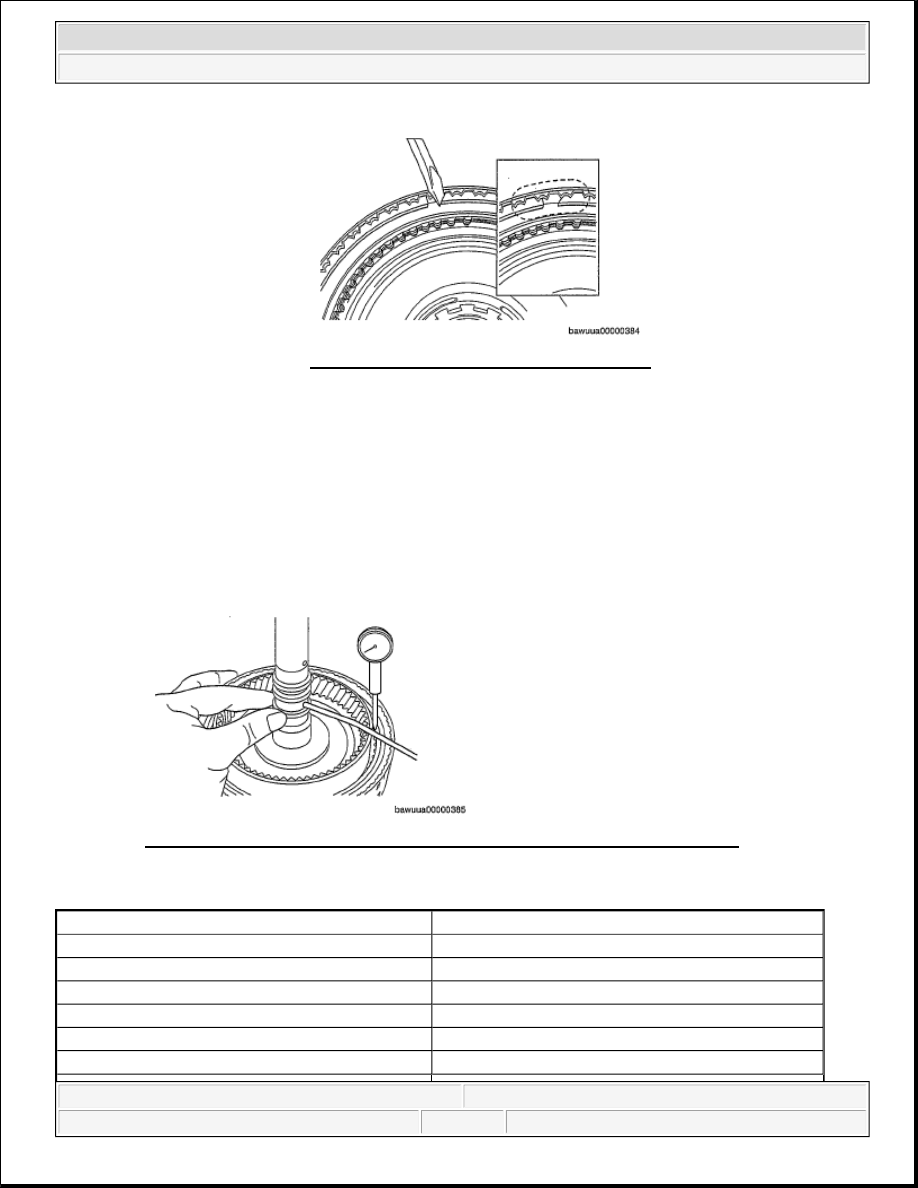

Fig. 138: Applying Compressed Air And Measuring C1 Clutch Piston Stroke.
Courtesy of MAZDA MOTORS CORP.

RETAINING PLATE SIZE

Fig. 137: Installing Snap Ring In Groove
Courtesy of MAZDA MOTORS CORP.

Identification mark

Thickness (mm {in})

1

2.8 {0.110}

2

2.9 {0.114}

3

3.0 {0.118}

4

3.1 {0.122}

A

3.15 {0.124}

5

3.2 {0.126}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 71

© 2005 Mitchell Repair Information Company, LLC.

COUNTER DRIVE GEAR DISASSEMBLY/ASSEMBLY

Components

B

3.25 {0.128}

6

3.3 {0.130}

C

3.35 {0.132}

7

3.4 {0.134}

8

3.5 {0.138}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 72

© 2005 Mitchell Repair Information Company, LLC.

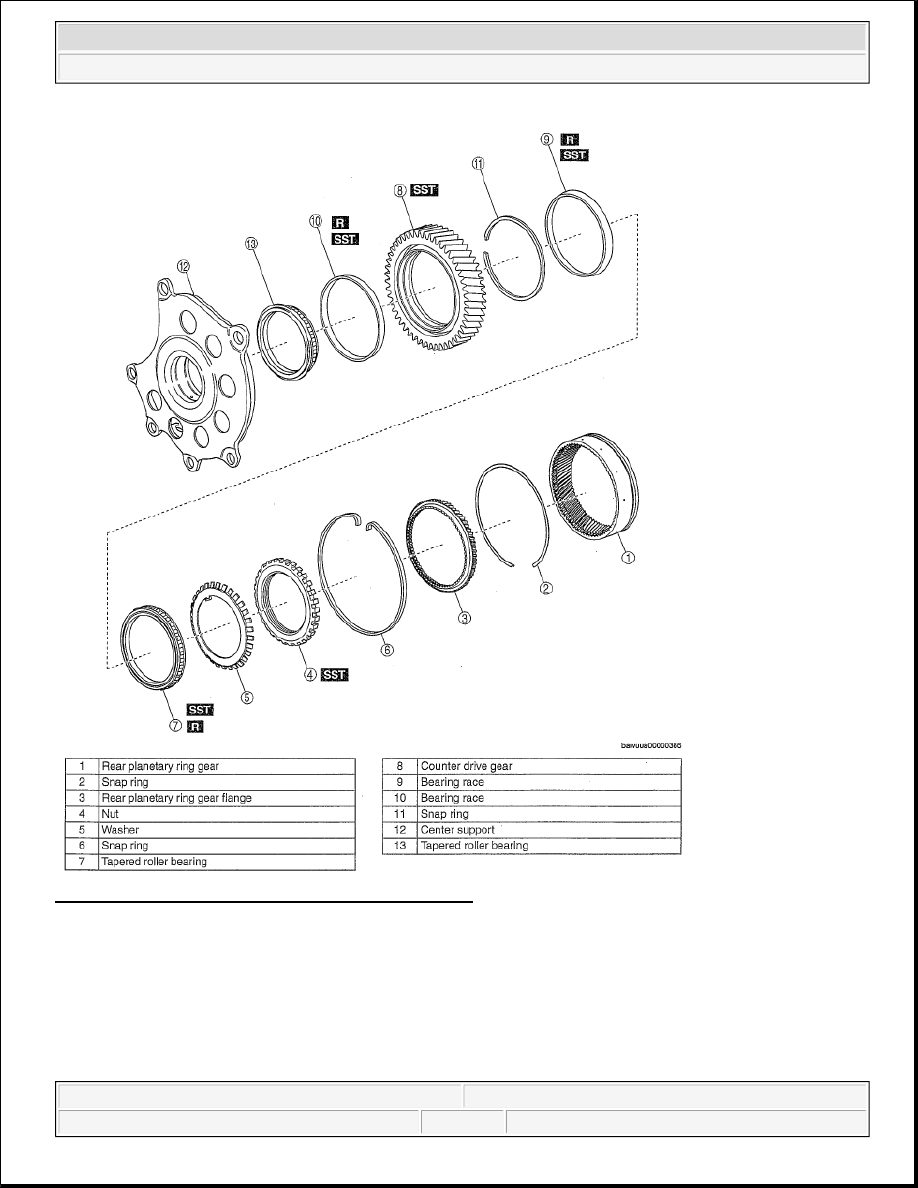

Fig. 139: Identifying Counter Drive Gear Components
Courtesy of MAZDA MOTORS CORP.

Disassembly Procedure

1. Using the snap ring pliers, loosen the snap ring and remove the rear planetary ring gear.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 73

© 2005 Mitchell Repair Information Company, LLC.
