Mazda CX-9 Grand Touring. Manual - part 54

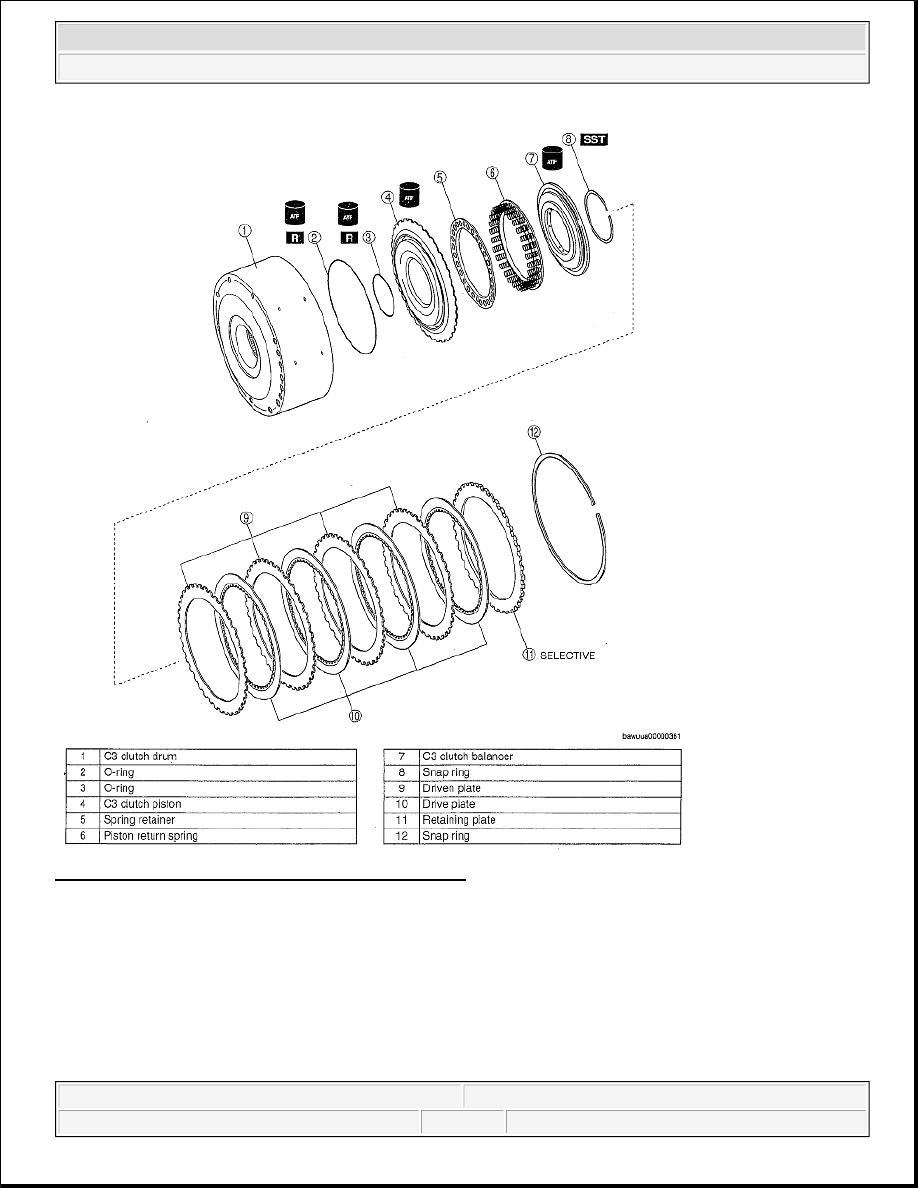

Fig. 97: Identifying C3 Clutch Assembly Components
Courtesy of MAZDA MOTORS CORP.

Assembly Procedure

1. Apply ATF to the new O-rings and the C3 clutch drum.

2. Install the O-rings to the C3 clutch drum.

3. Apply ATF to the sliding surface of the C3 clutch piston.

CAUTION:

Do not damage the seal on the piston and O-rings.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

4. Install the C3 clutch piston to the C3 clutch drum.

5. Apply ATF to the seal on the clutch balancer.

6. Install the retainer, return spring and the clutch balancer to the C3 clutch drum.

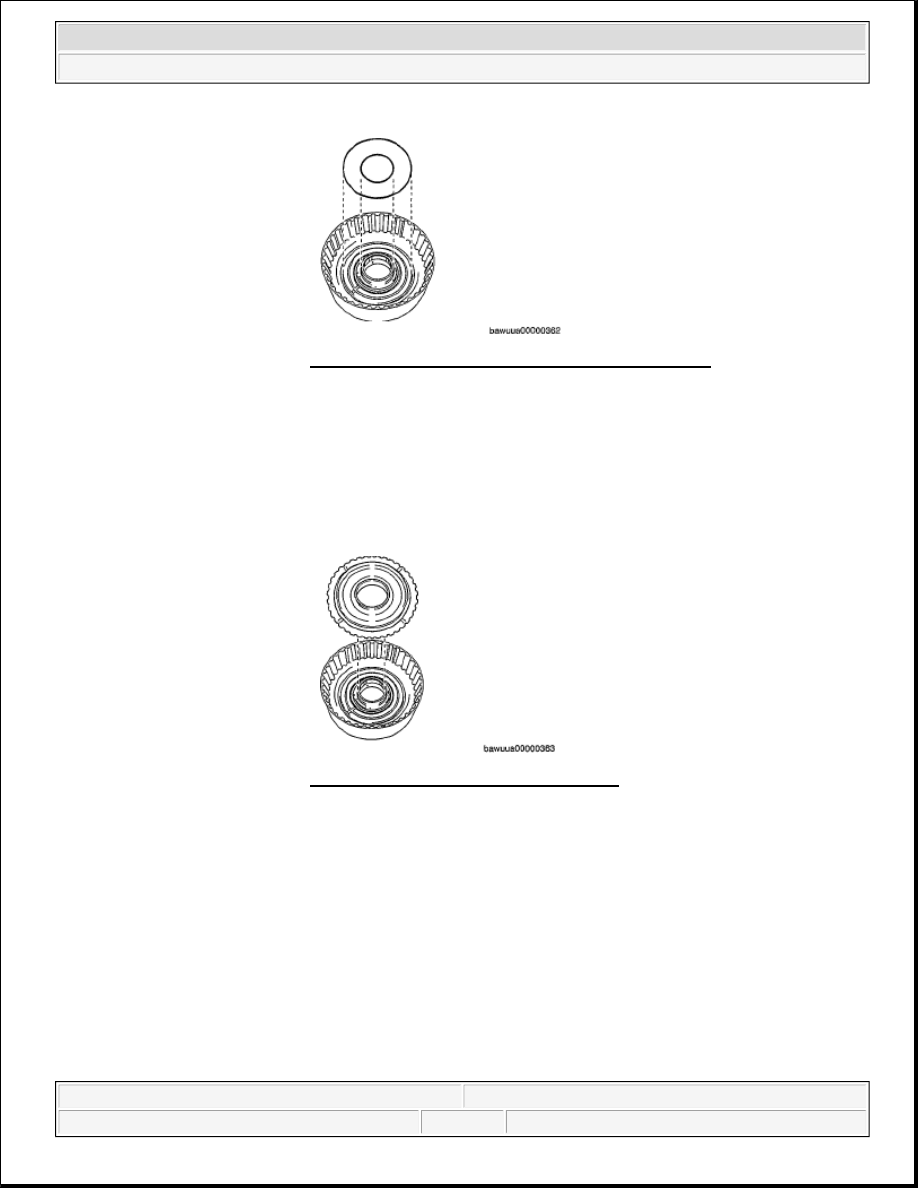

Fig. 98: Identifying O-Rings Of C3 Clutch Drum
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not damage the seal on the clutch balancer.

Fig. 99: Identifying C3 Clutch Piston
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 51

© 2005 Mitchell Repair Information Company, LLC.

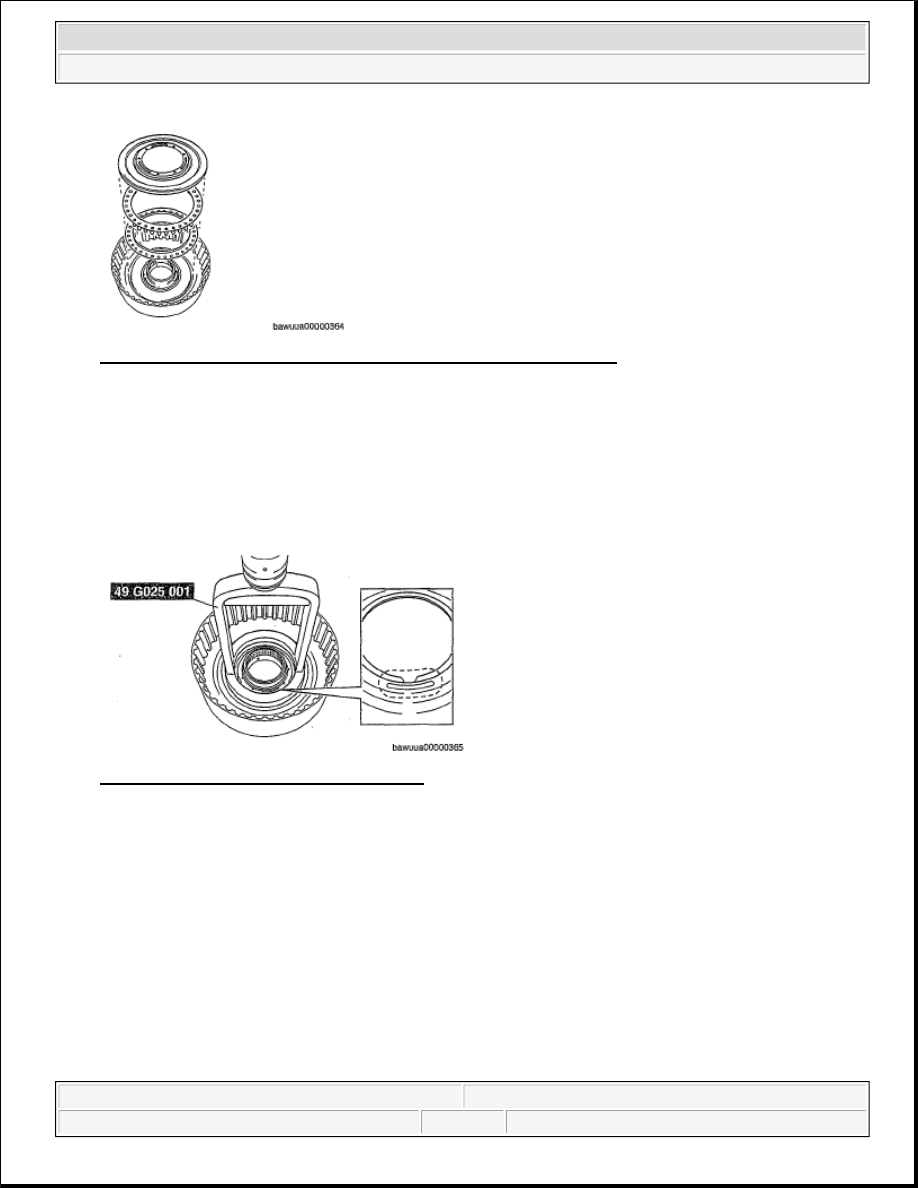

Fig. 100: Identifying Retainer, Return Spring And Clutch Balancer
Courtesy of MAZDA MOTORS CORP.

7. Place the SST on the clutch balancer and compress the piston return spring with a press.

Fig. 101: Placing SST On Clutch Balancer
Courtesy of MAZDA MOTORS CORP.

8. Install the snap ring in the groove using snap ring pliers.

9. Install the driven plates, drive plates and the retaining plate in the following order to the C3 clutch drum

as shown in the figure.

Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Retaining

CAUTION:

When installing the snap ring, set the end gap of the snap ring
as shown in the figure.

Do not expand the snap ring too much.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 52

© 2005 Mitchell Repair Information Company, LLC.

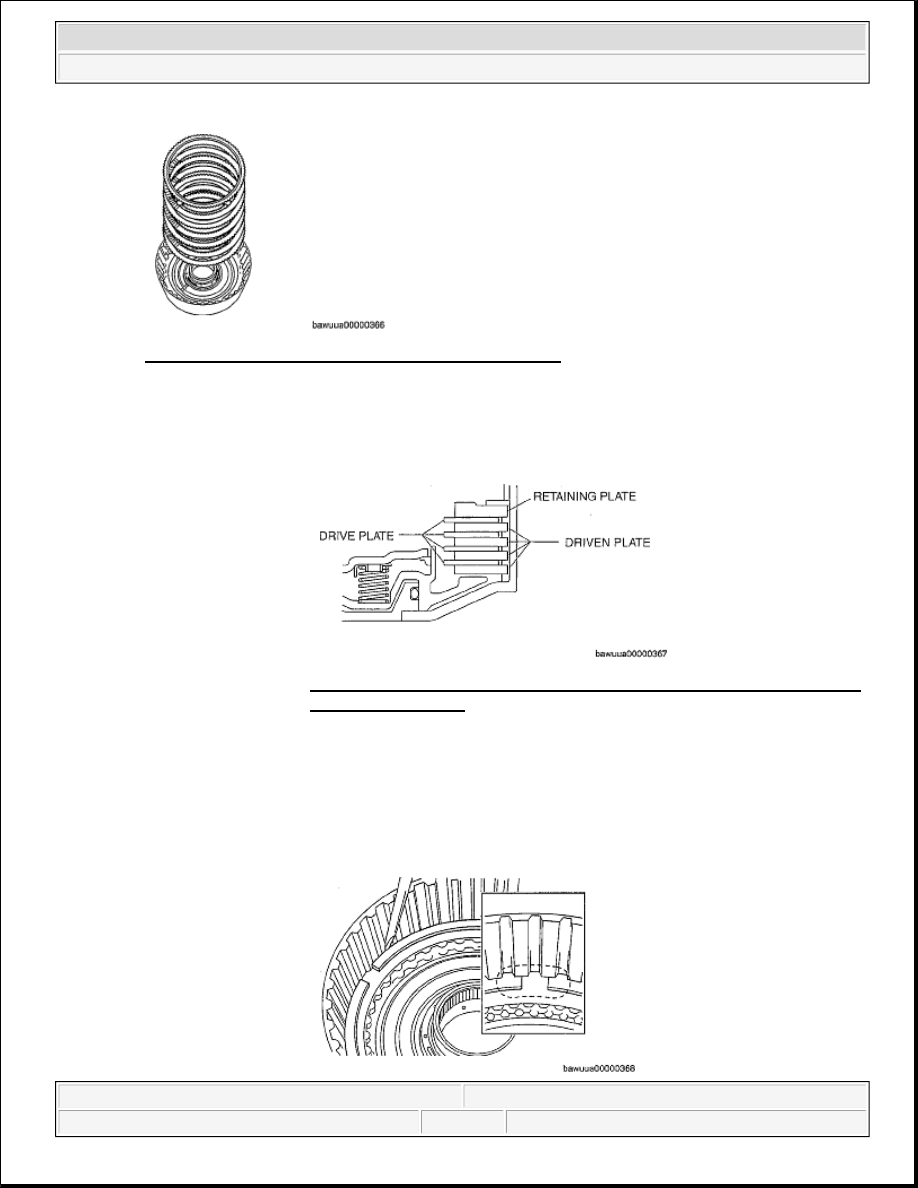

Fig. 102: Identifying Drive Plates And Retaining Plate
Courtesy of MAZDA MOTORS CORP.

10. Using a flathead screwdriver, install the snap ring in the groove.

CAUTION:

Inspect the number and order of the retaining plate, drive and
driven plates.

Fig. 103: Inspecting Number And Order Of Retaining Plate, Drive
And Driven Plates
Courtesy of MAZDA MOTORS CORP.

CAUTION:

When installing the snap ring, set the end gap of the snap ring
as shown in the figure.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 53

© 2005 Mitchell Repair Information Company, LLC.
