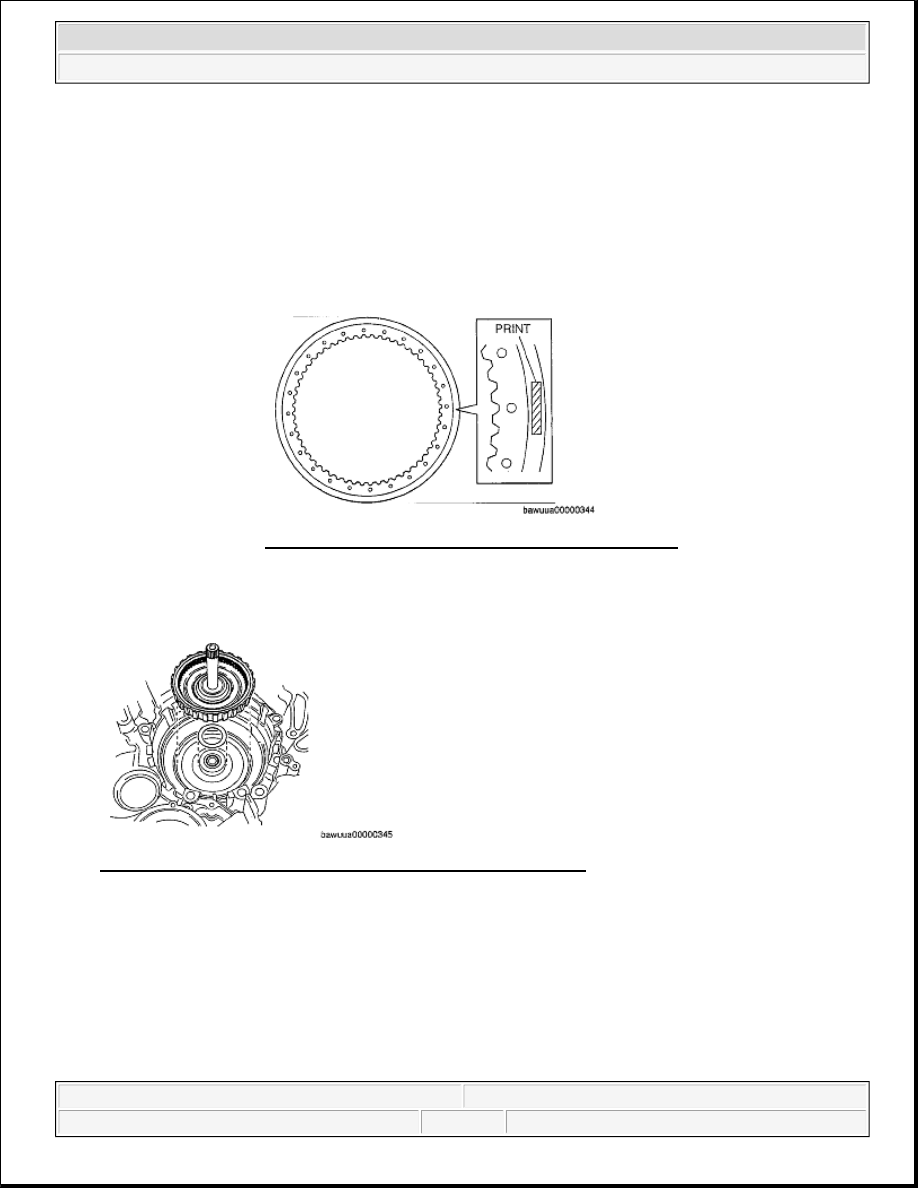

66. Inspect the lining of all drive plates.



If the lining is flaking or has changed color, or if it is worn or the print mark is wearing away,
replace with a new drive plate. When replacing, inspect the contact surfaces between the retaining
plate, driven plate and drive plate. If they are scratched or have changed color, replace with new
parts.

67. Remove the C2 clutch component and the thrust bearing.

Fig. 67: Identifying C2 Clutch Component And Thrust Bearing
Courtesy of MAZDA MOTORS CORP.

68. Remove the seal rings from the transaxle case.

NOTE:



Before replacing with new drive plates, soak them at least 2 h in ATF.

Fig. 66: Inspecting Print Mark Of All Drive Plates
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 34

© 2005 Mitchell Repair Information Company, LLC.

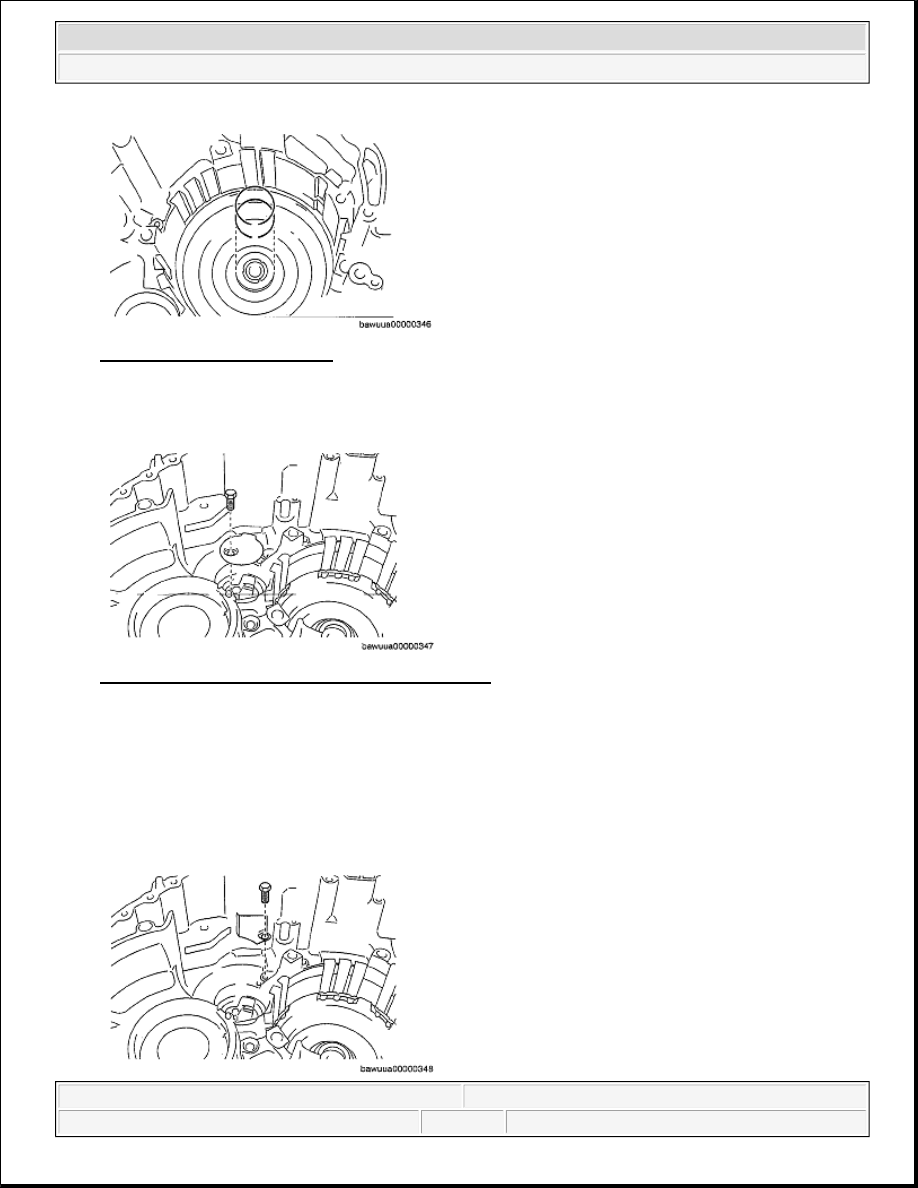

Fig. 68: Identifying Seal Rings
Courtesy of MAZDA MOTORS CORP.

69. Remove the transaxle case plate No.2.

Fig. 69: Identifying Transaxle Case Plate No.2 Bolt
Courtesy of MAZDA MOTORS CORP.

70. Remove the transaxle case plate No.3.

CAUTION:



Do not damage the transaxle case.



If using a screwdriver, use a wooden block or equivalent to
avoid damaging the fitting surface of the transaxle case.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 35

© 2005 Mitchell Repair Information Company, LLC.

Fig. 70: Identifying Transaxle Case Plate No.3 Bolt
Courtesy of MAZDA MOTORS CORP.

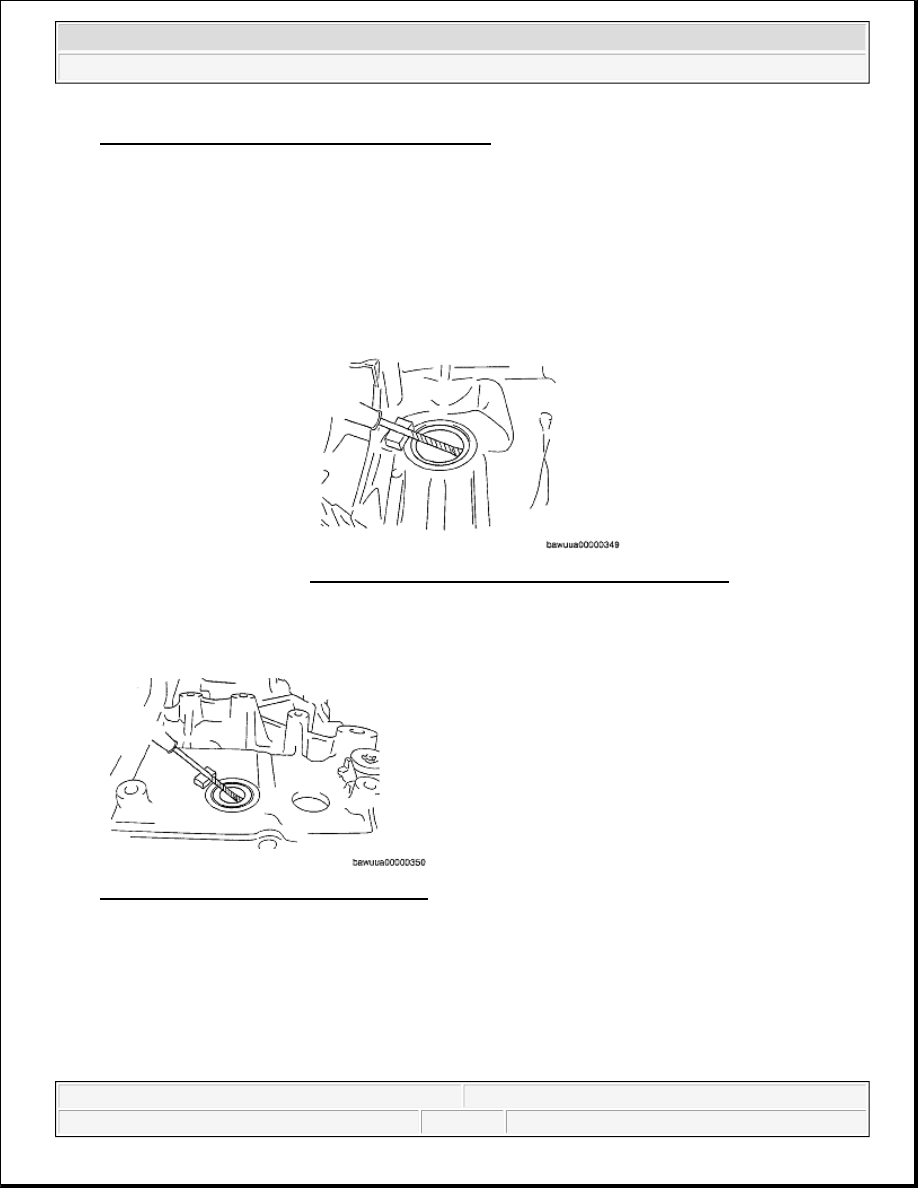

71. Remove the oil seal lip using a razor.

72. Using a tape-wrapped flathead screwdriver, remove the oil seal (transaxle case side).

73. Using a tape-wrapped flathead screwdriver, remove the oil seal (manual shaft).

Fig. 72: Removing Oil Seal (Manual Shaft)
Courtesy of MAZDA MOTORS CORP.

OIL PUMP DISASSEMBLY/ASSEMBLY

Components

CAUTION:



Do not damage the transaxle case.



If using a screwdriver, use a wooden block or equivalent to
avoid damaging the fitting surface of the transaxle case.

Fig. 71: Removing Oil Seal (Transaxle Case Side)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 36

© 2005 Mitchell Repair Information Company, LLC.

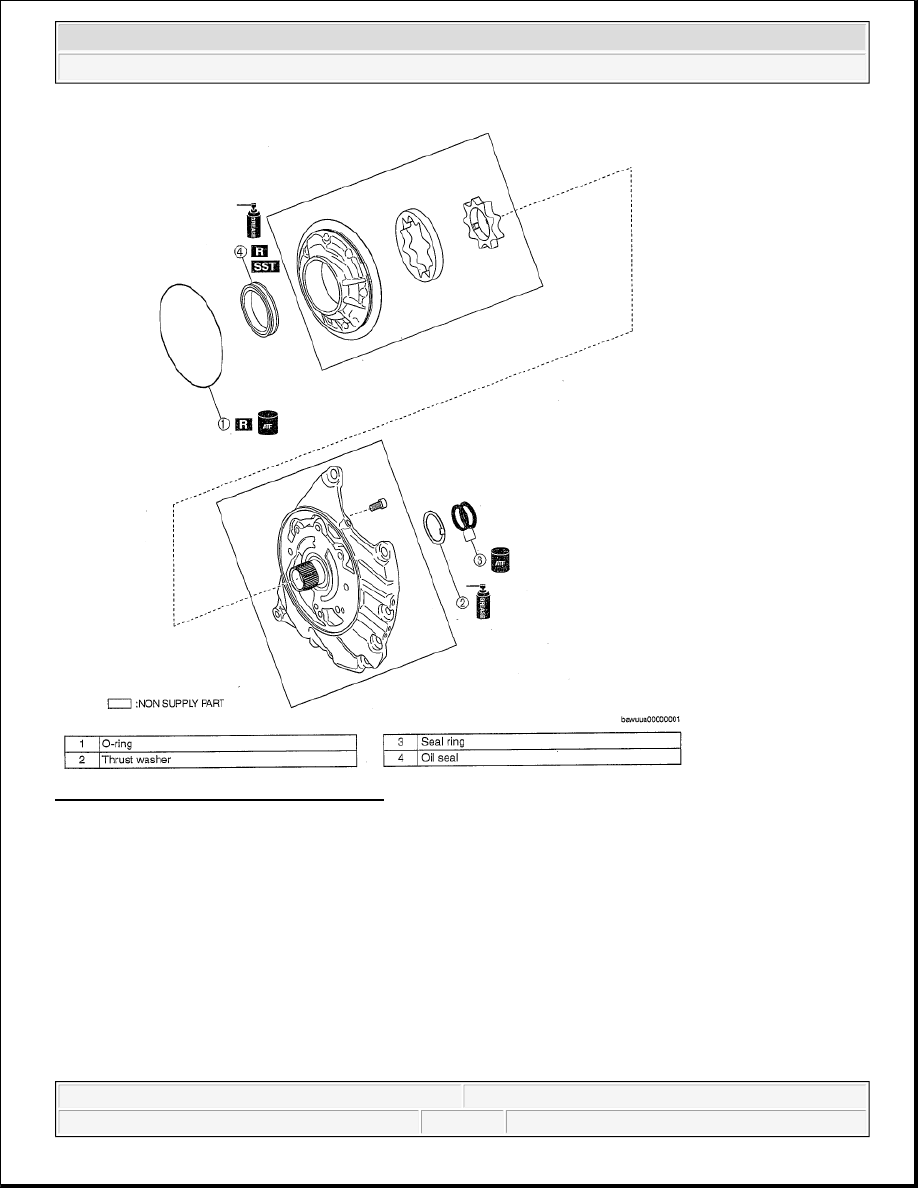

Fig. 73: Identifying Oil Pump Components
Courtesy of MAZDA MOTORS CORP.

Disassembly Procedure

1. Remove the O-ring from the oil pump.
