Mazda CX-9 Grand Touring. Manual - part 48

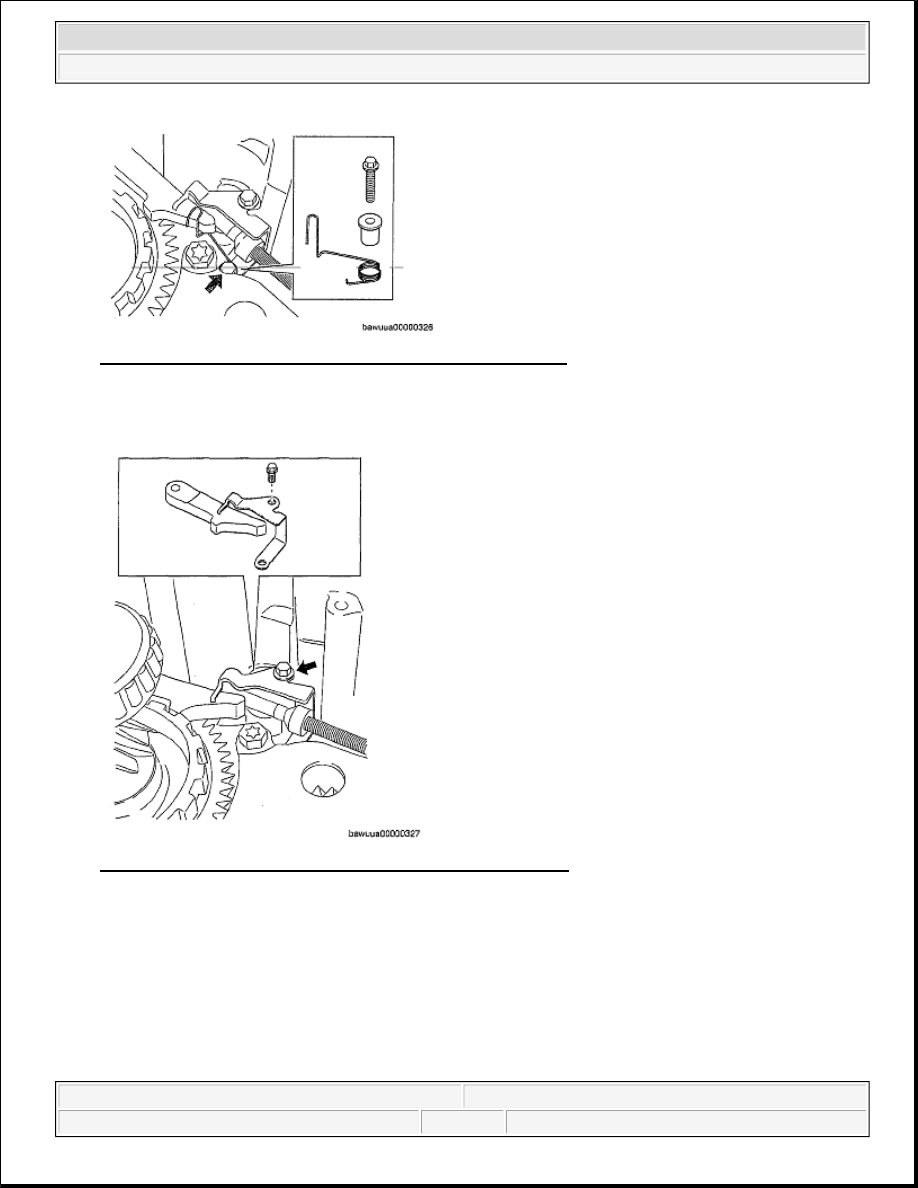

Fig. 48: Identifying Torsion Spring And Spring Guide Sleeve
Courtesy of MAZDA MOTORS CORP.

48. Remove the parking pawl and the parking pawl bracket.

Fig. 49: Identifying Parking Pawl And Parking Pawl Bracket
Courtesy of MAZDA MOTORS CORP.

49. Disconnect the parking rod from the manual valve lever.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

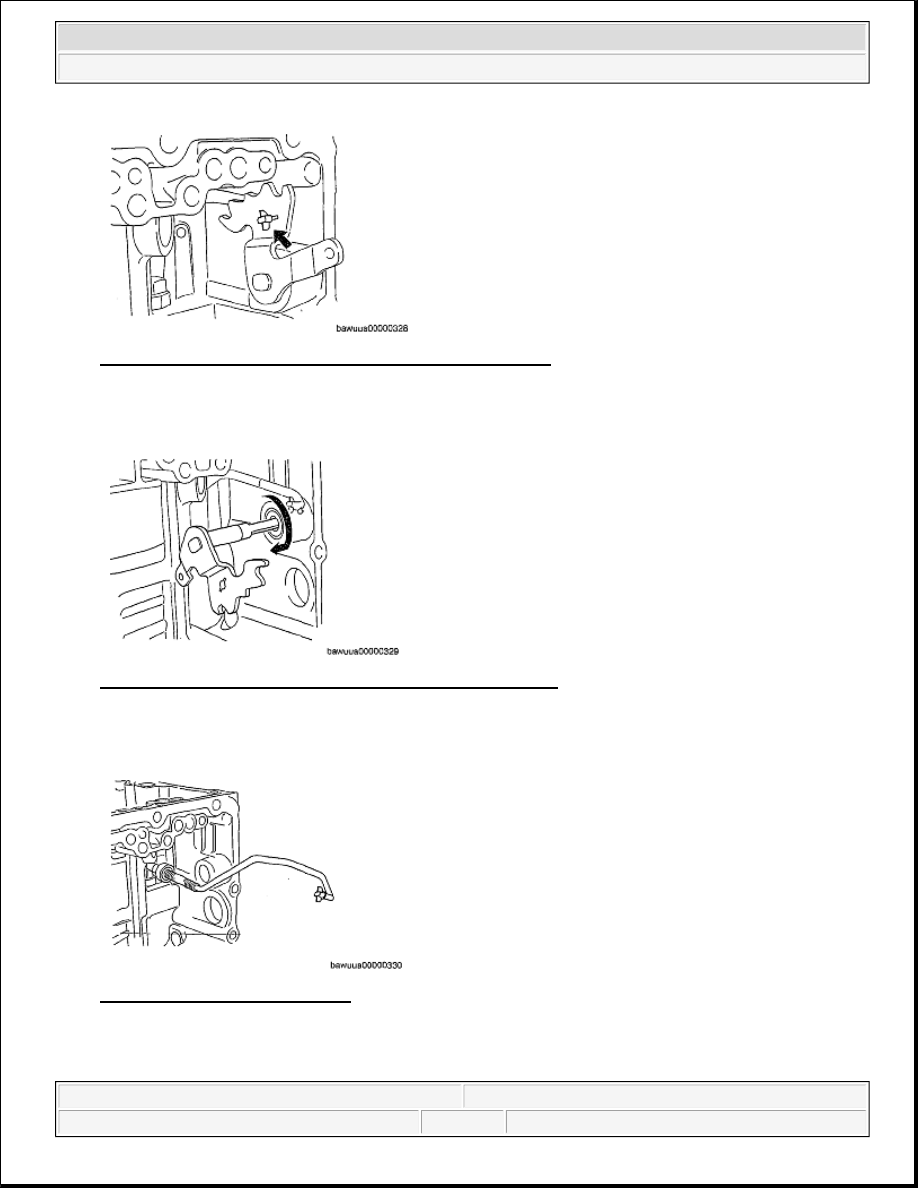

Fig. 50: Identifying Parking Rod And Manual Valve Lever
Courtesy of MAZDA MOTORS CORP.

50. Remove the manual valve lever from the transaxle case.

Fig. 51: Identifying Manual Valve Lever Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

51. Remove the parking rod from the transaxle case.

Fig. 52: Identifying Parking Rod
Courtesy of MAZDA MOTORS CORP.

52. Remove the parking pin from the transaxle case.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

53. Remove the counter gear component.

54. Remove the differential component.

NOTE:



Inspect the direction of the parking pin.

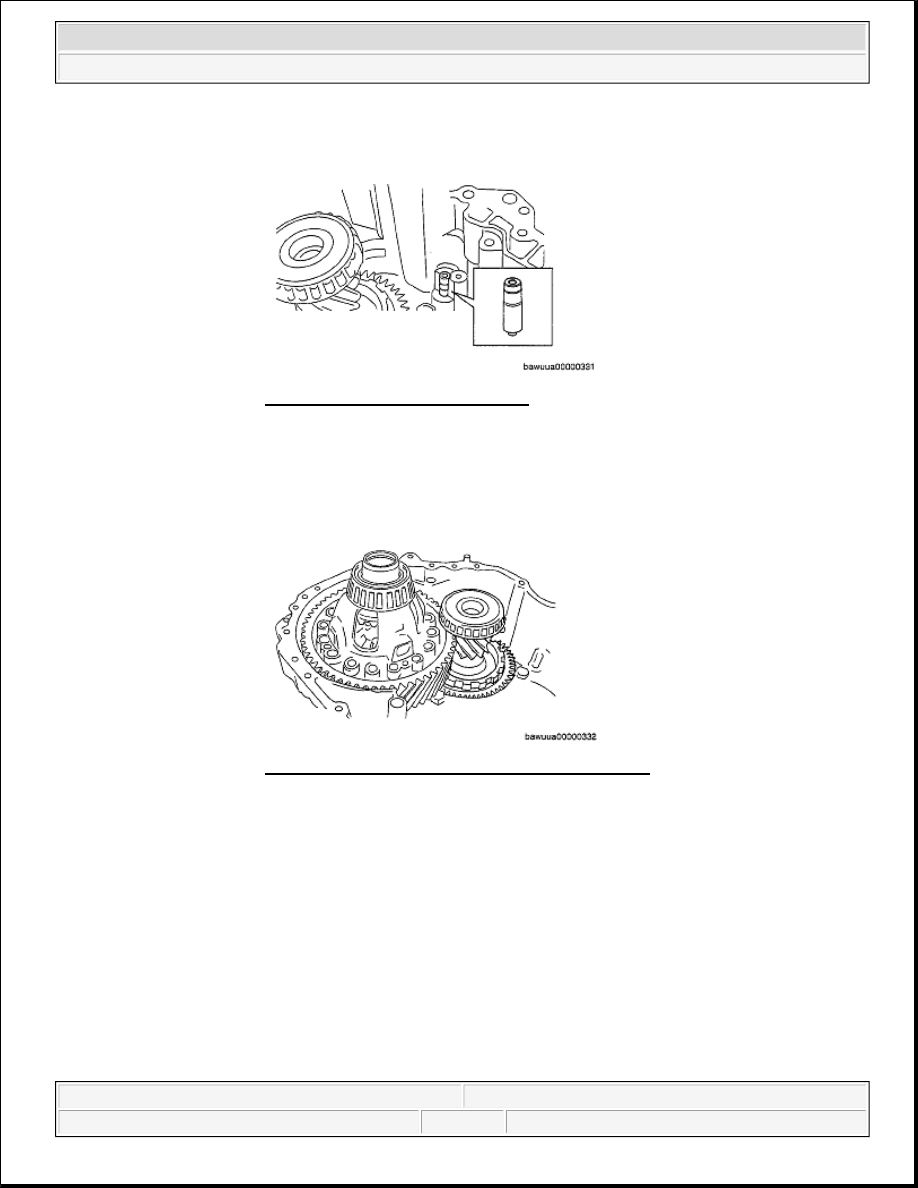

Fig. 53: Identifying Parking Pin
Courtesy of MAZDA MOTORS CORP.

NOTE:



For easy removal, tilt the counter gear component slightly.

Fig. 54: Identifying Counter Gear Component
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not damage the VSS wiring harness.



Do not pull hard on the VSS wiring harness.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

55. Disconnect the VSS wiring harness from the tube wiring clamp.

56. Remove the pipe clamp, transaxle case No.1 plate, wiring harness clip and the oil cooler outlet tube.

57. Remove the O-rings from the oil cooler outlet tube.

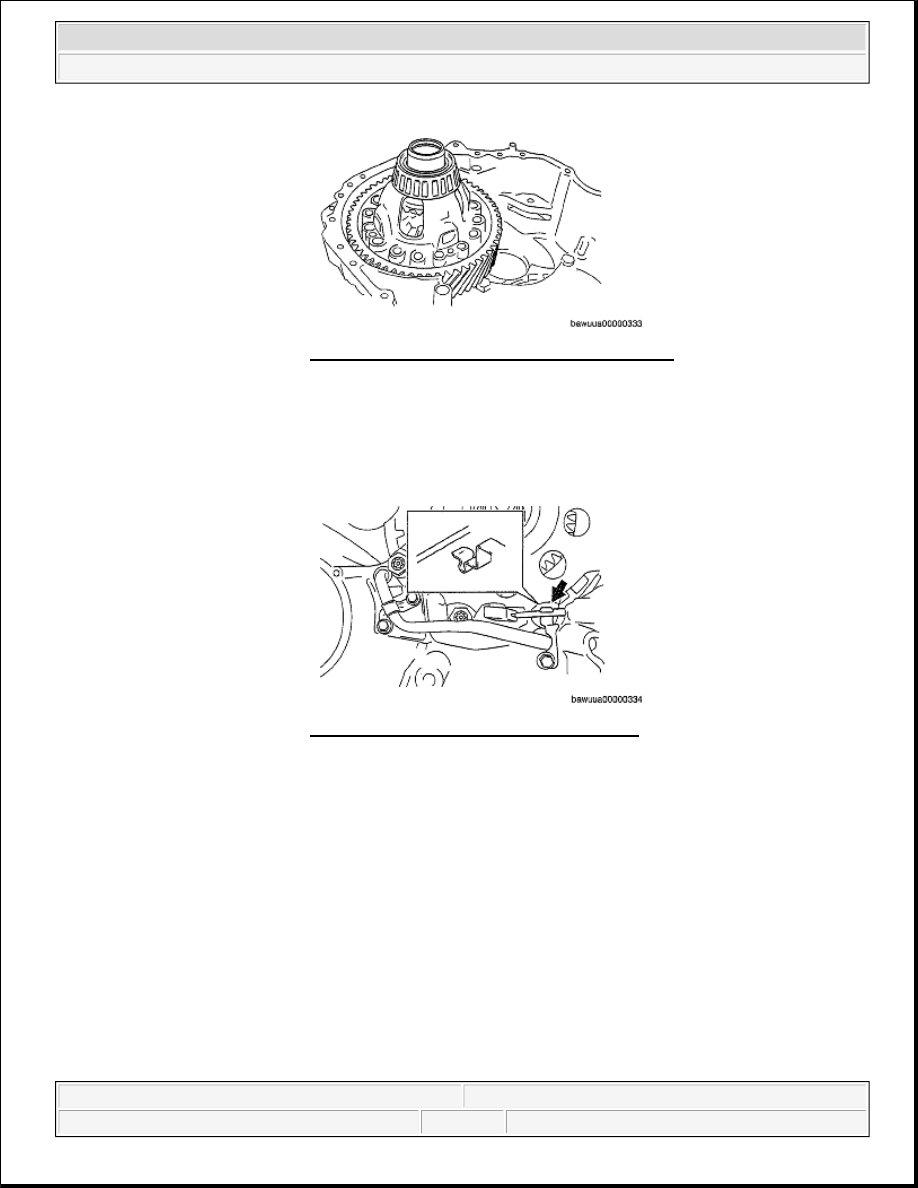

Fig. 55: Identifying Differential Component
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not damage the oil cooler outlet tube.

Fig. 56: Identifying Tube Wiring Clamp
Courtesy of MAZDA MOTORS CORP.
