Mazda CX-9 Grand Touring. Manual - part 46





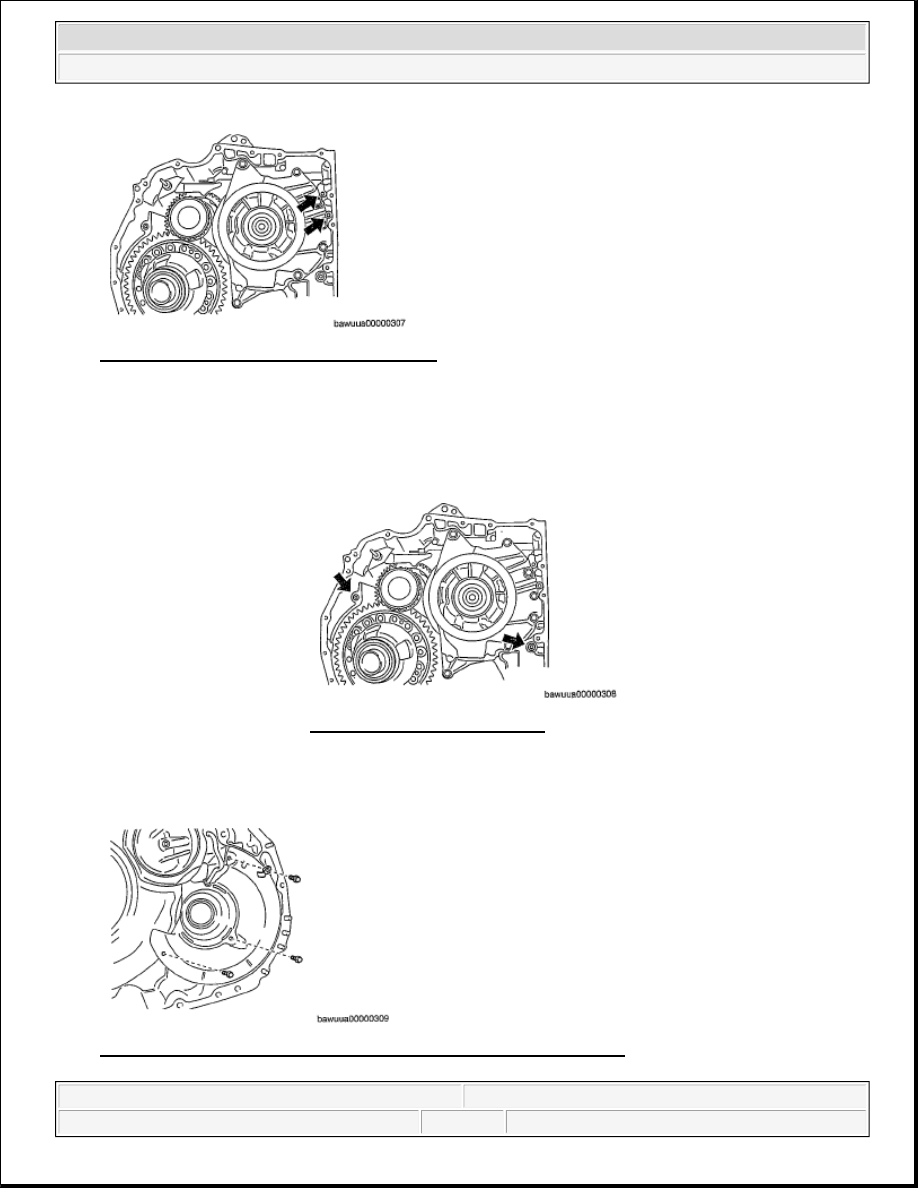

Fig. 29: Identifying Transaxle Case Gaskets
Courtesy of MAZDA MOTORS CORP.

28. Remove the gaskets as shown in the figure.

29. Remove the tube clamp and the oil reservoir lock plate.

Fig. 31: Identifying Tube Clamp And Oil Reservoir Lock Plate Bolts
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not damage the oil reservoir lock plate.

Fig. 30: Identifying Gaskets
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

30. Remove the magnets from the oil reservoir lock plate.

31. Using a flathead screwdriver, remove the oil pipe.

32. Remove the oil seal lip using a razor.

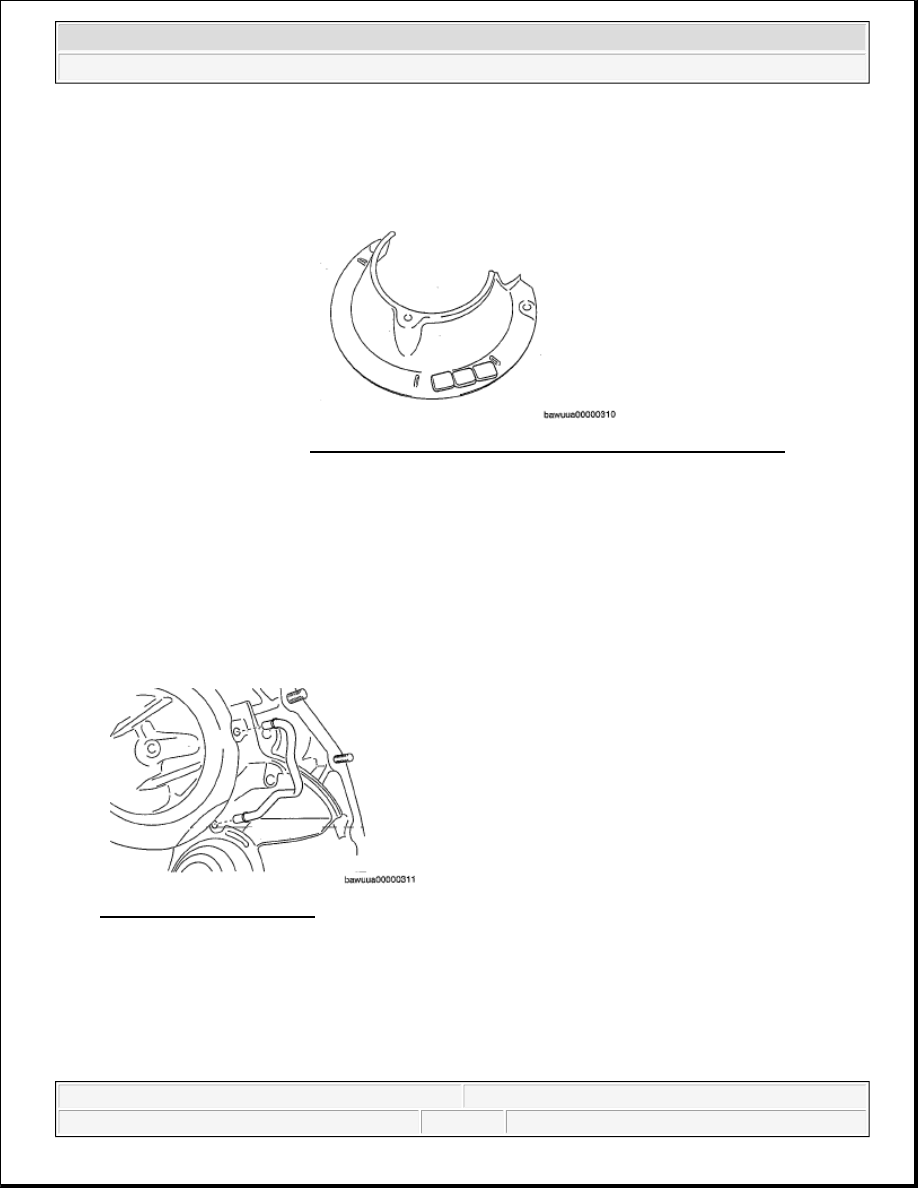

Fig. 33: Identifying Oil Pipe
Courtesy of MAZDA MOTORS CORP.

33. Using a tape-wrapped flathead screwdriver, remove the oil seal (converter housing side).

CAUTION:

Do not damage the differential gear lube apply tube.

Fig. 32: Identifying Magnets Of Oil Reservoir Lock Plate
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not damage the converter housing.

If using a screwdriver, use a wooden block or equivalent to
avoid damaging the fitting surface of the converter housing.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

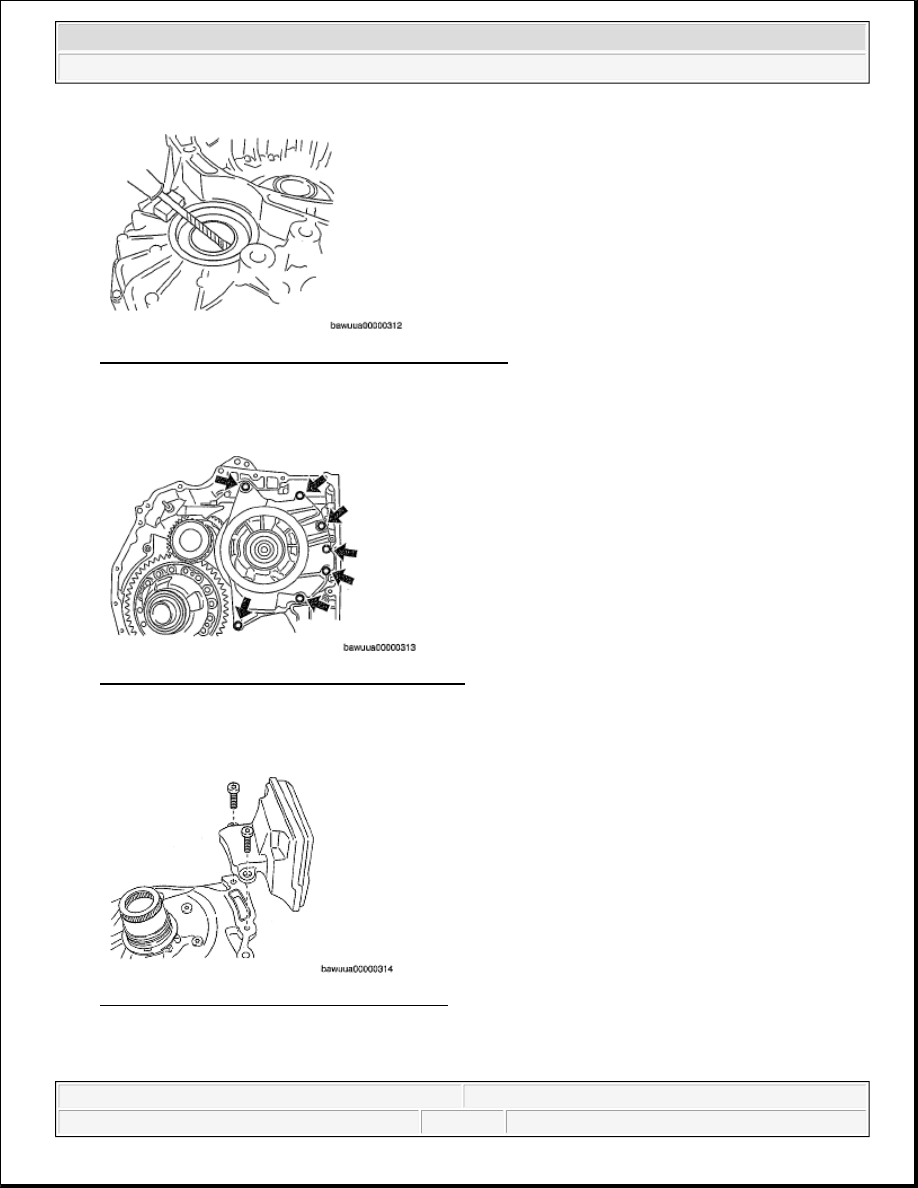

Fig. 34: Removing Oil Seal (Converter Housing Side)
Courtesy of MAZDA MOTORS CORP.

34. Remove the oil pump component.

Fig. 35: Identifying Oil Pump Component Bolts
Courtesy of MAZDA MOTORS CORP.

35. Remove the oil seal and the oil strainer from the oil pump component.

Fig. 36: Identifying Oil Seal And Oil Strainer
Courtesy of MAZDA MOTORS CORP.

36. Remove the C3 clutch component, input shaft and the front planetary gear component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

37. Remove the C3 clutch component from the input shaft and the front planetary gear component.

38. Remove the brake band anchor bolt.

NOTE:

In some cases, the input shaft may be detached with the thrust roller
bearing attached.

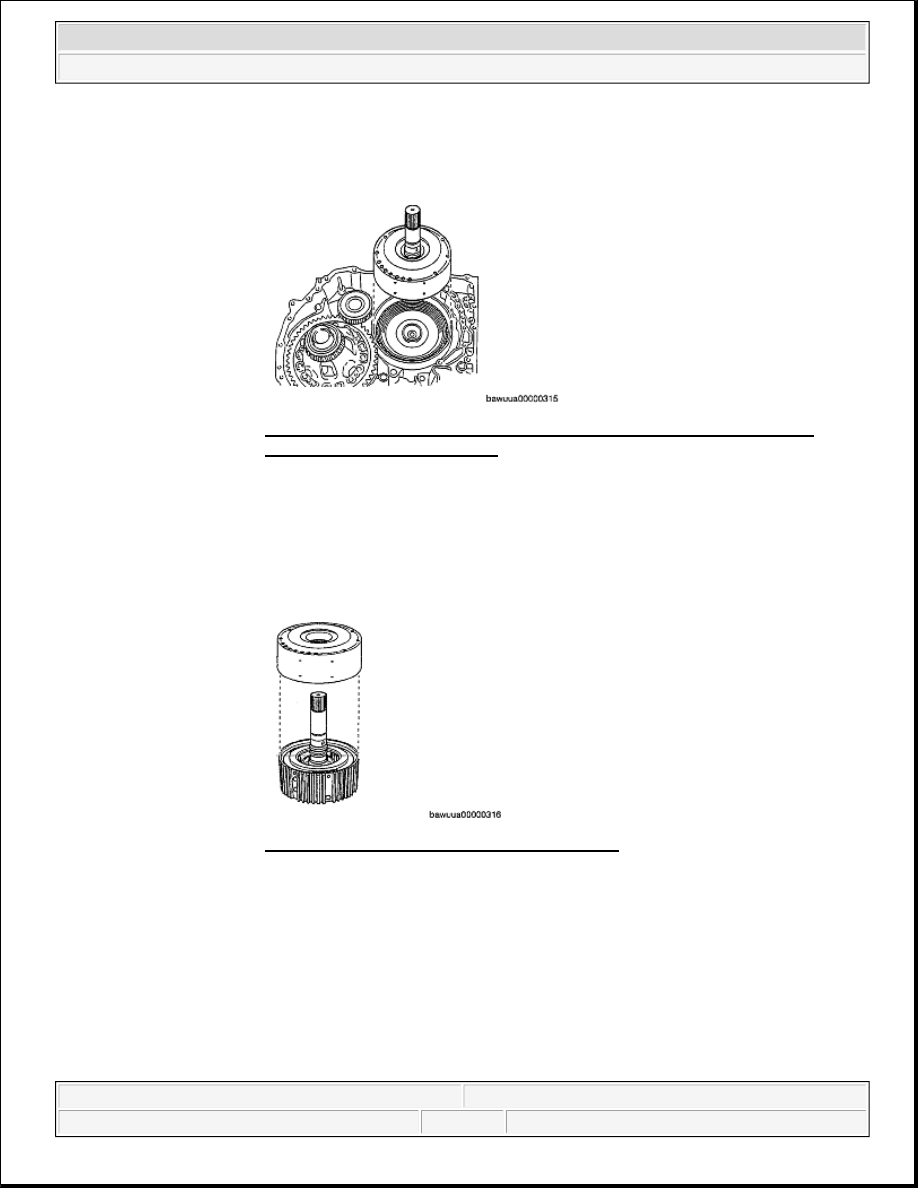

Fig. 37: Identifying C3 Clutch Component, Input Shaft And Front
Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

NOTE:

In some cases, the C3 clutch component may be detached with the
thrust washer attached.

Fig. 38: Identifying C3 Clutch Component
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.
