10. Using a plastic hammer, tap the control valve body cover to remove it.

1. Insert a precision screwdriver from the backside into the connector as shown in the figure.

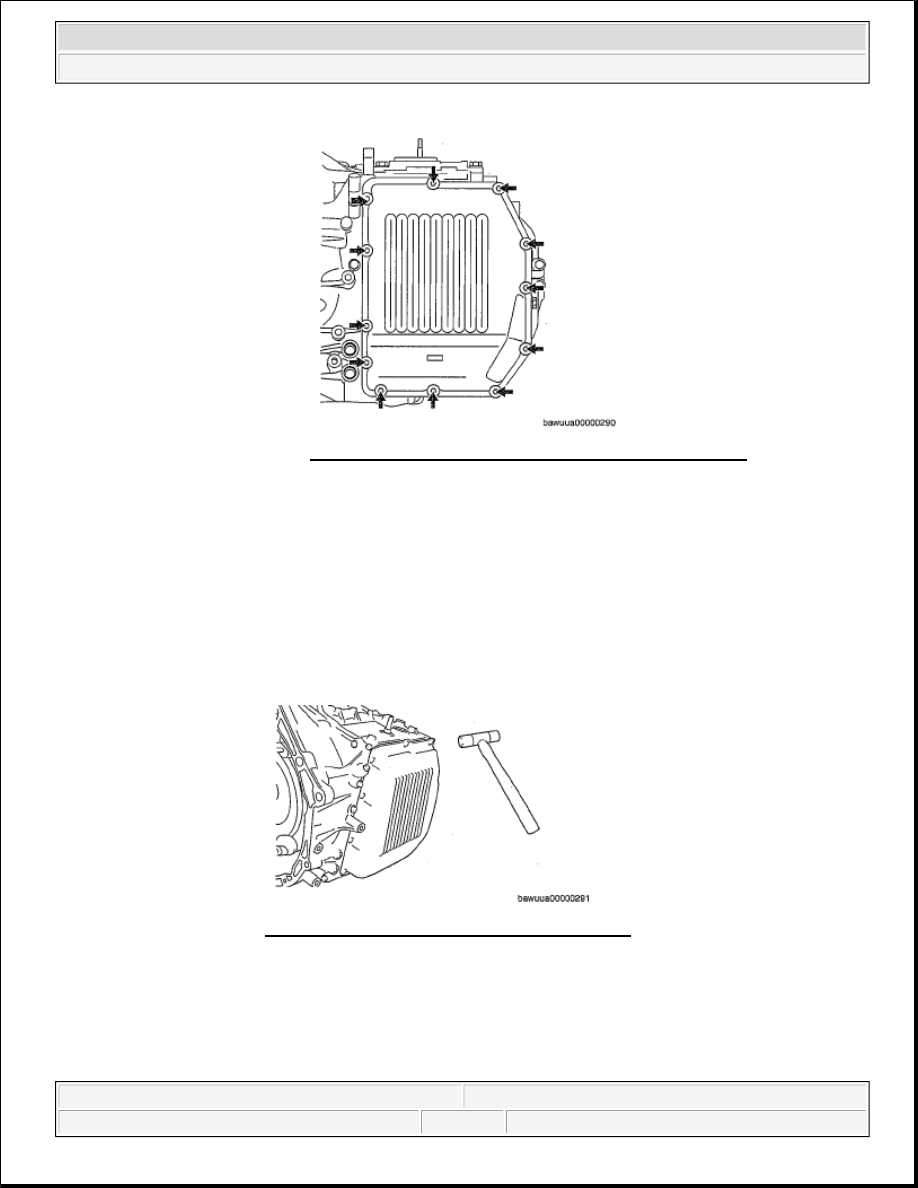

Fig. 12: Identifying Control Valve Body Cover Bolts
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Be careful not to damage the solenoid valves and connectors.

Do not pull the wiring harnesses when removing the connector.

NOTE:

Disconnect the solenoid connector according to the following
procedure:

Fig. 13: Tapping Control Valve Body Cover
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

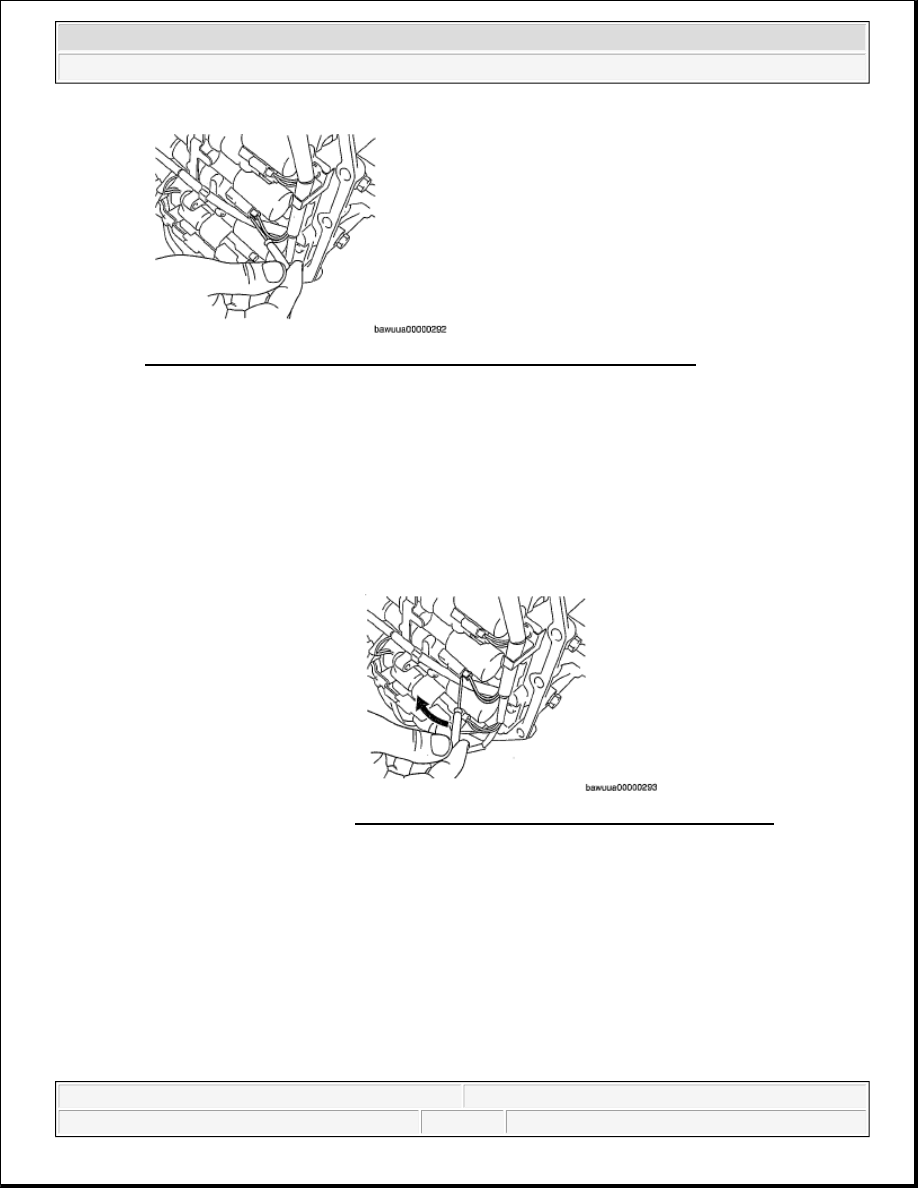

Fig. 14: Inserting Precision Screwdriver From Backside Into Connector
Courtesy of MAZDA MOTORS CORP.

2. Pry the screwdriver in the direction of the arrow and disconnect the connector.

11. Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

12. Disconnect the coupler component from the clamp.

CAUTION:

Do not damage the solenoid valves and connectors with
the screwdriver.

When disconnecting connectors, grasp the connectors,
not the wiring harnesses. Otherwise, the wiring harnesses
may be pulled out of the connector causing poor contact.

Fig. 15: Prying Screwdriver In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

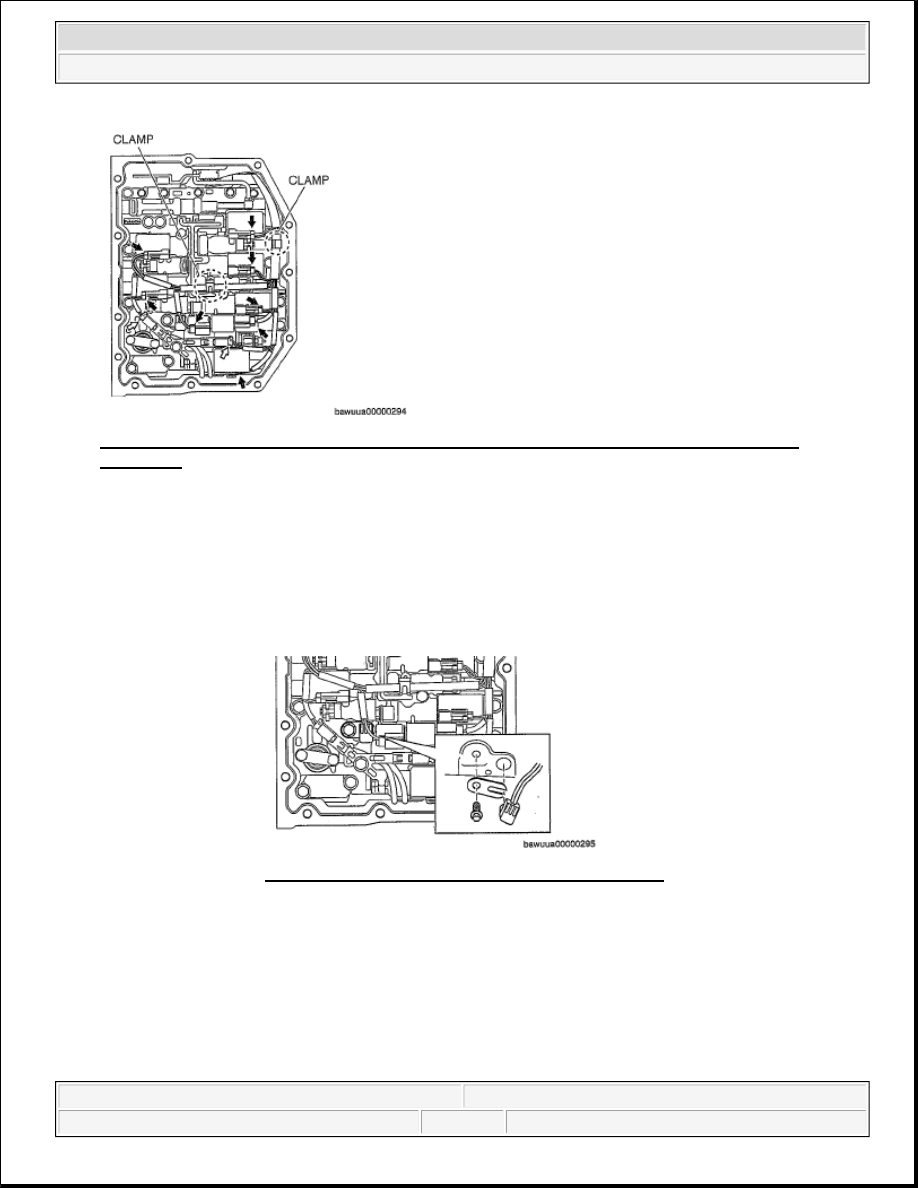

Fig. 16: Identifying Solenoid Connectors, VSS Connector And Input/Turbine Speed Sensor
Connector

Courtesy of MAZDA MOTORS CORP.

13. Remove the lock plate, and pull out the TFT sensor from the control valve body.

14. Remove the O-ring from the TFT sensor.

15. Fix the coupler component with tape to the transaxle case as shown in the figure.

NOTE:

Be sure to secure the coupler component with tape so that it will not
interfere with the control valve body component.

Fig. 17: Identifying Lock Plate And TFT Sensor
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

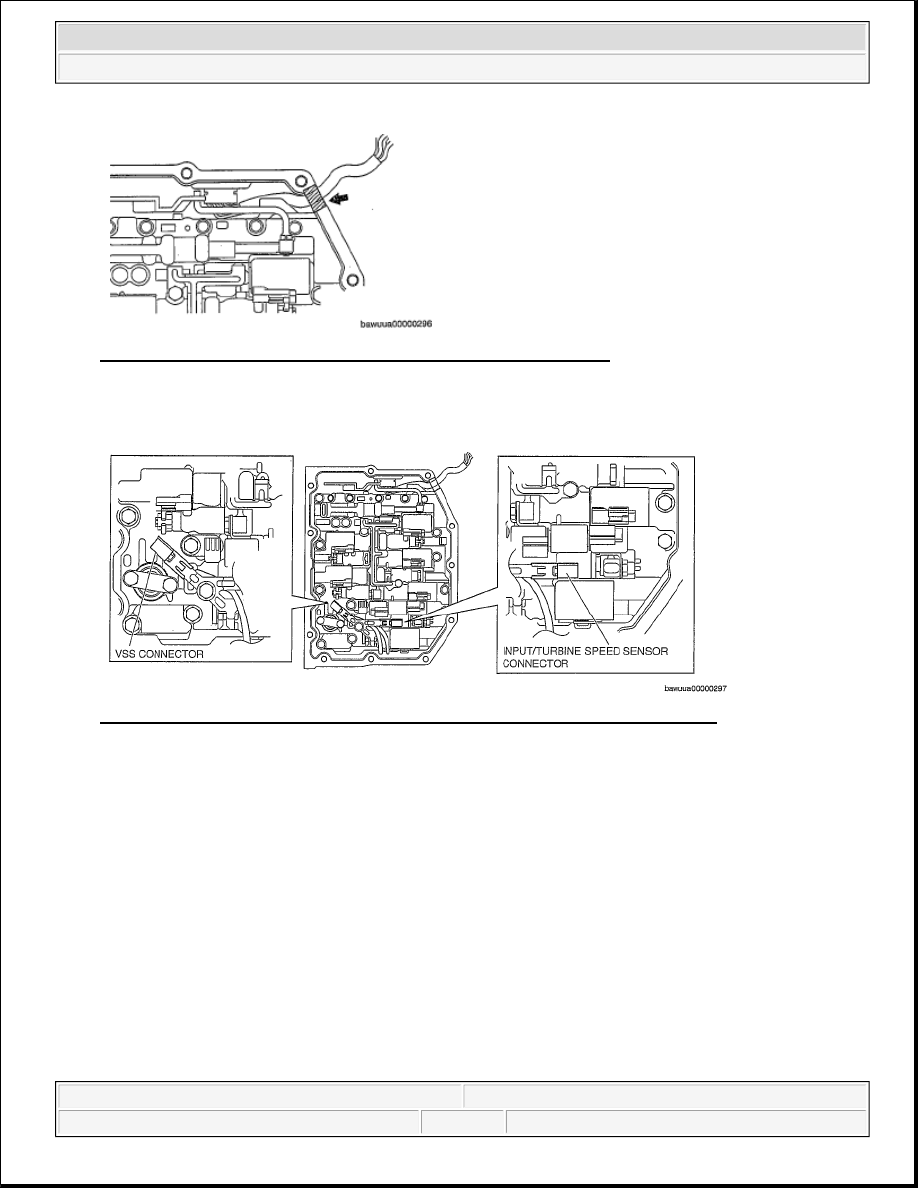

Fig. 18: Fixing Coupler Component With Tape To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

16. Remove the VSS connector and input/turbine speed sensor connector from the solenoid clamp.

Fig. 19: Identifying VSS Connector And Input/Turbine Speed Sensor Connector
Courtesy of MAZDA MOTORS CORP.

17. Secure the VSS wiring harness and input/turbine speed sensor wiring harness with tape to the transaxle

case as shown in the figure.

NOTE:

Be sure to secure the VSS and input/turbine speed sensor with tape
so that they do not interfere with the control valve body component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.
