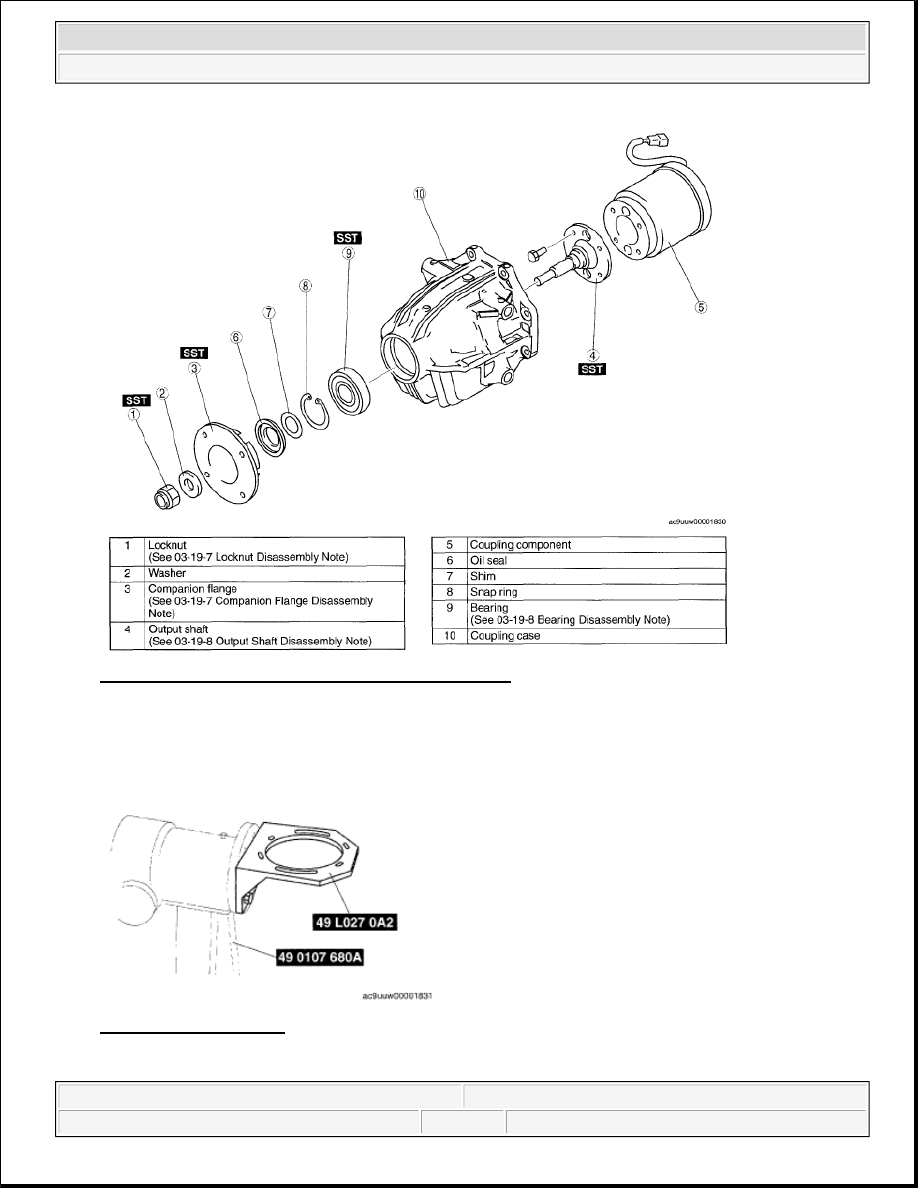

Fig. 10: Disassembling View Of Coupling Component
Courtesy of MAZDA MOTORS CORP.

LOCKNUT DISASSEMBLY NOTE

1. Assemble the SSTs to the engine stand.

Fig. 11: Identifying SST
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE All Wheel Drive (AWD) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:31:22 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

2. Install the coupling unit to the SSTs as shown.

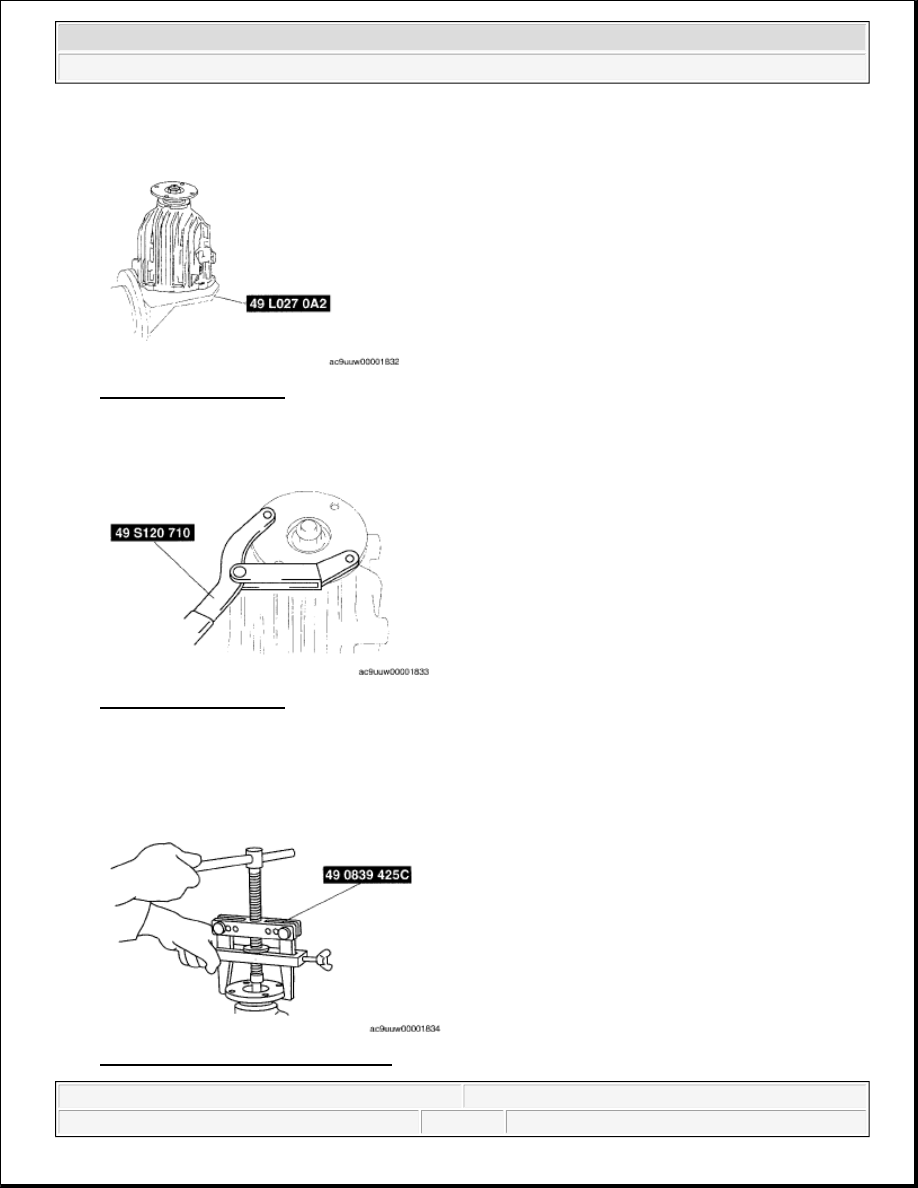

Fig. 12: Identifying SST
Courtesy of MAZDA MOTORS CORP.

3. Secure the companion flange using the SST, and remove the locknut.

Fig. 13: Identifying SST
Courtesy of MAZDA MOTORS CORP.

COMPANION FLANGE DISASSEMBLY NOTE

1. Remove the companion flange using the SST.

Fig. 14: Removing Companion Flange
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE All Wheel Drive (AWD) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:31:22 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

OUTPUT SHAFT DISASSEMBLY NOTE

1. Remove the coupling unit from the SST.

2. Install the coupling unit to the press as shown, and remove the output shaft together with the coupling

unit.

3. Install the companion flange to the output shaft.

Fig. 15: Installing Coupling Unit
Courtesy of MAZDA MOTORS CORP.

4. Secure the companion flange using the SST , and remove the bolts.

5. Remove the output shaft.

Fig. 16: Removing Companion Flange Bolts
Courtesy of MAZDA MOTORS CORP.

BEARING DISASSEMBLY NOTE

1. Remove the bearing using the SSTs and a press.

Substitution SST



49 S033 108

Outer diameter: 33-55 mm {1.30-2.16 in}



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE All Wheel Drive (AWD) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:31:22 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

Height: 155 mm {6.10 in} or more

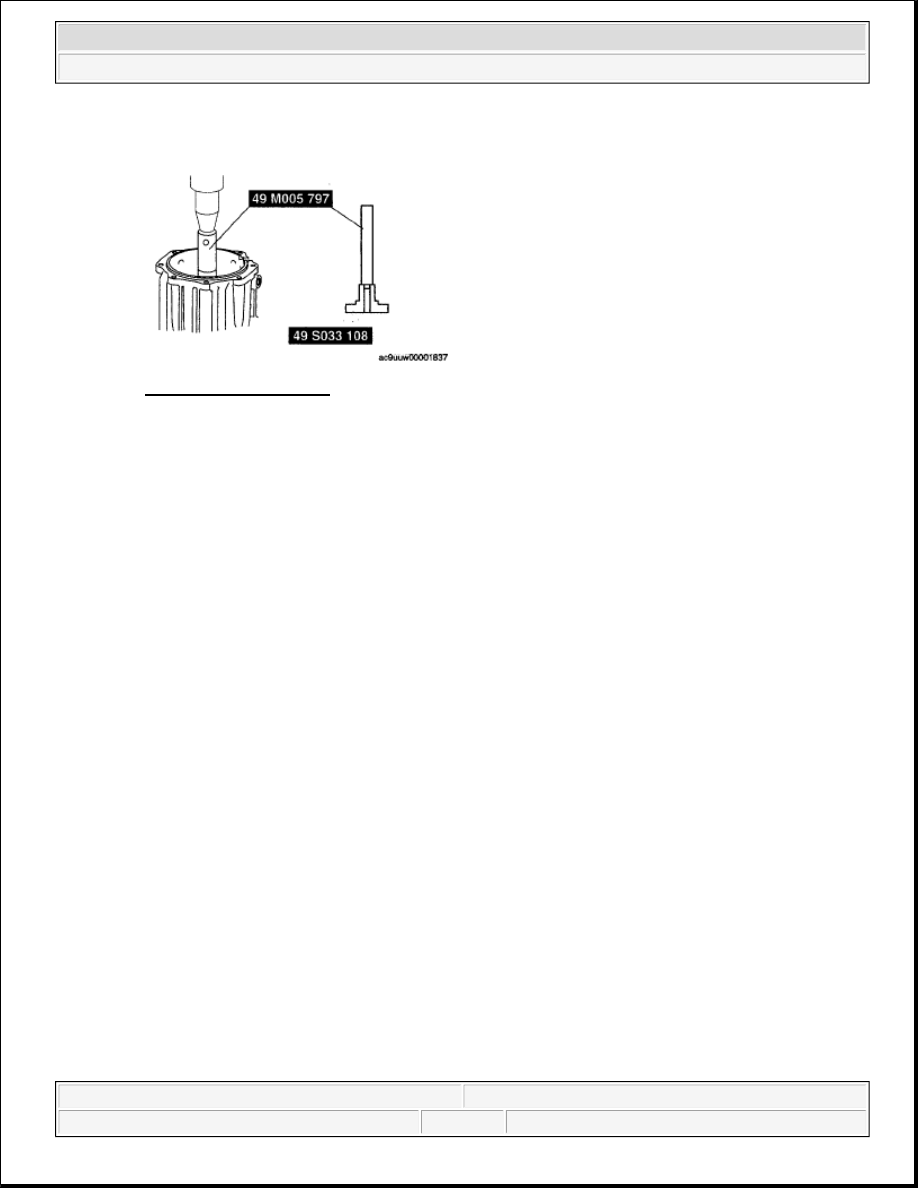

Fig. 17: Identifying SST
Courtesy of MAZDA MOTORS CORP.

COUPLING COMPONENT ASSEMBLY

1. Assemble in the order indicated in the table.

WARNING:



The engine stand is equipped With a self-lock mechanism, however,
if the coupling unit is in a tilted condition, the self-lock mechanism
could become inoperative, if the coupling unit unexpectedly rotates
it could cause injury, therefore do not maintain the coupling unit in a
tilted condition. When turning the coupling unit, grasp the rotation
handle firmly.
