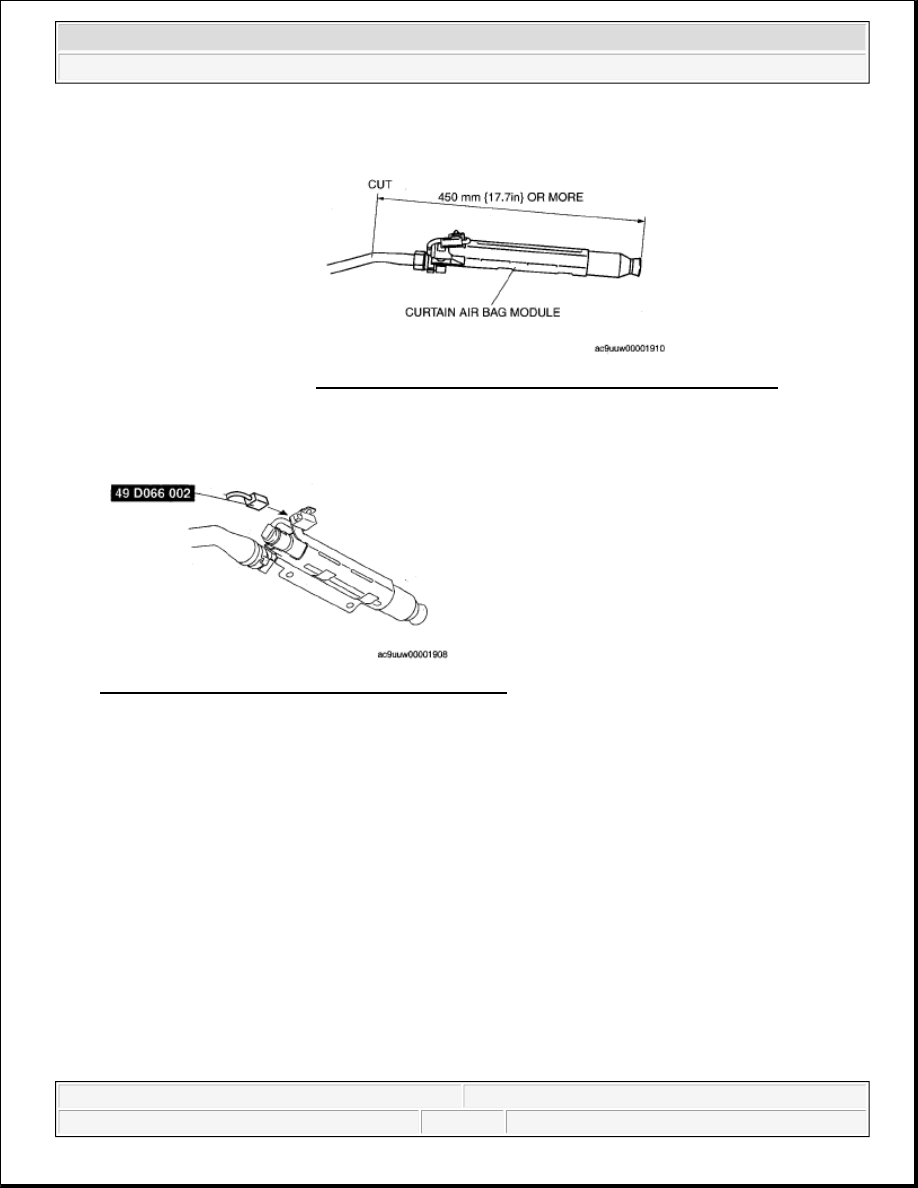

5. Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

Fig. 68: Connecting SST To Curtain Air Bag Module
Courtesy of MAZDA MOTORS CORP.

6. Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm

2

 {0.002 in

2

 } or

more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

(deployment).

Fig. 67: Identifying Curtain Air Bag Module Dimension
Courtesy of MAZDA MOTORS CORP.

WARNING:



If the air bag module is not properly installed to the tire, serious
injury may occur when the module is operated (deployed).
Make sure to install the air bag module securely.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 45

© 2005 Mitchell Repair Information Company, LLC.

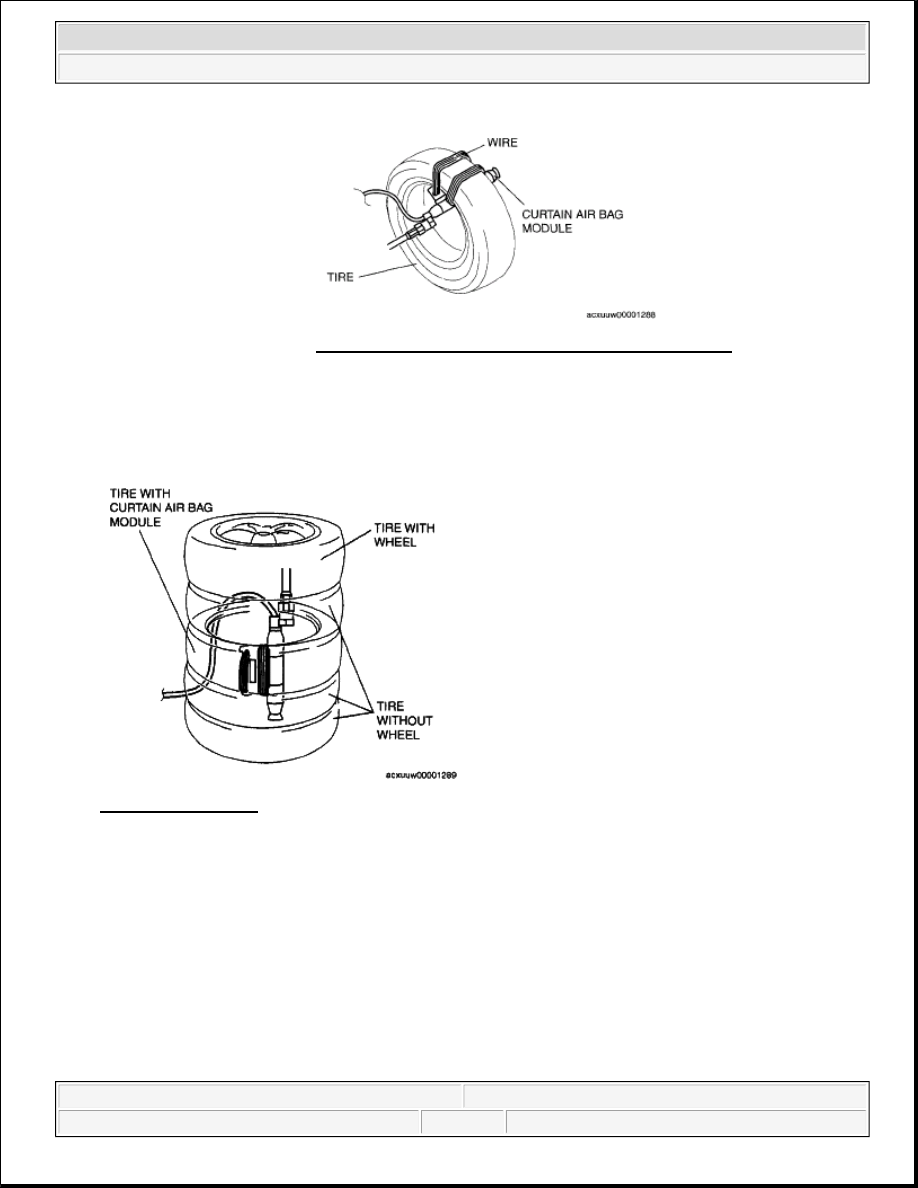

7. Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a

wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the
very top.

Fig. 70: Placing Tire
Courtesy of MAZDA MOTORS CORP.

8. Secure the tires with wire.

Fig. 69: Securing Curtain Air Bag Module To Tire
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 46

© 2005 Mitchell Repair Information Company, LLC.

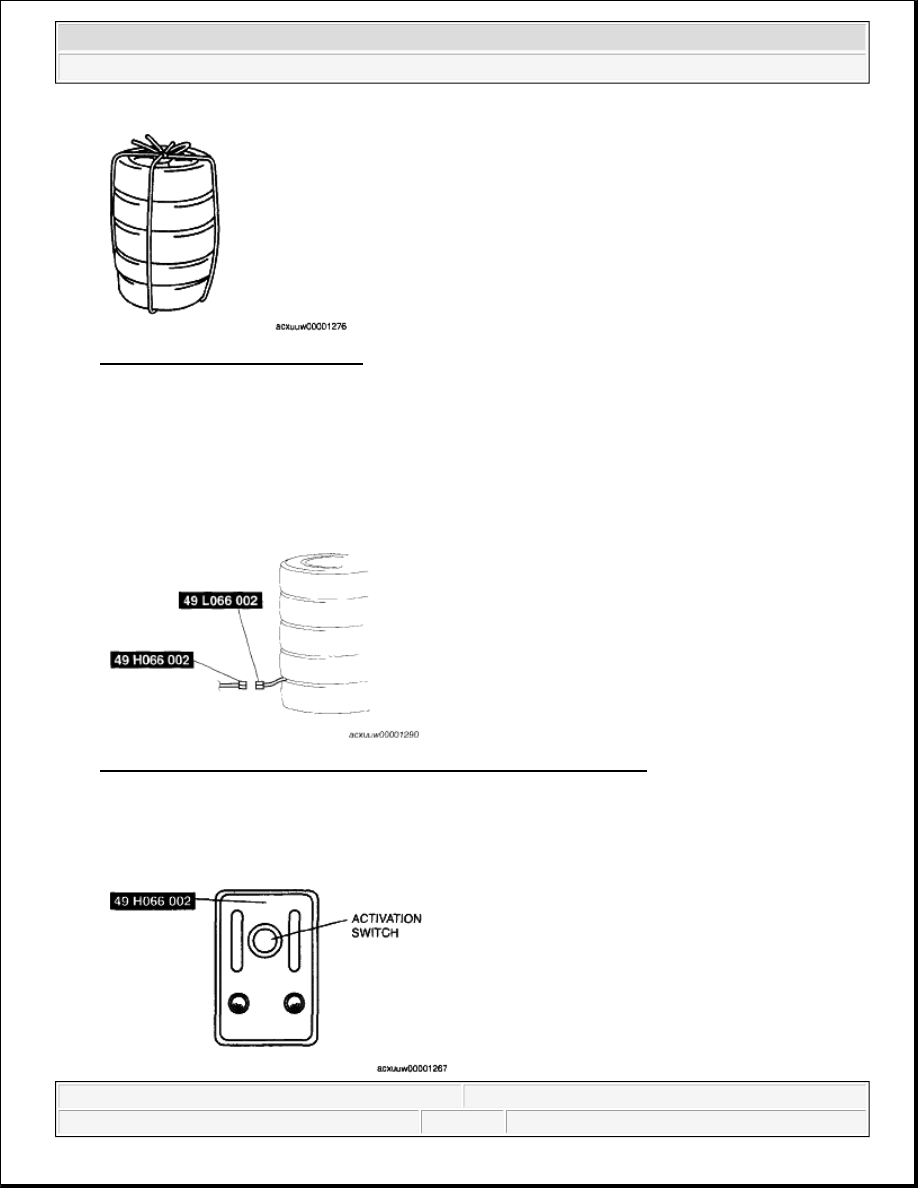

Fig. 71: Securing Tires With Wire
Courtesy of MAZDA MOTORS CORP.

9. Connect the SST (Deployment tool) to the SST (Adapter harness) .

10. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

11. Verify that the red lamp on the SST (Deployment tool) is illuminated.

12. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

Fig. 72: Connecting SST (Deployment Tool) To SST (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

13. Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

14. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness) .



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 47

© 2005 Mitchell Repair Information Company, LLC.

Fig. 73: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

PRE-TENSIONER SEAT BELT

1. Remove the pre-tensioner seat belt.

(See FRONT SEAT BELT REMOVAL/INSTALLATION .)

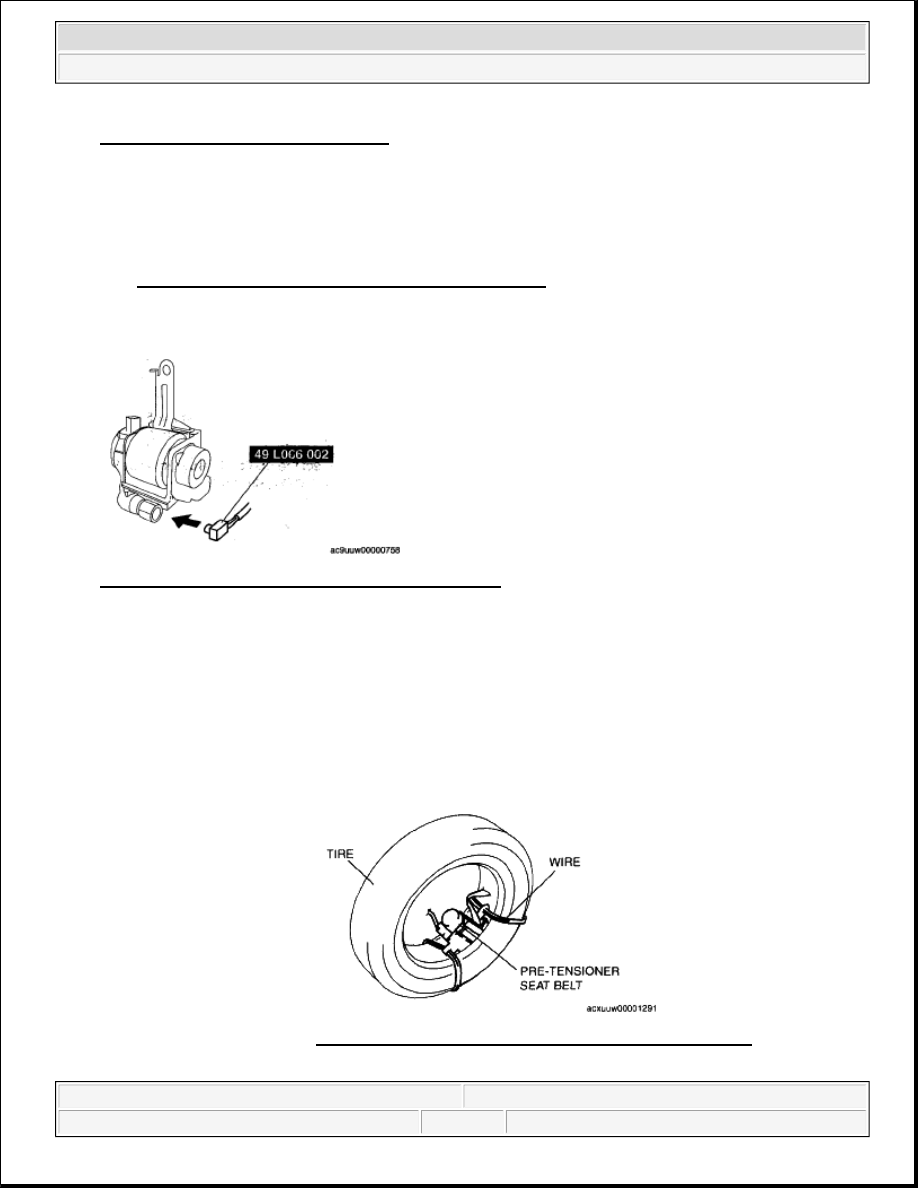

2. Connect the SST (Adapter harness) to the pre-tensioner seat belt as shown in the figure.
