Mazda CX-9 Grand Touring. Manual - part 34





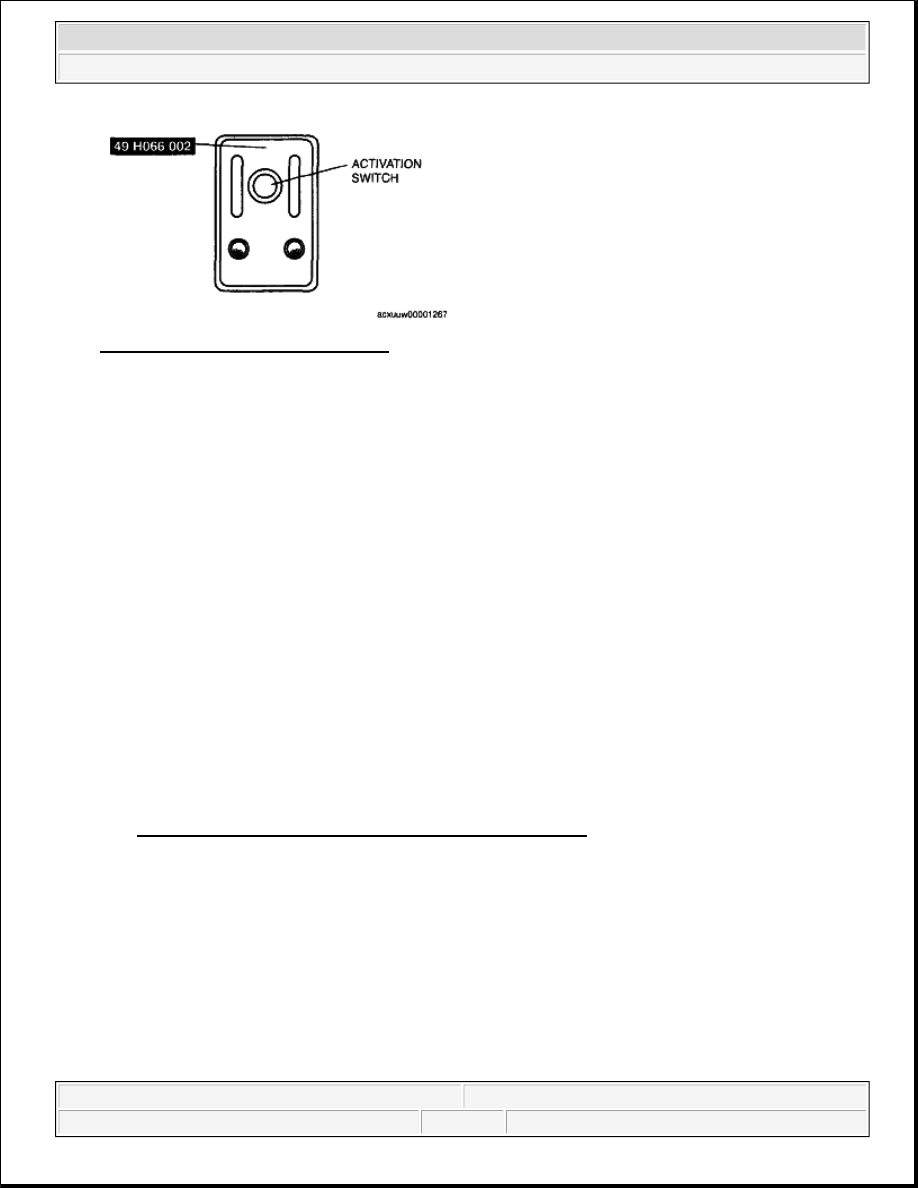

Fig. 59: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

12. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness) .

SIDE AIR BAG MODULE

1. Remove the side air bag module.

(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2. Install the nuts to the side air bag module as shown in the figure, and connect the SST (Adapter

harness) .

WARNING:

Verify that air bag module operation (explosive) sound occurs
twice. If no operation (explosive) sound was heard or a single
operation (explosive) sound was heard, both inflators would
not have operated (deployed) properly. This may cause serious
injury if the air bag module operates (deploy) unexpectedly. If
the two operation (explosive) sounds are not heard, perform
Step 8 again. If a total of two operation (explosive) sounds
cannot be verified even though Step 8 is performed again,
leave the air bag module alone for 30 min or more before
approaching it again.

The air bag module is very hot immediately after it is operated
(deployed). You can be burned. Do not touch the air bag
module for at least 15 min after deployment.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

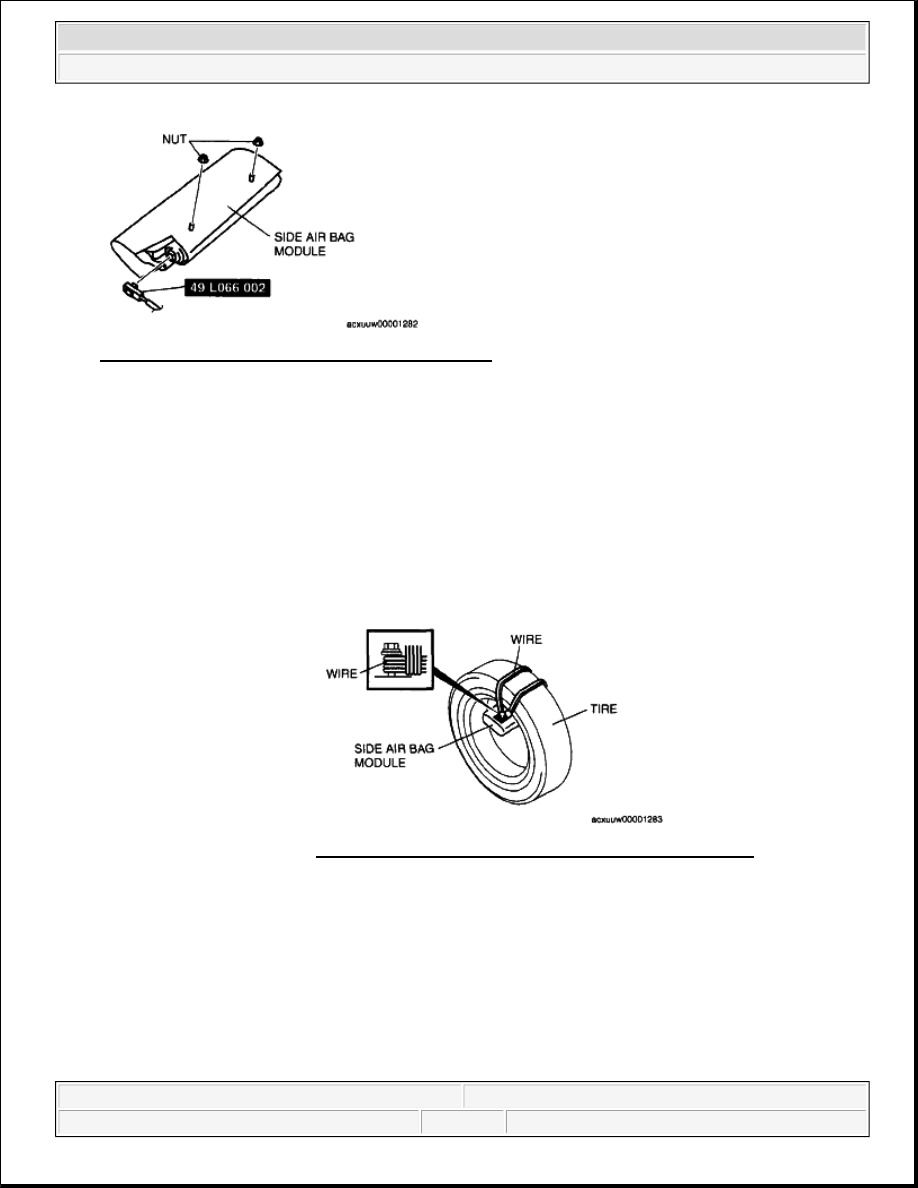

Fig. 60: Identifying Side Air Bag Module And Nuts
Courtesy of MAZDA MOTORS CORP.

3. Place the padded surface of the side air bag module facing the center of the tire as shown in the figure. To

secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm

2

 {0.002 in

2

 } or more)

through the tire and around the bolts at least 4 times .

4. Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel

on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

WARNING:

If the air bag module is not properly secured to the tire, the
tires may fall over by the impact of operation (deployment) and
cause serious injury. To prevent this, secure the air bag
module properly with the padded surface facing the center of
the tire.

Fig. 61: Placing Side Air Bag Module Center Of Tire
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 42

© 2005 Mitchell Repair Information Company, LLC.

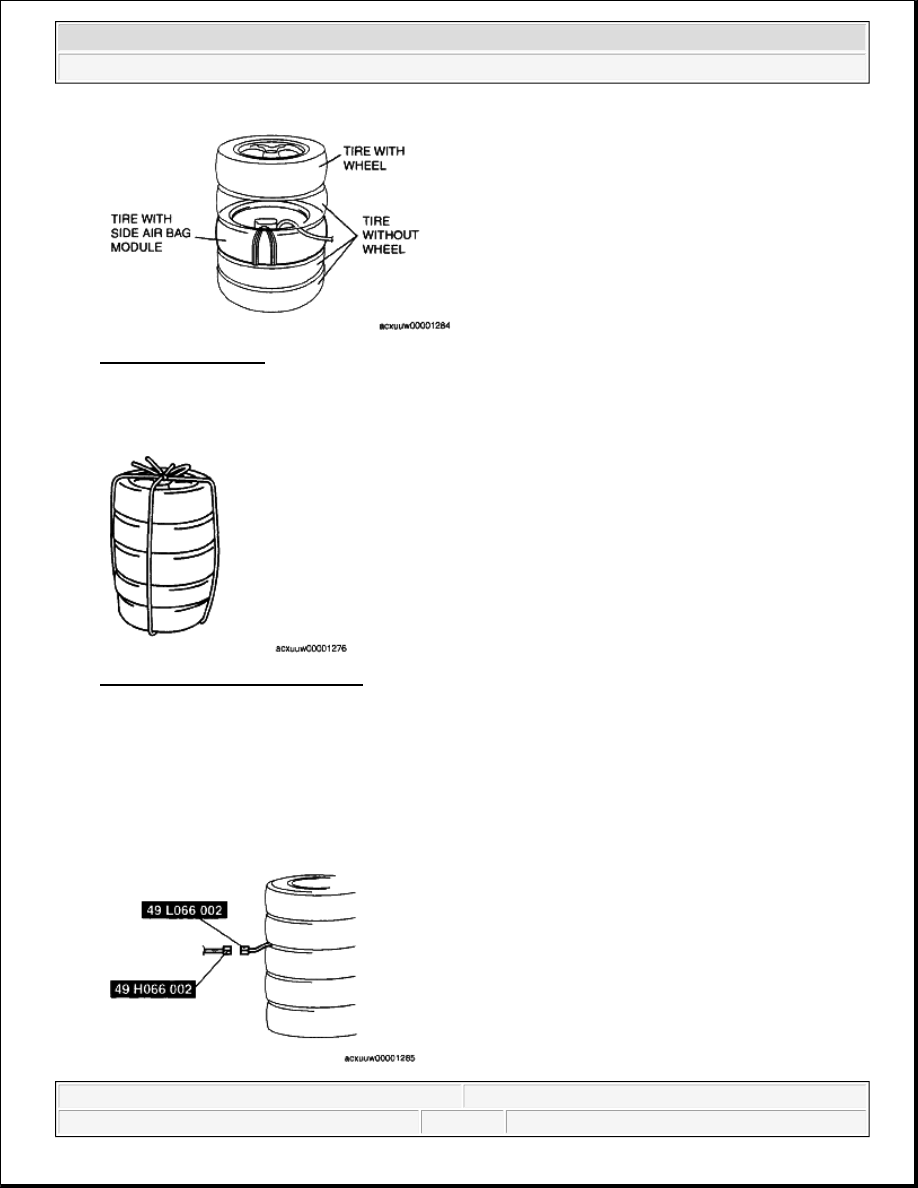

Fig. 62: Placing Tires
Courtesy of MAZDA MOTORS CORP.

5. Secure the tires with wire.

Fig. 63: Securing Tires With Wire
Courtesy of MAZDA MOTORS CORP.

6. Connect the SST (Deployment tool) to the SST (Adapter harness) .

7. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

8. Verify that the red lamp on the SST (Deployment tool) is illuminated.

9. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

Fig. 64: Connecting SST (Deployment Tool) To SST (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

10. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

11. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness) .

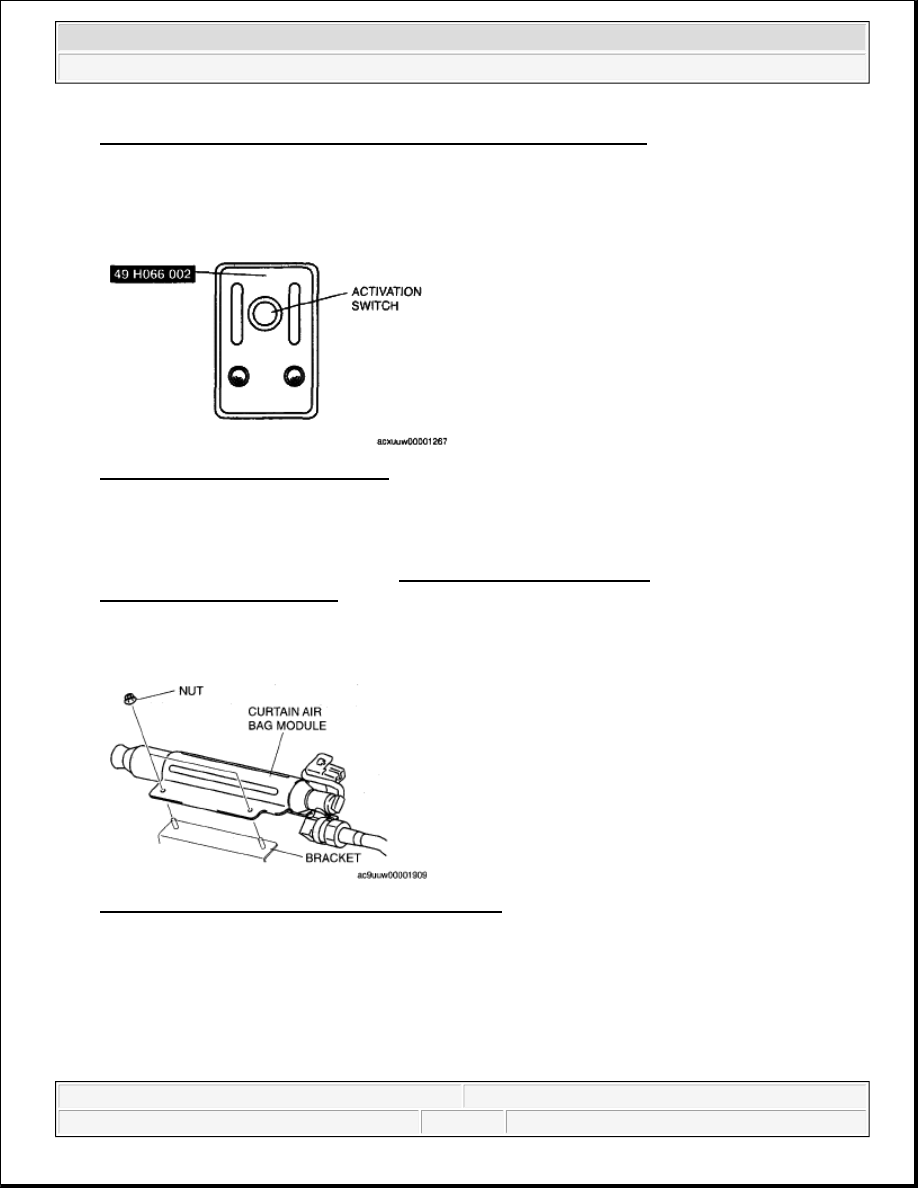

Fig. 65: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

CURTAIN AIR BAG MODULE

1. Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE

REMOVAL/INSTALLATION.)

2. Remove the nuts.

3. Remove the curtain air bag module from the curtain air bracket.

Fig. 66: Identifying Curtain Air Bag Module & Nuts
Courtesy of MAZDA MOTORS CORP.

4. Secure the curtain air bag module in a vise, and cut off the deployment section, as shown in the figure.

WARNING:

Be sure not to crush the pipe on the side where it is cut. If it is
crushed completely, the interior pressure of the pipe will build
up and can cause it to explode during air bag module operation



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 44

© 2005 Mitchell Repair Information Company, LLC.
