Mazda CX-9 Grand Touring. Manual - part 31





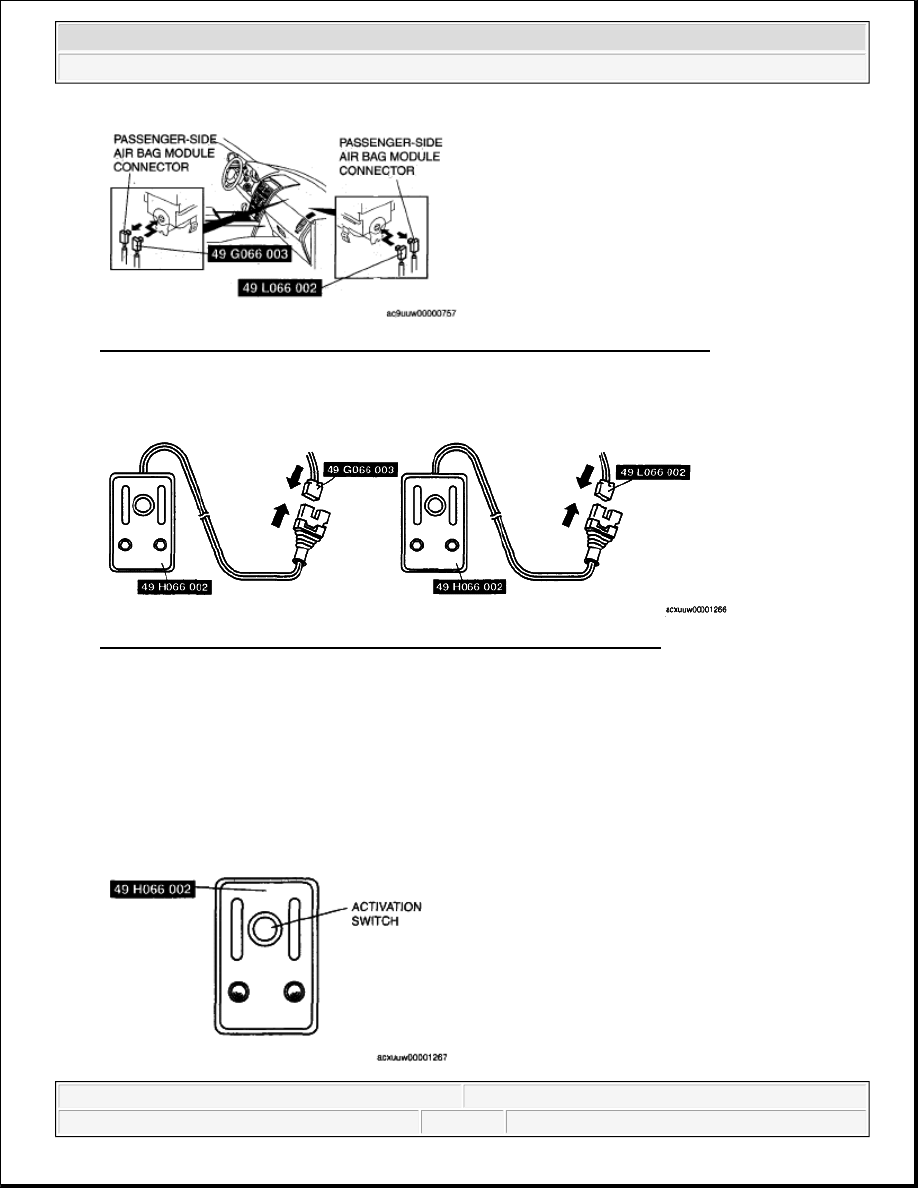

Fig. 35: Connecting SST (Adapter Harness) To Passenger-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.

4. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness) .

Fig. 36: Connecting SSTs (Deployment Tool) To SSTs (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

5. Connect both SSTs (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

6. Verify that the red lamp on both SSTs (Deployment tool) is illuminated.

7. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow

connector) of the SST (Adapter harness) , and after 3 s , press the activation switch on the other SST
(Deployment tool)
 to operate (deploy) the air bag module (both inflators).



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

Fig. 37: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.


9. Disconnect the SSTs (Deployment tool) form the SSTs (Adapter harness) .

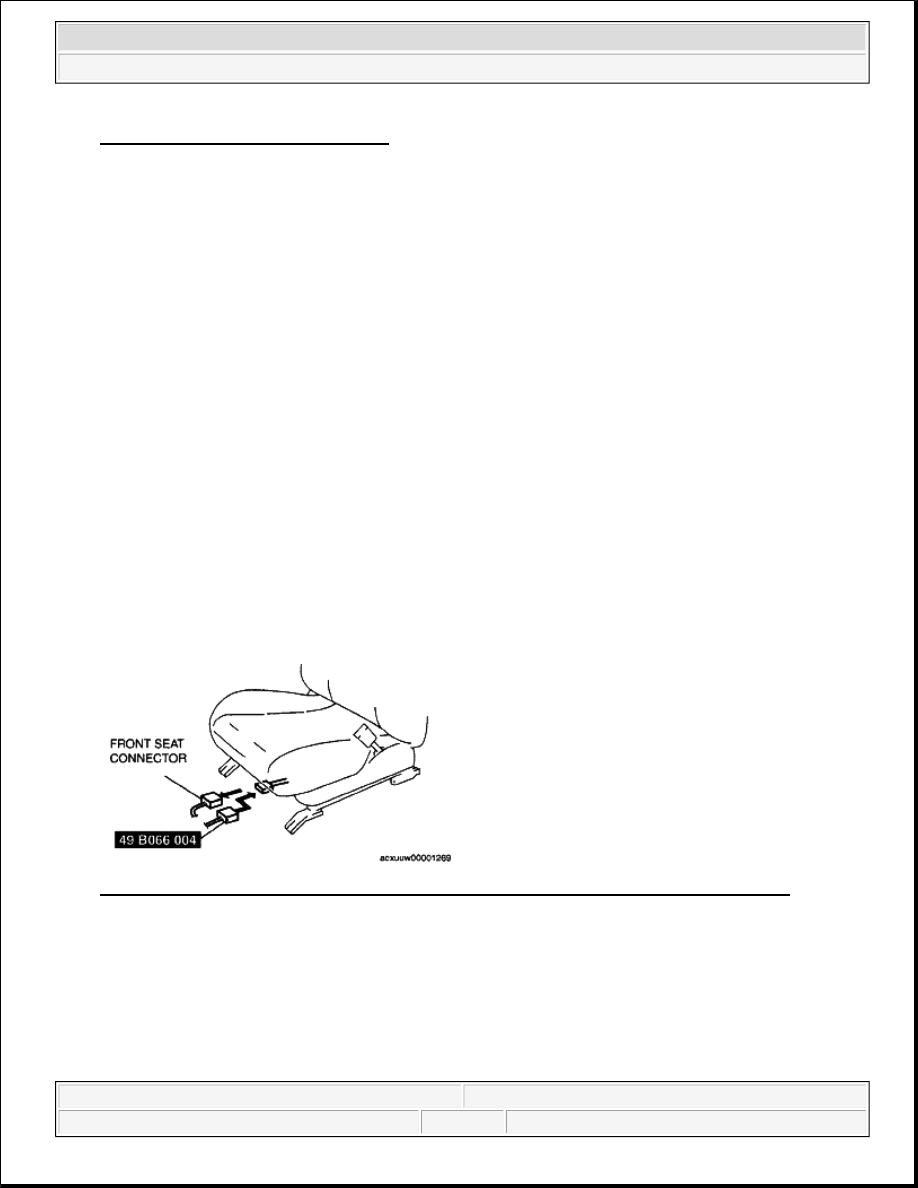

SIDE AIR BAG MODULE

1. Disconnect the front seat connector.

2. Connect the SST (Adapter harness) to the side air bag module and pre-tensioner seat belt connector as

shown in the figure.

Fig. 38: Connecting SST To Side Air Bag Module And Pre-Tensioner Seat Belt Connector
Courtesy of MAZDA MOTORS CORP.

3. Connect the SST (Deployment tool) to the SST (Adapter harness) .

4. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

5. Verify that the red lamp on the SST (Deployment tool) is illuminated.

6. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

WARNING:

Verify that air bag module operation (explosive) sound occurs
twice. If no operation (explosive) sound was heard or a single
operation (explosive) sound was heard, both inflators would
not have operated (deployed) properly. This may cause serious
injury if the air bag module operates (deploy) unexpectedly. If
the two operation (explosive) sounds are not heard, perform
Step 8 again. If a total of two operation (explosive) sounds
cannot be verified even though Step 8 is performed again,
leave the air bag module alone for 30 min or more before
approaching it again.

The air bag module is very hot immediately after it is operated
(deployed). You can be burned. Do not touch the air bag
module for at least 15 min after deployment.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

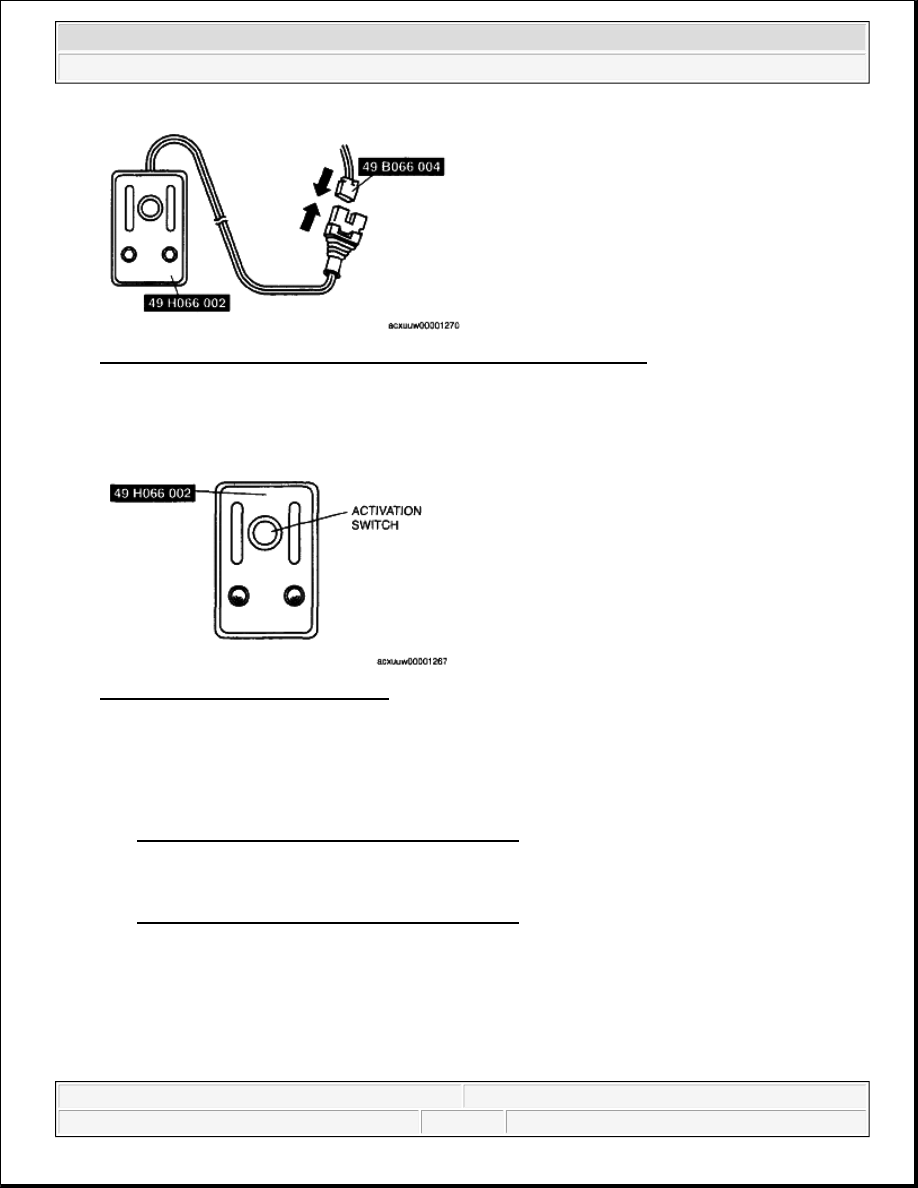

Fig. 39: Connecting SST (Deployment Tool) To SST (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

7. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

8. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness) .

Fig. 40: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

CURTAIN AIR BAG MODULE

1. Remove the C-pillar trim.

(See C-PILLAR TRIM REMOVAL/INSTALLATION .)

2. Remove the D-pillar trim.

(See D-PILLAR TRIM REMOVAL/INSTALLATION .)

3. Disconnect the curtain air bag module connector.

4. Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:16:38 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

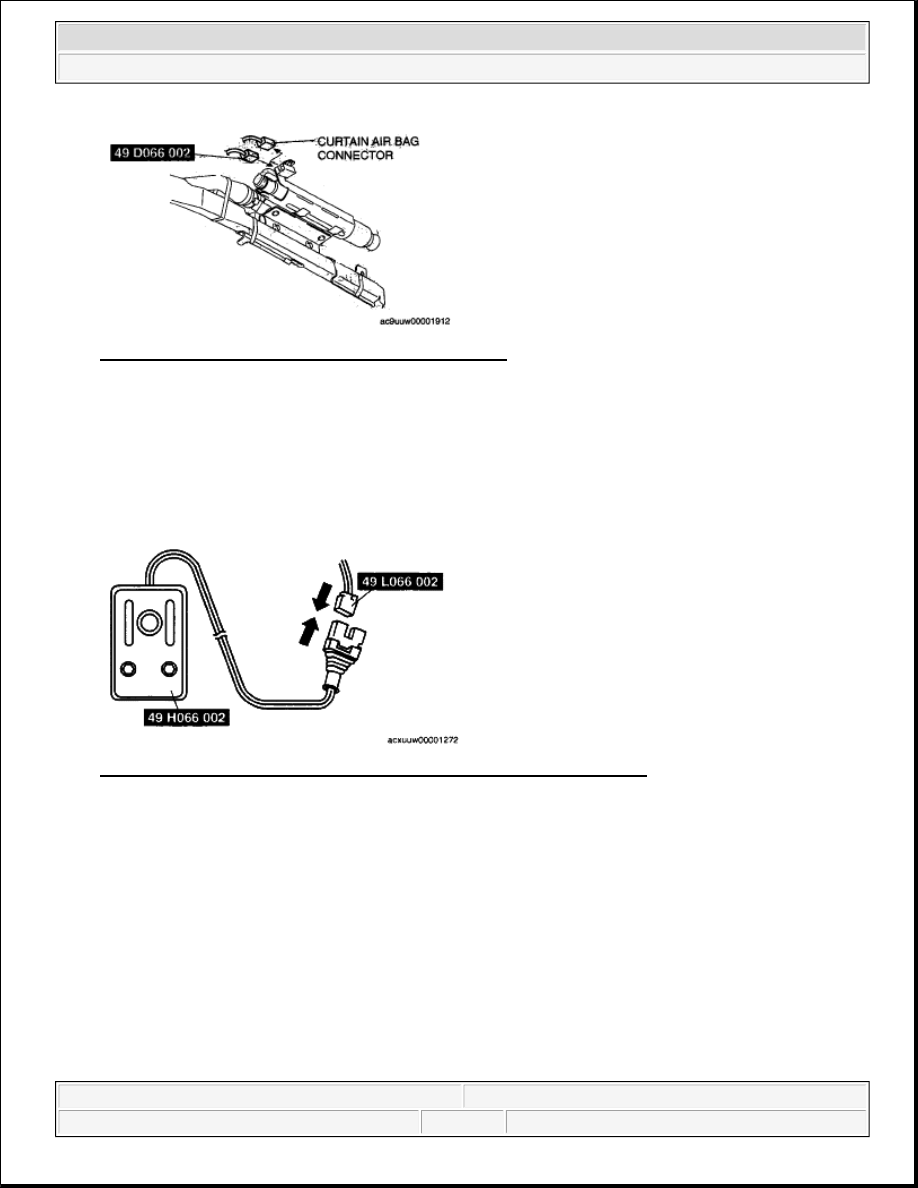

Fig. 41: Connecting SST To Curtain Air Bag Module
Courtesy of MAZDA MOTORS CORP.

5. Connect the SST (Deployment tool) to the SST (Adapter harness) .

6. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

7. Verify that the red lamp on the SST (Deployment tool) is illuminated.

8. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

Fig. 42: Connecting SST (Deployment Tool) To SST (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

9. Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

10. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness) .
