Mazda CX-9 Grand Touring. Manual - part 16





DIAGNOSTIC PROCEDURE

DTC B105A DIAGNOSTIC PROCEDURE

DTC B105B, B110C, B1144, B1145

DTC B105B, B110C, B1144, B1145 DETECTION CONDITION AND POSSIBLE CAUSE

POSSIBLE

CAUSE

SAS control module malfunction

ACTION

Replace the SAS control module

(See SAS CONTROL MODULE REMOVAL/INSTALLATION .)

DTC

B105B Driver-side side air bag sensor No.2 and other sensor circuits short to power supply

B110C Driver-side side air bag sensor No.2 circuit open or short

B1144

Driver-side side air bag sensor No.2 (internal circuit abnormal)

B1145

Driver-side side air bag sensor No.2 (communication error)

DETECTION

CONDITION

Malfunction in wiring harness between driver-side side air bag sensor No.2 and SAS
control module

Malfunction in driver-side side air bag sensor No.2 circuit

WARNING:

Detection conditions are for understanding the DTC outline before performing an
inspection. Performing an inspection according to only the detection conditions
may cause injury due to an operating error, or damage the system. When
performing an inspection, always follow the inspection procedure.

POSSIBLE

CAUSE

Open or short circuit in wiring harness between driver-side side air bag sensor No.2

and SAS control module

Driver-side side air bag sensor No.2 malfunction

SAS control module malfunction



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 61

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B105B, B110C, B1144, B1145 DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT DRIVER-SIDE SIDE AIR BAG
SENSOR NO.2 CONNECTOR




Turn the ignition switch to the LOCK position.

Disconnect the negative battery cable and wait
for 1 min or more.

Disconnect the driver-side side air bag sensor
No.2 connector. (See SIDE AIR BAG
SENSOR NO. 2
REMOVAL/INSTALLATION
 .)

Is there any malfunction of the driver-side side

WARNING:

Handling the air bag system components
improperly can accidentally deploy the air
bag modules and pre-tensioner seat belts,
which may seriously injure you. Read the
service warnings and cautions before
handling the air bag system components.

(See AIR BAG SYSTEM SERVICE
WARNINGS .)

(See AIR BAG SYSTEM SERVICE
CAUTIONS .)

Yes Replace the air bag wiring harness.

No

Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 62

© 2005 Mitchell Repair Information Company, LLC.

air bag sensor No.2 connector?

2

INSPECT WIRING HARNESS BETWEEN
DRIVER-SIDE SIDE AIR BAG SENSOR NO.2
AND SAS CONTROL MODULE


Turn the ignition switch to the LOCK position.

Disconnect the negative battery cable and wait
for 1 min or more.

Remove the column cover. (See COLUMN
COVER REMOVAL/INSTALLATION
 .)

Disconnect the clock spring connector. (See
COMBINATION SWITCH
REMOVAL/INSTALLATION
 .)

Remove the glove compartment. (See GLOVE
COMPARTMENT
REMOVAL/INSTALLATION
 .)

Disconnect the passenger-side air bag module
connector. (See PASSENGER-SIDE AIR
BAG MODULE
REMOVAL/INSTALLATION
 .)

Disconnect the driver and passenger-side front
seat connectors. (See FRONT SEAT
REMOVAL/INSTALLATION
 .)

Disconnect the driver and passenger-side curtain
air bag module connectors. (See CURTAIN
AIR BAG MODULE
REMOVAL/INSTALLATION
 .)

Remove the B-pillar lower trim. (See B-
PILLAR LOWER TRIM
REMOVAL/INSTALLATION
 .)

Disconnect the driver and passenger-side pre-
tensioner seat belt connectors. (See FRONT
SEAT BELT
REMOVAL/INSTALLATION
 .)

Disconnect the SAS control module connectors.
(See SAS CONTROL MODULE
REMOVAL/INSTALLATION
 .)

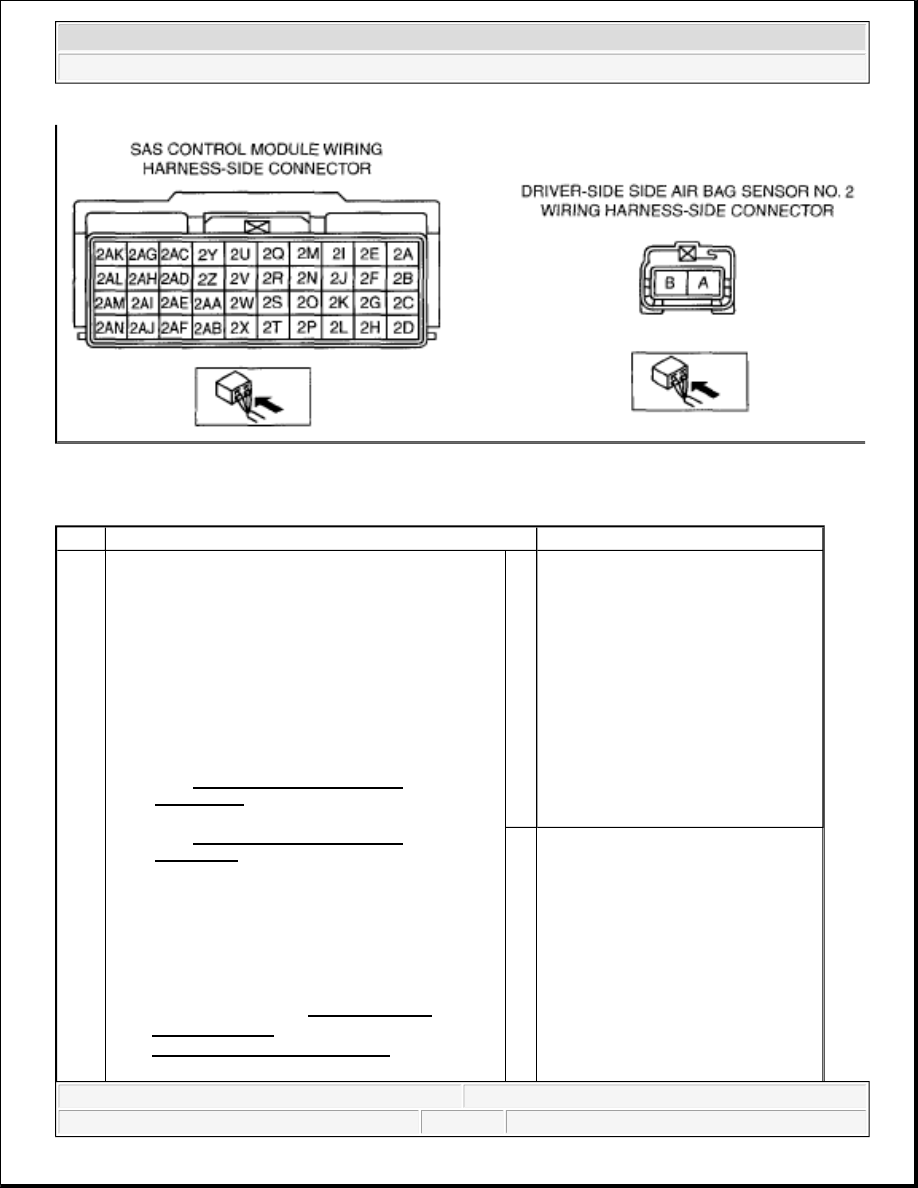

Inspect the wiring harnesses between SAS
control module terminal 2AM and driver-side
side air bag sensor No.2 terminal A, SAS
control module terminal 2AI and driver-side
side air bag sensor No.2 terminal B for the
following:

Short to ground

Yes

Replace the driver-side side air bag
sensor No.2, then go to the next step.
(See SIDE AIR BAG SENSOR NO.
2 REMOVAL/INSTALLATION
 .)

No

Replace the air bag wiring harness.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 63

© 2005 Mitchell Repair Information Company, LLC.

DTC B105F, B110D, B1146, B1147

DTC B105F, B110D, B1146, B1147 DETECTION CONDITION AND POSSIBLE CAUSE

Short to power supply

Open circuit

Is the wiring harness normal?

3

INSPECT SAS CONTROL MODULE

Connect the SAS control module connector.

Connect the driver and passenger-side pre-
tensioner seat belt connectors.

Connect the driver-side side air bag sensor No.2
connector.

Connect the driver and passenger-side curtain
air bag module connectors.

Connect the driver and passenger-side front seat
connectors.

Connect the passenger-side air bag module
connector.

Connect the clock spring connector.

Connect the negative battery cable.

Turn the ignition switch to the ON position.

Are DTCs B105B, B110C, B1144 and/or B1145
indicated?

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

DTC

B105F Passenger-side side air bag sensor No.2 and other sensor circuits short to power supply

B110D Passenger-side side air bag sensor No.2 circuit open or short

B1146

Passenger-side side air bag sensor No.2 (internal circuit abnormal)

B1147

Passenger-side side air bag sensor No.2 (communication error)

DETECTION

CONDITION

Malfunction in wiring harness between passenger-side side air bag sensor No.2 and
SAS control module

Malfunction in passenger-side side air bag sensor No.2 circuit

WARNING:

Detection conditions are for understanding the DTC outline before performing an
inspection. Performing an inspection according to only the detection conditions
may cause injury due to an operating error, or damage the system. When
performing an inspection, always follow the inspection procedure.

POSSIBLE

CAUSE

Open or short circuit in wiring harness between passenger-side side air bag sensor

No.2 and SAS control module

Passenger-side side air bag sensor No.2 malfunction



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 64

© 2005 Mitchell Repair Information Company, LLC.
