DTC B1047, B1992, B1993, B1994, B1995

DTC B1047, B1992, B1993, B1994, B1995 DETECTION CONDITION AND POSSIBLE CAUSE

4



Disconnect the clock spring connector. (See
COMBINATION SWITCH
REMOVAL/INSTALLATION .)



Remove the glove compartment. (See GLOVE
COMPARTMENT
REMOVAL/INSTALLATION .)



Disconnect the passenger-side air bag module
connector. (See PASSENGER-SIDE AIR
BAG MODULE
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side front
seat connectors. (See FRONT SEAT
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side
curtain air bag module connectors. (See
CURTAIN AIR BAG MODULE
REMOVAL/INSTALLATION .)



Remove the B-pillar lower trim. (See B-
PILLAR LOWER TRIM
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side pre-
tensioner seat belt connectors. (See FRONT
SEAT BELT
REMOVAL/INSTALLATION .)



Disconnect the SAS control module connectors.
(See SAS CONTROL MODULE
REMOVAL/INSTALLATION .)



Inspect the wiring harness between SAS control
module terminal 2AK and driver-side curtain
air bag module terminal A, SAS control module
terminal 2AG and driver-side curtain air bag
module terminal B for the following:



Short to ground



Short to power supply



Open circuit



Is the wiring harness normal?

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION .)

No

Replace the air bag wiring harness.

DTC

B1047 Driver-side side air bag module and other air bag module circuits short
B1992 Driver-side side air bag module circuit short to power supply
B1993 Driver-side side air bag module circuit short to body ground



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:46 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B1047, B1992, B1993, B1994, B1995 DIAGNOSTIC PROCEDURE

B1994 Driver-side side air bag module circuit resistance high
B1995 Driver-side side air bag module circuit resistance low

DETECTION

CONDITION



Resistance other than 1.0-9.7 ohms detected in driver-side side air bag module circuit



Malfunction in wiring harness between driver-side side air bag module and SAS
control module

WARNING:



Detection conditions are for understanding the DTC outline before performing an
inspection. Performing an inspection according to only the detection conditions
may cause injury due to an operating error, or damage the system. When
performing an inspection, always follow the inspection procedure.

POSSIBLE

CAUSE



Open or short circuit in wiring harness between driver-side side air bag module and

SAS control module



Driver-side side air bag module malfunction



SAS control module malfunction

STEP

INSPECTION

ACTION

1

INSPECT DRIVER-SIDE SIDE AIR BAG
MODULE



Using the M-MDS, verify the following
PID/DATA monitor.

(See PID/DATA MONITOR TABLE.)

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:46 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.



RES_SAB_D



Is the resistance of the driver-side side air bag
module normal?



Resistance: 1.0-9.7 ohms

No

Go to the next step.

2

INSPECT DRIVER-SIDE SIDE AIR BAG
MODULE CONNECTOR





Turn the ignition switch to the LOCK position.



Disconnect the negative battery cable and wait
for 1 min or more .



Disconnect the driver-side side air bag module
connector. (See SIDE AIR BAG MODULE
REMOVAL/INSTALLATION .)



Is there any malfunction of the driver-side side
air bag module connector?

WARNING:



Handling the air bag system components
improperly can accidentally deploy the air
bag modules and pre-tensioner seat belts,
which may seriously injure you. Read the
service warnings and cautions before
handling the air bag system components.

(See AIR BAG SYSTEM SERVICE
WARNINGS .)

(See AIR BAG SYSTEM SERVICE
CAUTIONS .)

Yes Replace the air bag wiring harness.

No

Go to the next step.

3

VERIFY WHETHER MALFUNCTION IS IN
DRIVER-SIDE SIDE AIR BAG MODULE OR
RELATED WIRING HARNESS



Connect the leads of the SST (Fuel and
thermometer checker) or apply 2-ohm
resistance to driver-side side air bag module
connector terminals A and B.



Set the resistance of the SST (Fuel and
thermometer checker) to the 2-ohm position.



Connect the negative battery cable.



Turn the ignition switch to the ON position.



Are DTCs B1047, B1992, B1993, B1994,
and/or B1995 indicated?

Yes Go to the next step.

No

Replace the driver-side side air bag

module. (See SIDE AIR BAG

MODULE

REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:46 AM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

4

INSPECT WIRING HARNESS BETWEEN
DRIVER-SIDE SIDE AIR BAG MODULE AND
SAS CONTROL MODULE



Turn the ignition switch to the LOCK position.



Disconnect the negative battery cable and wait
for 1 min or more.



Remove the column cover. (See COLUMN
COVER REMOVAL/INSTALLATION .)



Disconnect the clock spring connector. (See
COMBINATION SWITCH
REMOVAL/INSTALLATION .)



Remove the glove compartment. (See GLOVE
COMPARTMENT
REMOVAL/INSTALLATION .)



Disconnect the passenger-side air bag module
connector. (See PASSENGER-SIDE AIR
BAG MODULE
REMOVAL/INSTALLATION .)



Disconnect the passenger-side front seat
connector. (See FRONT SEAT
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side
curtain air bag module connectors. (See
CURTAIN AIR BAG MODULE
REMOVAL/INSTALLATION .)



Remove the B-pillar lower trim. (See B-
PILLAR LOWER TRIM
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side pre-
tensioner seat belt connectors. (See FRONT
SEAT BELT
REMOVAL/INSTALLATION .)



Disconnect the SAS control module connectors.
(See SAS CONTROL MODULE
REMOVAL/INSTALLATION .)



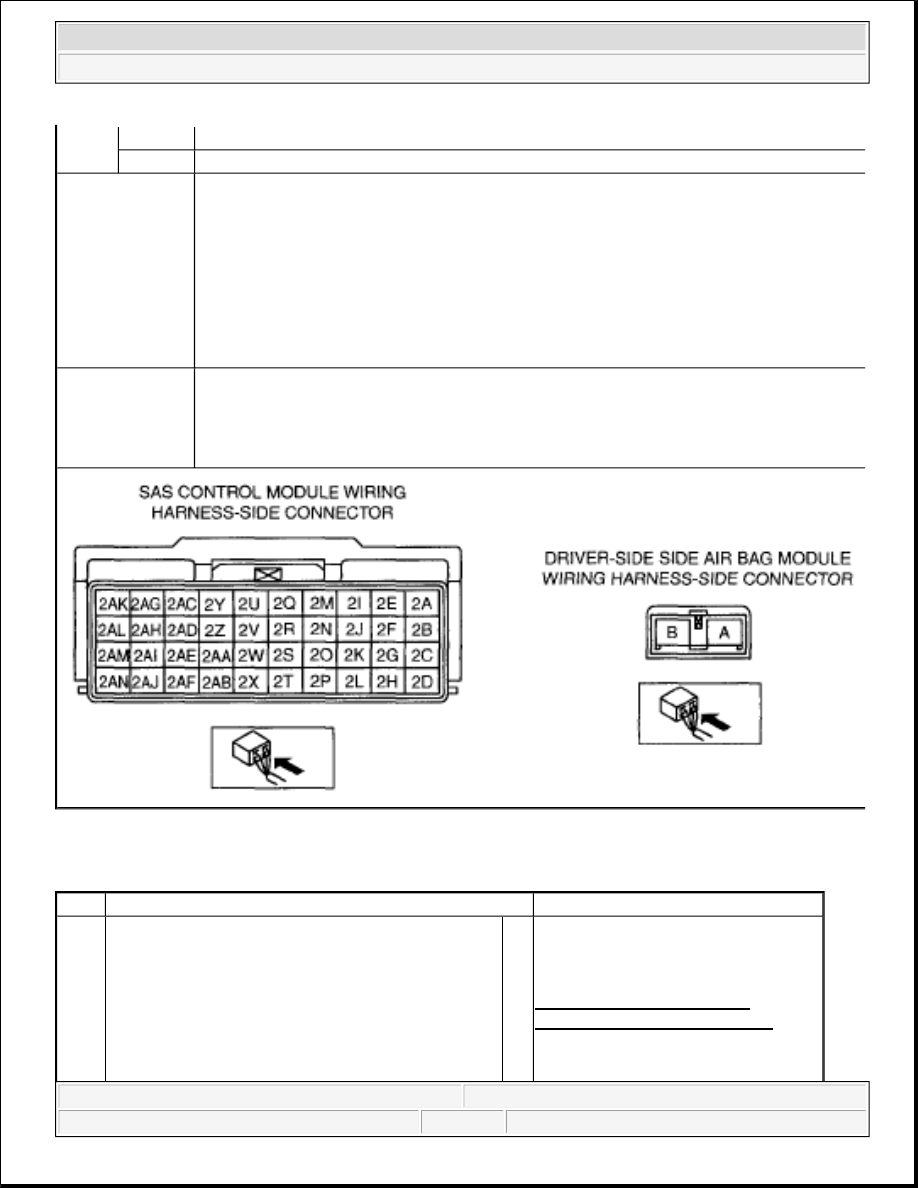

Inspect the wiring harness between SAS control
module terminal 2F and driver-side side air bag
module terminal A, SAS control module
terminal 2B and driver-side side air bag module
terminal B for the following:



Short to ground



Short to power supply

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION .)

No

Replace the air bag wiring harness.
