AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–11

05–13

INPUT SHAFT ROTATES CLOCKWISE.

1

C3 CLUTCH OPERATES.

FRONT SUN GEAR ROTATES CLOCKWISE.

2

INTERMEDIATE SHAFT ROTATES CLOCKWISE.

2

F1 ONE-WAY CLUTCH OPERATES (LOCKS
COUNTERCLOCKWISE ROTATION OF
FRONT PLANETARY CARRIER).

FRONT RING GEAR ROTATES CLOCKWISE.

5

MIDDLE RING GEAR ROTATES CLOCKWISE.

6

MIDDLE PLANETARY CARRIER ROTATES CLOCKWISE AT A ROTATIONAL
SPEED IN WHICH ROTATION OF MIDDLE RING GEAR IS SUBTRACTED
FROM THAT OF MIDDLE SUN GEAR (MIDDLE PLANETARY PINION GEARS
ROTATE COUNTERCLOCKWISE).

7

C1 CLUTCH OPERATES.

FRONT INNER PLANETARY PINION GEAR
ROTATE COUNTERCLOCKWISE.

3

OUTPUT SHAFT ROTATES CLOCKWISE.

10

REAR PLANETARY CARRIER ROTATES CLOCKWISE AT A ROTATIONAL SPEED IN WHICH ROTATION OF
REAR RING GEAR IS SUBTRACTED FROM THAT OF REAR SUN GEAR (REAR PLANETARY PINION GEARS
ROTATE COUNTERCLOCKWISE).

9

FRONT OUTER PLANETARY PINION GEAR
ROTATES CLOCKWISE.

4

REAR RING GEAR ROTATES CLOCKWISE.

8

E5U513ZS5018

AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–12

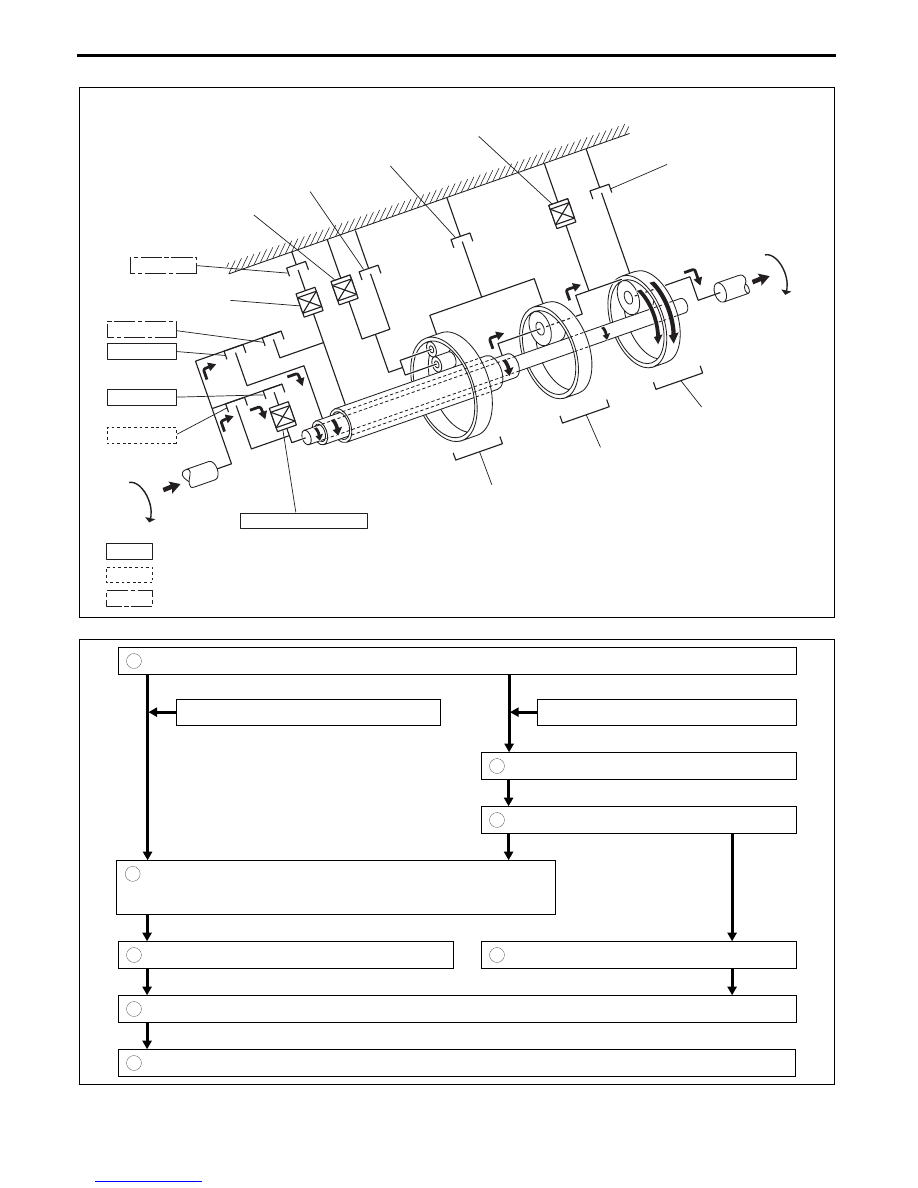

4GR

INPUT

OUTPUT

C2 CLUTCH

F1 ONE-WAY CLUTCH

FRONT PLANETARY GEAR

MIDDLE PLANETARY GEAR

REAR PLANETARY GEAR

F3 ONE-WAY CLUTCH

F2 ONE-WAY CLUTCH

F4 ONE-WAY CLUTCH

C4 CLUTCH

C3 CLUTCH

C1 CLUTCH

B3 BRAKE

B1 BRAKE

B2 BRAKE

B4 BRAKE

: OPERATING

: OPERATING WHEN ENGINE BRAKING

: OPERATING BUT NOT CONTRIBUTING TO TRANSMISSION POWER

E5U513ZS5009

INPUT SHAFT ROTATES CLOCKWISE.

1

C2 CLUTCH OPERATES.

INTERMEDIATE SHAFT ROTATES CLOCKWISE.

2

REAR RING GEAR ROTATES CLOCKWISE.

5

THE REAR PLANETARY GEAR UNIT ROTATES CLOCKWISE AS A SINGLE UNIT.

6

C1 CLUTCH OPERATES.

OUTPUT SHAFT ROTATES CLOCKWISE.

7

BECAUSE THE MIDDLE PLANETARY PINION GEARS CANNOT ROTATE,
THE MIDDLE PLANETARY GEAR UNIT ROTATES CLOCKWISE AS A
SINGLE UNIT.

4

MIDDLE SUN GEAR ROTATES CLOCKWISE.

3

REAR SUN GEAR ROTATES CLOCKWISE.

5

E5U513ZS5019

AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–13

05–13

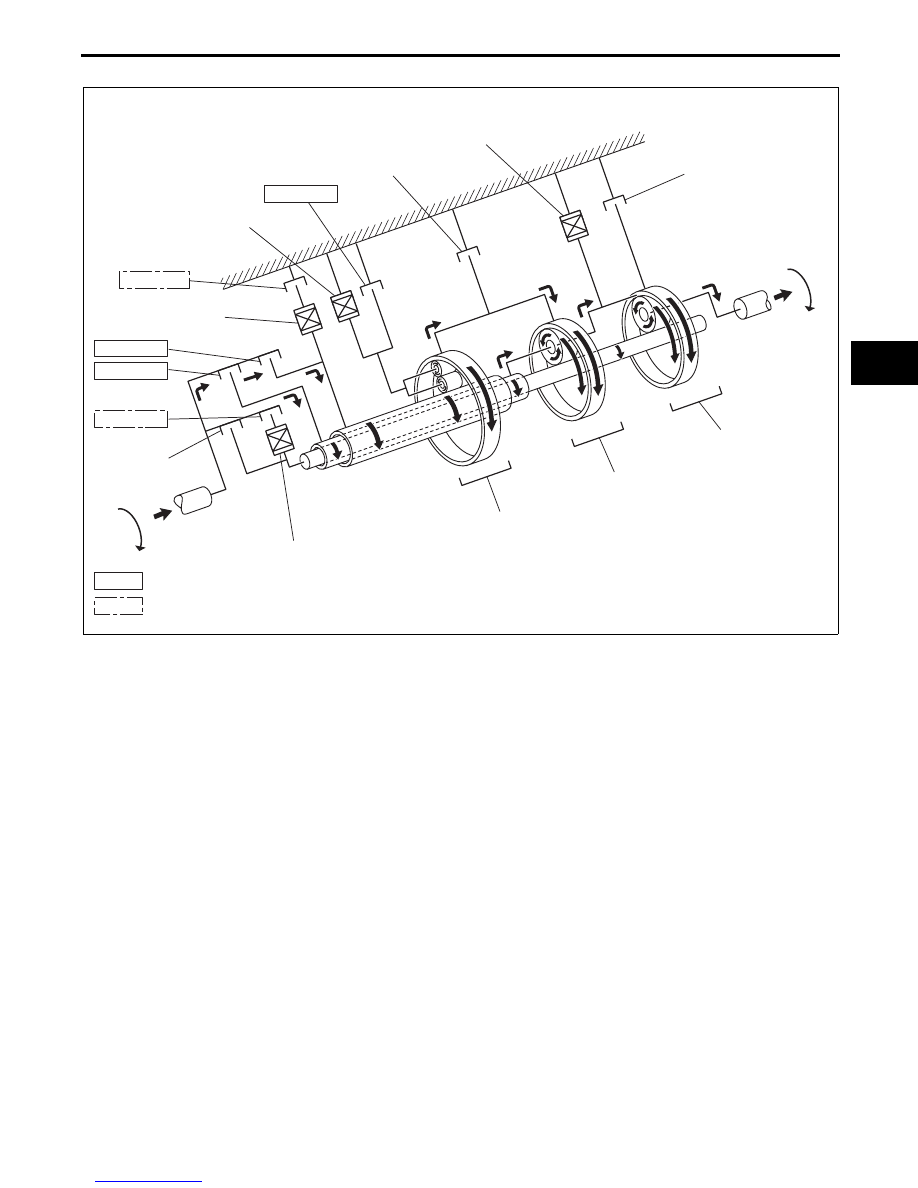

5GR

INPUT

OUTPUT

C2 CLUTCH

F1 ONE-WAY CLUTCH

FRONT PLANETARY GEAR

MIDDLE PLANETARY GEAR

REAR PLANETARY GEAR

F3 ONE-WAY CLUTCH

F2 ONE-WAY CLUTCH

F4 ONE-WAY CLUTCH

C4 CLUTCH

C3 CLUTCH

C1 CLUTCH

B3 BRAKE

B1 BRAKE

B2 BRAKE

B4 BRAKE

: OPERATING

: OPERATING BUT NOT CONTRIBUTING TO TRANSMISSION POWER

E5U513ZS5010

AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–14

INPUT SHAFT ROTATES CLOCKWISE.

1

C3 CLUTCH OPERATES.

FRONT SUN GEAR ROTATES CLOCKWISE.

2

MIDDLE PLANETARY CARRIER ROTATES
CLOCKWISE.

6

B1 BRAKE OPERATES (LOCKS
ROTATION OF FRONT
PLANETARY CARRIER).

FRONT RING GEAR ROTATES CLOCKWISE.

5

MIDDLE RING GEAR ROTATES CLOCKWISE.

6

THE MIDDLE PLANETARY PINION GEARS ROTATE COUNTERCLOCKWISE
DUE TO THE DIFFERENCE IN ROTATION OF THE MIDDLE RING GEAR AND
MIDDLE PLANETARY CARRIER.

7

C2 CLUTCH OPERATES.

FRONT INNER PLANETARY PINION GEAR
ROTATE COUNTERCLOCKWISE.

3

REAR PLANETARY CARRIER ROTATES CLOCKWISE.

10

OUTPUT SHAFT ROTATES CLOCKWISE.

11

FRONT OUTER PLANETARY PINION GEAR
ROTATES CLOCKWISE.

4

MIDDLE SUN GEAR ROTATES CLOCKWISE.

8

REAR SUN GEAR ROTATES CLOCKWISE.

9

REAR RING GEAR ROTATES CLOCKWISE.

9

E5U513ZS5020
